Disposable face masks flow wrap packing machine 1pc-10pc mask packs bagging equipment

Disposable face masks flow wrap packing machine 1pc-10pc mask packs bagging equipment

Flow Wrapping, or Horizontal Form-Fill and Seal (HFFS) is the process of making a horizontal bag from a single roll of film. Heat is applied to the bottom and ends of the film to form a sealed, flexible package already filled with products. Flow wrap packaging is used for a variety of products from food and bake goods to regular household items and stationary.

This flow wrapping machine for face masks 1pc-10pcs is designed to unitize product packs as well as to individually package piece products in three seal bags ("Flow Pack").

Suitable for non shape ( irregular ) products as well as normal product. Film go from bottom , a provision to operate with a photo sensor that reads photo marks on a packaging film,feed film to the collar shape bag former from underneath.

Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and top/bottom vertical seal.
From flow packing cookies, chocolate bars, confections and vegetables to wrapping soap bars, coffee pods, medical items and hardware, we have a solution for every application.

The machine design makes it possible to package products having various shapes: parallelepiped, cube, cylinder, truncated cone and more complex bodies. Bags are made of heat sealed film in reels. Machine cover is milk white color , product contact part is stainless steel .

►The following products can be packaged

drawing of packing machine.jpg

syringe labeller.jpg

working process for flow wrapping.jpg

1. Piece- product packaging:
 Bread , face masks, chocolate enrobed cheese bar , cards, popsicles, cookies, waffles, ice trowels, cotton wool, soap, etc.

2. Group packaging :
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.

3.Non standard products ( customization)
Individual spoon, fork, knives, also suit for packing spoon ,fork, knife , napkin , toothpick ,etc all in one pack.

►Specifications of horizontal packing machine face masks wrapper:

syringe packing equipment.jpg

Model: YX-350A

Output    20-200(bags/min)
Size Range Package cut-off length  50-6000mm
Product width    max.140mm
Product height    max.55mm
Packaging Material Reel
Reel diameter    ≤300mm
Core diameter    ≤75mm
Packaging material width    max.300mm
Weight    max. 35KG
Connections
Voltage    220V,50/60HZ
Power usage    3KW
Machine weight    350kg
Machine dimensions    L3920mm*W1100mm*H1500mm
Blade cut type    Rotary cutter
Motor configuration    Three Servo Motor
Optional Device    date printer, etc.

Optional Device    date printer, etc.



Food grade SS304 - save and clean


Cutter is adjustable with screws - no need copper gasket

machine parts details flow wrapper.jpg

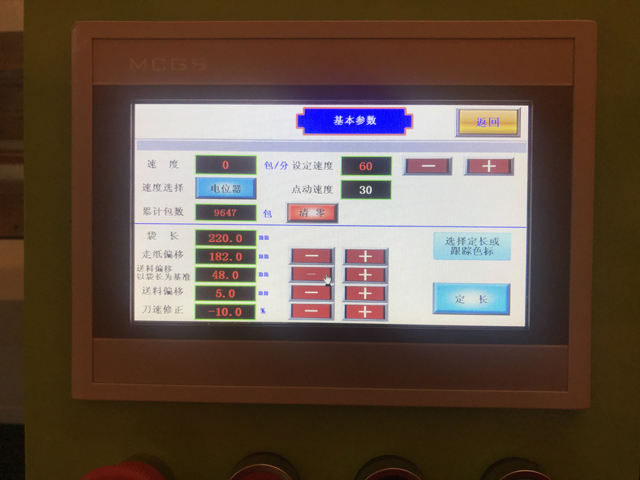

Touch screen for operation

CB-300SZ vibration plate

Unique medical paper tape and hole punching device

338685119477978965

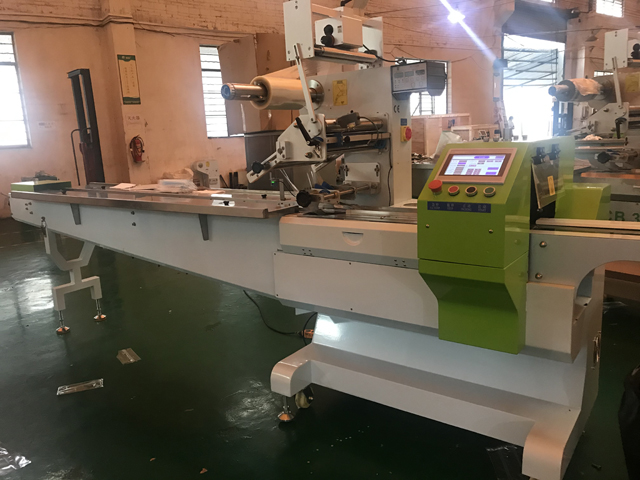

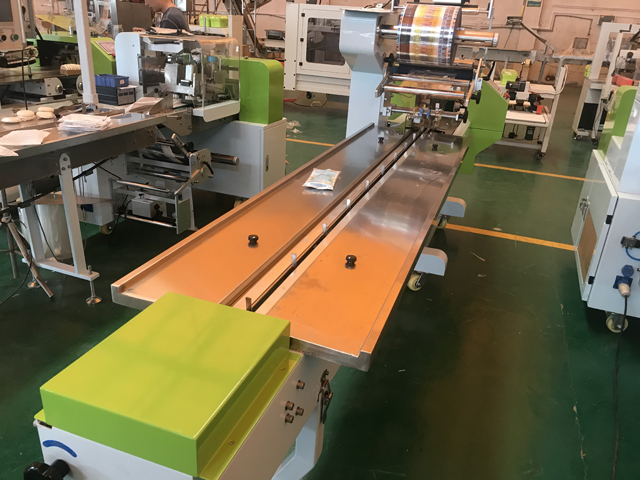

 More details for FACE MASKS bags packing machine model YX-350A

syringe packing machine.jpg

horizontal packing machine for syringe.jpg

horizontal packing machine for syringe.jpg

3pcs face masks wrapping packing machine (8).jpg

Note :

The maximum dimensions of products can't be quoted at the same time

The speed in production is subject to the film quality & products detail

The technical data are indicative and will modified at any time without previous notice

►Standard Equipments :

face masks wrapper PENGLAI China.jpg

manual instruction for syringe packing machine.jpg

Language in English

Bag length adjustable

Versatile bag forming

Photocell for print-registered film .

In-feed conveyer 2.5 meter long

Product touch part stainless steel

Temperature controllers

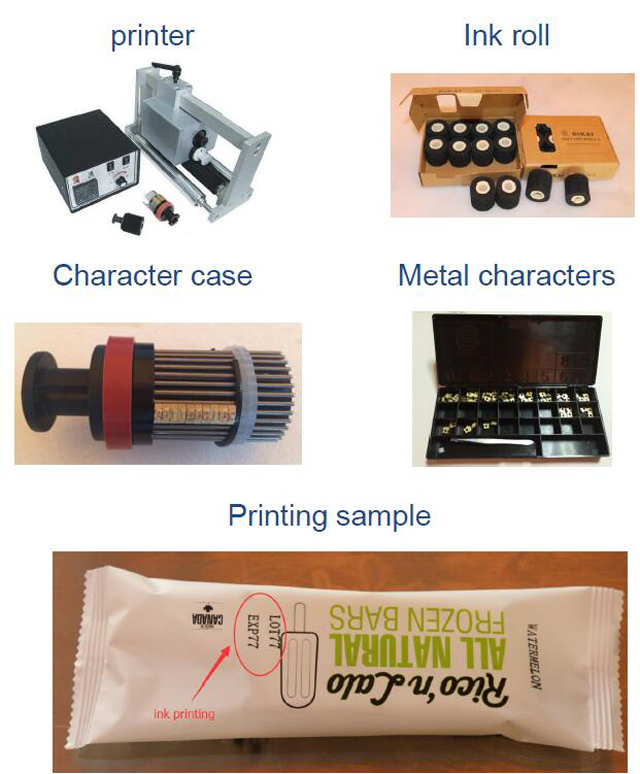

►Options:

  • Date Printer
  • Stainless steel cover
  • Siemens Touch screen
  • Desiccant Filling Machine

►Options:

  • Date Printer
  • Stainless steel cover
  • Siemens Touch screen
  • Desiccant Filling Machine

optional parts for flow wrapper.jpg


Samples for packaging horizontal of face masks:

samples for syringes.jpg

flow wrapping samples.jpg

Configuration of flow wrapping machine masks wrapper:

Components

Brand

Touch screen

Veichi/China

Servo motor

Veichi/China

Servo driver

Veichi/China

Solid state relay

Omron/ Japan

Photoelectric switch

SICK/ Germany

Circuit breaker

Schneider/France

Buttons and switches

schneider/France

Spare parts list for flow wrapping machine model YX-SP350:

spare parts for flow wrapping machine.jpg

Wooden case packing for syringe packing machine with vibrator feeding system model YX-SP350

flow wrapping machine (1).jpg

flow wrapping machine (2).jpg

wooden case packing for filling sealing packing machine.jpg

wooden case packing for wrapping masks machine.jpg

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be borne by the buyer and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be borne by the buyer;
