Triangle Pyramid Nylon Tea Bag Electric Scales Weighing Packing Machine With Outer Envelop Bagging Fully Automatic Equipment

  Triangle Pyramid Nylon Tea Bag Electric Scales Weighing Packing Machine With Outer Envelop Bagging Fully Automatic Equipment

The machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy teas. Pack broken tea, herb tea, coffee and other similar products.
The line consists of two machines mainly: Pyramid Nylon bags tea packing machine; Outer plastic bags packaging machine;There is the delivery system to connect both and transfer the pyramid nylon bags to the outer plastic bags packing machine for processing the outer bags packaging.

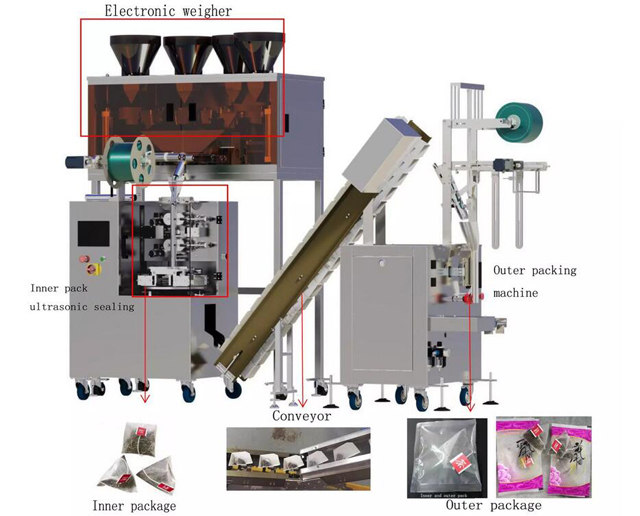

illustration for tea packing.jpg

Automatic adjustment of pouch size and filling range.
PLC Control system.
Technical parameters of model YX-T80A packing machine with inner nylon bags&outer plastic bags:

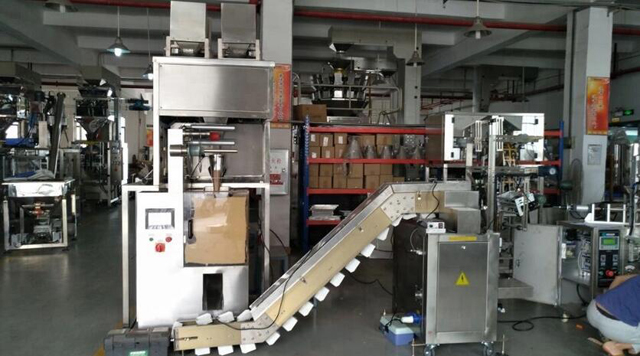

machine ready in stock.jpg

Product name    Pyramid tea bag packing machine/Inner & outer Tea bag Packaging Machine

Packing speed   30~50bags/min
Filling range 1~10g
Accuracy ±0.1g/bag
Feeding system 2/4 / 6 / 8 head electronic weigher
Material shape 10mm-2mm,stick or slice, irregular shape
Packing material Nylon, Non-woven mesh,PET, PLA
Width of the material 140 / 160 / 180mm

Bag size Pyramid: 50-80mm (each edge)
Flat bag: 40-80 (L) x 60-80 (W) mm
Inner and outer diameter of material
Inner : Φ76mm  Outer : ≤Φ300mm
Power supply Electricity: 220 V / 1.5 kW
Compressed air: ≥0.6Mpa Sealing method
Sealing and cutting by ultrasonic

Product name Outer Bag Packing Part

Capacity 30-55bags/min
Range Of Measurement
Customize according to product
Bag Size (Length):90-120mm   (Width):80-100mm
Sealing Form Three-side sealing / center sealing
Supply Voltage 220V, 50~60Hz
Packaging Materials    Plastic film, Paper, etc
Dimensions (L*W*H)

►1800*80*1550mm

►1000*750*1550mm

►1800*300*400mm


Function of tea packing machine model:

nylon bag packing stock.jpg
This machine can finish measuring, pulling, feeding, forming, date printing, cutting automatically
Adopts the stainless steel 201 for the machine's mainframe, and stainless steel 304 for the parts touching supplies
Fine packaging performance ,low noise ,clear sealing texture and strong sealing performance.
1.one-time packing for the inner and outer bag
2.The inner bag is made of filter cotton paper, which can be automatically packed with thread and tag.
3.The outer bag is composite paper.Photoelectric locating for the tag and outer bag, adjustment to the need of the content, length of inner bag and outer bag, and tag.

Detailed pictures for model YX-T80A packaging machine with inner outer bags:

4 scales packing.jpg

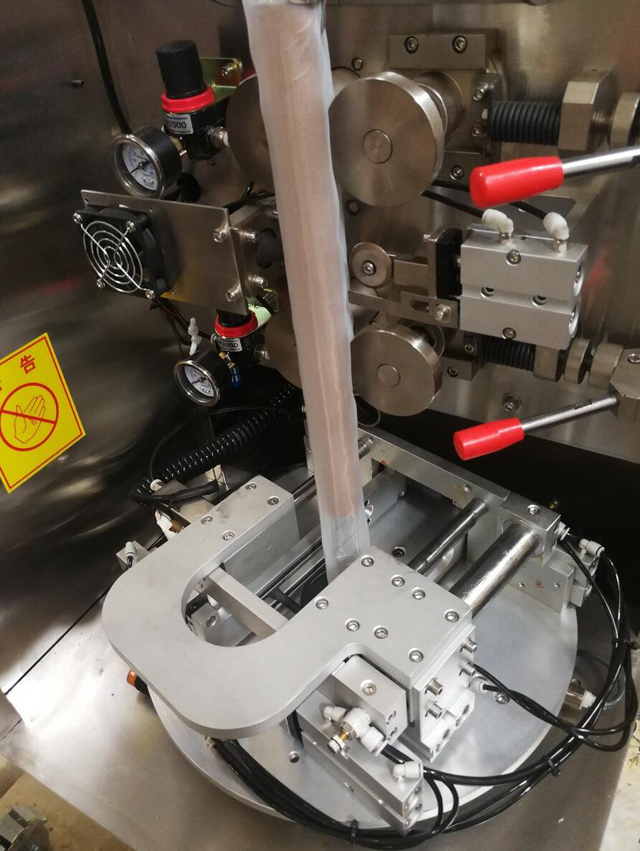

nylon bags sealing packing.jpg

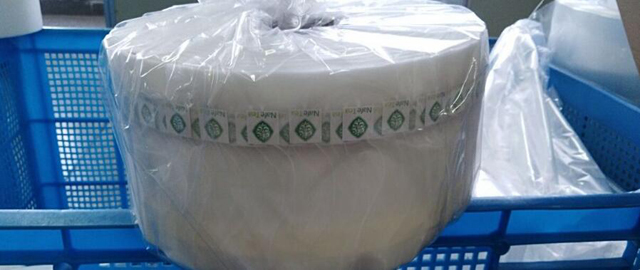

Nylon threads.jpg

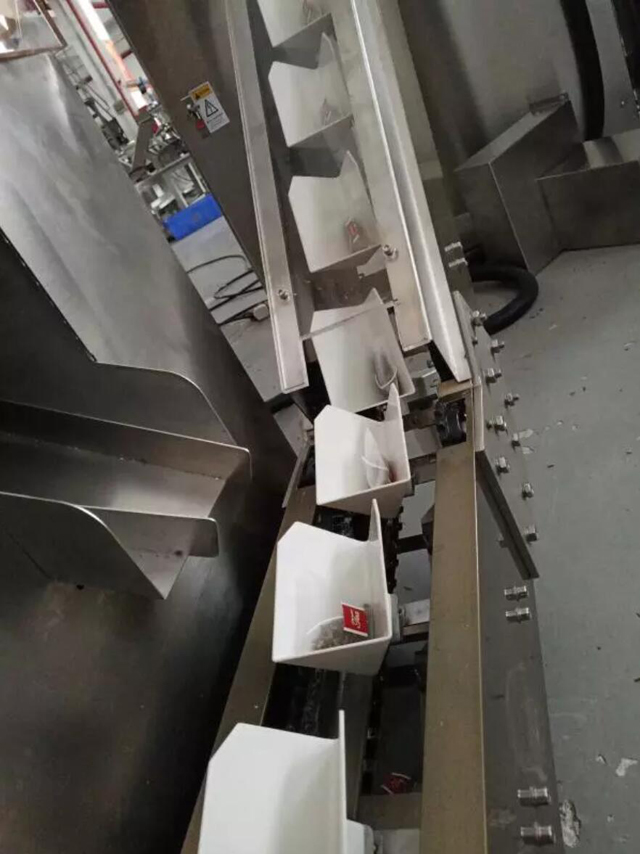

delivery system for Nylon bags.jpg

triangle bags nylon.jpg

electric board.jpg

outer bags packing.jpg

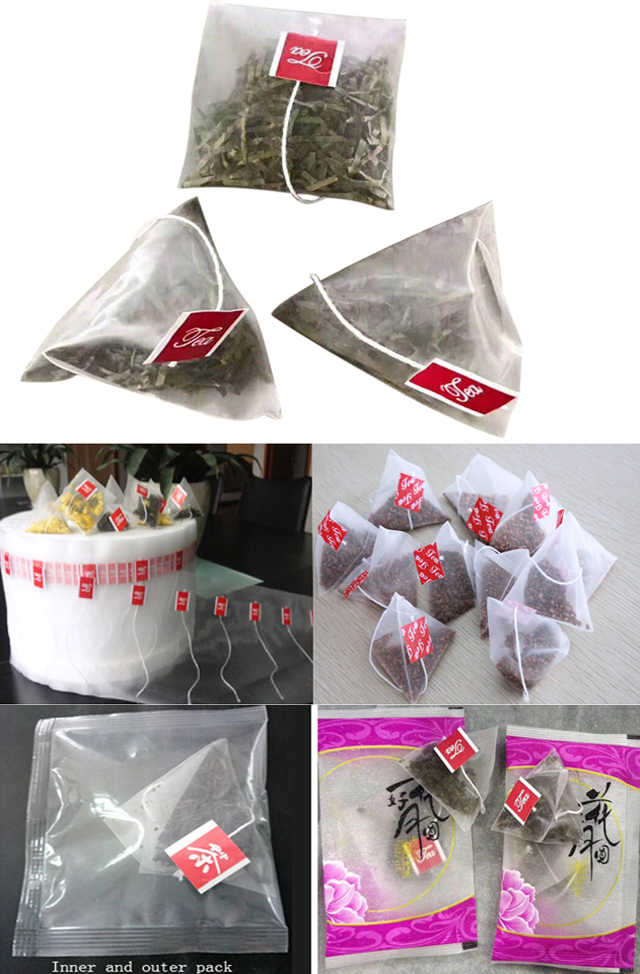

Packaging samples pyramid bags with/out outer plastic bags:

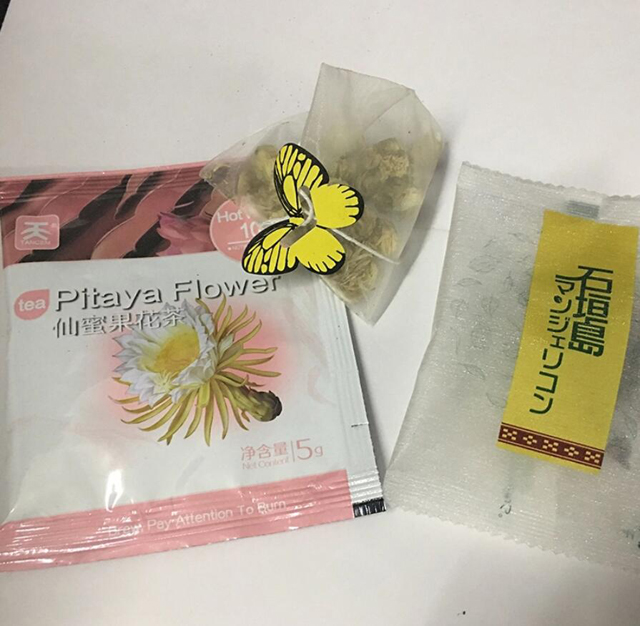

samples tea.jpg


samples tea.jpg

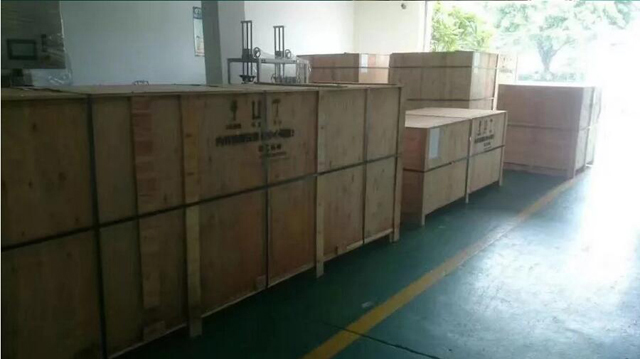

Wooden case packaging for tea packaging machine model YX-T80A:

tea packing machin in wooden case.jpg

tea packing machine in wooden case.jpg

The video shows how to install Nylon tea bags packaging machine:

After-sale service

We guarantee the quality of the main parts within 36months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need
to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of  Manufacturer’s best materials, with first class workmanship,brand new, unused and correspond in all respects with the  quality, specification and performance as stipulated in this Contract. Quality guarantee period is within 12 months from B/L date.
The Manufacturer would repair the contracted machines free of charge during the quality guarantee period. If the break- down can be due to the improper use or other reasons by the Buyer,  the Manufacturer will collect repair parts cost.
Installation and Debugging:
The seller should dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).The buyer should provide his site assistance for the installation and debugging.
