Vacuum emulsifiers

Jewelry tools equipment wax injection system automatic intelligent digital vacuum wax injector desktop for hardware watch accessories with automatic delivery system

Jewelry tools equipment wax injection system automatic intelligent digital vacuum wax injector desktop for hardware watch accessories with automatic delivery system

As the wax mold is injected with wax under vacuum,  the filling optimization and thin wax is also very easy to inject. It can control the  temperature of  wax cavity and wax mouth separately and show with digital for ensuring the correct temperature when wax injection. Heating standby time setting function, the work can be started as soon as wax injection operations, saving both time and electricity, but also improves the work efficiency.

Overall view for main body of vacuum wax injection system model YX-WI01

dimension of main body of machines.jpg

dimension of main body of machines.jpg

AUTOMATIC wax injection system jewelry tools hardware.jpg

Auto-clamp:

Power supply:AC 230V,50/60HZ,Single Phase
Power:50VA

wax injector equipment.jpg

Compressed air range0.25-0.30MPAP
Pessure displayed range0-240KPA

Setting range:
 1) One time inject (PRESS1)10-220KPA
 2) Two times inject (PRESS2):10-220KP
 3) Two times inject and add pressure time for begining(TIME)0-3 second

 4) Clamp pressureCLAMP30-235KP

 5)Forward pressure(FORWARD)65-235KPA

 6)Holding time(HOLD)0-300 seconds

menu of computer.jpg
Program numbers setting rangesetting item 0-9
Times of injecting rang9999 times
Dimensions1)Auto-clamp157(W)*223(H)MM
                  2)Control panel160(W)*260(D)*145(H)MM
Weight1)Auto-clampa out 5KG

2)Control panel  about 3KG

Features,Put the rubber mold to the auto-clamp, input the program number, and press the start button, and then clamp the mold,, go forward, automatic target wax injection at the mouth, vacuum, injection wax casting, clamp open etc, all auto finished.
Can be any combination of PRESS1,PRESS2,TIME,CLAMP,HOLD,FORWARD

 AUTOMATIC wax injection system jewelry tools hardware.jpg

Vacuum pump

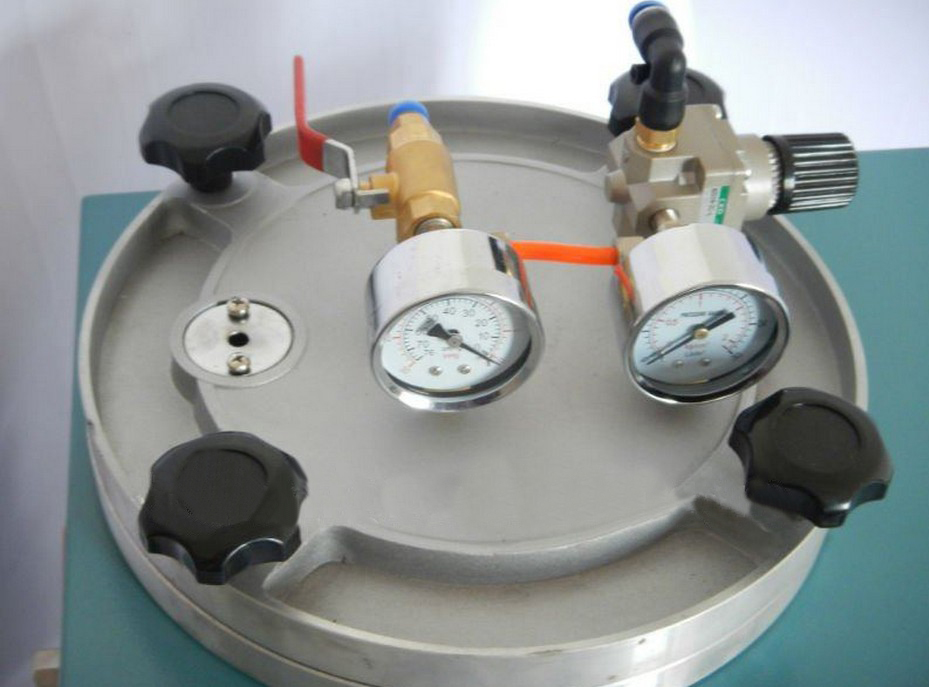

vacuum part for wax injector.jpg

Pumping rate(cfm)

Utimate

 Vacuum

Powder  Motor

 (HP)

Rotating speed

(r/min)

Inlet port

Fuel Charge

(ml)

Overall

dimensions

 (mm)

Weight

(kg)

220V-/50Hz

110V-/60Hz

220V-/50Hz

110V-/60Hz

2CFM

 60L/min

2.5CFM

72L/min

10Pa/75

Microns

1/4

1440

1720

1/4SAE

250

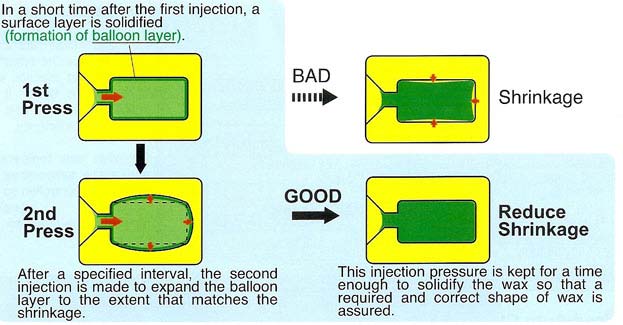

Wax shrinkage is a common problem with traditional style wax injectors, causing considerable metal loss and change of shape when polished. The solution is the newly developed two-time injection system that minimizes the wax shrink.

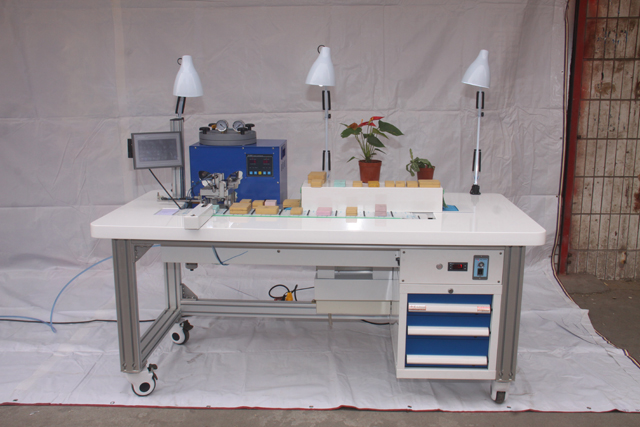

Total set of the machine : weight 80KG ; Size : 1400*800*750mm

wax injection system automatic.JPG

standard set for equipment basic configuration :

►host machine 1*set

►white work table 1*set

►Jig 1*pc

►wax injector 1*set

►White sportlight 2*pcs

►Chips 80*pcs

►Several nozzles head and chips molds

 Samples from vacuum wax injection system model YX-WI01

SAMPLES for wax injection system.jpg

beauty products from wax injector.jpg

Plant for manufacturing of wax injection machines

plant for manufacturing jewelry with wax injector.jpg

Wooden case packaging for wax injection system automatic intelligent digital desktop model

plant for manufacturing jewelry with wax injector.jpg

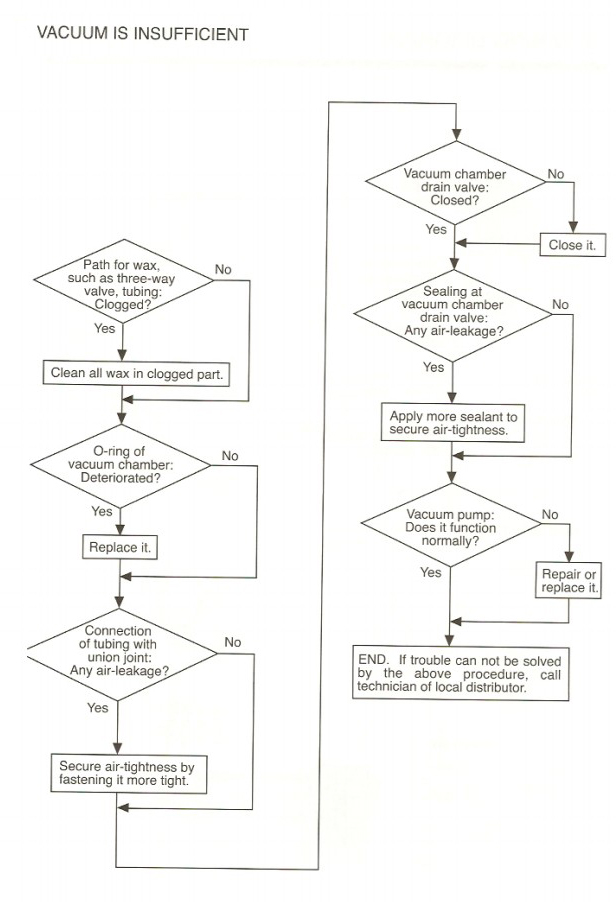

Trouble shooting for some problem on wax injection machine automatic digital intelligent:

trouble shooting for wax injection machines.jpg

vacuum pump insufficient from wax injector.jpg



After-sales service for filling sealing machine:

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account

and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
