50L vacuum emulsifier homogenizer equipment with water oil tank cream manufacturing machinery for co

50L vacuum emulsifier homogenizer equipment with water oil tank cream manufacturing machinery for co

The cream vacuum mixer is designed and used for heating, melting, and ointment emulsifying. It is the necessary equipment for production of medium and premium emulsifier pastes, such as: face cream, wash cream, cosmetic and material. The speed of both scraper mixing mode and ointment mixing mode can be adjusted sleeplessly. Driven by electricity or liquid, the machines performance and output is stable and credible.
Feature of 50L skin product cream vacuum mixer emulsifier equipment homogenizer lotion processing tank préparation de crème Machine:
a. The equipment includes oil boiler, water boiler, emulsification kettle, vacuum equipment, temperature system, cooling system and operation platform.
b. suitable for heating, melting, mixing, homogenizing and vacuum emulsification
c.easy to operate
d. .sready, efficient and automatic

YX-VEM50L vacuum emulsifying mixer is widly use for below products:

application of vacuum cream mixer.jpg
Cosmetic: face cream, hand cream, sunscreen cream, eyelash to cream, hair gel, lotion, bath shampoo,
hair gel, nail polish, hair conditioner etc.
Pharmaceutical industry: ointments, syrup, nutrition, bio-products, paste of pharmaceutical etc.
Daily use industry: toothpaste, detergents, shoes polish, soap, fragrance etc
Food industry: sauces, jam, chocolate, butter, vegetable proteins, animal proteins etc.
Chemical industry: Painting, pigment, dyes, paints, adhesives detergents etc.

the vacuum emulsifier can be adopted in one whole line for cosmetic making machine

homogenizer production line.jpg


Working Process:

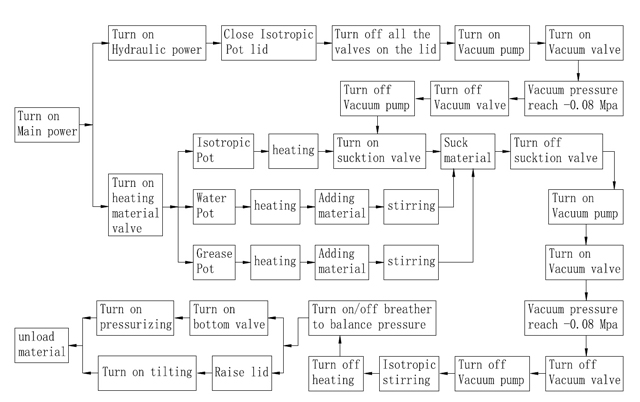

working flow chart for vacuum mixer.jpg

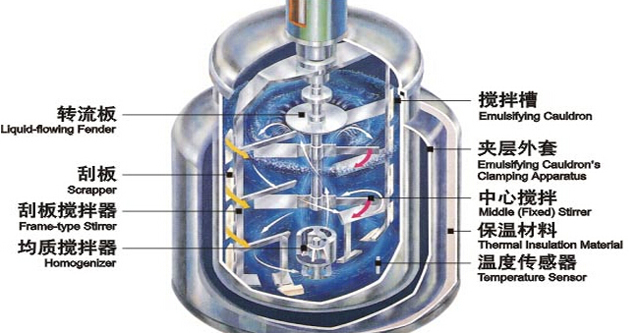

inside the main pot for vacuum emulsifier.jpg

illustration of mixing equipment.jpg


Put the materials into premix tank oil phase tank and water phase tank,after heated & mixed in water tank and oil tank, it can drawn the materials into emulsifying tank by vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying tank that sweep the residues on the wall of the tank to makes the materials wiped off become the new interface constantly. Then the materials will cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in interstices of  stator and rotor and turn to particles of 200nm-2um promptly. Because the emulsifying tank is working under the vacuum state, the bubbles that produces in the process of mixing is taken away in time.


Technical parameters:VEM-50 Vacuum Emulsifying Mixer

tank emulsifier.jpg

illustration of vacuum mixer.jpg

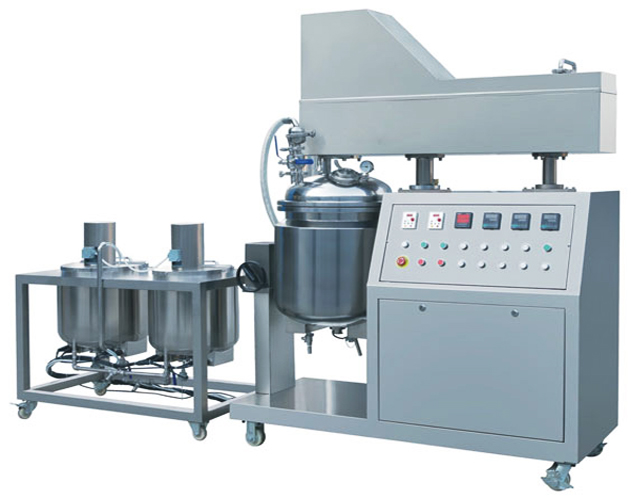

vacuum mixer 50L.jpg

control panel for mixer.jpg


VEM-50 vacuum emulsifying mixer
Design Volume(L) 50Liter
Working Capacity(L) 40Liter
Scraper Stirring Power(kw) 0.75kw
Scraper Stirring Speed(rpm) 0-86rpm
Homogenizer Power(kw) 1.5kw
Electrical Heating Power(kw) 4kw
Homogenizer Speed (rpm) 0~2800rpm


Oil pot
Design Volume(L) 25Liter
Capacity(L) 20Liter
Power(kw) 0.55kw
Speed(rpm) 1400rpm
Electrical Heating Power(kw) 2kw


Water pot
Design Volume(L) 38Liter
Capacity(L) 30Liter
Power(kw) 0.55kw
Speed(rpm) 1400rpm
Electrical Heating Power(kw) 2kw

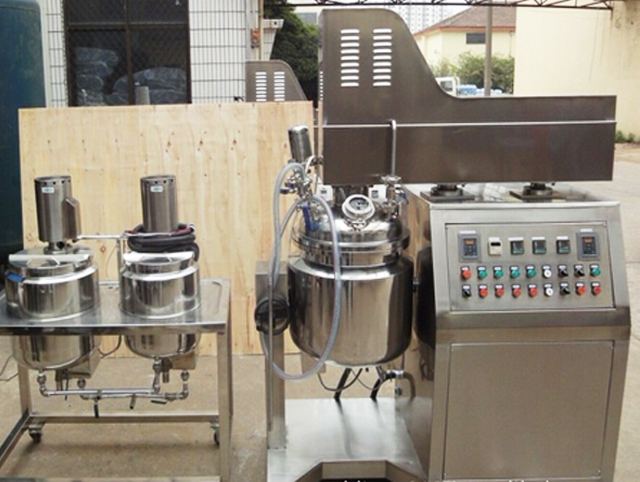

emulsifier equipment stainless steel.jpg

MACHINE effect illustration for dimension.jpg
Dimension(Just for reference)
Emulsifying (Length×Width×Height) mm 1540×600×(1900-2400)
Water boiler and Oil boiler(Length×Width×Height) mm 925×550×1050

Final product samples for vacuum mixer

vacuum mixer final products out.jpg

cream for mixer final product.jpg

Packaging size &wooden case packing before shipping delivery

film protective for vacuum mixer.jpg

wooden case packaging machines.jpg

After sales service &guarantee for vacuum emulsifier machine with load cell weighing system electric heating


Guarantee: for all the machine, it claims one year for guarantee.


(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
