Blending tanks

10L powder mixing machine laboratory use mixer equipment Three dimensions blending equipment for cosmetic powder

10L powder mixing machine laboratory use mixer equipment Three dimensions blending equipment for cosmetic powder

This machine is suitable for food, pharmaceutical, cosmetic, chemical, plastics, ceramics, metallurgy and other industries of similar particle size of powders and granular material mixing. it is a first choice for customer. The device consists of frame, shell, drive, transmission parts, electrical control etc. The length of two circles is different, so the machine is dissymmetry. It can spread blend when the blender revolves. Meanwhile the inside wall of the bowl is not flat; they have different gravity, result in crosswise convection blending. When the above mixing process carries out continuously, makes material mix very even.

Equipment electrical control system is simple and reliable; the actuating device work closely with the transmission gear drive service for the mixing equipment and loading material.

Application of V mixing machine

application of powder.jpg

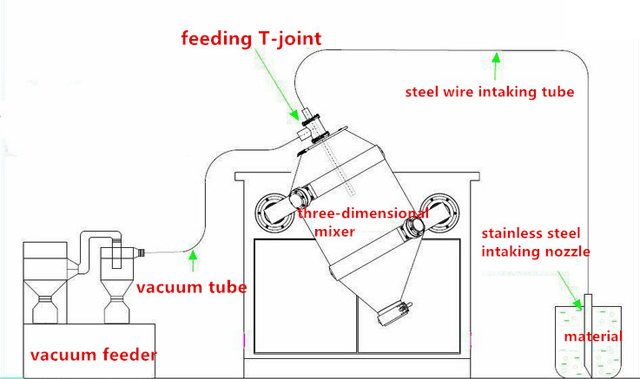

Illustration of powder mixing equipment

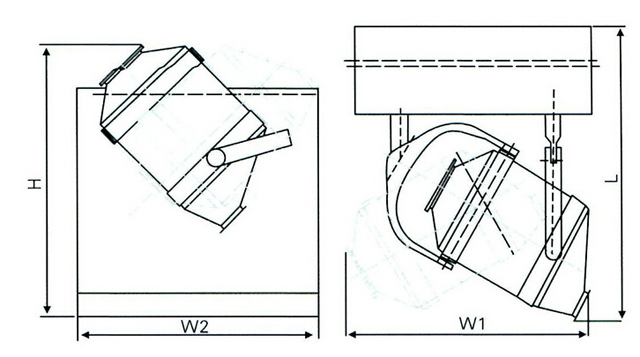

Structure diagram.jpg

V mixer.jpg

Product features:

1 adopts stainless steel shell, internal and external wall polishing; Stainless steel frame is made of the channel steel welding and outer stainless steel. It is free from contamination and corrosion resistance, Comply with GMP requirements;

2, for material feed pressure is small, less power consumption, high mixing uniformity, material in the mixing process does not produce noise;

3, have not driving mechanism in the barrel, be convenient to cleaning refueling,be without dead Angle;

4,when mixing material easily condensed or has certain moisture, according to the special requirements of users, increase the mandatory mixing blades in v-shaped cylinder body,in order to speed up the mix, make the material more evenly mixed;

Specifications of powder mixing machines:

10L v mixer for Laboratary use.jpg

Model: YX-V10

Volume: 10L   Barrel diameter: 160mm

Inter Wall of barrel thickness: 2mm

Source voltage: 220v 50Hz   Motor power: 0.12kw

Speed of agitator: 12r/min

Mixing time: 6-8min  Product capacity: 4kg/time

Height of gyration: 670mm

Width of gyration: 460mm

From discharging position to the ground height: 140mm

External dimension: 660X1000X1000mm

Weight: 150kg

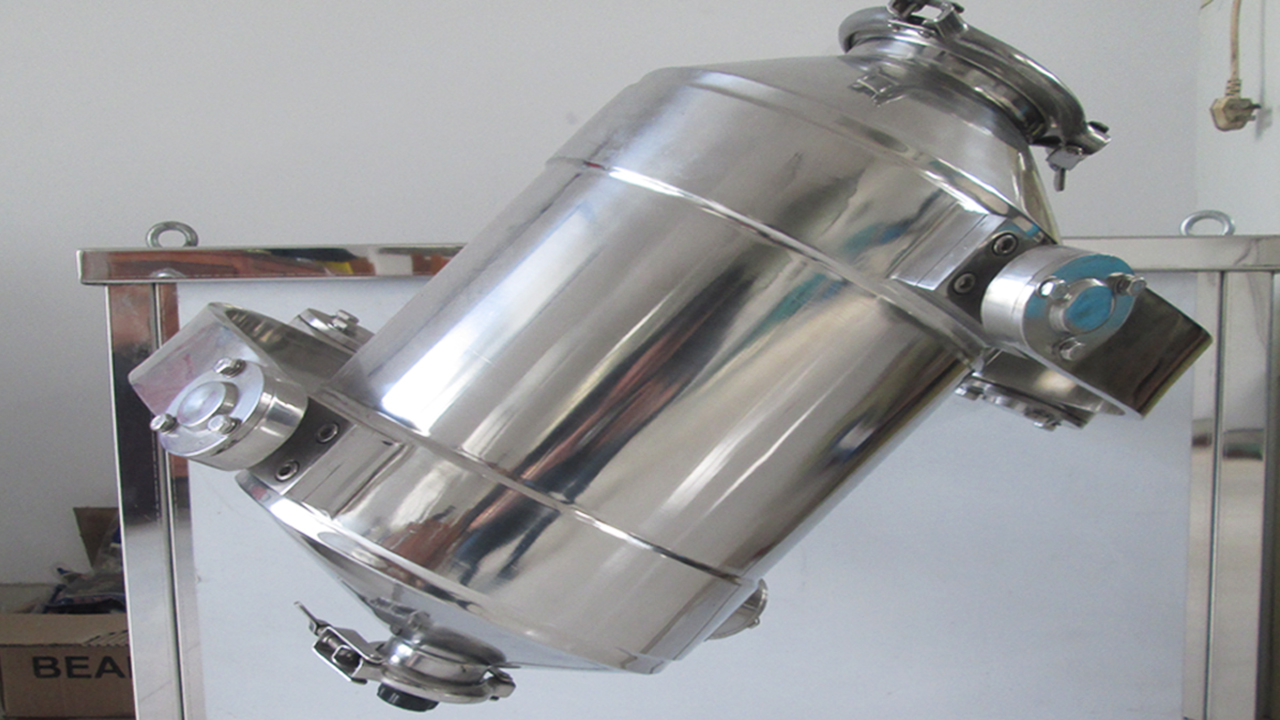

Products details for mixing machine powder mixer equipment

mill balls.jpg

stainless steel 10L v mixer for Laboratary (2).jpg

stainless steel 10L v mixer for Laboratary (2).jpg

Wooden case packaging of mixing machine

packaging in crate.jpg

After-sales service for mixing machine V-shaped powder blending equipment

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible . The cost should be in your account.(as above).
