Jewelry Making Machine Wax Injection Molding Equipment Vacuum Wax Injector Jewelry Tools

Jewelry Making Machine Wax Injection Molding Equipment Vacuum Wax Injector Jewelry Tools

This device is the first of its kind wax injector that has a digital and proportional pressure controller which is built-in.

The parameters can all be set, checked and programmed easily using the wide LCD screen that has been designed for convenience.

Bulky pieces can be produced without any shrinkage and fine filigree pieces without flashes by the proportional wax injection inside the mould.

The device is concisely designed to be operated on top of a table. Intricate moulds can be done with fine filigree, posts and claws.

Complete filling is made possible by the evacuation of air. This aids in production of waxes that are consistent - fine or massive.

Hence products with even the most complex patterns are rejected less. faster and simpler cleaning is made possible with the advent of the new design of wax and vacuum chambers.

The machine also operates silently and with accurate control of wax chamber and nozzle.

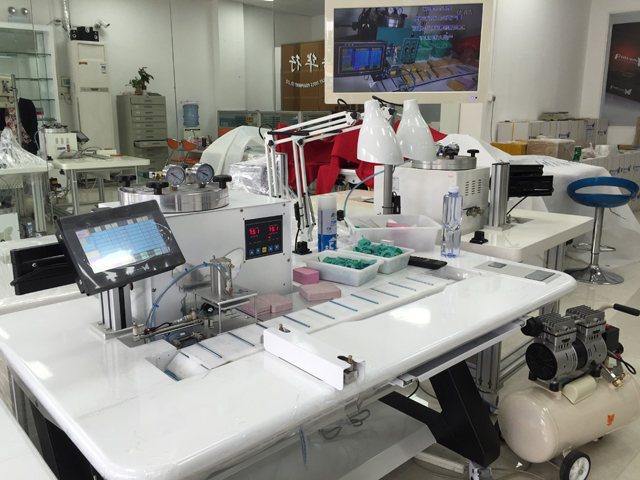

Features of Digital Vacuum Wax Injector YX-WI01

vacuum injector.jpg

►Good filling. Vacuuming of the mold before injection ensures good filling for fine filigree and difficult designs. (do not use molds with air-releases, the vacuum will in air from outside).

►Accurate temperature control. Wax tank temperature and nozzle temperature are individually controlled so that accurate injection temperature is obtained.

►This model has a 99-hour "Heater-ON timer" so you can start injection work at a specific time. It will improve electricity cost and will increase efficiency.

Basic parameter of model YX-WI01 vacuum injection equipment:

equipment for vacuum injection.jpg

Model YX-WI01
Power supply : AC 220v 50HZ/60Hz Single phase
Power consumption: 400W
Wax capacity : about 3kg
Temperature Precision: ±0.2
Air pressure supply: 4-7kg/cm
Pressure range: 0-2kg/cm
Temperature display range: 40-90C
Temperature adjusting ranges: 40-90C
Setting time range for vacuum: 0-24.9seconds
Timer ranges: 0-99.9hours
Mould sizes: 10CM*9CM*4.5CM
N.W 150kg,G.W 200kg

The videos as below show how to connect wire&operate the machine after you get the machine from our factory:

Right way to place the chips

chips and moulds for vacuum injector.jpg

When the conveyor belt is in action, the rubber mould should be placed at least from the 3rd grid.

Only when it moves to the 2rd grid, the sensor chip could be read.

When the conveyor belt is in action, do not place the rubber mould directly at the 2nd grid, or it could not be sensed.

When the conveyor belt stops, the testing rubber mould should be placed at the 2nd grid. After all parameters are set, press TEST RUNNING to start rubber mould recalibration.

The 1st gird is for preparation casting, which is about to enter into casting. During continuous production, please do not remove the rubber mould, or error warning will come up.

chips position.jpg

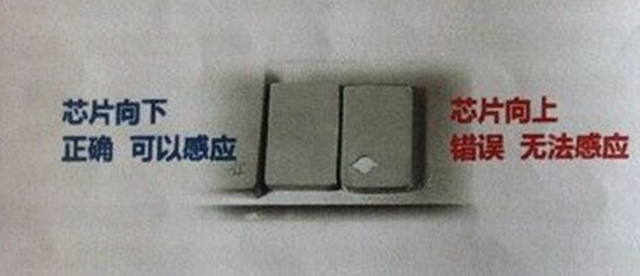

If the chip is placed downwards, it is the right positioning, the mould could be sensed.

If the chip is placed upwards, it is the wrong positioning, the mould could not be sensed.

chips and moulds for vacuum injector.jpg

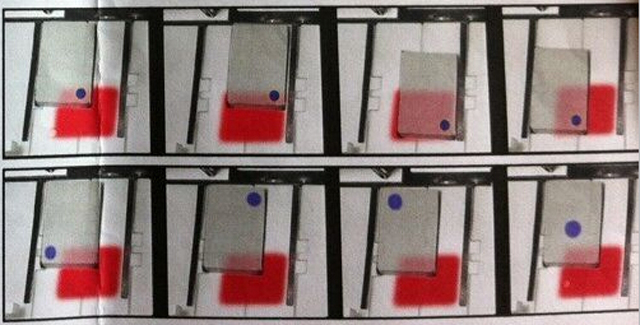

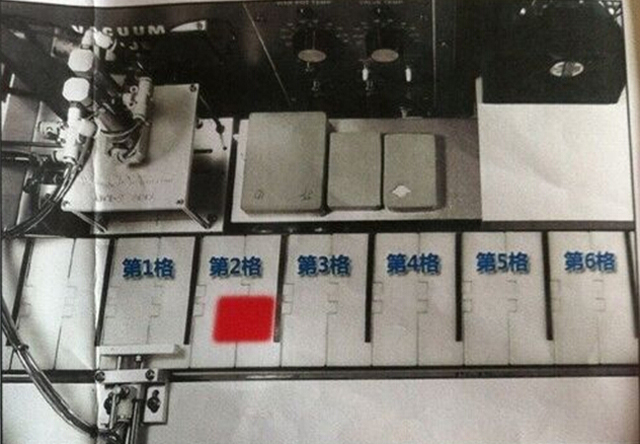

The relation between Correct mould positioning and sensing area

The red area is the chip sensing area, while the blue dot means the chip is the at right bottom of the rubber mould

The blue area chip should be downwards and be flat and against the conveyor belt.

The relation between wrong mould positioning and sensing area

The blue dot chip is away from the sensing area, so the chip parameters could not be read.

The blue dot chip is upwards and far away from the conveyor belt, which could not be read.

How to Adjust the air pressure for jewelry tools:

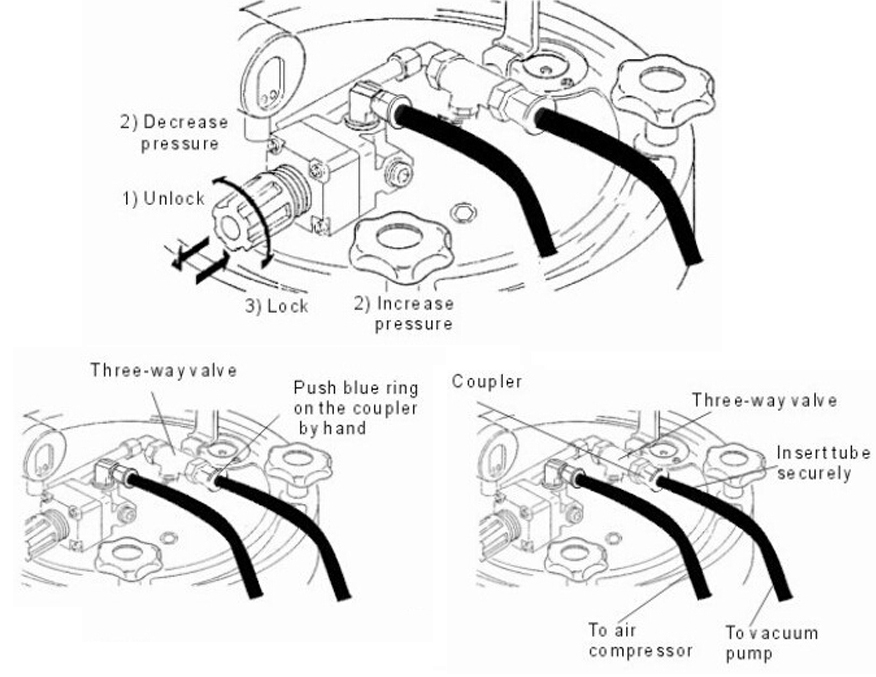

Turn the air pressure regulator knob to change air pressure.

1)  First,pull the knob

2)  Sencond rotate it around its own axis.

3)  After seting,push the knob back so that the knob should be loked and the set value should be maintainde during operation.

how to adjust the air pressure.jpg

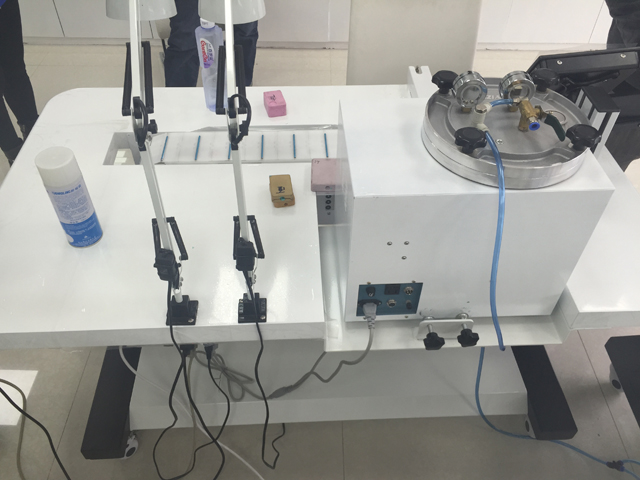

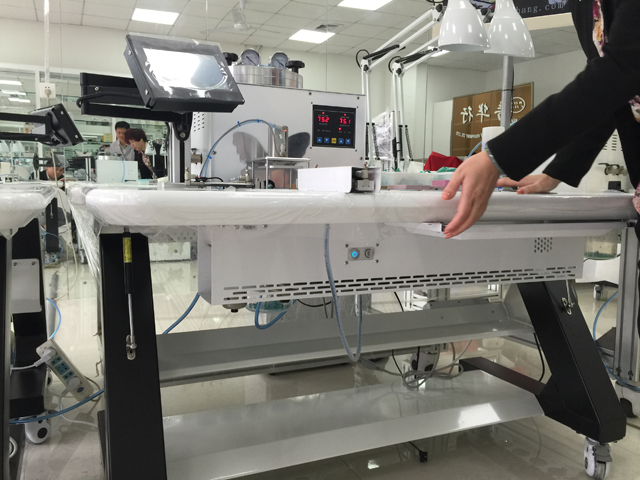

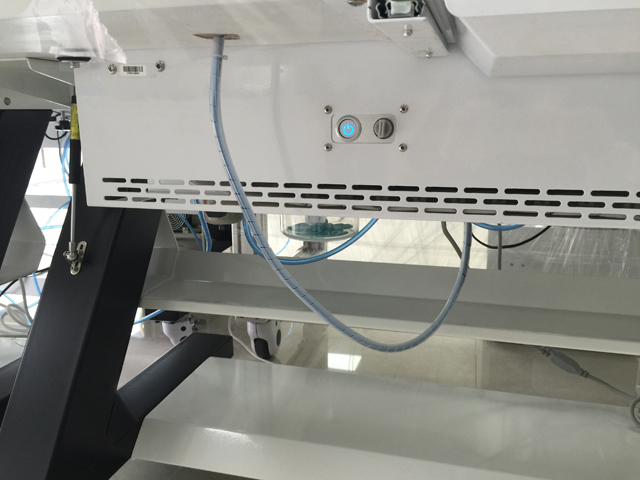

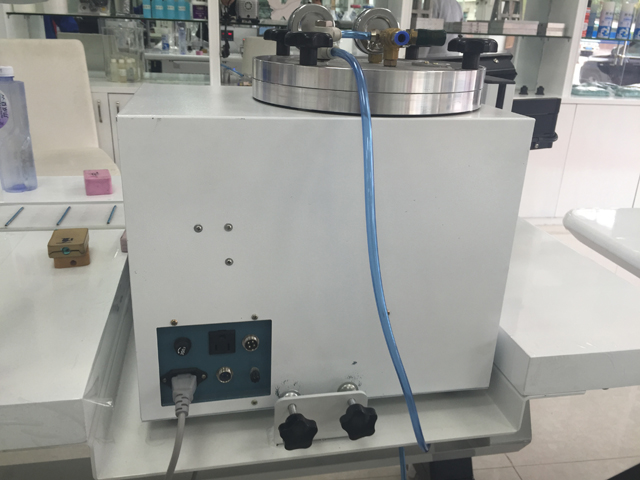

Other details of model YX-WI01 new type vacuum injection equipment jewelry tools:

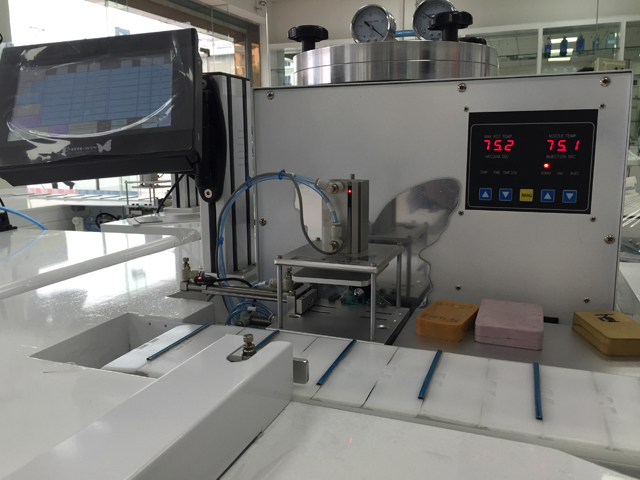

upgraded vacuum injector.jpg

chips position.jpg

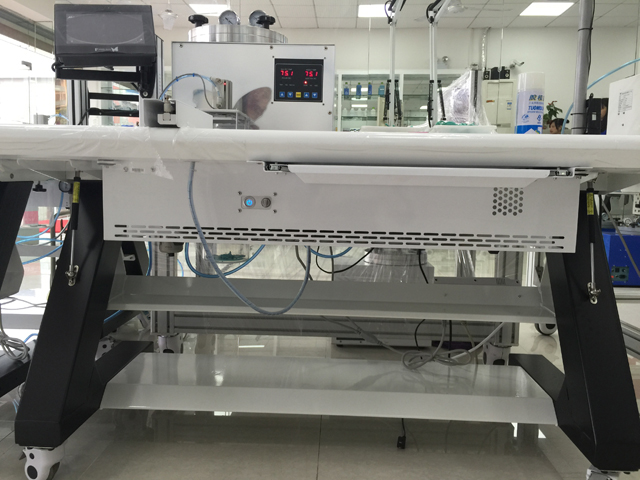

back side for vacuum injection.jpg

wax tank.jpg

vacuum injection equipment.jpg

Wooden case packing for model YX-WI01 vacuum injection machine

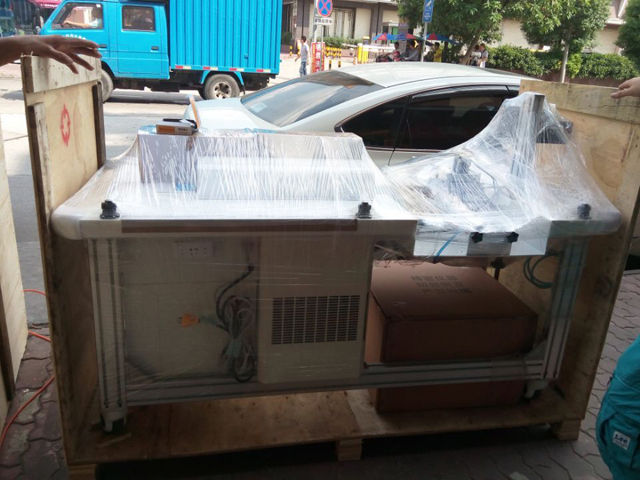

plywooden packing for vacuum injection.jpg

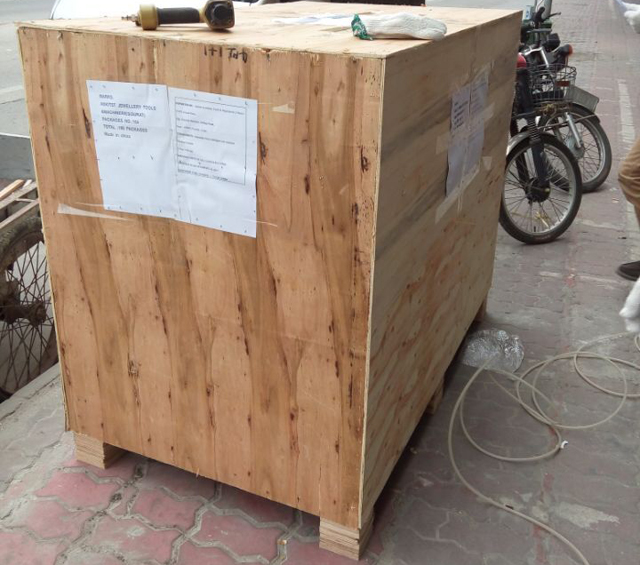

wooden case.jpg

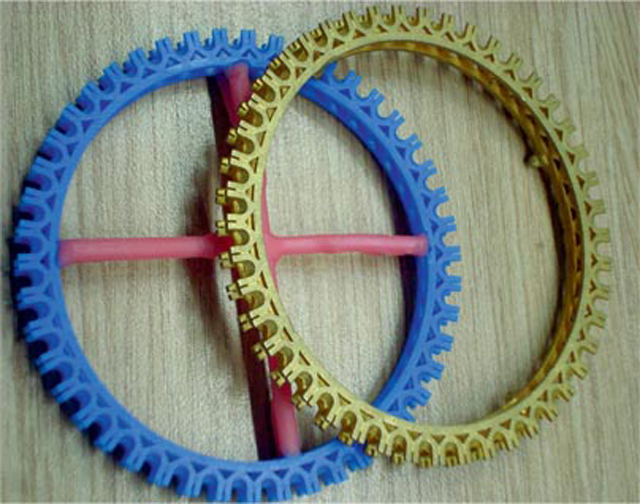

Samples for jewelry moulding

samples from vacuum injection machines.jpg

samples for vacuum injector.jpg

After-sales service for jewelry tools vacuum injection molding equipment:

chips and moulds for vacuum injector.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
