Blending tanks

Carbonated drinks CO2 liquid blending tank mixing equipment beverage juice mixer machinery food pack

Carbonated drinks CO2 liquid blending tank mixing equipment beverage juice mixer machinery food pack

Carbonated Drink Mixer is applied for carbonation and proportion mixing of various gas beverages (water, syrup, and CO2), such as lemon and Cola.  Carbonated Drink Mixer is the main equipment among the complete equipment of beverage production line (especially the key equipment producing middle-and top-level beverage).

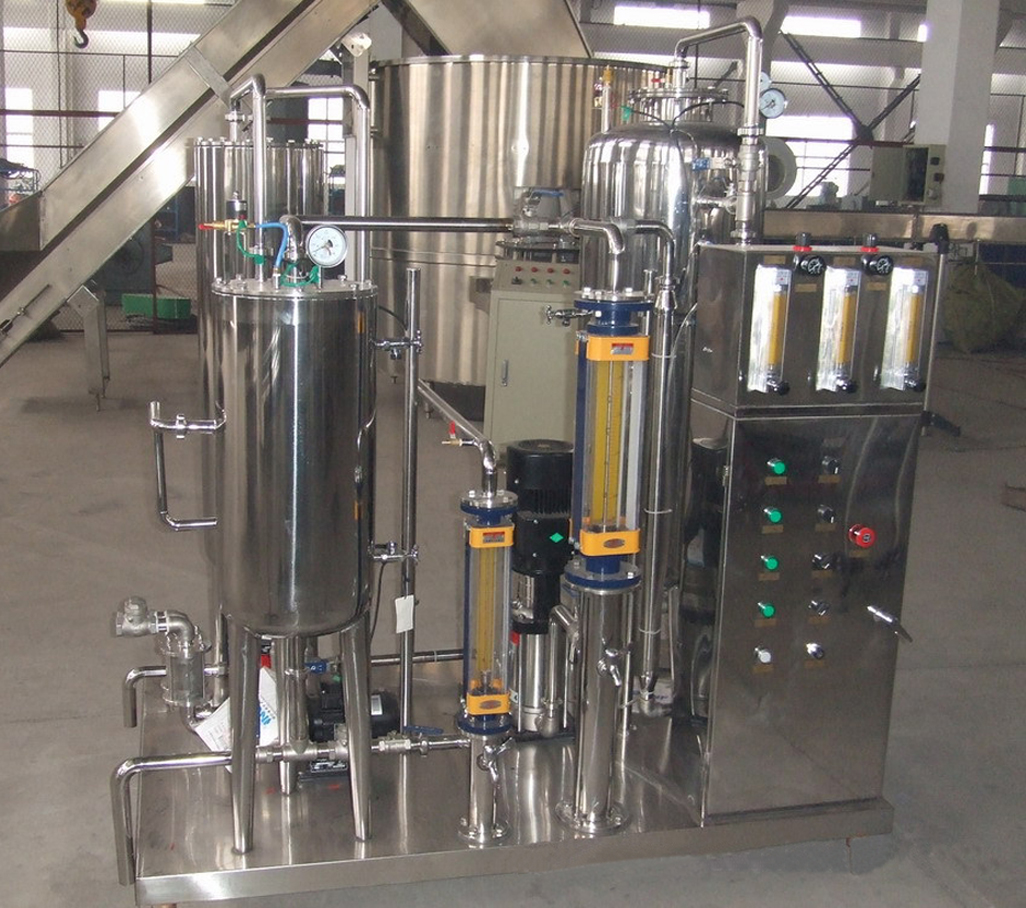

YX-CB series Carbonated Beverage/Drink Mixer

Beverages, Drinks.jpg

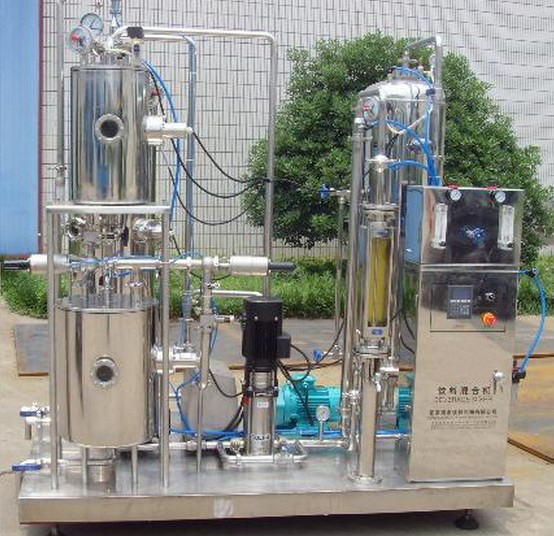

Features of beverage drinks blending mixing machines liquid blender equipment:
Beverages Drinks.jpg

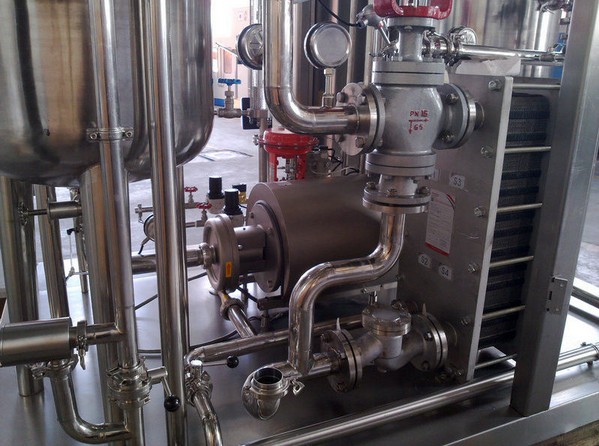

Carbonated Drink Mixer , after the adoption of advanced technologies in the chemical industry—static mixer (carbonizer), features large area of gas/liquid mass transfer, small resistance loss, high efficiency, low energy consumption, and simple structure.  Carbonated Drink Mixer also adopts the multi-stage centrifugal pump with reliable performance and low noise, guaranteeing the performance of the whole machine.



The mixing proportion is accurate and easy for adjustment. With no need of parts replacement, Syrup water CO2 drink mixer can realize the quick output adjustment and the proportion of syrup and water.

Beverages Drinks.jpg



Carbonated Drink Mixer , by use of CO2 reflux deoxidation, not only saves CO2, but also achieves the objective of deoxidation and makes the deoxidation water have better pre-carbonation effects.



Carbonated Drink Mixer is convenient to adjust the gas content. According to the requirements of beverage gas content, the adjustment can be done through proper operation.



Carbonated Drink Mixer has perfect automatic control system, featured by coordinate action, simple structure, continuous production, and high automation.



Working principle and main characteristic

Beverages, Drinks.jpg

Working principle:

When bottles are sent to the machine by conveyor continuously, they firstly are deliveried to the receiving wheel by air-slide conveyor and then to washing part. The bottle clamps hold the bottles and trun over 180°to wash, then return back to their original position after enough washing and drying. Then, the bottles are sent to the middle thumb wheel 1 and to the filling part to be filled, then moved by  middle thumb wheel 2 and reach to capping part to be capped, at the same time, cap trimmer sends caps to the top of the bottles and capper screws caps. At last, bottles are sent to the conveyor chain by the out stirring wheel to next working position.

Main Technological Data of CO2 beverage drinks filling packaging machinery:

mixing machine for CO2.jpg

Type

YX-CB1500

YX-CB  3000

YX-CB 4000

YX-CB 5000

YX-CB -6000

Production Capacity (kg/h)



1000 - 1500



2500 - 3000



2000 - 4000



2500 - 5000



4000 - 6000

Adjust Proportion of Syrup and Water



1:3 1:10



1:3 1:10



1:3 1:10



1:3 1:10



1:3 1:10

Gas Qty

1.5-2.5

2.5

2.5

2.5

2.5

Cool Water Entry Temperature ()



0 - 5

Working Pressure (MPa)



0.05 0.15

Storage Tank Working Pressure (MPa)



0.2 0.5

Power (KW)

1.5

3.7

4.05

5.6

6.2

Dimension (mm)

900 * 700

*2000

1720 * 1140

*2100

1860 * 1300

*2100

1960 * 1400

*2150

2020 * 1500

*2200

Weight (kg)

500

1100

1300

1600

1800

Beverages, Drinks.jpg

Packaging&shipping for carbonated drinks mixing equipments model YX-CB series

packaging in crate.jpg

After sales serive for beverage mixing machines

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE).


Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.


After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).

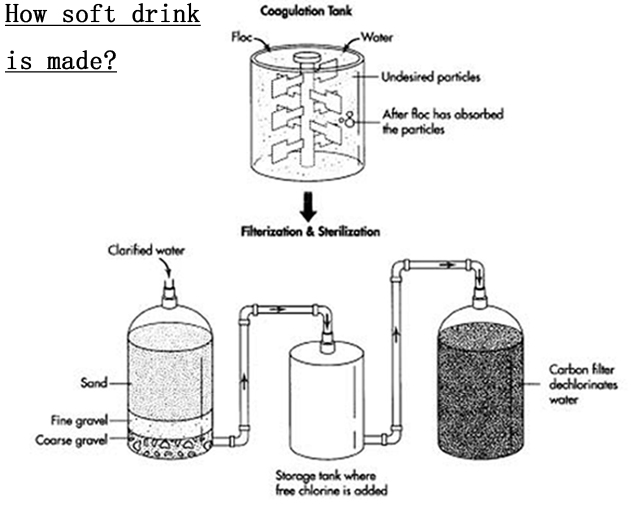

Annotation: What is the carbonated drinks?



illustration of how the soft drink is made.jpg



A soft drink (Terminology for other names) is a drink that usually contains water (often carbonated), a sweetener, and a natural and/or artificial flavoring. The sweetener may be a sugar, high-fructose corn syrup, fruit juice, a sugar substitute (in the case of diet drinks), or some combination of these. Soft drinks may also contain caffeine, colorings, preservatives, and/or other ingredients.

Soft drinks are called "soft" in contrast with "hard" alcoholic drinks. Small amounts of alcohol may be present in a soft drink, but the alcohol content must be less than 0.5% of the total volume of the drink in many countries and localities if the drink is to be considered non-alcoholic.Fruit punch, tea (even kombucha), and other such non-alcoholic drinks are technically soft drinks by this definition, but are not generally referred to as such.

soft drinks.jpg


Soft drinks may be served cold, over ice cubes, or at room temperature. They are available in many container formats, including cans, glass bottles, and plastic bottles. Containers come in a variety of sizes, ranging from small bottles to large multi-liter containers. Soft drinks are widely available at fast food restaurants, movie theaters, convenience stores, casual-dining restaurants, dedicated soda stores, vending machines, and bars from soda fountain machines. Soft drinks are usually served in paper or plastic disposable cups in the first three venues. In casual dining restaurants and bars, soft drinks are often served in glasses made from glass or plastic. Soft drinks may be drunk with straws or sipped directly from the cups.

Soft drinks are mixed with other ingredients in several contexts. In Western countries, in bars and other places where alcohol is served (e.g. airplanes, restaurants and nightclubs), many mixed drinks are made by blending a soft drink with hard liquor and serving the drink over ice. One well-known example is the rum and coke, which may also contain lime juice. Some homemade fruit punch recipes, which may or may not contain alcohol, contain a mixture of various fruit juices and a soft drink (e.g. ginger ale). At ice cream parlors and 1950s-themed diners, ice cream floats consisting of a soft drink poured over ice cream, such as root beer floats, are often sold. Some types of soft drinks are lemon-lime drinks, orange soda, cola, grape soda, and root beer.

Within a decade of the invention of carbonated water by Joseph Priestley in 1767 inventors in Britain and in Europe had used his concept to produce the drink in greater quantities, with one such inventor, J. J. Schweppe, forming Schweppes in 1783 and selling the world's first bottled soft drink.[4][5] Soft drink brands introduced in the 19th century include R. White's Lemonade in 1845, Dr Pepper in 1885, and Coca-Cola in 1886. Subsequent brands include Pepsi, Irn-Bru, Sprite, Fanta, and 7 UP.

soft drinks.jpg
