semi automatic labeling machine

paper cartons pipe bottles hot melt glue labeling machine manual feeding labeler equipment semi auto

paper cartons pipe bottles hot melt glue labeling machine manual feeding labeler equipment semi auto

Hot melt gluing machine is a new product with creative design. The already made products will not be shapeless because of the climate or the humidity, will not be cracked because of time. Under the degree of 15°, the hot melt glue will dry permanent. It can produce hot melt glued paper for wholesale which can compete with PVC sheet.

The hotmelt glue labeling machine can be applied in making card paper, paper, sand pvc, glazed pvc, foam pvc, ect. It's one of the best product for gluing.

- Technical Parameters of hotmelt glue labeling machines

hotmelt glue labeling equipment.jpg

model YX-YX-GL01

Feeding method:manual  Discharging method:manual

Cleaning method:no need to clean  Paper tube diameter:Φ30mm—Φ160mm

Label length:110mm-400mm  Label thickness:100g-157g

Paper tube wall thickness:0.8-1.5mm   Labeling precision:<1.0mm

Production efficiency:18-25 pieces/min  Air consumption:0.4Mpa

Rated power:2.1kw  Measurement:840mm*940mm*1430mm   Weight:260kg

- Features of hotmelt glue labeling machines:

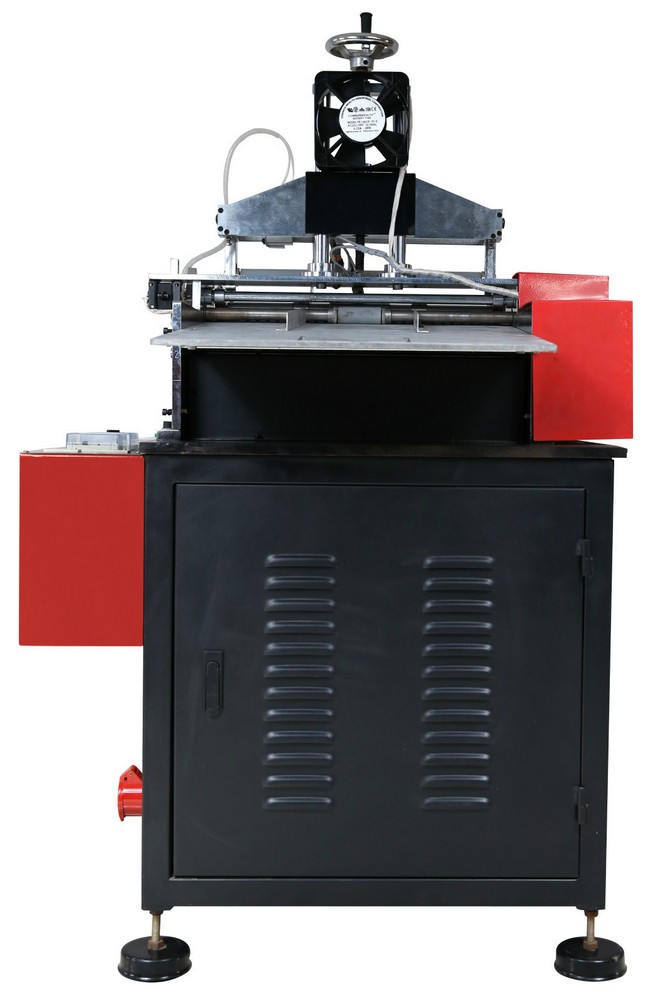

back labeling machine shot.jpg

* This machine is our patented product. It is applicable for labeling container such as paper tube, plastic bottle, metal can, glass bottle.

* It’s easy to change different type of cylindrical container or label. No need to replace any parts and this process will be done in 5 minutes. The machine adopts two labeling methods: full glue and two sides glue which saves glue significantly. The function is easy to switch with just one button.

* Operator simply puts labels into the storage, then machine will do automatic photoelectric detection, picking label, pplying glue and labeling paper tube in 1 second.

* Machine has built-in automatic temperature control system, making the glue always maintain a constant temperature. Using SCR automatic voltage regulator to ensure the glue temperature more accurate and save electricity by 50%.

* The thickness of glue can be adjusted between 0.05-0.15mm freely. The accurate adjustment helps to save the consumption of hot melt glue.

* Improved three-roll labeling method. Label and paper tube attach more closely, the final product is in perfect condition. Even if large-diameter & soft thin-walled paper tube can also be labeled continuously.

* The FEIDA mechanism separates the following label in advance in order to prevent picking up double labels.

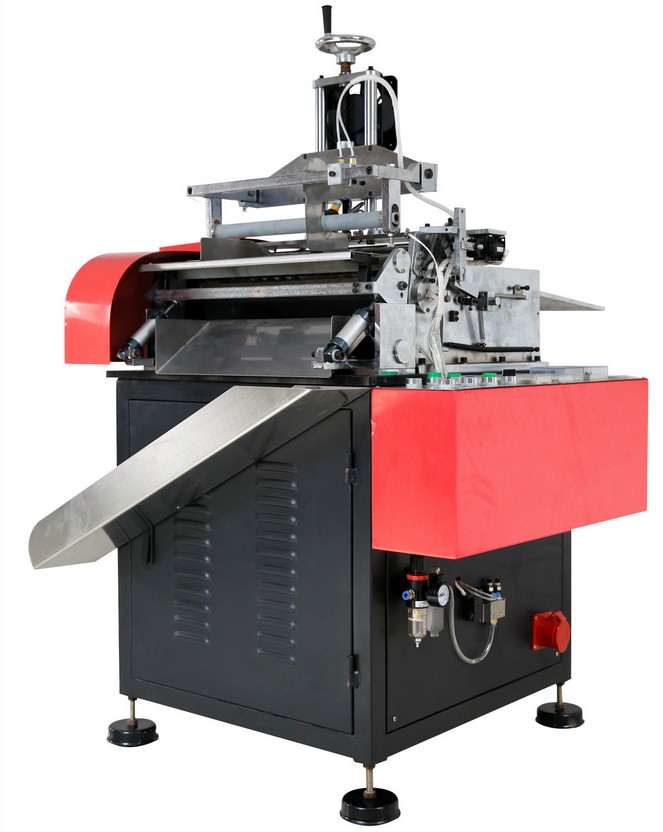

side shot for glue labeling machines.jpg

Samples labeling from paper carton labeler equipment model YX-GL01

labeling samples.jpg

labeling samples from model YX-GL01.jpg

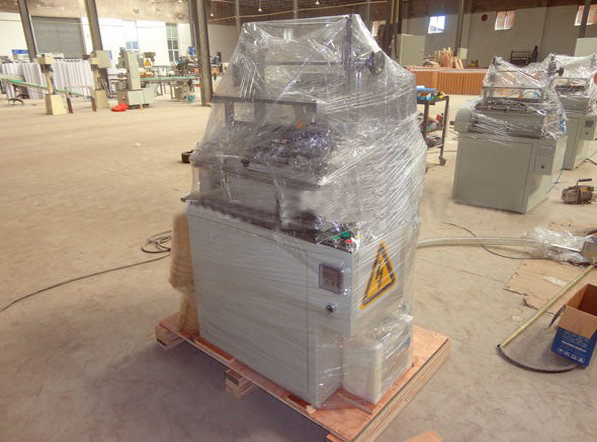

Wooden case packaging before ocean shipping for glue labeling machines

labeling machine glue paper hot packaging.jpg

hotmelt glue labeling machines.jpg

After-sale service for YX series labeling machines:

labeling machine from PENGLAI.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
