 manual labeler equipment for flat surface objects High precision semi-automatic plane labeling machine(with display  touch screen controlling system) Model YX-LM510

manual labeler equipment for flat surface objects High precision semi-automatic plane labeling machine(with digital buttong controlling system) Model YX-LM510

I, The basic purpose of labeling machine semi automatic pneumatic labeler equipment for flat surface containers

flat labeling machine with PLC advanced (3).jpg

Application of suction stickers labeling method to achieve the various parts of the plane on the labeling, such as cosmetics flat bottles, boxes, plastic cover labeling and so on.

Change overlying scale mechanism, suitable for uneven surface labeling, such as concave flat, circular surface labeling and so on.

Changing fixture, suitable for a variety of irregular work piece labeling.

Optional ribbon printer or inkjet printer, print production date on the label and batch number, to achieve a code – Labeling Integration.

II,Scope applied from plane bottles labeling amchine

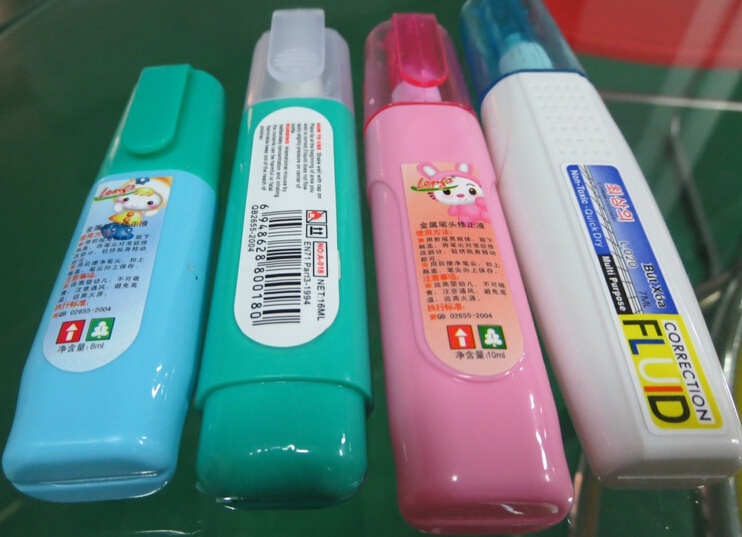

labeling plane bottles.jpg

Applicable Label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.;

Applicable products: requirements in flat or curved, circular surface, concave, convex, or other surface attached label products;

Industry: Widely used in cosmetics, food, toys, cosmetics, electronics, pharmaceutical and other industries;

Application: Shampoo flat bottle labeling, packaging labeling, bottle caps, plastic shell labeling and so on.

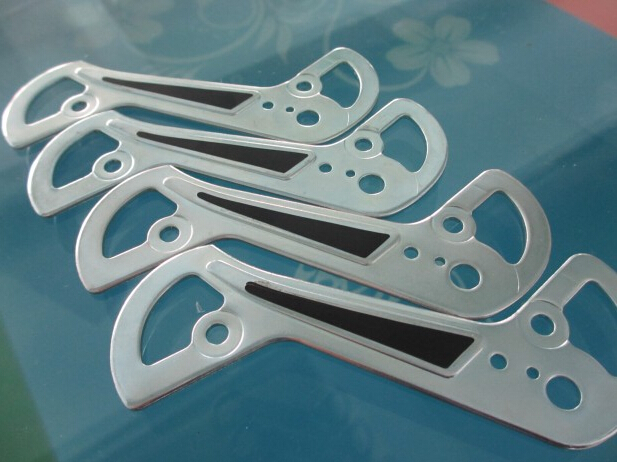

samples for labeling.jpg

III,the work process on model YX-LM510 bottles labeling machine semi automatic:

labeling plane bottles.jpg

* Core Working principle: The sensor detects the product in place or send product foot position signal, sucking down labeling tip labels and covered standard, then returned the next label in situ adsorption, wait for the next signal labeling, a label the attached action is completed.

* Procedure: put the product -> judgment in place (device detection control or manual control) -> Labeling and covered standard (device automatically) ->take out the labeling products.



IV,Technical parameters: (The following technical parameters for the standard model, other special requirements and functions can be tailor-made)

labeling plane bottles.jpg

Applicable label length (mm): 15mm ~ 100mm

Applicable Label width (backing paper width / mm): 15mm ~ 150mm

Applicable Dimensions (length × width × height / thickness): Length: 20mm ~ 200mm

Width: 20mm ~ 150mm

Thickness: 0.2mm ~ 120mm

Applicable standard roll diameter (mm): φ340mm

Applicable standard roll diameter (mm): φ76mm

Labeling accuracy (mm): ± 0.5mm

The standard speed (m / min): 5m/min

Labeling speed (pcs / min): 20 ~ 45pcs/min

Weight (kg): about 48kg

Frequency (HZ): 50HZ

Voltage (V): 220V

Power (W): 145W

Device dimensions (mm) (L × W × H): about 850mm × 410mm × 720mm

Pressure (Mpa): 0.4 ~ 0.6Mpa



V,Features of plane bottles labeling machine semi automatic model YX-LM510

samples for labeling.jpg

powerful, can be used in various parts of the flat, circular surface, the concave plane of labeling, labeling can be used for irregular workpieces;

accurate labeling, high stability, using PLC + standard stepper motor drive to send to send standard indeed; discharge institutions configurations brake function, to ensure standard belt taut, ensuring precise label detection; marked with detour corrective mechanism to prevent label offset about;

strong and durable, the circuit layout with separate gas, gas purification device configured to prevent moisture damage air appliances, prolong equipment life; machine using advanced aluminum and stainless steel materials, quality firm;

easy to adjust, height adjustable stroke configuration functions, different height product labeling, without repeated replacement fixture;

appearance, using bottom-mounted computer white box, with stainless steel and high-alloy, beautiful, lifting equipment level;

with manual / automatic two kinds of labeling control, workers may need to select the use of sensors to achieve labeling or foot control; setting manual and automatic control buttons, the standard length can be regulated;

Optional functions and components:

hot coding / marking function;

automatic feeding function;

automatic rewinding function (combination of product considered);

special label sensor.

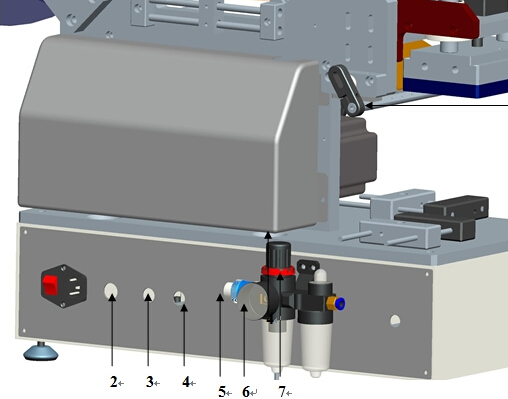

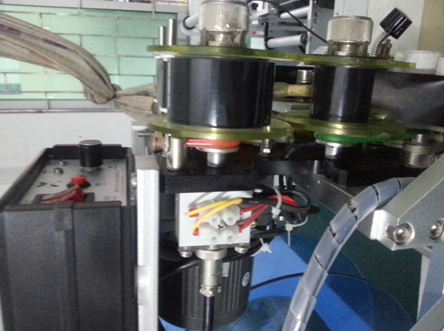

Semi-automatic flat labeling machine structure details:



Order
Structure Description
Structure Fuction
1
Disc brake
Prevent the semi-automatic flat labeling machine loose the excessive
2
Charging tray
Put label coil is used for semi-automatic flat labeling machine
3
Feeder
Semi-automatic flat labeling machine
4
Press the shrapnel
Semi-automatic flat labeling machine pin labels, ensure the tension of label
5
Rollers
Used for semi-automatic flat labeling machine round labels
6
Mark magic eye
Semi-automatic flat labeling machine test label
7
Receiving institutions
Semi-automatic flat labeling machine recycling label at the bottom of the paper
8
T handle
Used for semi-automatic planar labeling machine traction mechanism locking
9
Traction
By drawing the bottom paper, stripping, its firmness can be adjusted by screws
10

Control panel

For plane labeling machine semi-automatic machine circuit configuration
11
Fixture table
Used for semi-automatic labeling machine put workpiece fixture
12

Scavenge pipe

In the process of tag stripping, hold label, a smooth transition to the suction head
13
Cylinder
Used for semi-automatic flat labeling machine to complete labeling
14

Tangent screw

As semi-automatic labeling machine plane slight adjustment of the height of the head and the workpiece
15
Film pressure
Ensure the semi-automatic flat labeling machine tension labels
16

Traction motor

Provide semi-automatic flat labeling move to



VII Applicable products from semi automatic plane surface labeling machines

Semi-automatic plane labeling machine(With display screen)

samples for labeling.jpg

samples for labeling.jpg

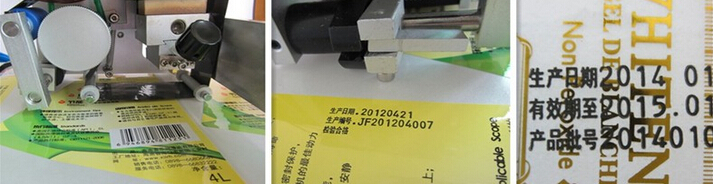

Ⅷ. date coding printing optional for labeling machine semi automatic model YX-LM510:

date printer for labeler.jpg

Date coding samples from printer in semi automatic labeling machine

samples for labeling.jpg

In order to customize the machines labeling for our customer it is necessory to send us the samples of labeling&labelled products so that

we can confirm everything be okay for the labeling machine from the aspect of the customers .

samples for labeling.jpg
