fully automatic face mask blank making machine making machine link with non-woven ultrasonic sealing earloop welding equipment one in one or two masks production line

fully automatic face mask blank making machine making machine link with non-woven ultrasonic sealing earloop welding equipment one in one or two masks production line

Automatic mask production line, also known as one to three mask production line, composed of a mask body machine and three ear band composed of welding machine. 1+1 line every minute can output 80-100 pieces of complete plane mask,1+2 line every minute can output 160-200 pieces of complete plane mask ,mask specifications: 175*(80-100) mm 1-4 layers of non-woven planar filter type mask. Compared with the single independent type mask making machine, joined the automatic conveyor belt and the connecting port, the unique design in addition to improve the production efficiency, reduce artificial cost, is in order to minimize the artificial participation, and reduce the risks of a mask is pollution in the production process.

Basic parameters of 1+1/1+2 automatic face mask forming welding ultrasonic sealing machine:

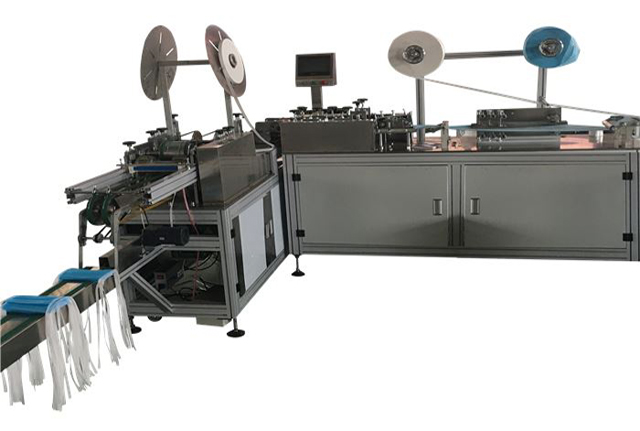

1+1 face mask making line


1+2 face mask making line

1+2 face mask machine.jpg

Model Inner earloop mask machine 1+1 Inner earloop mask machine 1+2 Outer earloop mask  machine 1+1 Outer earloop mask machine 1+2
Power source 220V 50-60HZ 220V 50-60HZ 220V 50-60HZ 220V 50-60HZ
Inout Power 7KW 13KW 6KW 12KW
Output Frequency 20KHZ 20KHZ 20KHZ 20KHZ
Working Speed 80-100 Pcs/min 160-200 Pcs/min 80-100 Pcs/min 160-200 Pcs/min
Mask Size 175*(80-100)MM 175*(80-100)MM 175*(80-100)MM 175*(80-100)MM
Nonwoven Layers 1-4 Layers 1-4 Layers 1-4 Layers 1-4 Layers
Nonwoven Material 10-20 GSM 10-20 GSM 10-20 GSM 10-20 GSM
Package Dimension

3100*800*1750MM,

1800*800*1750MM

3100*800*1750MM,

1800*800*1750MM,

1800*800*1750MM

3100*800*1600MM,

1800*800*1600MM

3100*800*1600MM,

1800*800*1600MM,

1800*800*1600MM

Weight 1100KG 1700KG 1000KG 1500KG
Working Dimension 5000*3000*1800MM 7000*3000*1800MM 5000*3000*1800MM 7000*3000*1800MM
Compressor Power 7.5KW 10KW 7.5KW 10KW
Mask logo Support Support Support Support
Need engineer installation Yes Yes Yes Yes

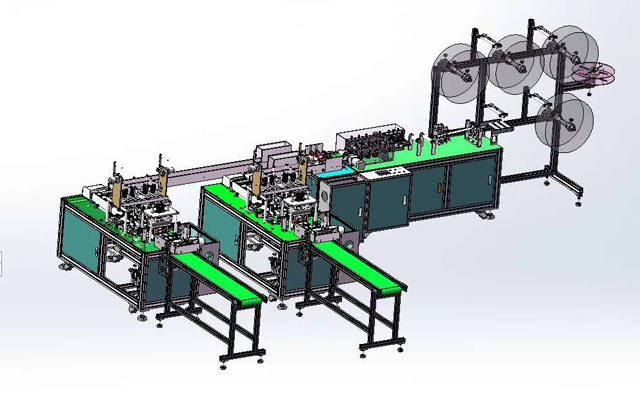

Machine drawing for 1+2 face mask making production line:

Flat type disposable face mask line.jpg

Main features of automatic making facemasks machine:

full-auto-face-mask-making-machine details.jpg

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

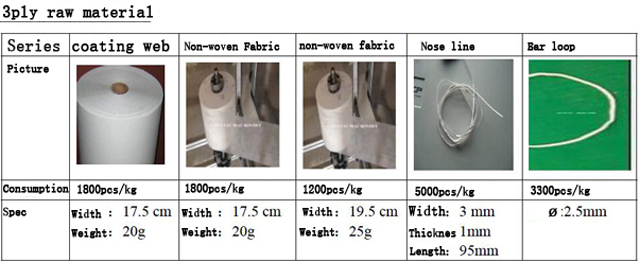

Specifications of raw materials:

3-Ply materials face mask materials specifications.jpg

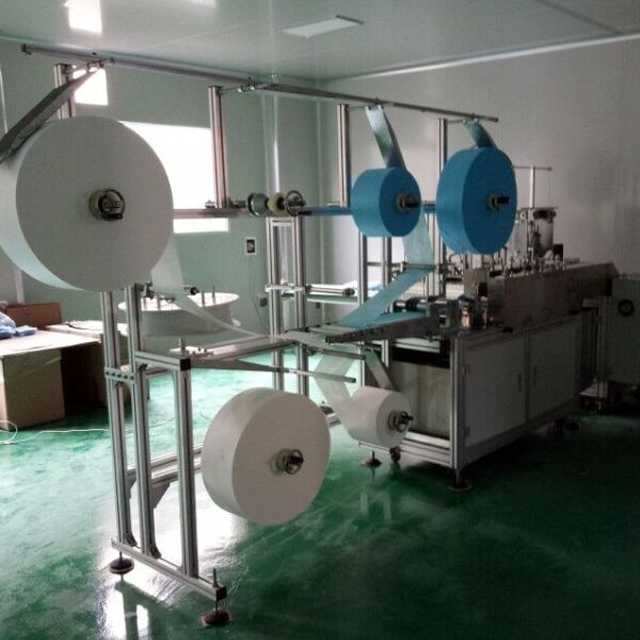

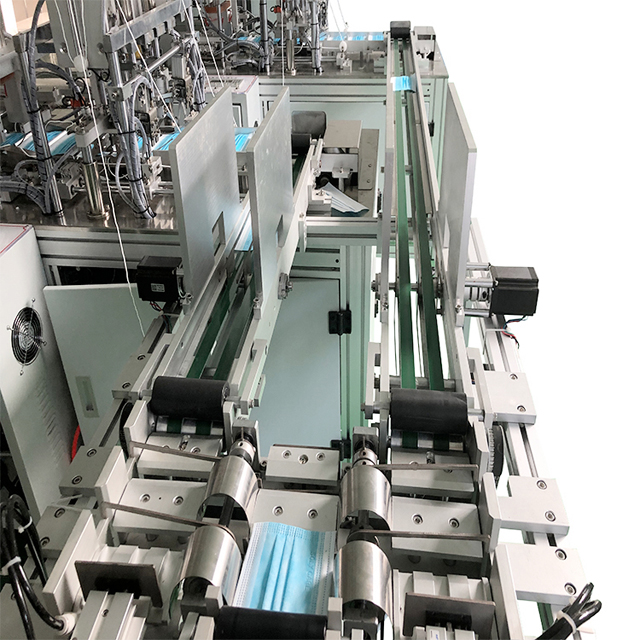

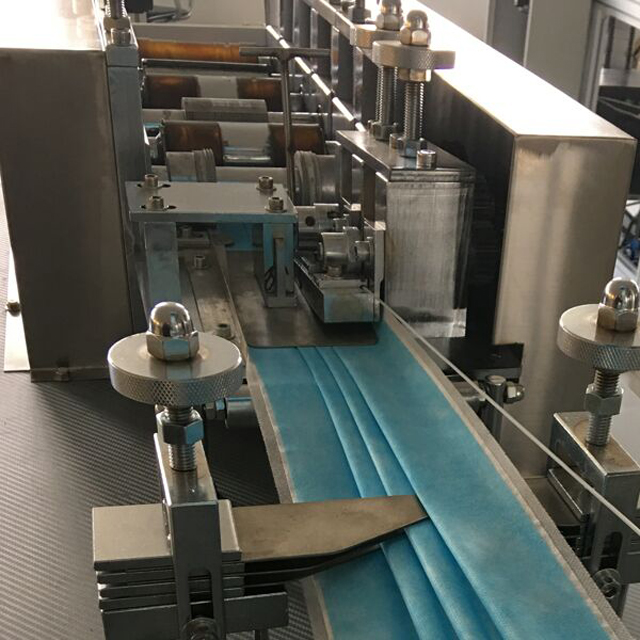

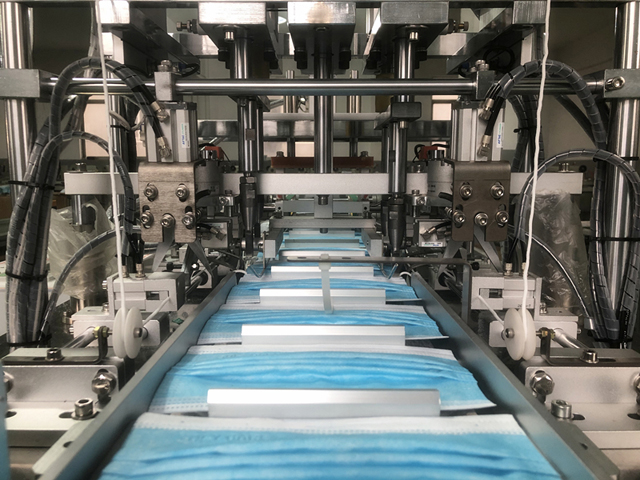

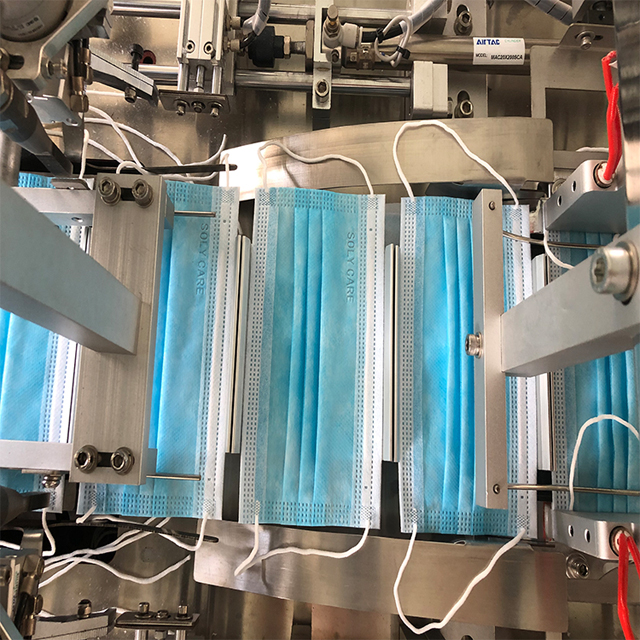

Machine details for 1+1/1+2(One in one or two type) face mask making line:

birdview on facemask maker.jpg

side pictures.jpg

blank mask making machine.jpg

non-woven-full-automatic-face-mask-machine59513242555.png.jp

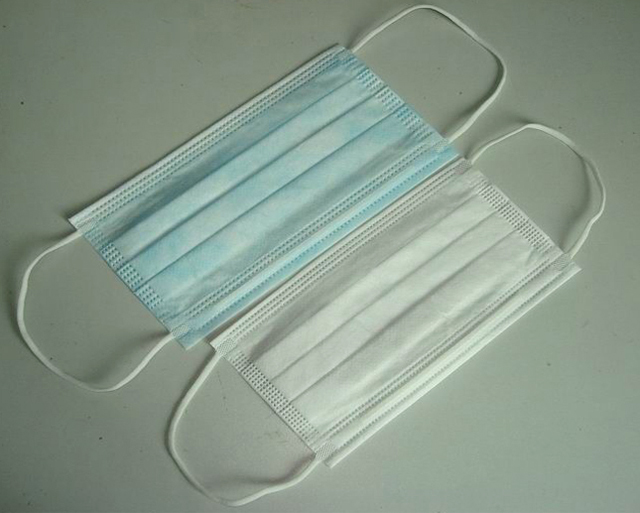

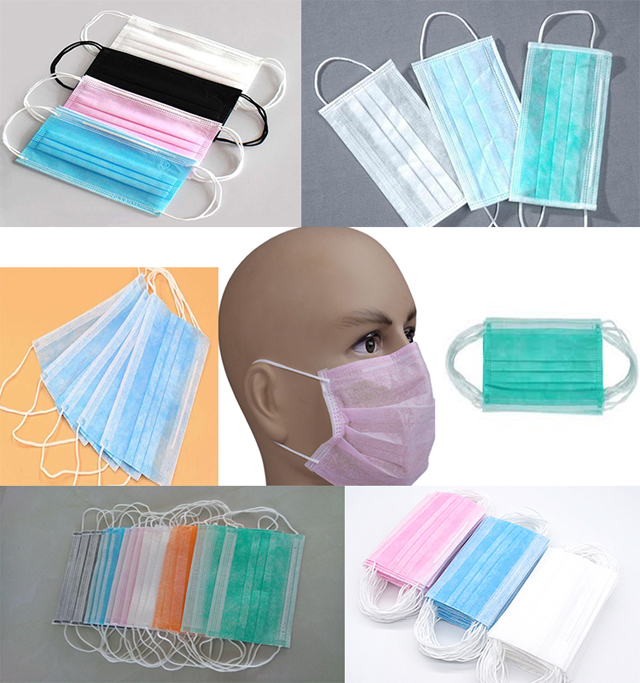

Samples pictures for facemasks:

samples face mask.jpg

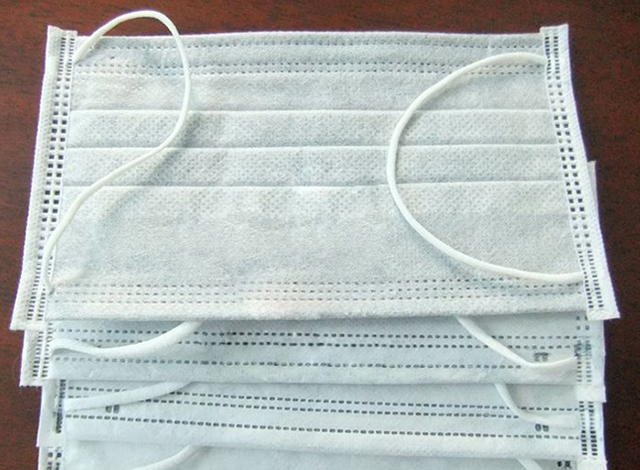

►Outer earloop mask samples

samples disposable facemask.jpg

►Inner earloop mask samples

Tips: Length of Disposable Surgical Mask Ear-loops and Head-loops:

samples pictures.jpg

When purchasing elastic bands for face masks, there is one question which will be asked so often, especially for newly involved face mask manufacturers: how long elastic band will need for each face mask? And always the followed will be the “how many pieces mask we can get from one kg elastic”? Once you know the first answer, the second will be easy even for a primary student.

There are two kinds of surgical mask most often be used in surgical, according to different material: elastic band mask(outer ear-loop face mask and inner ear-loop mask), and tie-on mask. Outer and inner use the same material: elastic type band, woven type or rubber, tie-on use non-woven (This length is usually 90CM for one sides.)

elastic band mask

For elastic band surgical masks, there are also two types: ear hanging masks and head hanging masks, head hanging elastics are much longer than ear hanging type.

Ear hanging

For most common size mask body: 175*95MM~180*95MM type, the elastic for each side usually is 17~18CM, including the welding part, different market will be a little difference, but not too much.

Head-hanging

There two sizes body for this type: 175(180)*95mm and 210*95MM, the elastic for each side from 270~300MM, different market will be a little difference, but not too much.

Above data is for common, difference and special cases are always there: different area people will have different physique; different material will have different elasticity(some time the difference of elasticity very be very much).

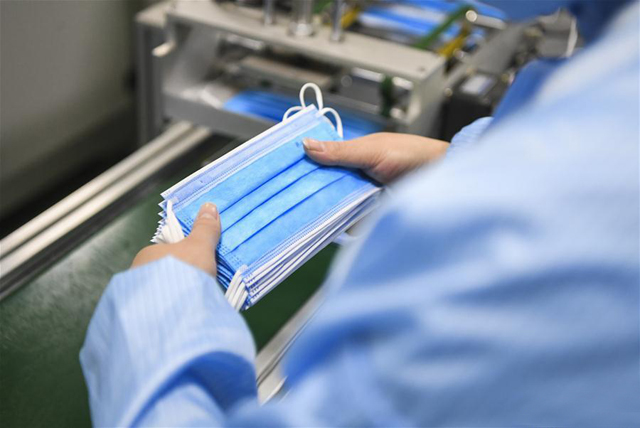

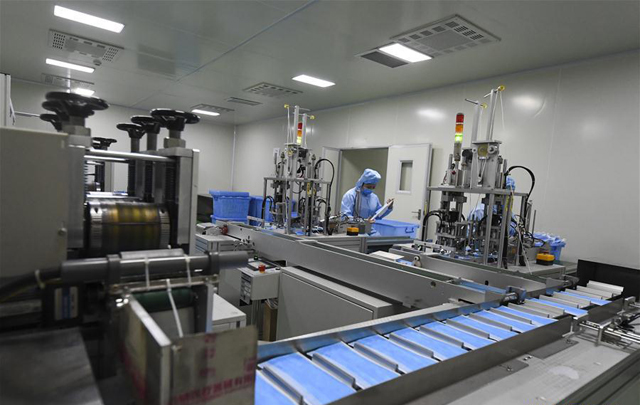

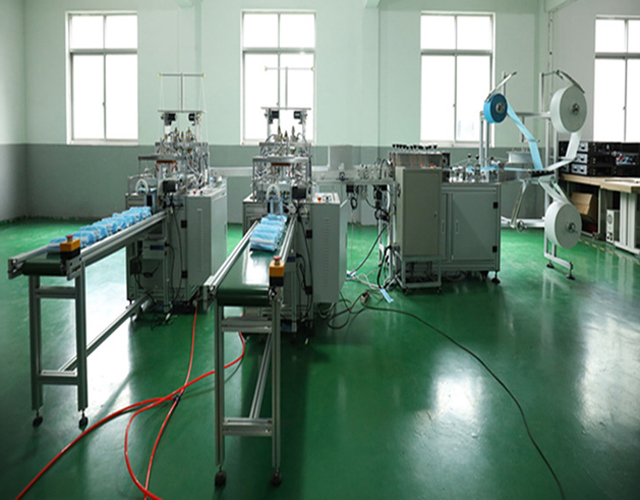

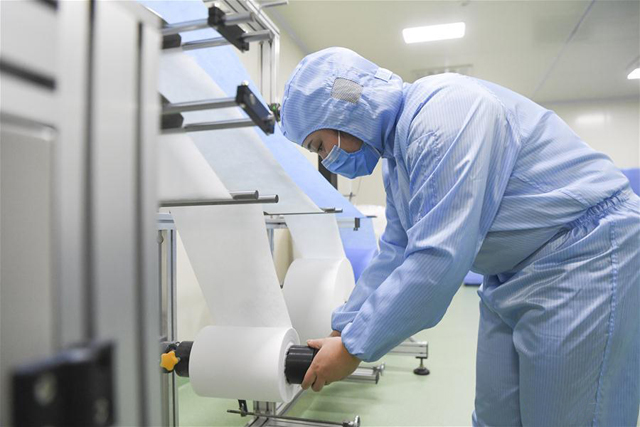

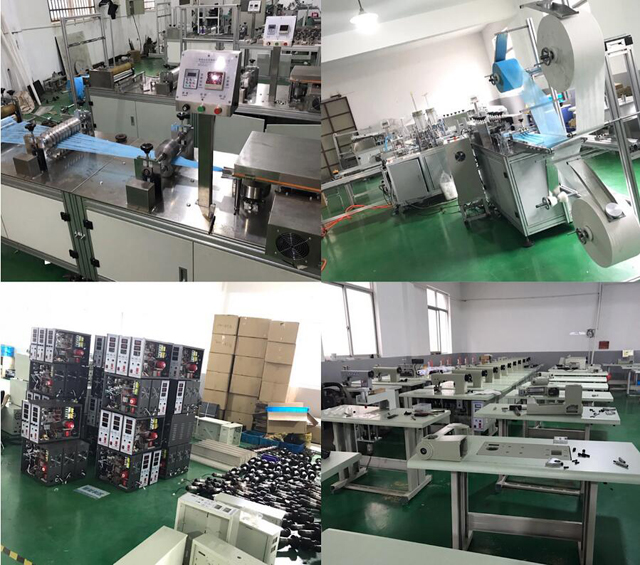

Medical Face Mask Making Machine offered by PENGLAI operated in Customer's factory:

face masks making in factory.jpg

disposable face mask line.jpg

final product output.jpg

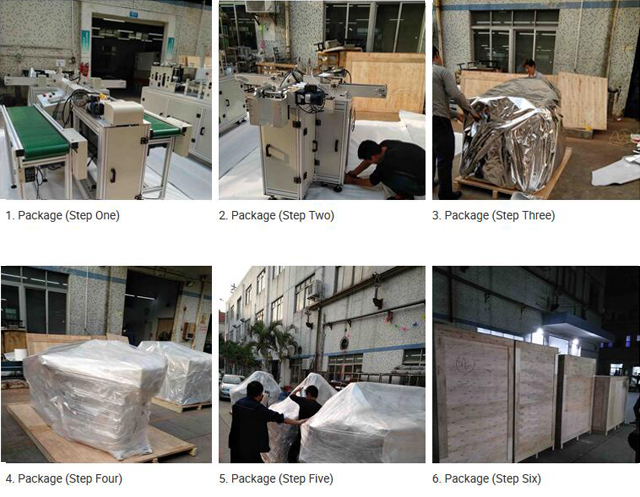

Wooden case packaging for face mask making line:

wooden case packaging.jpg

wooden case packing for perfume filling machine.jpg
