semi automatic filling machine

Double heads liquid filling machine magnetic pump liquid perfume oil filler equipment semi automatic

Double heads liquid filling machine magnetic pump liquid perfume oil filler equipment semi automatic

5ml to unlimited Magnetic Gear Pump Filling Machine   with Double Head for Liquid

Semi automatic liquid filling machine perfume juice oil lotion filler equipment

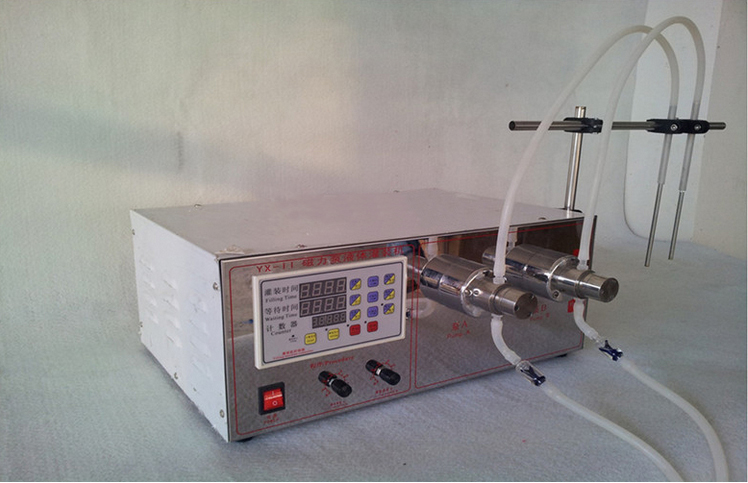

Introduction on model YX-II double heads liquid filling machine magnetic pump filler :

 filling machine for liquid manual.jpg

1)The gear pump is drived by magnetic power,the pump head and the motor is connectedWithout shaft.So there’s no need to worry about the burnout of the motor because of the high load of the pump.

2)Pump head and motor is imported from Japan,other components are manufactured in Taiwan,the function is steady and useful life is long.

3)Pumper head is made from 316L stainless steel,acid alkaline, corrosion-resistant.

4)The motor run is adjusted by potentiometer,the degree of accuracy of filling time can be lower to 0.01 second,so that can guarantee the filling accurately,the deviation is under 2%.

5)Filling capacity is from 5ml-any volume according to your need.

6)Fully functional,can be operated by hand,intermittent pedal filling,automatic intermittent filling.Intermittent time can be adjusted.

7)Wide application,almost can be used to filling any flow liquid,especially suitable for oil,washing fluid,Acid base solution,,High corrosion resistance liquid.

Main Parameter of model YX-II liquid filling machine double heads liquid filler magnetic pump:

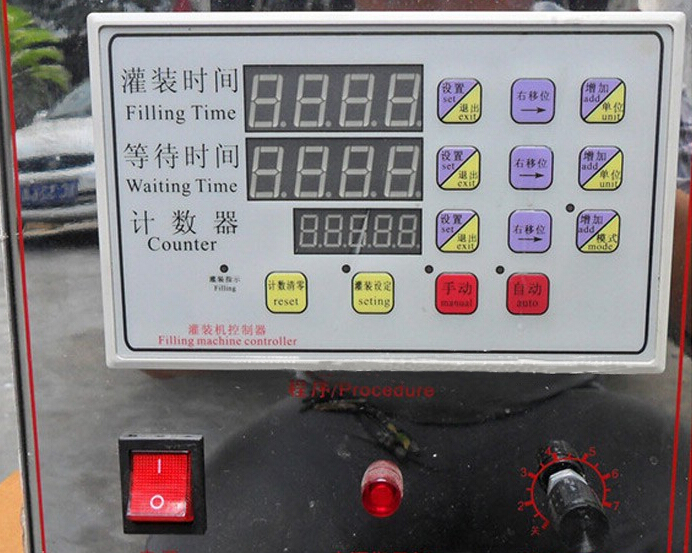

filling machine control panel.jpg


220V 50/60Hz

Cooling Mode

Air cooled



Max capacity

Unlimited for water



Machine Size







Features of Model YX-II liquid filling machine semi automatic:

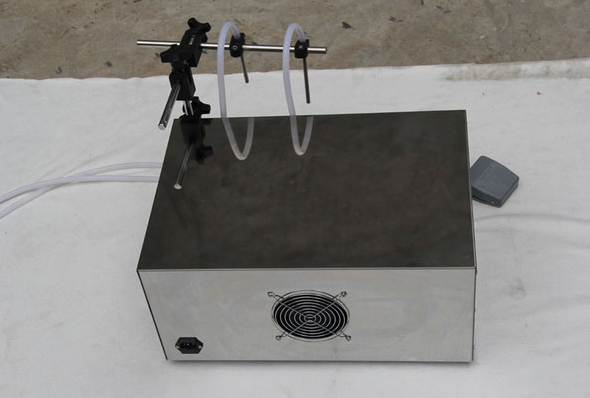

back side shot for liquid filler.jpg

1)micro-computer control system,digital display

2)Magnetic Gear Pump

3)Automatic and manual both accepted

4)316L stainless steel,High corrosion resistance

5)double heads

Application :

1) can fill oil, juice, perfume, ink, water, etc for all containers such as bottles, jars, cans, etc

2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality.

Warranty :

One Year Warranty , Permanent Technical Service

Packaging including:

a) main machine x 1pcs

b) silicon pipe x 2meters

c) glass value x 2pcs

d) fuse x 1pcs

e) one-off injector x 1pcs

f) user manual x 1pcs

g) quality card x 1pcs

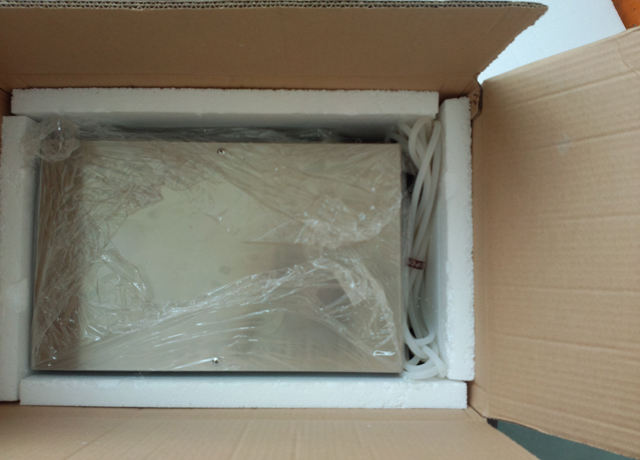

packaging of liquid filling machinery.jpg

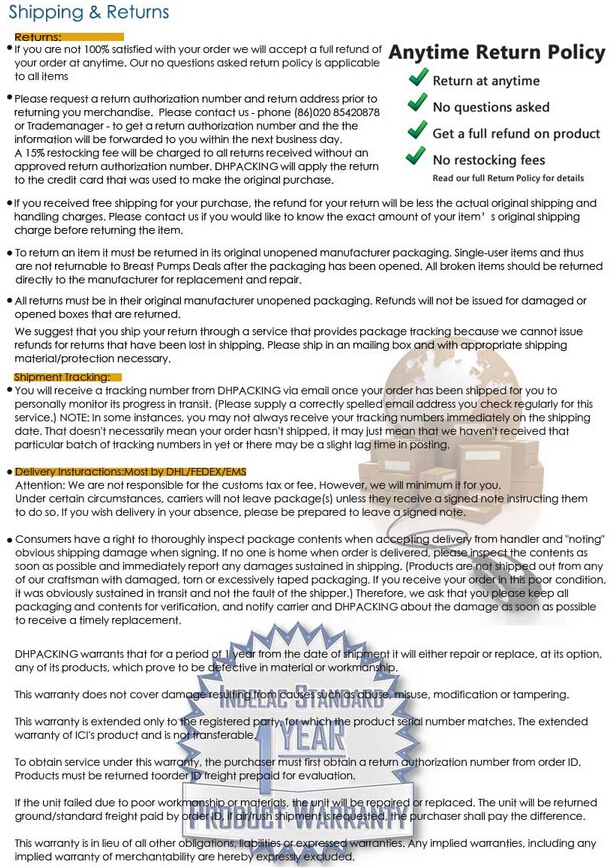

shipping after sales service.jpg

packaging of liquid filling machinery.jpg
