semi automatic sealing machines

manual oral liquid vials ampoule bottles sealing crimping machine semi automatic electric aluminum caps locking crimper machinery

manual oral liquid vials ampoule bottles sealing crimping machine semi automatic electric aluminum caps locking crimper machinery

This machine is mainly used in a variety of glass bottles, aluminum combination lid, aluminum lid,

easy-open lid seal, not suitable for screw cap cover. Semi-automatic sealing machine,

applicable to the sealing of the oral liquid bottles, vials, penicillin bottles, antibiotic bottles,

glass bottles.





1ml-50ml bayonet glass bottles, not suitable for spiral mouth glass bottles.

The whole novelty, beautiful, machine design is reasonable, lightweight.

Table and protective cover are

stainless steel manufacturing, wheel strength, wear resistance, long life,

good sealing the bottles rolled aluminum cover.

Is the most ideal for small batch production of major hospitals, pharmaceutical companies,

research and capping equipment.

crimper oral solution bottles.jpg

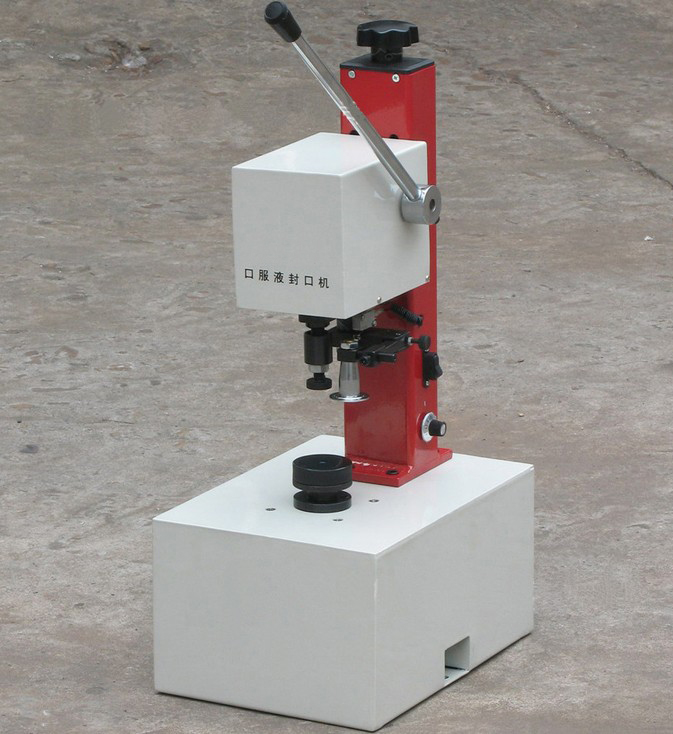

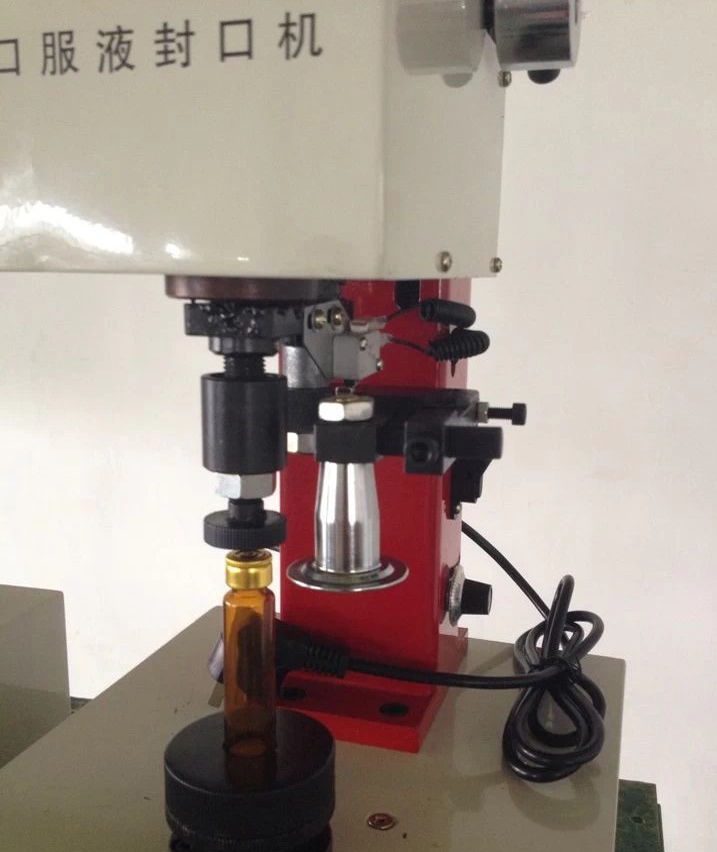

Application of manual crimping machine for oral liquid vials ampoule bottles with aluminum caps Model YX-1035

crimper oral solution bottles.jpg

crimper oral solution bottles.jpg

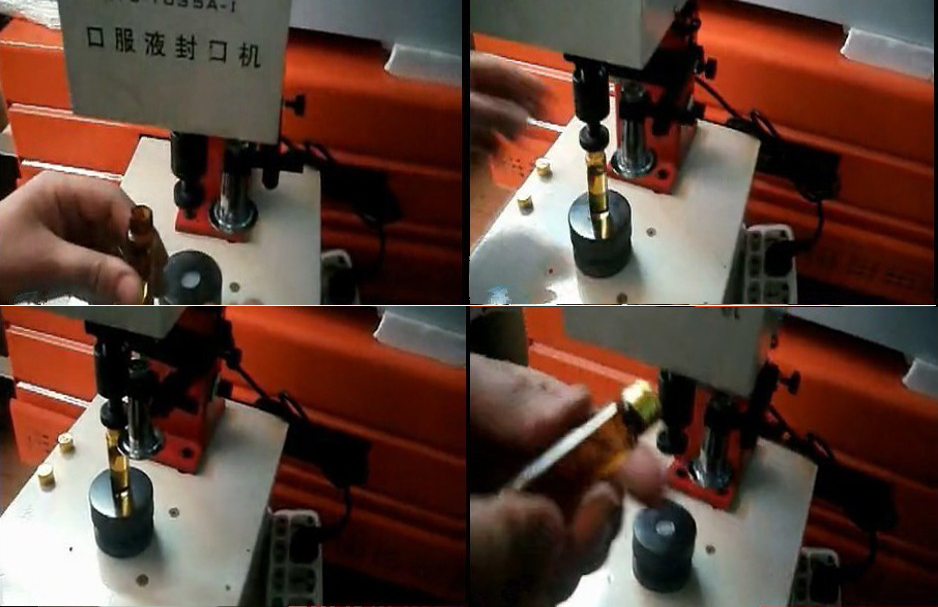

1. a bottle of good irrigation liquid and fitted lid into the next tray,

leaning against the V-shaped branch block,

hand held onto the bottle with one hand and the handle toward the down taut,

then tray care bottle lift, until the cap and rolled hijab pressed.

2, when the cap and rolled hijab pressed, the three capping of

 the spinning heads rotate a few laps, the cap rolled tight.

(Note) The motor must be clockwise operation.

3, the handle forward and push the rolling good cover lid with the tray back into place,

the whole operation process is complete after each rolling a cap, repeat the above operation



crimper oral solution bottles.jpg

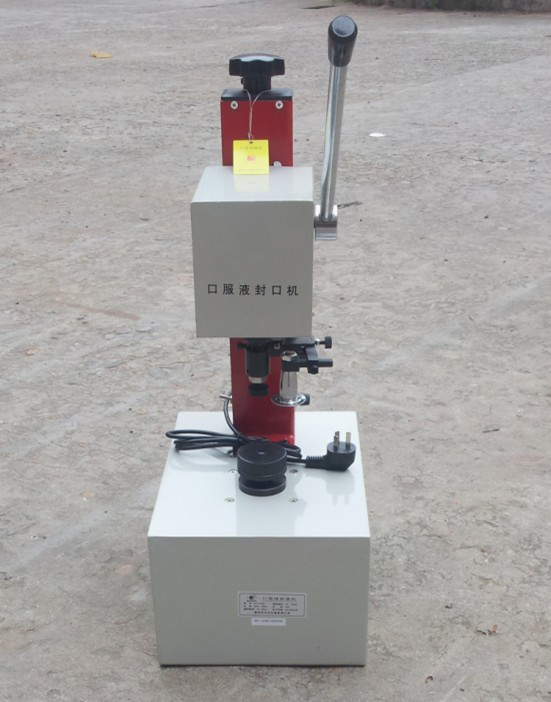

Basic parameter of model YX-1035 small bottles oral liquid vials crimping machine



crimper oral solution bottles.jpg



Model YX-1035

voltage

220V/50Hz

power

50w

Sealing diameter

10-35mm

capacity

20 bottles/min

Apply bottles heigh

30-180mm

size

35*25*65cm

Net weight

26kg

Material

Stainless steel

Bottles capacity

1ml-50ml

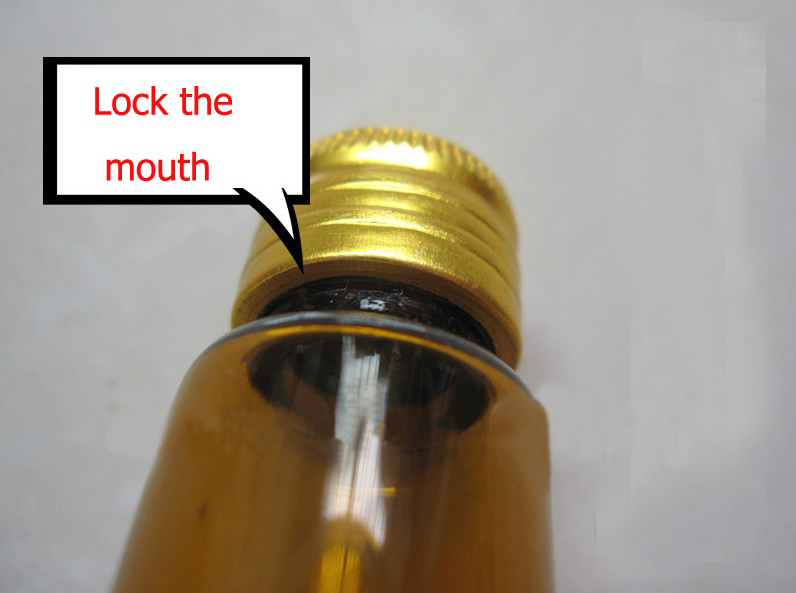

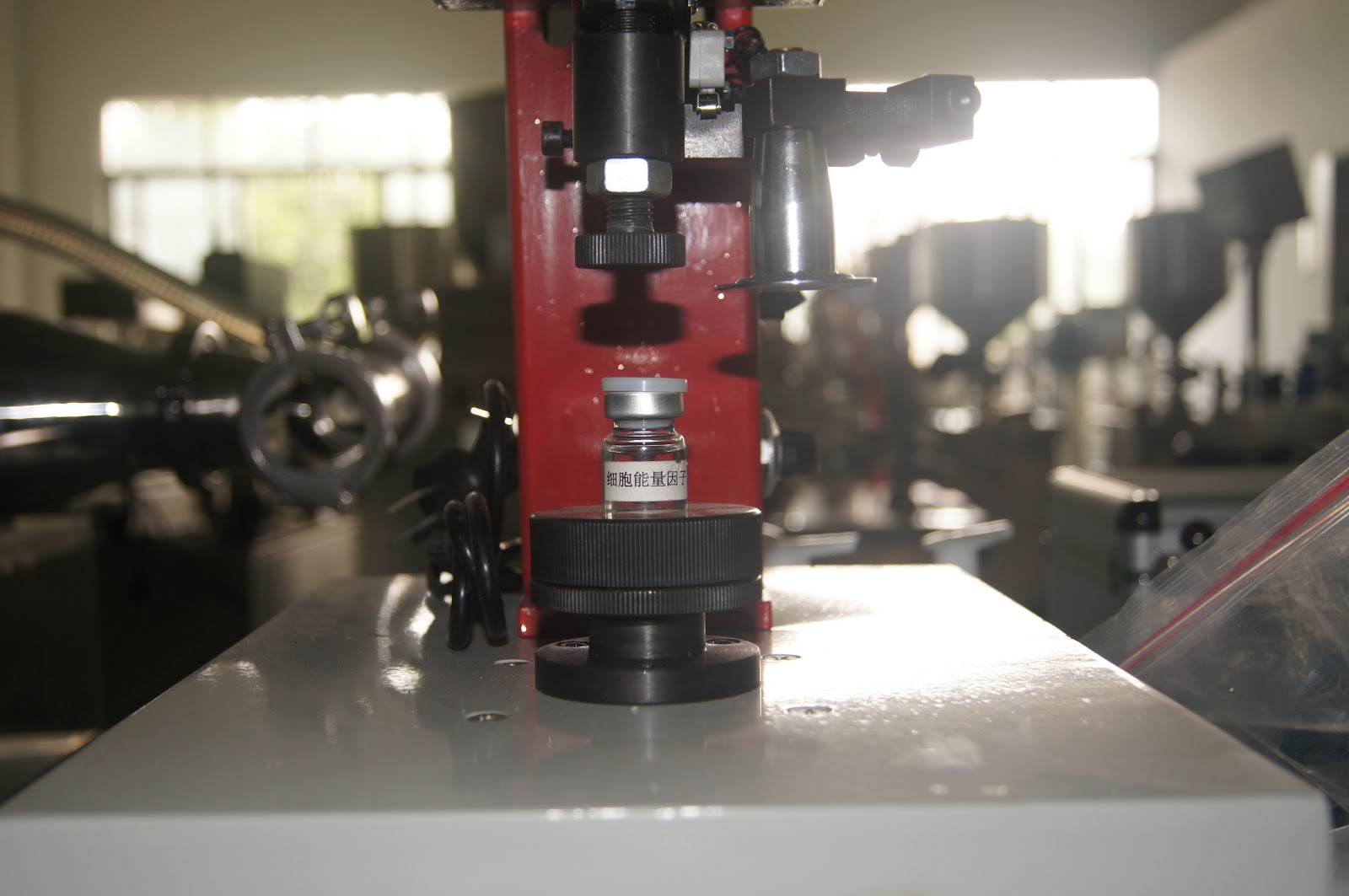

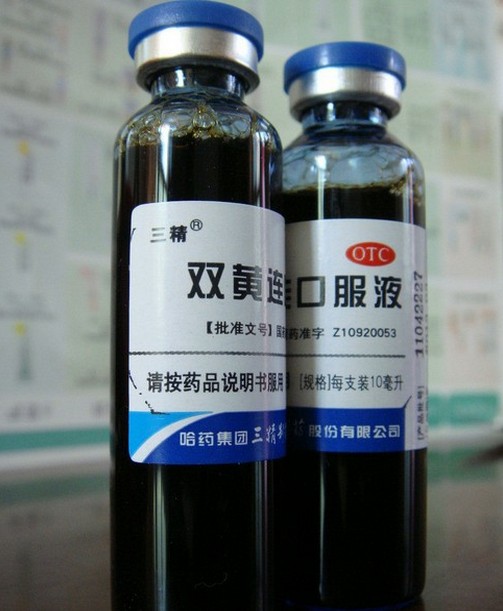

Crimping samples for vials oral solution glass bottles with aluminum caps

crimper oral solution bottles.jpg

crimper oral solution bottles.jpg

Fumigation-free wooden case packaging for manual crimping machine model YX-1035

wooden case packaging for crimping machine.jpg

Business terms for model YX-1035  aluminum caps crimping locker equipment for oral liquid ampoule containers

crimper oral solution bottles.jpg

PENGLAI INDUSTRIAL CORPORATION LIMITED
