perfume filling machine

4 heads Semi-automatic Filling Machine for Perfume nail polish vacuum liquid filler equipment for glass bottles

4 heads Semi-automatic Filling Machine for Perfume nail polish vacuum liquid filler equipment for glass bottles

This perfume filling machine is developed on the basis of overseas advanced technology


it is specialized used in clarification and filtration of fluid

after freezing in cosmetic water m perfume water, it is ideal equipment for cosmetic factory filtrating cosmetic water and perfume water

it adopts stainless steel 304-2B or 316L WITH PNEUMATIC DIAPHRAGM PUMP imported from us as pressure source so as to positive pressure.

the vacuum filling machine for perfume is pure pneumatic equipment, without power, it is one of  most economic  filling machine,

especially suitable for perfume, toilet water, and other small doses of filling agent products, is your ideal choice. YX-V04  set by vacuum level filling principle, no matter the bottle volume is consistent, filling liquid surface will remain the same.

This series of machine is easy to operate, the operator just put the bottle in filling his head or card to pedal control can perform filling.

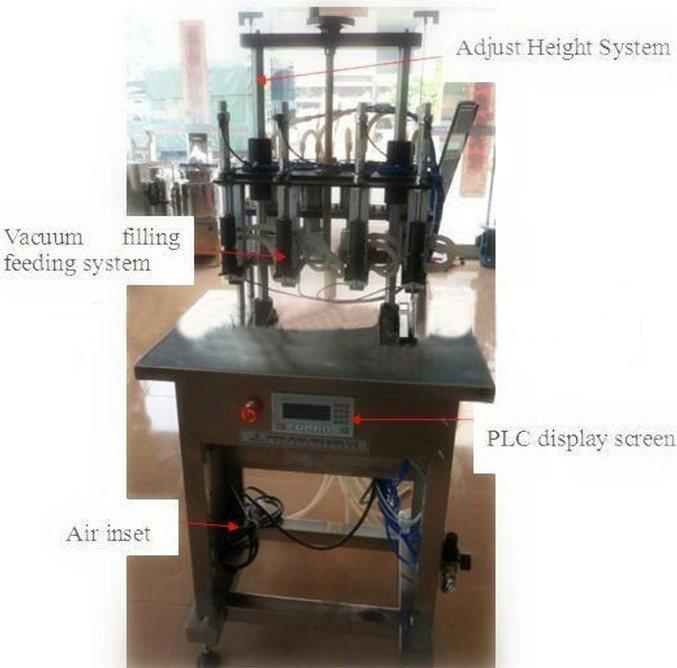

Illustration of vacuum filling machine semi automatic with 4 heads

illustration of back vacuum filler.jpg

illustration of back vacuum filler.jpg

Details of vacuum filling machine model YX-V04

PERFume liquid filler.jpg

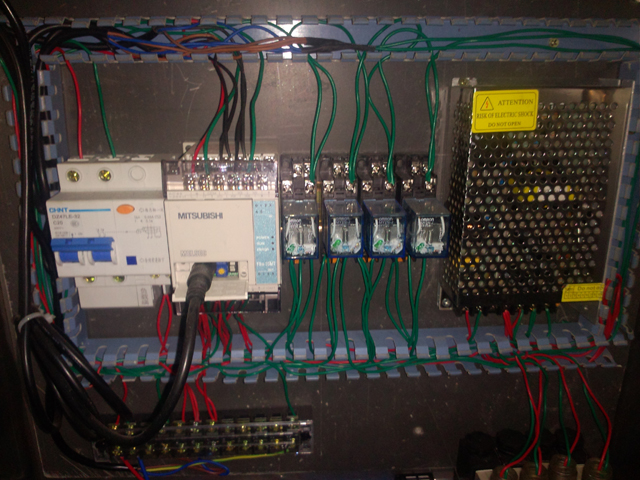

inside vacuum filling machine.jpg

II. Work Principle:



filling perfume.jpg

 A. The work principle of this machine(discharge material by itself type)

is: switch on the handle valve to connect the air source. Put the filling container right under the filling head,

make use of the spring force of the baffle to make filling container upright and seal with filling head.

At this time cam open mechanical valve, make the valve of vacuum bottle closed and the suction valve open,

make the vacuum generator generate vacuum(negative pressure)

B. vacuum system formed(vacuum bottle-filling head-filling container-silica gel tube

of filling head).vacuum suction drive the materials filling into the container. the height

of filling the materials in the container rise to the height of the external wrapped tube

of the filling head. As the vacuum suction get through the external wrapped tube and

suck up materials in the container into vacuum bottle and keep materials in the

container a certain height all the time until the filling container removed. the vacuum

generator stopped occurring vacuum as mechanical valve closed. suction tube closed.

valve of the vacuum bottle opened, materials reflow into the barrel due to gravity, and

one time cycle filling finished.

Function and Feature of vacuum filling machine semi automatic model YX-V04

vacuum filler equipment for liquid.jpg

vacuum filler equipment for perfume.jpg

vacuum filling machine semi automatic 4 heads.jpg

  1. The machine adopts PLC automatic control program,
  2. Especially suitable for high bubble or irregular products filling.
  3. The design concept:by increasing pressure on the filling head, vacuum generator achieves a partial sealing environment in the reflow liquid bottle and filling container, thus generating a partial vacuum (negative pressure), and achieve filling process through vacuum suction
  4. An ideal machine that can reach the desired filling speed and effect after practical commissioning the machine according to size of the filling container..

Ø Main Technology Parameters of model YX-V04 vacuum filling machine perfume filler equipment

perfume filling machines.jpg

filling perfume.jpg

vacuum filling penglai machines.jpg



Bottle height

250 mm

Bottle Mouth Maximum Diameter

20 mm

Minimum Diameter

4.5 mm

Adjustable liquid High-Level (Away from the bottle)

26-50 mm

Profile Dimensions (Excluding liquid storage bottle)

L×W×H    660×470×1330mm

Adaptable environment temperature

(0—30) °C

Power  3AC

380V (cas for your requirement)

Vacuum pump

XD-020(Explosion-proof type2X-4A)

Pumping rate

5.5(Explosion-proof type 4) L/second

Motor power

0.75kw



Bottles for filling vacuum filler model YX-V04

bottles glass for vacuum.jpg

vacuum liquid filler.jpg

perfume bottles.jpg

Packaging in wooden case before ocean delivery for model YX-V04 vacuum filling machine semi automatic



vacuum filler packing machine.jpg



filling machine in wooden case.jpg



Mark



@before delivery,machine be tested and adjusted at our factory

@English operation manual and relative spare parts offer

@English operation interface

@delivery term:30% of the amount in advance,finish machine within 25 working days,delivery after the balance paid

@after-sale service:1 year guarantee period and lifetime maintenance,as to the fee,damage not caused by personal and within the guarantee period,fix it up for free,otherwise,for charge
