syringe labeling machines

syringe round bottles cans labeling machine semi automatic manual labeler equipment for pharmaceutical food packaging

syringe round bottles cans labeling machine semi automatic manual labeler equipment for pharmaceutical food packaging

syringe round containers labeling machine customized labele requipment semi automated  manual labeler equipment for pharmaceutical industry  Model YX-SL25

Detailed pictures of labeling machine

for eran semi automatic tubes labeling machine syringe with



Application of syringe labeling machines model YX-SL25

Suitable for all kinds of cylindrical objects labeling,small taper round bottle labeling, such as xylitol,

cosmetics round bottles, wine bottles and so on. Can achieve full week / half weeks labeling,

front and back labeling circumference,

is back mark pitch can be adjusted. Widely used in food, cosmetics, chemical,

pharmaceutical and other industries.

Optional functions choosed improve production management convenience, with labeling counting, power-saving mode, photoelectric tracking label and other functions, production management easier;

optional features and components:

for eran semi automatic tubes labeling machine syringe with

① hot coding function;

② circumference circumferential positioning function;

③ Other features (according to customer requirements).

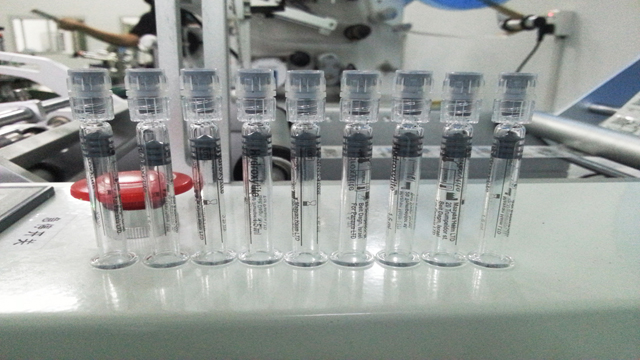

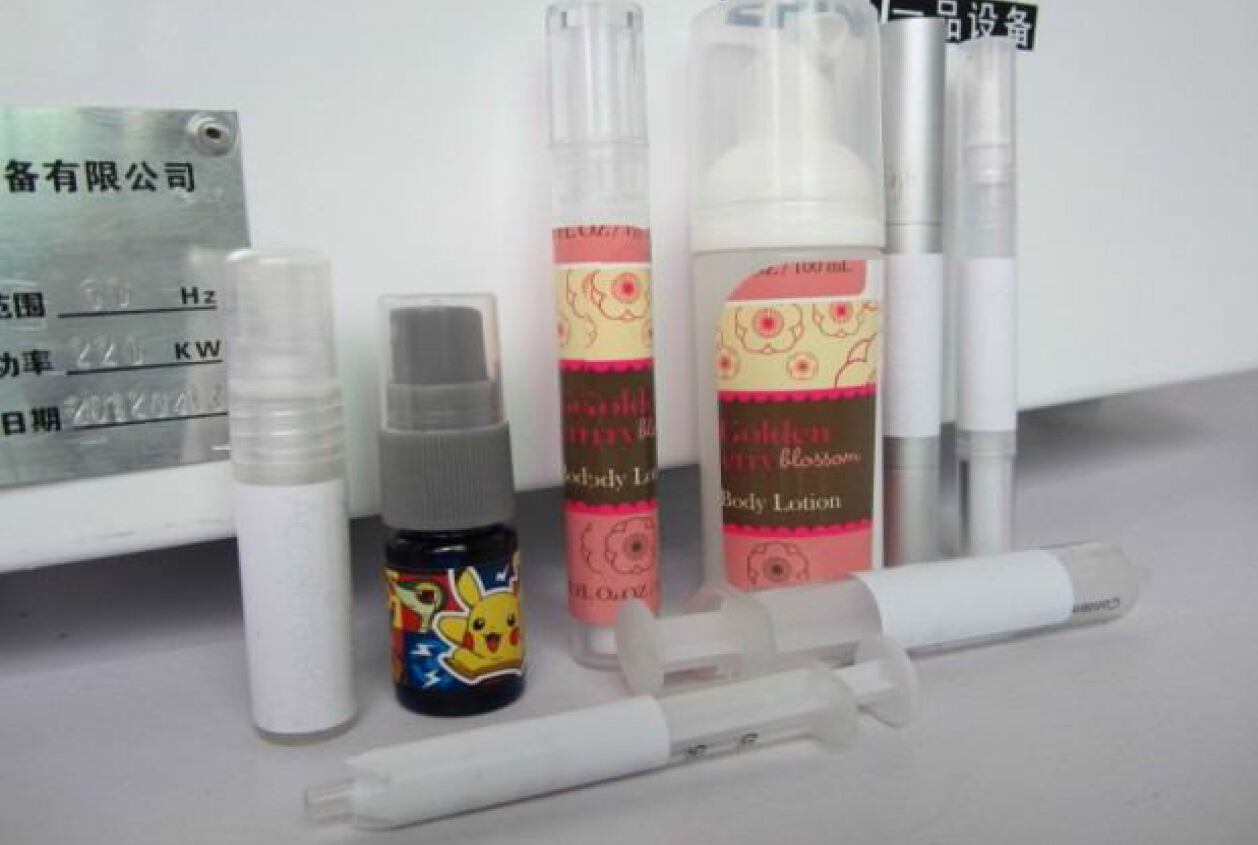

Samples after labeling
for eran semi automatic tubes labeling machine syringe with

for eran semi automatic tubes labeling machine syringe with

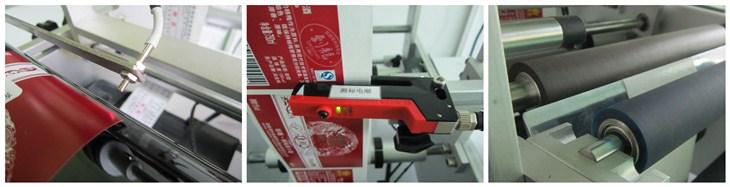

Optional devices:

ReaderRead the bar codes in various kinds

Electric light sensorThe common sensor cannot detect the transparent label,

which requires the light sensor device imported from Germany.

Printing machineprinting the texts on the label

Date codingHot coding for shelf date,products series etc

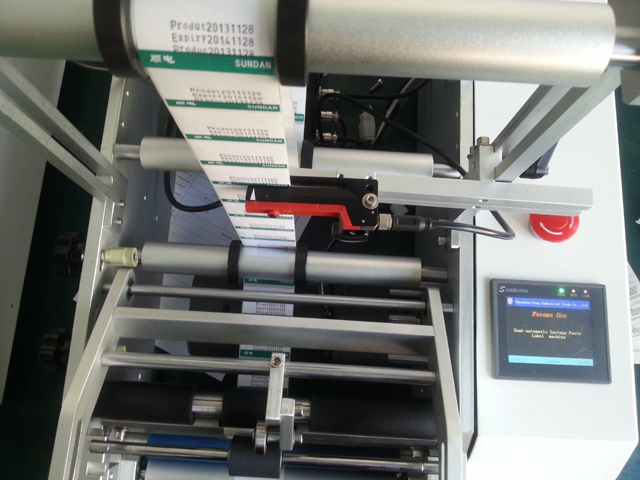

Bird view of whole syring labeling machine

for eran semi automatic tubes labeling machine syringe with

for eran semi automatic tubes labeling machine syringe with


1

Labels plates

Putting the labels around it

2

Label Rolls

The path of label for labeling process

3

Supports for light sensor

Light sensor installation,

movable up and down ward

4

Pressing

Press the bottles during

labeling,adjust its tension

by controlling left button

5

Label reeling

Dispensing the labels

6

Position

Adjust this left or right,

up or down to position the bottles

7

Support Jacket

Different positions for various bottles

8

Traction

Tract the bottom line to dispense the label,

adjust its

tension by moving the screws

9

Pedal controlling



10

Electric box



11

Man-machine interface

Controlling the machines

with changing the parameters

12

Sudden stop



13

Light sensor

Detecting the interval of labels

Control panel

control system for labeling machines.jpg

Switch    2 Speed adjustment Knob



Parameter of syringe labeling machine YX-SL25

Accuracy

±0.5mm

Speed

1525bpm

Diameter

Ø 15mm~Ø 150mm

Label size

Length20mm200mmwidth20mm220mm

Dimension

L920mm×W470mm×H500mm

Supply power

220V/50HZ

N.W

 45Kg

Inner diameter of label

Ø76mm

Outer diameter of label

Ø 240mm

Voltage

220V-240V/50-60HZ



Working process

* Core works: single standard, double standard switching function principle, the principle circumferential positioning labeling,

please consult factory.

* Procedure: put the product -> Labeling (device automatically) -> Remove the labeling products.


for eran semi automatic tubes labeling machine syringe with



Labels for syringe round containers labeling machines model YX-SL25

for eran semi automatic tubes labeling machine syringe with



 Other Related equipment about syringes labeling machines as below:

1.Automatic syringes labeling machine for pharmaceutical industry



automatic syringe filling closing machine rotary filling closure equipment for medical containers:





 2.Pre-filled syringe filling capping machine  semi automatic or fully automatic



3.flat bottles or round bottle labeling machine for food cosmetic as well as pharmaceutical equipment:







4.vials ampoule bottles horizontal high speed labeling machine



Guarantee: for all the machine, it claims one year for guarantee.

(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence,

or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,

our technician will go to your place to install and

test the machine and also training your worker to operating the machine

 (The time of train depend on you worker).

 The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid

 for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,

our technician will go to your place to fixed the machine

as soon as possible. The cost should be in your account.(as above).
