syringe labeling machines

Horizontal syringe labeling machine fully automatic pharmaceutical injection containers labeler equi

PENGLAI LABELING MACHINE YX series various model Labeling machine from PENGLAI INDUSTRIAL CORPORATION LIMITED

Automatic horizontal syringe labeling machine pharmaceutical containers injection needle

pointed subjects customized labeler machinery model YX-BS200

1.The Scope of Application:





Applicable for round objects with smaller diameter and can not stand when labeling,

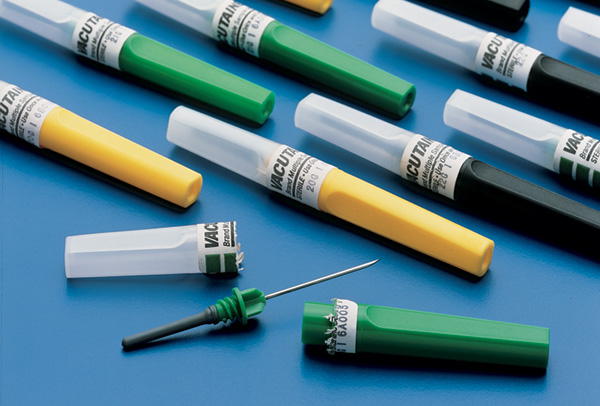

 such as ampoule ,vials,blood collection tube, pen,sausage and so on .

2. Working principle:

Bottle is set level and fed into conveyor by separator wheel and righting bottle by righting device.

When sensor detects bottle, will send a signal of dispensing label, the base paper rolls back after bottle is labeled,

a roller press down the label for label smoothness.

3. Device Characteristics:





4. Device Advantages:



ØImported electric elements, stable performance, low failure rate;



ØAdopt photoelectric detection, PLC control system, software operation, conveyor belt,

   label accurately with high precision;



ØNo bottle no label, automatic alarm when achieve leakage label.



ØThe whole machine use material S304 stainless steel and anodized senior aluminum alloy.



5.Technical Parameters of model YX-BS200 Horizontal syringe labeling machines:



Model	YX-BS200
Capacity (pcs/min)	50-230
Driving Mode	Servo motor
Conveyor Speed(m/min)	≤35
Label Specification	adhesive sticker,transparent or opaque
The application of label object	diameter:12-24mm  Height:25-95mm
The application of label	Height 20-70mm  Length 25-80mm
The inner diameter of label roll	76mm(min)
The outer diameter of label roll	350mm(max)
Printer use air	5kg/cm ²
The power of motor(w)	300W
Voltage	AC220V 50/60HZ Single phase
Size appearance(mm)	1800(L) 700(W) 1270(H)



6.The Main Electrical Configuration Table:





No	Name	Model	Unit	Brand
1	PLC control system	6ES7212-1A	1 Set	SIEMENS
2	Touch-screen	6AV6648-01A	1 Set	SIEMENS
3	photoelectric sensor  (check label object)	FS-V11/-FV-35FA	1Set	Japan KEYENCE
4	Photoelectric sensor  (Check opaque label)	GS61	1 Set	German Leuze
5	Servo motor	2004-RZ08BAIAN	1Set	America AB
6	Drive	2003-CSD3-08BX2	1Set	America AB
7	Main transport motor	90W1:30	1Set	German JSCC
8	Press bottle motor	40W1:30	1Set	German JSCC

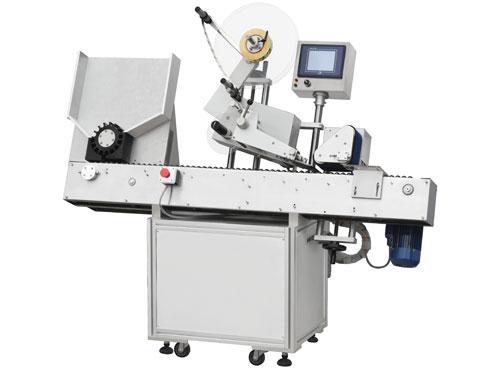

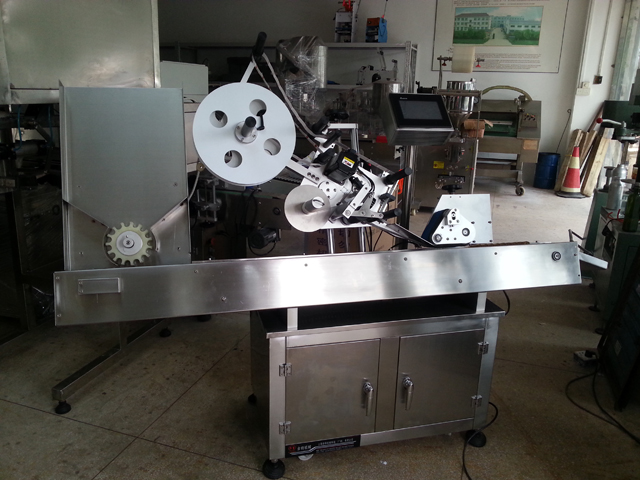

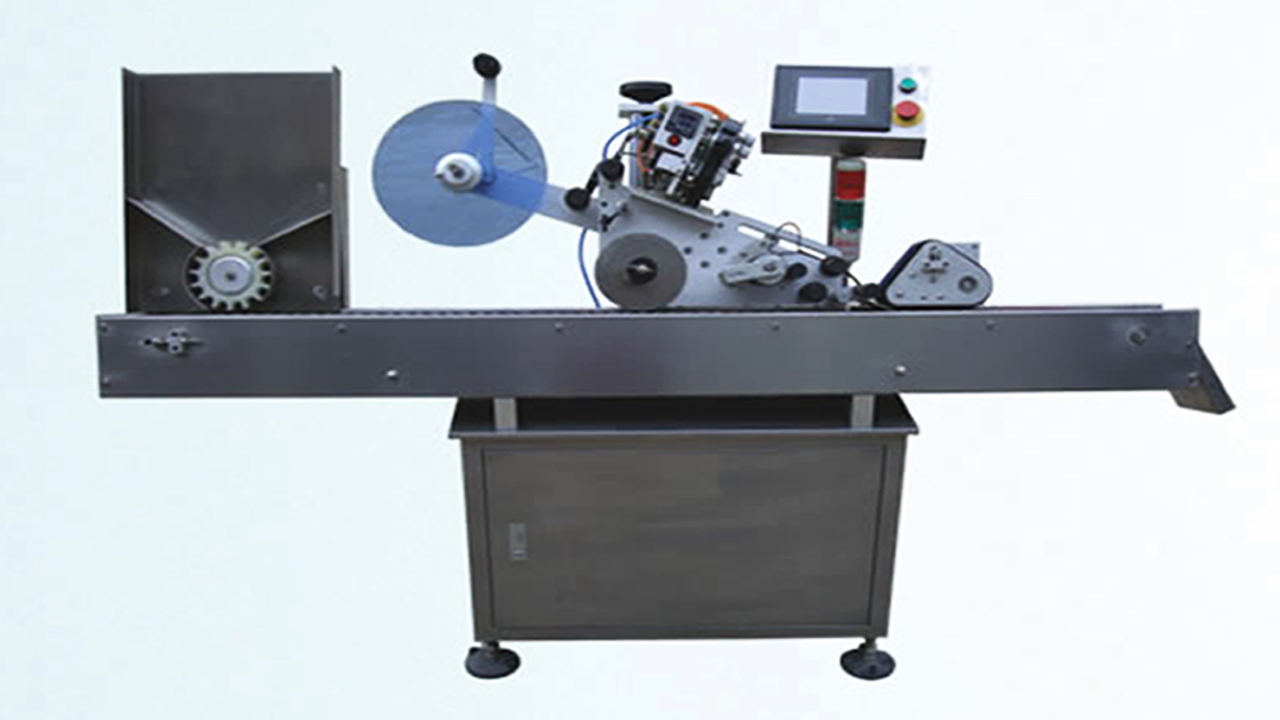

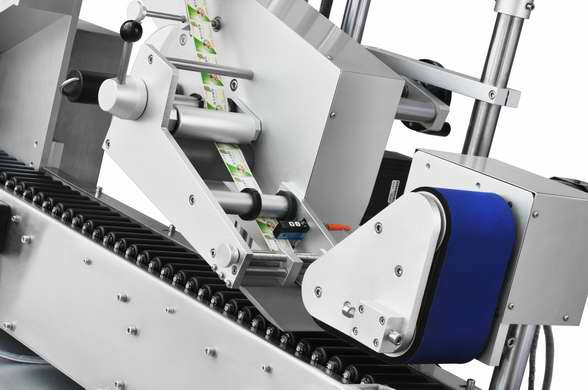

Horizontal labeling machine displayed in details

FAQ
1. What is your Machine Design?
1.1 Fully automatic Syringes Bottles Horizontal Labeling Machine Wear-resistant label rolling mechanism, use
Polyurethane material, not wear and tear.

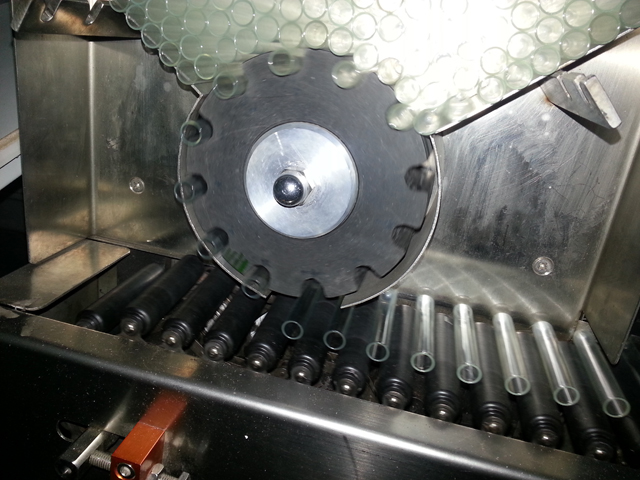

1.2 Advanced screw wheel feeding mechanism, easy, steady, reliable, not broken bottles.
1.3 Use imported bearings for transporting wheels, make the bottles rolling agilely, ensure the labeling
Quality.
1.4 Durable frame and other parts, standard, changeable, can work 24hours.
Case is made of SUS304 stainless steel and T6 aluminum alloy, never rust, meets GMP standard.
1.5 Rolling wheel press bottle, make the label more fasten.
1.6 Label sync orientation mechanism, precision ± 1mm
1.7 Multipoint E-stop button fixed on the suitable position of the production, makes it more
Safe, smooth.

2. What's payment terms, trade terms you accept?
Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment, we usually offer FOB (GUANGZHOU or SHENZHEN) price.

But we also accept other way like L/C.

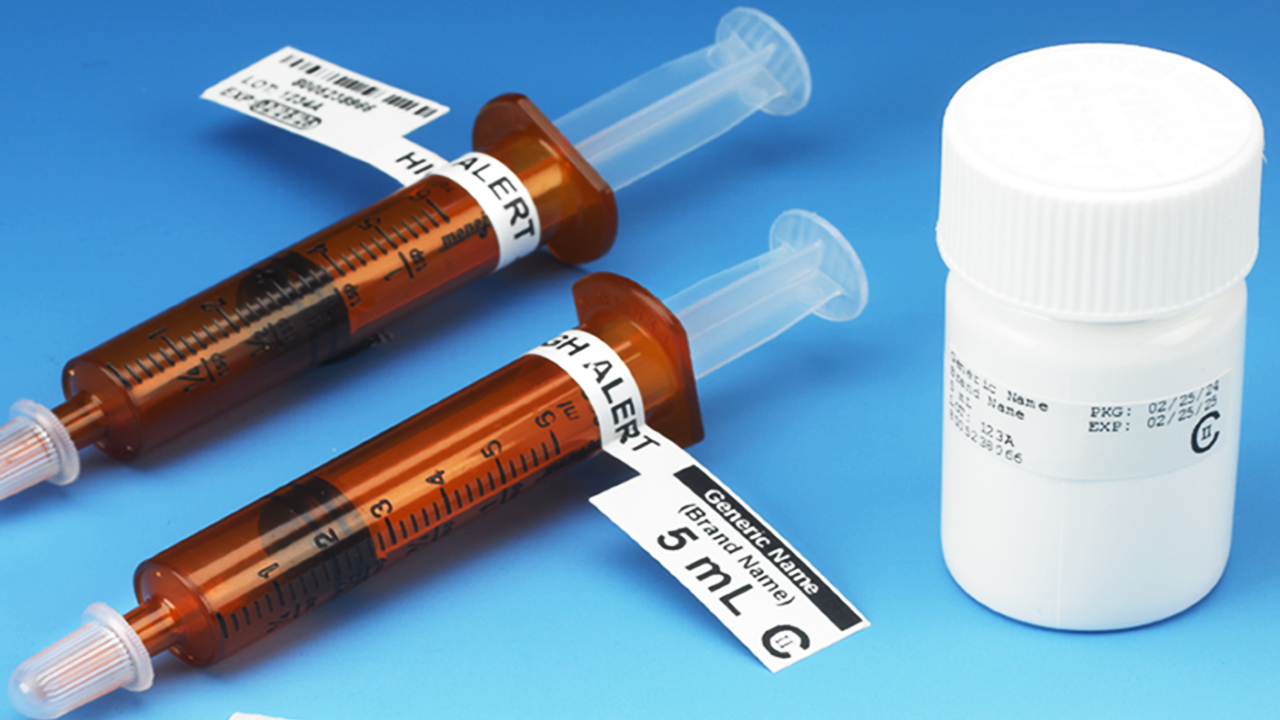

Labeling samples from horizontal syringe labeling machines

Wooden case packaging before ocean shipping for horizontal syringe labeling machines fully automatic

After sales service for PENGLAI horizontal syringe labeling machines model YX-BS200

After sales service shall be done by the buyer. PENGLAI machine will provide all kinds of technical support to the buyer by telephone, fax or e-mail free of charge.

But any service cost to buyer's country is not included.

Guarantee: Three years. The supplier can replace only the elements that are imperfect for material or handwork. Replacement is free and ex factory.

All imperfect elements have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts.

Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer.

Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.

PENGLAI INDUSTRIAL CORPORATION LIMITED
