fully automatic packing equipments

coffee powder milk granules doypack packaging machinery form fill seal equipment Automatic stand-up zipper pouch packing machine

coffee powder milk granules doypack packaging machinery form fill seal equipment Automatic stand-up zipper pouch packing machine

Automatic Stand-up Zipper Pouch Packing Machine for food, such powder, liquid, granules, etc. do filling and sealing work.

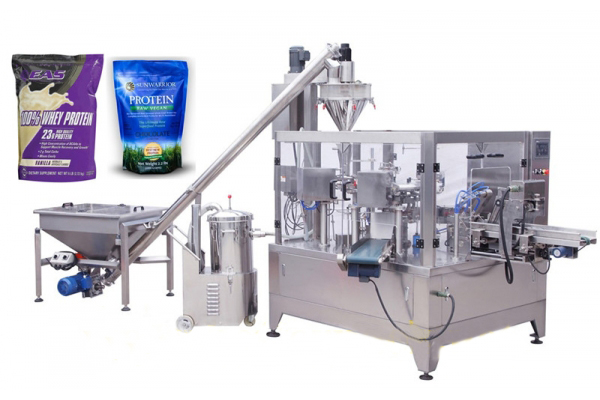

Automatic Stand-up Zipper Pouch Packing Machine

Application: YX06/8-200/300S Rotary Weighing & Packaging Line for Solid (or Grain)

powder rotary packing machine composited by rotary packing machine,

combination weigher and Z- shaped Conveyor, which is suitable for packing

all kinds of powder grains and solids, such as candy, nuts, raisins, peanuts,

melon seeds, nuts, potato chips, chocolate, biscuits and so on.

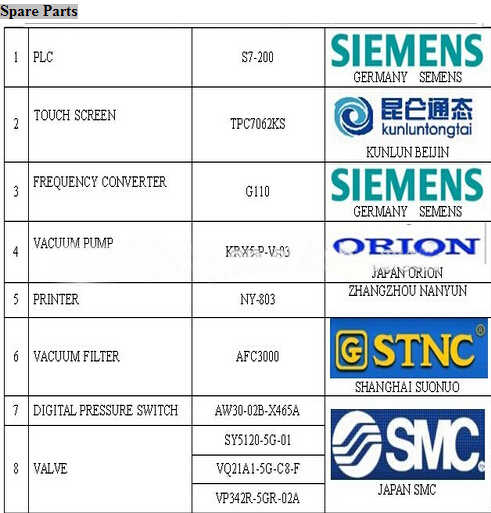

SPARE parts for packing machine.jpg

Function and characteristics

Easy to operate,adopt advanced PLC from Germany Siemens,

mate with touch screen and electric control system, the man-machine interface is friendly.

Frequency conversion adjusts the speed: this machine uses frequency conversion equipment,

can be adjusted within the range according to the needs of reality in production.

Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again,

avoid wasting packing materials and raw materials.

zipper bags packing machines automatic ffs.jpg

Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.

Horizontal conveyer style to giving bag: it can put on more bags on the bag storage

and have a low requirement about the quality of bags.

Use the plastic bearing, don’t need put on oil, less pollution.

Use no oil vacuum pump, avoid polluting the environment in the production.

huff,clamp the meatus of bag when put the windpipe into it, then huff

to open up the bag fully to bottom in oder to avoid the material overflow from the bag

if the it is not opend fully.

The packing materials loss low, what this machine is used the preformed bag,

the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

Product or packing bag contact parts adopt stainless steel or other materials which accord

with the food hygienic requirements, guarantee hygiene and security of the food

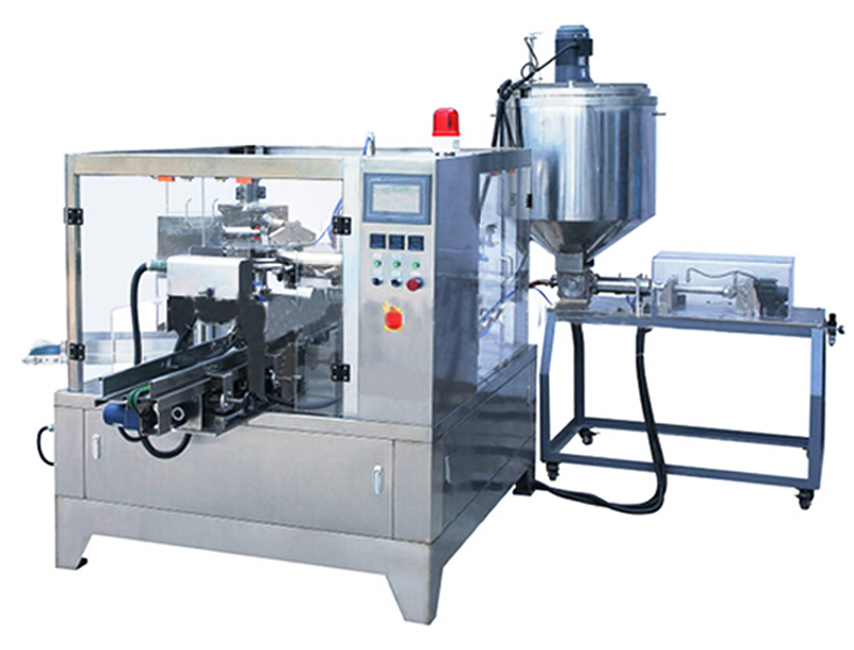

With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.

The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on

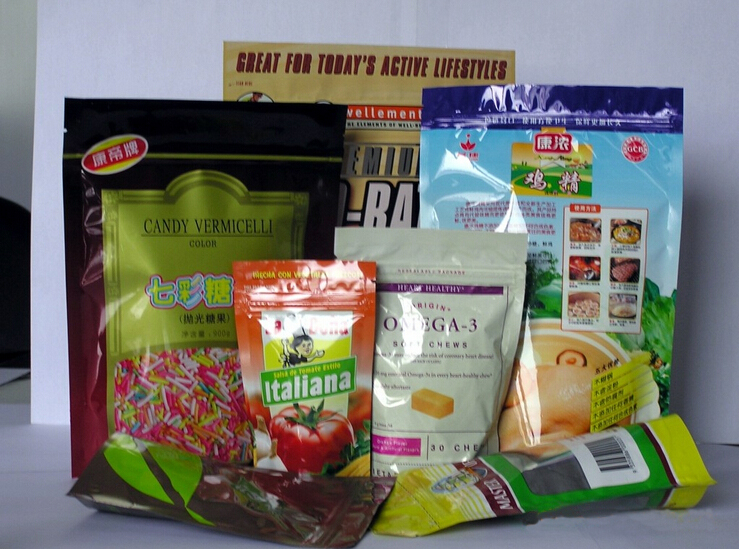

Preformed bag made by film and paper:

Specifications of bag given zipper bags packing machine automatic:

Main Technical Parameters:

SPARE parts for packing machine.jpg

SPARE parts for packing machine.jpg

6-Station Rotary Weighing & Packaging Line for Solid (or Grain)

Model

YX-06-200S

YX-06-230S

YX06-300S

Pouch Type

Flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, standup bag etc…

Pouch Material

Laminated film, PP, PE etc…

Pouch size

W:80-210mm L:150-300mm

W:80-230mm L:150-300mm

W:150-300mm L:150-300mm

Packing weight

5-1500g

5-1500g

5-1500g

Packing Speed

20-55 Bags/Min (depends on the packing material and filling weight)

30-55 Bags/Min (depends on the packing material and filling weight)

20-45Bags/Min (depends on the packing material and filling weight)

Packing Accuracy

≤±1%

≤±1%

≤±1%

Power

3.5KW,AC380V,50Hz

3.5KW,AC380V,50Hz

4.2KW,AC380V,50Hz

Air Consumption

0.3m3/min

0.3m3/min

0.3m3/min

Overall Dimensions (L*W*H)(mm)

4200*2000×3700

4340*2000×3700

4600*2200×3700

SPARE parts for packing machine.jpg

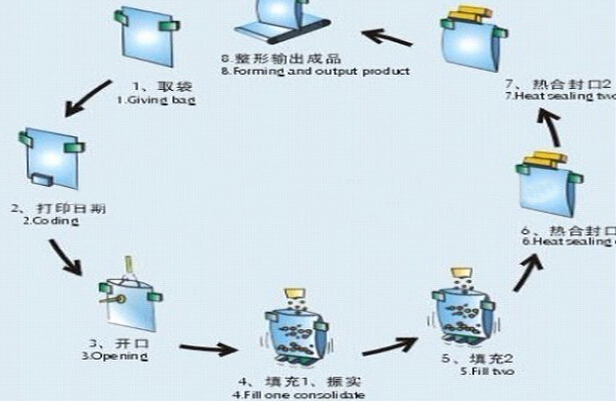

 Product Process

1.Giving bag

2.coding date

3.open bag

4.filling &vibrate

5.sealing

6.forming & output packages.

SPARE parts for packing machine.jpg

 processing for flat labeling machine.jpg



zipper bags packing machines automatic ffs.jpg

After sales service

Guarantee: for all the machine, it claims one year for guarantee.

(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,

our technician will go to your place to install and test the machine

and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,

our technician will go to your place to fixed the machine as soon as possible.

The cost should be in your account.(as above).

PENGLAI INDUSTRIAL COPRATION LIMITED
