fully automatic filling machine

Stand up spout bags filling capping machine automatic with bag loading system for juice liquid jelly milk packaging automated bags filler sealer equipment

Stand up spout bags filling capping machine automatic with bag loading system for juice liquid jelly milk packaging automated bags filler sealer equipment

This spout bags filling capping machine model YX-50F series is full automatic production line with such processes: automatic pouch-loading, fixed-position filling, cleaning spout, cap feeding and inserting, pouch position testing, cap screwing (applying magnetic adjusting torque for rather stability), quality production output.

PLC control.

Note:

1. According to the customer request, provides the special design.

2. The machine disposition may make the choice.

Machines vary with the controlling system and different optional function :

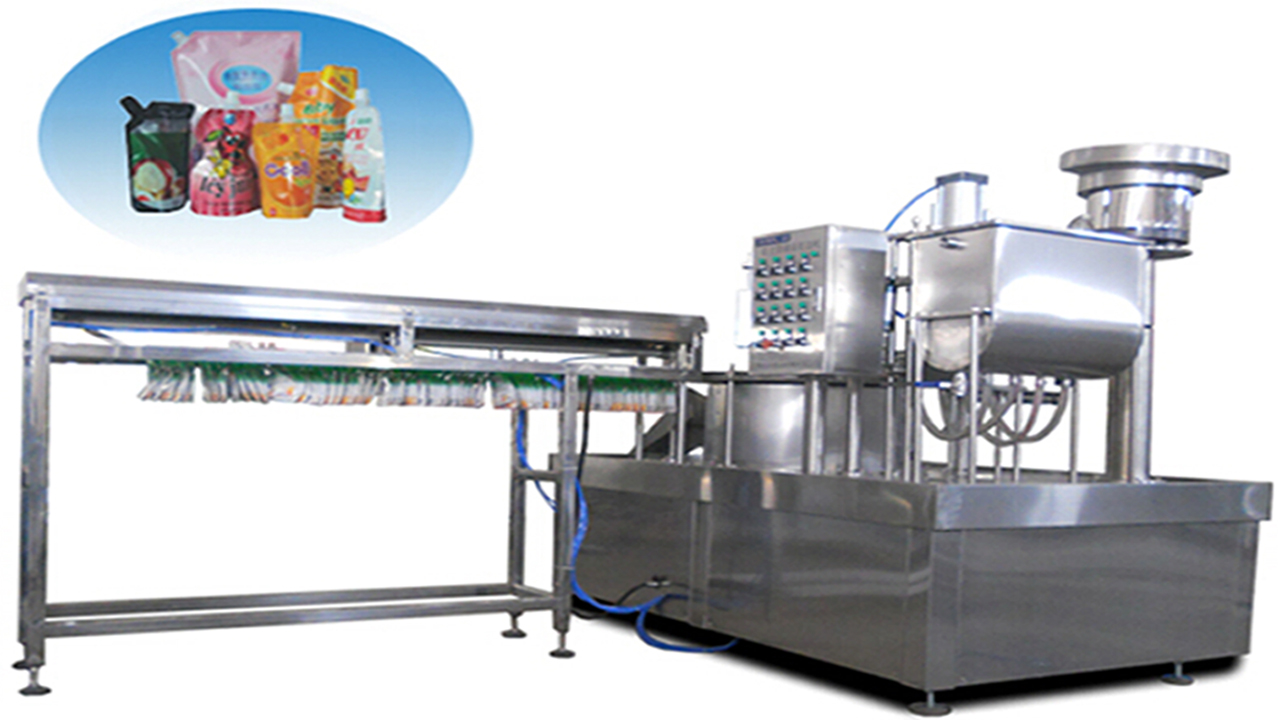

►Model YX-50F series automatic spout stand up bags filling capping machine for juice liquid jelly milk production with

button controlling system

spout bags filler capper.jpg

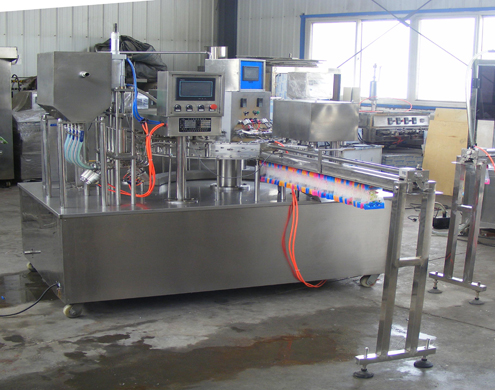

►machines with touch screen controlling system&automatic bags loading system for filling capping process

touch screen controlling for filling capping machine.jpg

The spout bags filling capping machine automatic model YX-50F series with CIP cleaning system

filling sealing machines.jpg

►Model YX-50F series automated spout bags caps filling sealing machine with CIP system&ink printer function:

CIP cleaning system.jpg

Technical parameters of spout bags filling sealing machine automatic model YX-50F-04

Parameters

Contents

Nozzles Injector

4

Packing Speed

3800-4300 bags/Hour

Volume

50-500ml

Powder

1.6 kw

Voltage

380V/50HZ (three phase)

Air Pressure

0.5-0.7Mpa

Air consumption

0.5 m3/min

Out dimension

Main Machine: 2200*1430 * 2000mm

Send bag holder: 2200*500*1500mm

Weight

1500kg

The parameter above is only for reference, please make the object as the standard.

Basic Work flow:

filler sealer automatic spout bags.jpg

Structure of spout bags filling capping machine automatic model YX-50F series

structure for machines filling sealing.jpg

1

electrical appliance case

7

photoelectric checking device

2

pouch carrier

8

cap-screwing device

3

filling device

9

finished product exit

4

charging basket

10

turntable

5

cleaning device

11

structure

6

cap sorter device





filling sealing for spout bags.jpg

1

pouch carrier

6

cap-screwing device

2

filling device

7

turntable

3

plunger case

8

finished product exit

4

cleaning device

9

structure

5

charging basket

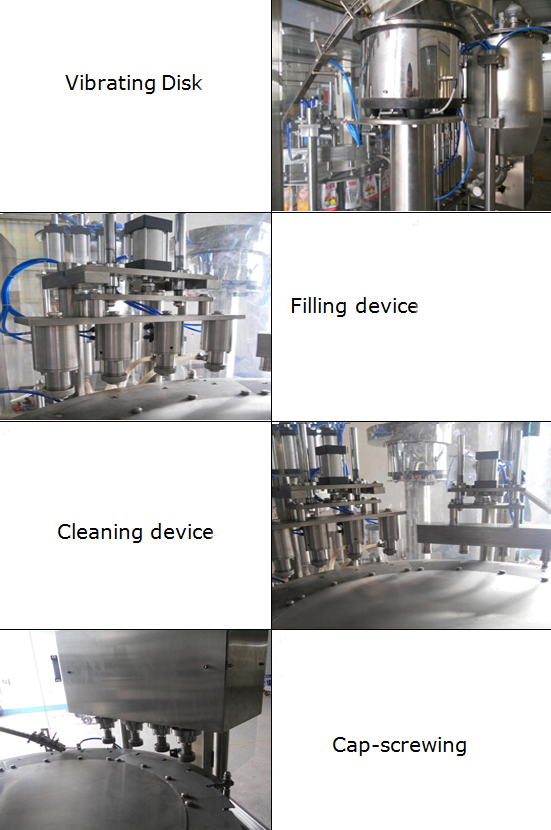

Details of spout bags filling sealing machine automatic model YX-50F series

details of filling capping machine.jpg

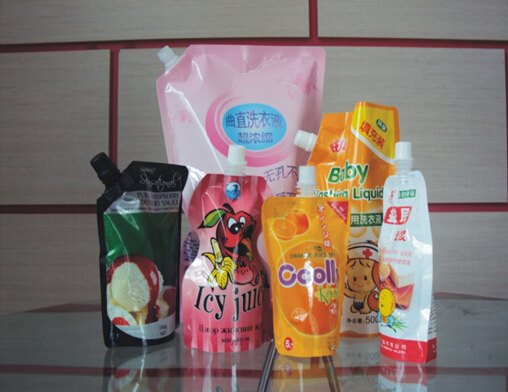

Final product for spout bags from filling sealing machine automatic filler capper for juice liquid production

spout bags filling sealing equipment automatic.jpg

Packing List together with the machines

Name

Model

quantity

Filling Sealing Machine

YX-50F

1

Operation Instruction



1

Manufacturer Certificate



1

Hexagon ring spanner

M4

1

Hexagon ring spanner

M5

1

Hexagon ring spanner

M6

1

Hexagon ring spanner

M8

1

Hexagon ring spanner

M10

1

The six angle wrench

14—17mm

1

The six angle wrench

19—22mm

1

The six angle wrench

24—30mm

1

Cross Screwdriver

6 inches

1

Straight Screwdriver

6 inches

1

 Thermocouple

K type 1.0m

1

Electrical Heated Tube

Ф12x70 220V 180W

2

Wooden case packaging before ocean shipping for automatic stand up spout bags filling capping machine

exporting for filling capping line aerosol.jpg

Quality Assurance:

1. Each machine is manufactured by our professional workers.

2. Each machine with a strict inspection before out of storage.

3. Each machine use a large number of 304 stainless steel.

4. Each machine use good quality electric elements.

5. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.

6. The warranty time is one year.

7. Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients pay for the freight of round-trip.

8. Beside the warranty days, we continue to provide life-long maintenance services.
