sterilizing equipments

shrink tunnel machines electric heating steam for labeling bottles shrinkage packaging sleeve bottles applicator

shrink tunnel machines electric heating steam for labeling bottles shrinkage packaging sleeve bottles applicator

YX Series  Steam shrink tunnel/ Electrical heating shrink tunnel



Steam Shrink Tunnel , Electrical Shrink Tunnel Facility character:

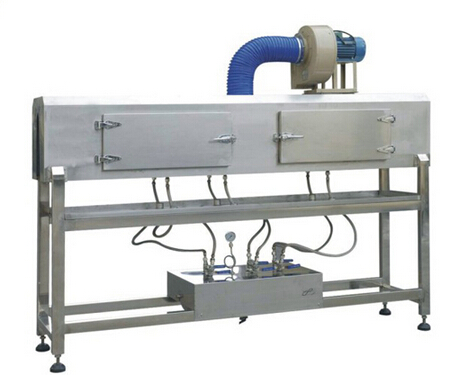

 shrink tunnel for packing machine.jpg

1.   Whole machine adopt qualified stainless steel and good-quality of aluminum alloy , compact and reasonable fracture,

convenient to adjust

2.   The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5~10paper tube.

3.   Simply installation, then can convenient for square and round bottle.

4.   No need of instrument, rotary mechanism is convenient to adjust, apply to different bottle type.

5.   Unique sleeve labeling method, adopt pressing sleeve labeling method, not only convenient but also reasonable.

6.   Control the feeding system automatically, and flat the shrinkage film and adjust strain simultaneity.

7.   Unique design knife plate, in the determined range, can change the knife base. Knife changing quickly and conveniently.

8.   Middle guide-pole clip system, mould changing quickly, no need any instrument.

9.   Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.

10. Imported servo system and high-sensitivity photoelectric from Japan,  with high cutting precision of label.

11. Stainless steel electric control cabinet, OMRON PLC, imported from Japan.

12. Adopt advanced man-computer Interface auto controlling technology, key electric component all adopt international famous

 industrial brand.

Steam Shrink Tunnel , Electrical Shrink Tunnel   for bottles Technical Parameters

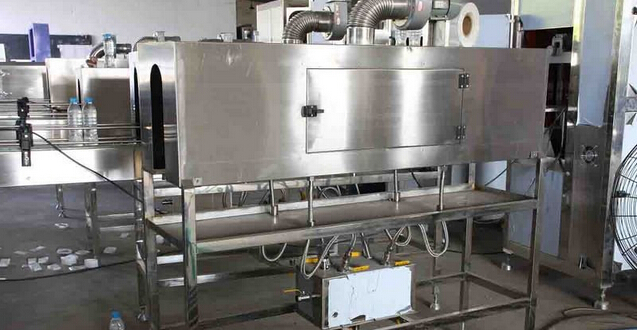

shrink tunnel for packing machine.jpg

Specification

Parameters

18KW

24KW

36KW

48KW

Rating steam generating

24

32

48

64

Rating steam pressure

0.4/0.7

0.4/0.7

0.4

0.4

Rating steam temperature

151/170

151/170

151

151

Water temperature

20

20

20

20

Electric power

18KW

24KW

36KW

48KW

Pump motor power

550

750

750

750

Diameter of safety valve

DN15

Diameter of main steam valve

Diameter of drain valve

Diameter of water supply valve

Boiler water volume

42

Size appearance (mm)

630*550*1400

720*650*1350

1030*630*1350

1030*630*1350

Boiler weight

85KG

90KG

195KG

195KG

Steam generator



The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

Power consumption:18KW

Steam pressure:0.25-0.4Mpa

Steam capacity:24Kg/h;

Size:600L×550W×1200H

Weight:196Kg

Factory produce label shrink sleeve steam tunnel



Options for shrink tunnel electric or steam heating way:

packing wooden case for shrink tunnel.jpg

Pre-heat device for extended shaping

Steam generator

Conveyor belt

Conveyor system

Labeler

Shelf

tunnel sleeve labeler for delivery wooden case ELECTRIC.jpg

packing wooden case for shrink tunnel.jpg

Service from us

The sample service:we can send you the video of the running machine. You are welcome to come to visit our company,and see the machine running in our factory.we can pick you up from the station near our city. If we get  the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.

Customized service:we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service:we will provide the bill of load on time to make sure you can get the machine quickly .when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well. we provide one year warranty with spare parts free.
