semi automatic labeling machine

round bottles labeling machine semi automatic non-sticker labeller equipment for plastic glass metal round containers pipe bottle

round bottles labeling machine semi automatic non-sticker labeller equipment for plastic glass metal round containers pipe bottle

Model YX-50A round bottles labeling machine semi automatic non-sticker labeller equipment for plastic glass metal round containers pipe bottle

Application:

Suitable for different size of adhesive label or adhesive film on all kinds of round bottle,High accuracy and high speed,dispensing & labeling automatically.

Suitable range: Round bottle, Round tank, Round barrel to self-adhesive labeling.

It is used in PET bottle, plastic bottle, glass bottle, Metal bottle and so on round bottle etc.

bottle sampes for labeling.jpg



Product discription for labeling machine semi automatic :

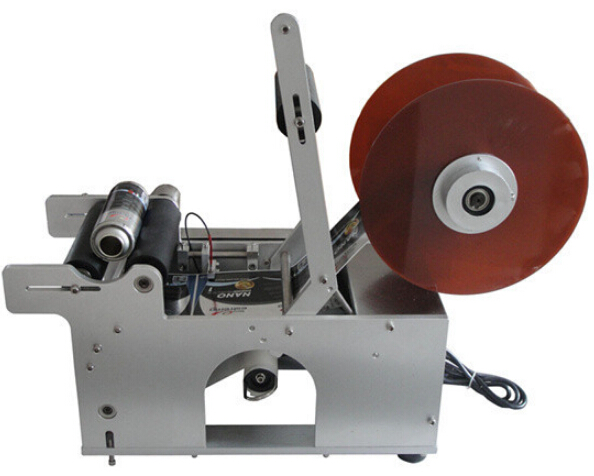

labeling machine for round containers.jpg

 1, Small structure takes up less space and easy to move and load.

 2, Good labeling precision and stability; Neat, no wrinkle, no bubble.

 3,It has powerful function. It can achieve circumferential position labeling and non-position labeling easily by switch control.

 4,It satisfy the circumferential position labeling and non-position labeling on diameter between 12-120mm bottles.

 5, It is easy to use and adjust. The new workers can use or adjust it easily after simple training.

 6,Conveyer parts are completely covered to avoid the abnormal conditions which make the use safer.

 7, The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely. All these make it easy to change products and wind labels.
 8, Has 2 control methods: automatic and semi-automatic. Workers can choose either sensor control or feet step control for labeling according to reality.

 9, Whole equipment is mainly made of stainless steel and high level aluminum alloy. The whole structure is strong and harmonious.

10, Has fault stop function, production counting function.

Technical parameters of round bottles&objects labeling machine:

labeling equipment semi automatic.jpg

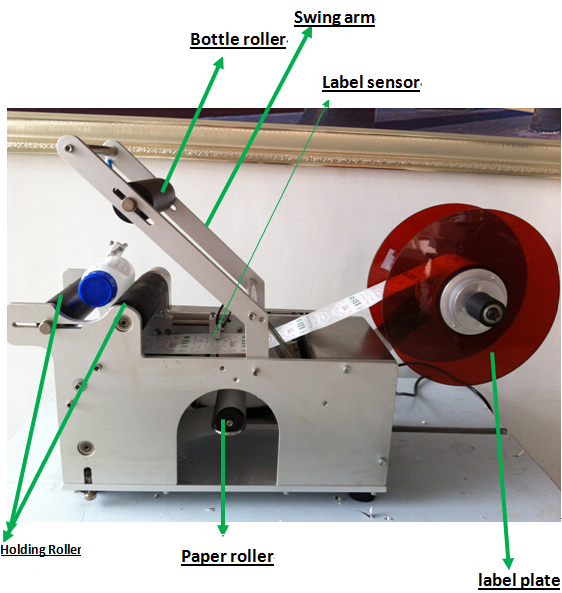

labeling machines drawing.jpg

lateral drawing.jpg

Model
YX-50A

Labeling precision

less than ±0.5mm

Efficiency

25-50 piece/minutes

The size of work-piece

10-150 mm in diameter

Tag width

8-150 mm

Tag length

15-315 mm

Power supply

220 V 50 HZ

The motor power

120 w

machine size

650 x 450 x 450 mm

weight

25KG

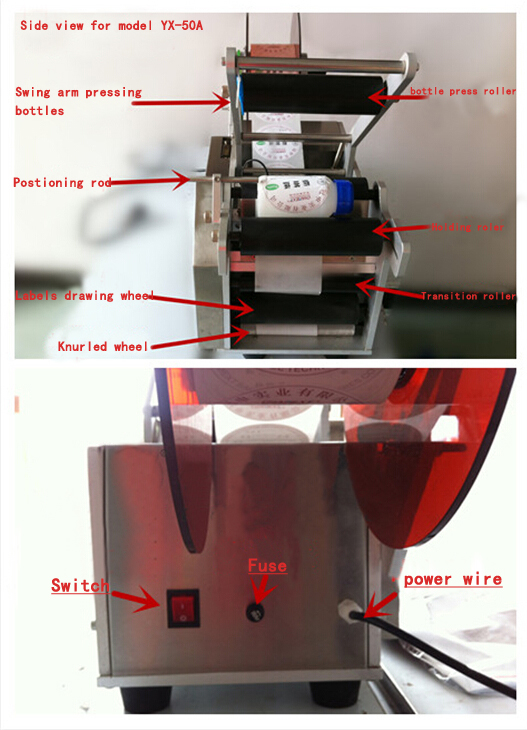

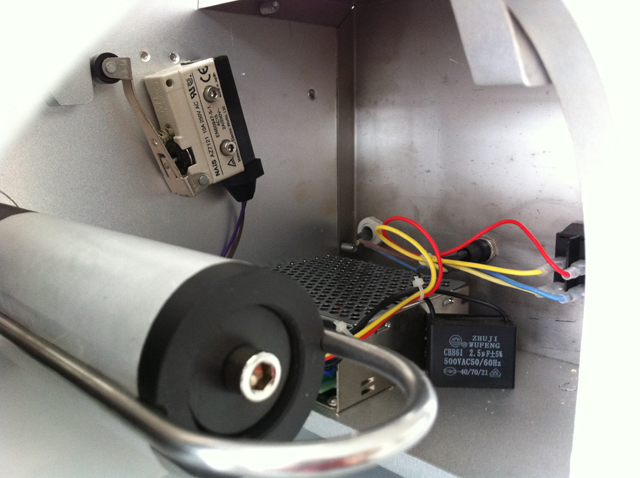

Machines picture in details

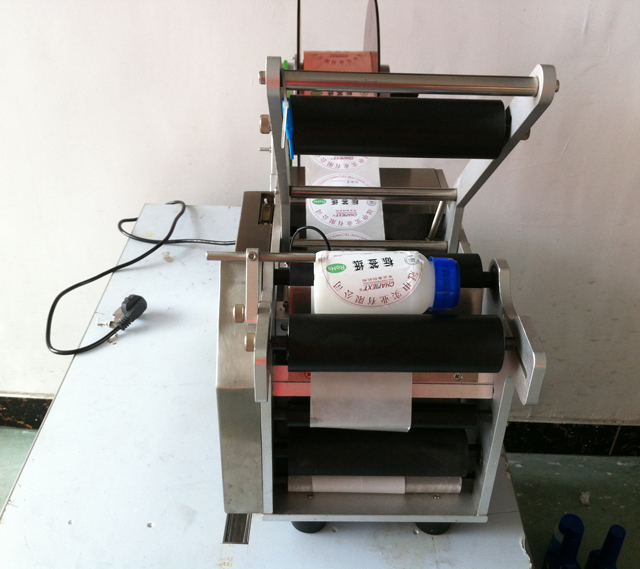

labeling machine for round containers.jpg

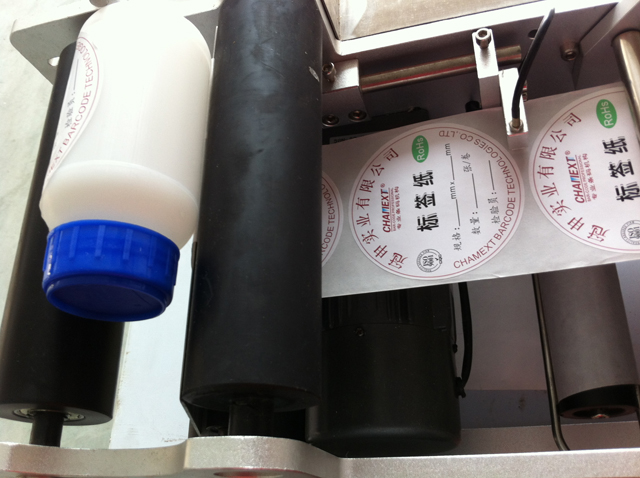

bottles for labeling machines.jpg





Packaging in crate including:

wooden case packing for labeling machines.jpg

Main machine × 1 pc

Fuse × 3 pcs

User manual × 1 pcs

Quality certificate × 1pc

After-sales service for small semi automatic round bottles labeling machines

after sales service.jpg
