semi automatic filling machine

Thicky sauce honey pepper peanut cream filling machine with pressure boosting system semi automatic thicky materials liquid filler equipment

Thicky sauce honey pepper peanut cream filling machine with pressure boosting system semi automatic thicky materials liquid filler equipment

The customized filling machine for sticky materials model YX-LC06 is the updated machine based on the model YX-LC02 cream filling machine .

The custom cream sauce filling machine is characteristic with convenience in operation and elegance in appearance when adapted with piston and push-pull rod structure.

The machine can fill the high viscosity&low fluid materials like peanut butter because the machine works causing the vacuum tube which can suck the materials with more powerful force.

The sticky materials filling machine functions with advantage of quantity filling/filling at uniform moation/adjustable speed as well as boosting pressure for materials filling.

All the control parts and acutator parts in the filling machine consists of pneumatic part ,and there is no strong friction and collison during operation of machine.

The main parts from the machine like main body/T-joint/hopper/feeding hose/filling nozzles is composed through scuffle-like clamp which can make easy the maintenance installation

dissambly of machine.The machine can be used in the explosive-proof circumstance.

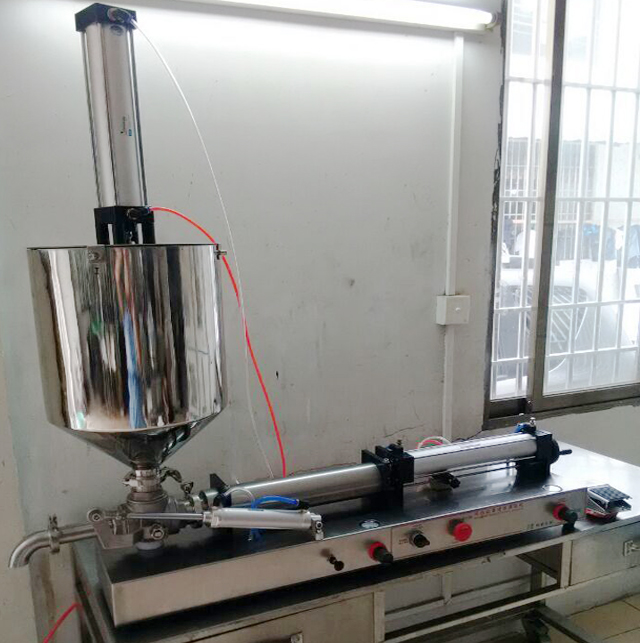

model YX-LC06 cream filling machines.jpg

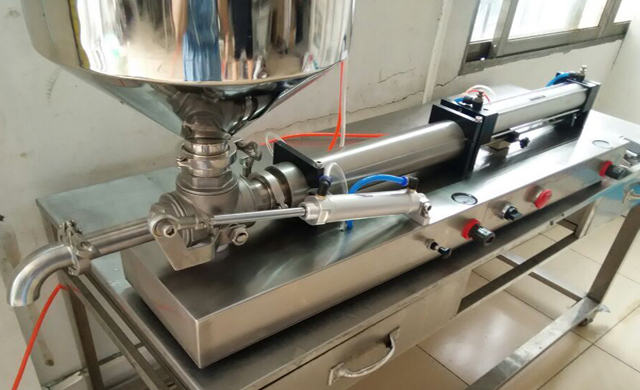

pneumatic part for filling machine.jpg

The application of machine is suitable for filling liquid sauce oil milk and such like material without granules ; also the filling machine suitable for materials with microgranules or soft

granules like cream sauce etc .The machine can be chosend in the field like pharmacy/food packing/lubractive oil/petroleum/chemical/cosmetic etc .It is the ideal equipment for improving

production efficiency and saving labor from heavy work when the products require filling process .

Machine features :

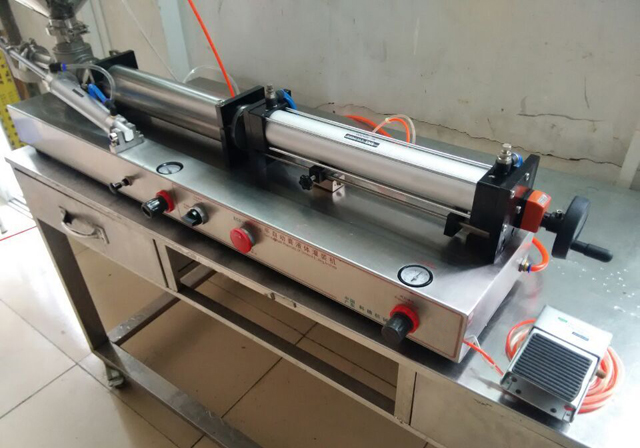

controller air part.jpg

1)Controlling and acutator parts are made from brand like Festo in Germany/ AirTac in Taiwan/SNS in China.

The contact part is made of SUS316 or SUS304 stainless steel materials,GMP standard; The non-metallic part with high quality materials.

The sealing part is made of Silicon and polyfluo; The Polfluo stands out with its anti-corrosion/temperature-resistance and anti-abrosion.

2)The Pneumatic parts for acutation is driven with compressured air without needing power supply; explosion-proof and safe in operation;。

3)The Measure way adopts fixed volume and push-pull rod structure which is controlled by the subtle switch and positional stroke ; As well the single-direrction valve is the swift and accurate

cylinder valve so the filling accuracy is in high standard and lower indifference .

with boosting system air.jpg

4)The filling nozzle adapts cylinder valve or mechanical valve inside which there is installed with the anti-drop blocking in order to avoid drops or fiber drawing .

The length and diameter of filling nozzles (various sizes available)can be adjustable when installed with the lifting support.

5)There is no need special tools for assembling the machine.

6)There is two modes for machine controlling : auto and manual ; The "Manual" is controlled by pedal switch while the "Auto" in continuous filling way

Basic parameter of filling machine customized for high viscosity materials with pressure boosting system:

illustration of filling machine.jpg

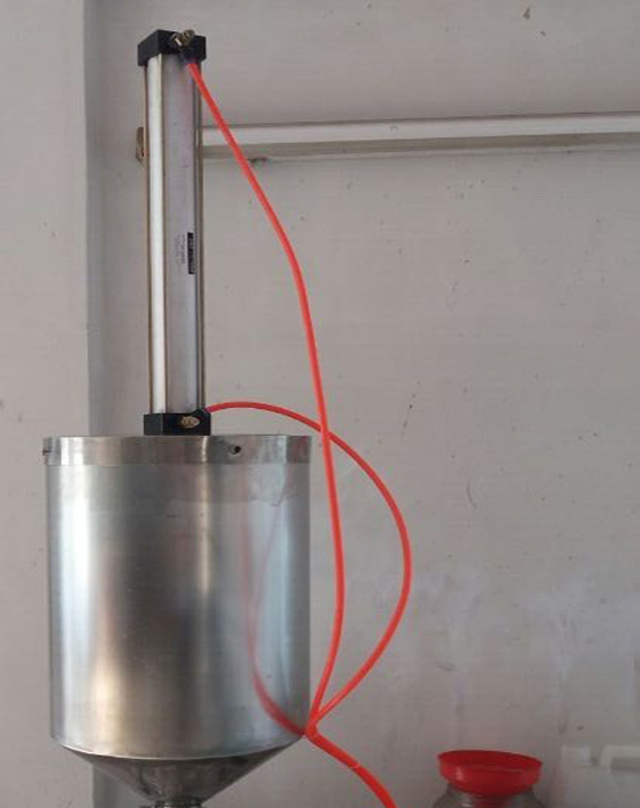

boosting system for air pressure.jpg

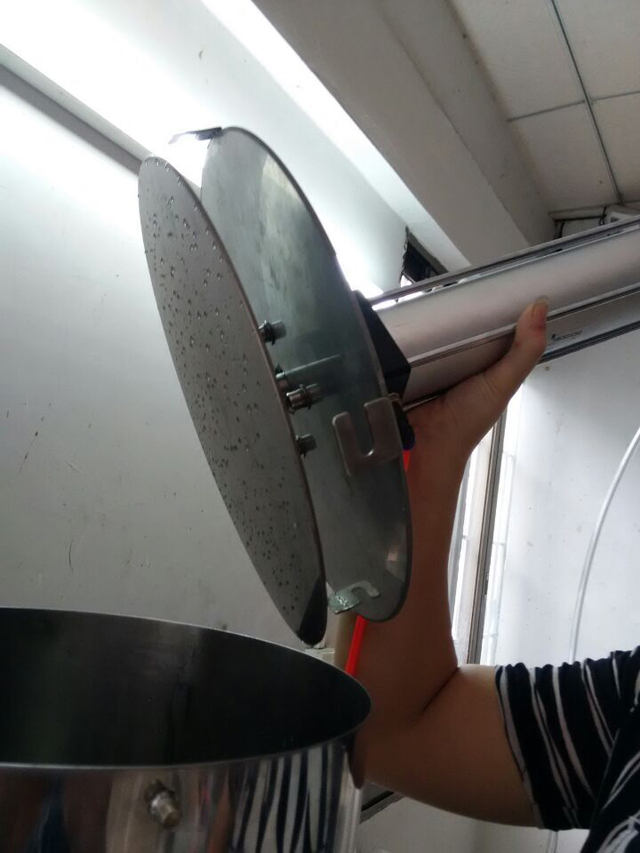

in the hopper pressurizer.jpg

Model

YX-LC06-1000

Series number

YXLC10-2046

Air pressure

0.6MPa-0.8MPa

Power

---

Filling volume

50ml-1000ml(adjustable)

Nozzle

1pc

Indifference

≤±0.5%

Filling Speed

≤30bpm

Temperature

10℃-90℃

Relative Humidity

10%-85%,undensable

Protection level

IP 32

Hopper size

15Kg30Kg(Standard)Customized

Materials

Stainless steel

Nozzle diameter

 10/16mm()19mmcustomizable

Dimension

1160mm×200mm×400mm(Standard)

Weight

 45Kg

illustration of filling machine.jpg

To set the filling volume is mainly up to control the stroke of Materials cylinder and main cylinder by rotating the handle .The main working principle illustrated as below::

working principle of filling machinery.jpg

The whole filling process includes:① Material adding ② Air Extraction ④ Cylinder suction ⑤ material out through nozzle;

When the machine finishes the initial steps(ie material adding and air extraction process),the filling machine can be adjusted for different volume。

Material applicable and samples as below :

butter for filling with pressure boosting.jpg

high viscosity material for filling.jpg

filling machine for peanut.jpg

Wooden case packaging for filling machine before shipping :

wooden case packing for filling machine.jpg

After-sale service for filling machine with pressure boosting system:

Guarantee: for all the machine, it claims three years for guarantee. (Excluded from the warranty are problems due to accidents, misuse , misapplication,

storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS  NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go

to your place to install and  test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need to pay for the technician USD50 per day. also you can go to our factory to do training.

After-sales service:If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
