perfume making machine

Pneumatic crimping machine semi automatic desktop glass bottles perfume crimper equipment cosmetic packaging

Pneumatic crimping machine semi automatic desktop glass bottles perfume crimper equipment cosmetic packaging

Pneumatic Perfume Capping Machine is kind of machine which used in capping various perfume bottles.

It is compose of two main devices: capping system and pneumatic control.

This machine serves air compression as power producer, taking advantage of air compression to achieve efficient one-time sealing.

Feature of semi automatic pneumatic crimping machine for glass bottles

bottles for trying machine.jpg

Beautiful appearance and compact structure
Even cap closing with good sealing performance
Accurate cap positioning without abrasion of the surfce
Pneumatic control is adopted. Convenient operation and maintenance.

Note: Capping head can be customized according to the size of the nozzle.

pneumatic sealing for glass perfume bottles (1).jpg

crimping part for pefume making.jpg

pneumatic crimping machinery model YX-PC01 (3).jpg

Technique Parameter of pneumatic crimping machinery desktop semi automatic:

Item Name

Technique Data

Feature



Perfume Crimping Machine

Applicable bottle size

30-300mm(Height)

beautiful appearance and compact struture

 15-100mm(Width)



Working Method

Fully Pneumatic

Even cap closing with good sealing performance



Air Source

0.4-0.6MPa



Torsion

4---8kg/cm(standard)

Accurate cap positioning without abrasion on the surface



Machine Size

L320xW230xH520(mm)



Machine Weight

32KG

Pneumatic control is adopted.Convenient operation and maintainance




Applicable Objects: cosmetics class for chemical industry

The Selection Bar Oral
The Contraction Nozzle Size (mm):15.75 ---- 16.3
The Contraction Nozzle Size (mm):18.5 ---- 19.5
The Contraction Nozzle Size (mm): 20.8 ---- 21.2

head for crimping (2).jpg

crimping head for different diameter sizes .jpg

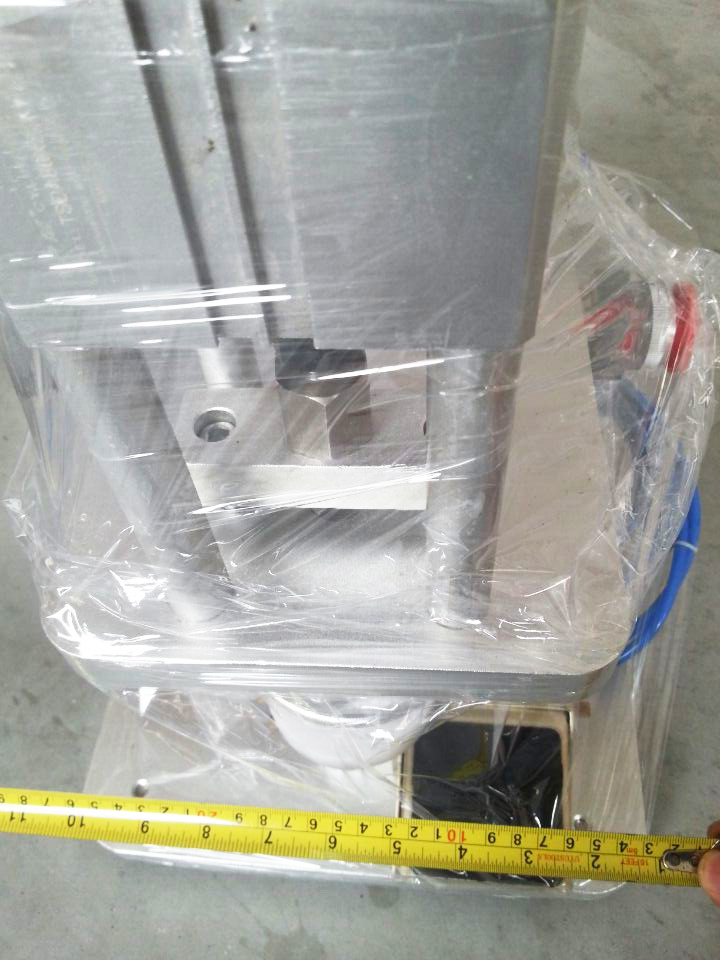

Measurement of pneumatic crimping machine semi automatic model YX-PC01

measurement of pneumatic crimping machinery (2).jpg

Height of pneumatic crimping machines

measurement of pneumatic crimping machinery (4).jpg

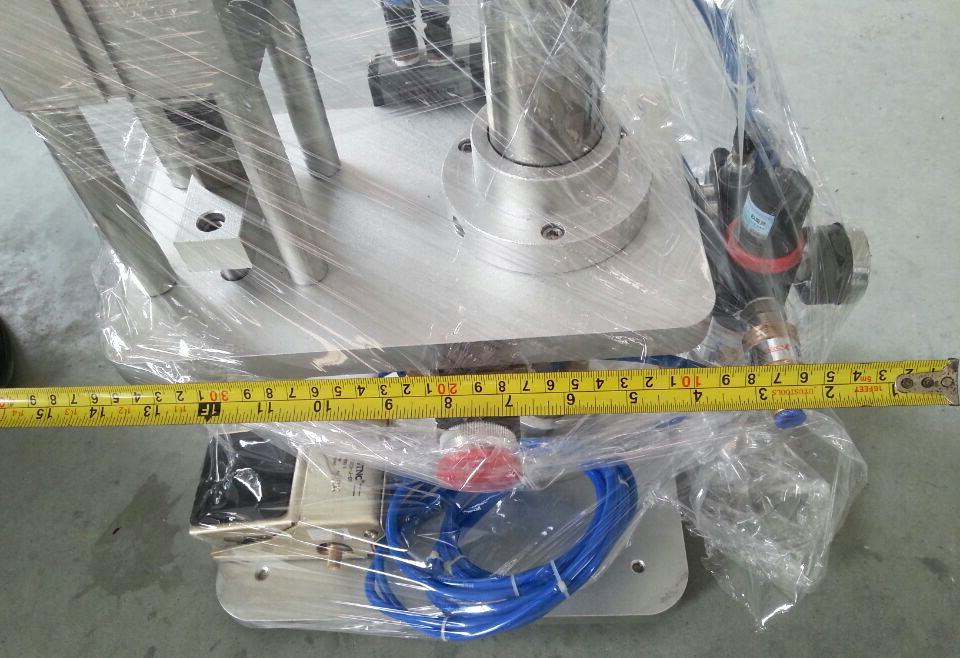

Width of pneumatic desktop crimping machine for glass bottles model YX-PC01

measurement of pneumatic crimping machinery (3).jpg



Crimping samples for glass bottles

crimping samples from manual pneumatic crimper.jpg

parts for filling machinery.jpg

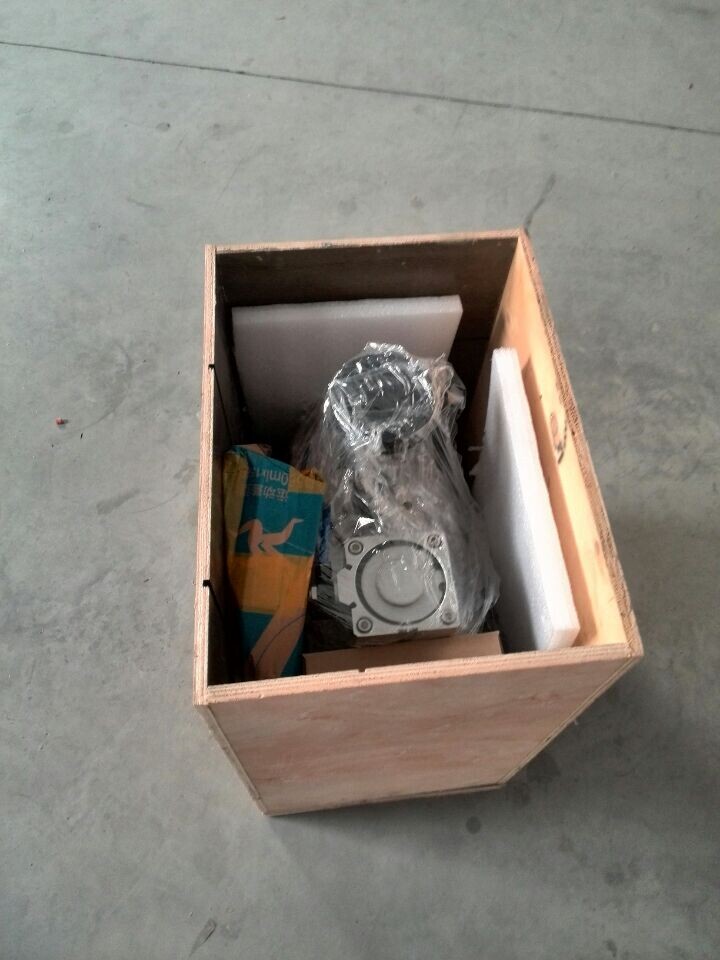

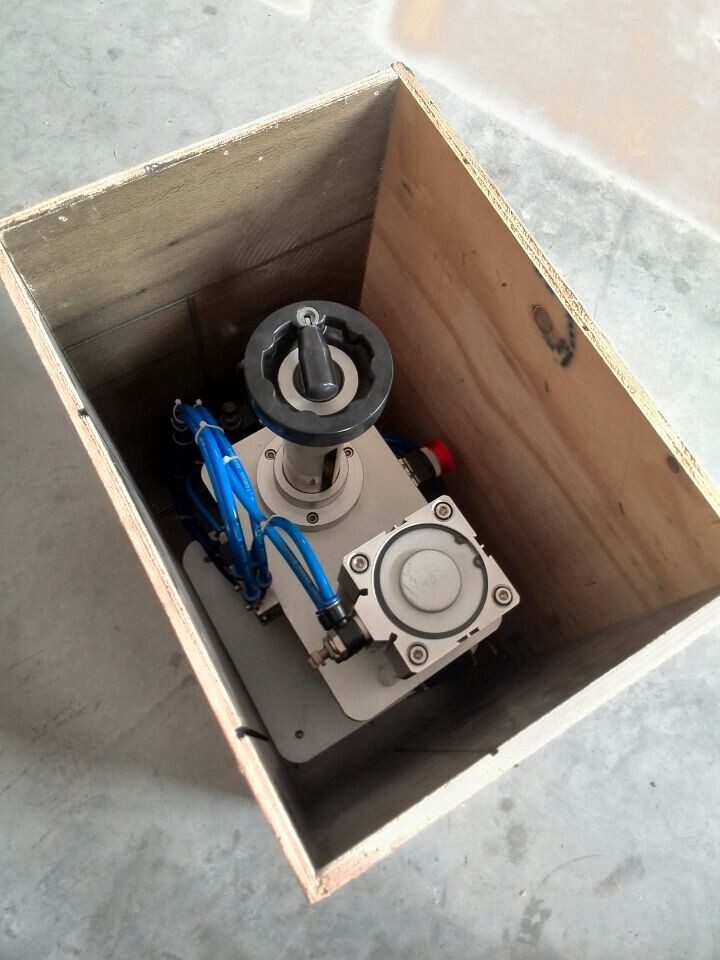

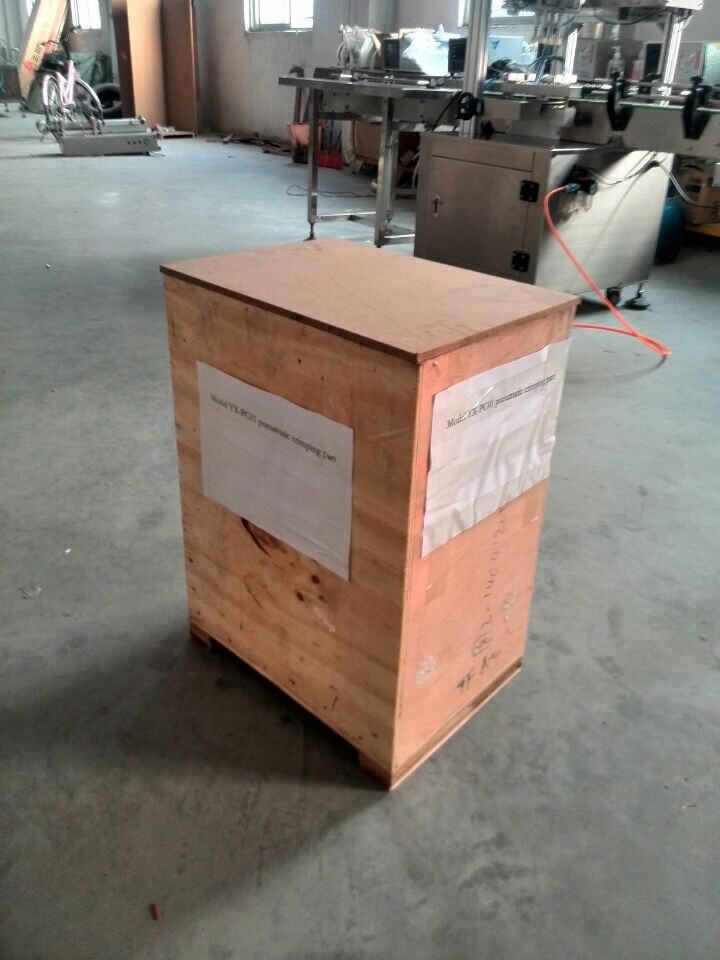

Wooden case packaging for DHL door to door Shipping

wooden packing for crimping machinery.jpg

packing machinery perfume crimper with protective foam.jpg

crate for Model YX-PC01 crimping machinery.jpg

wooden case packing with mark.jpg


Desktop crimping machinery equipped with the production line for perfume making process
