perfume making machine

perfume making machine blending tank perfume mixer equipment freezing tanks filter system cosmetic liquid making machine

perfume making machine blending tank perfume mixer equipment freezing tanks filter system cosmetic liquid making machine

100L -1000L Cosmetics / Perfume Making Machine With Freezing , Pneumatic Mixer

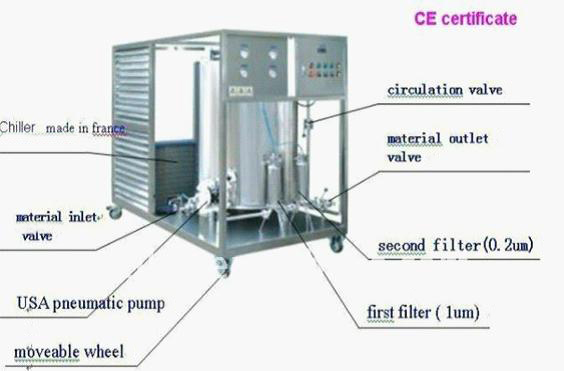

Feature of the machine perfume making mixing tank from 100 to 1000L

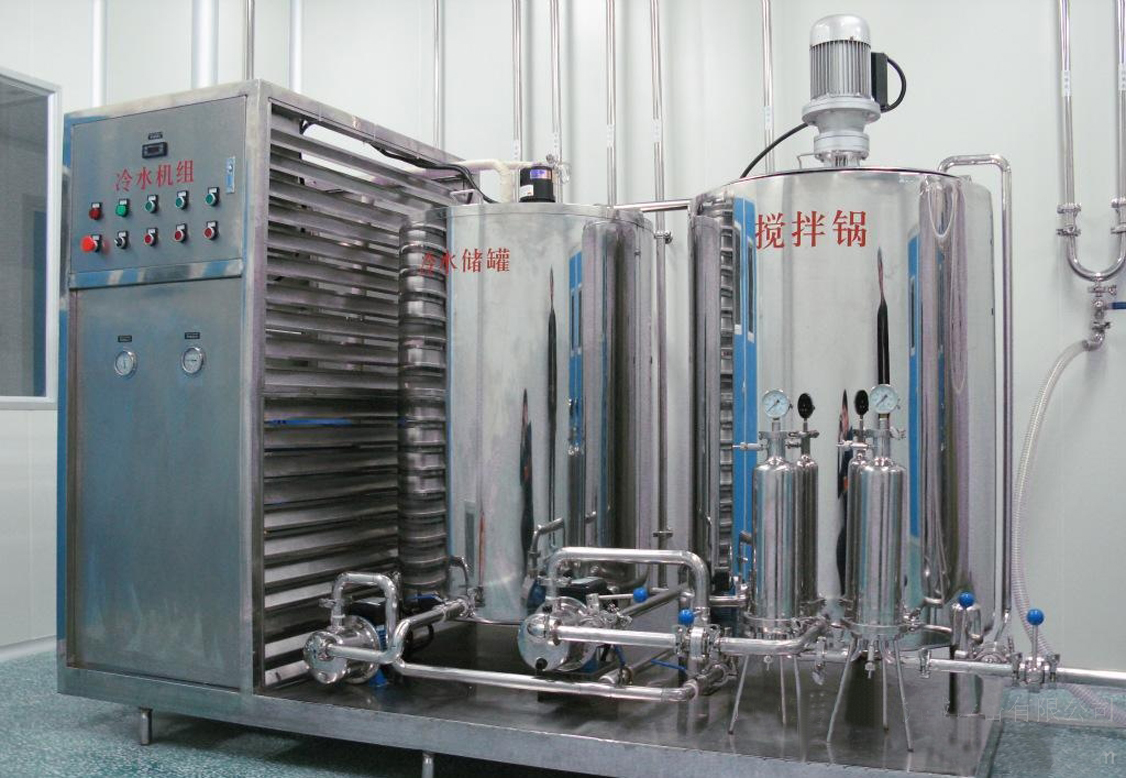

perfume mixing blending tank.jpg



· The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.

· The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.

◆ Stainless steel heat preservation freezing tank and titanium metal coil pipe

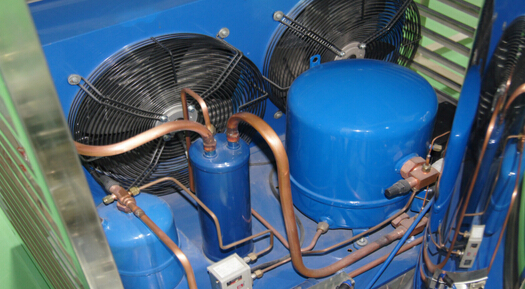

◆ Freezing unit (place of origin France)

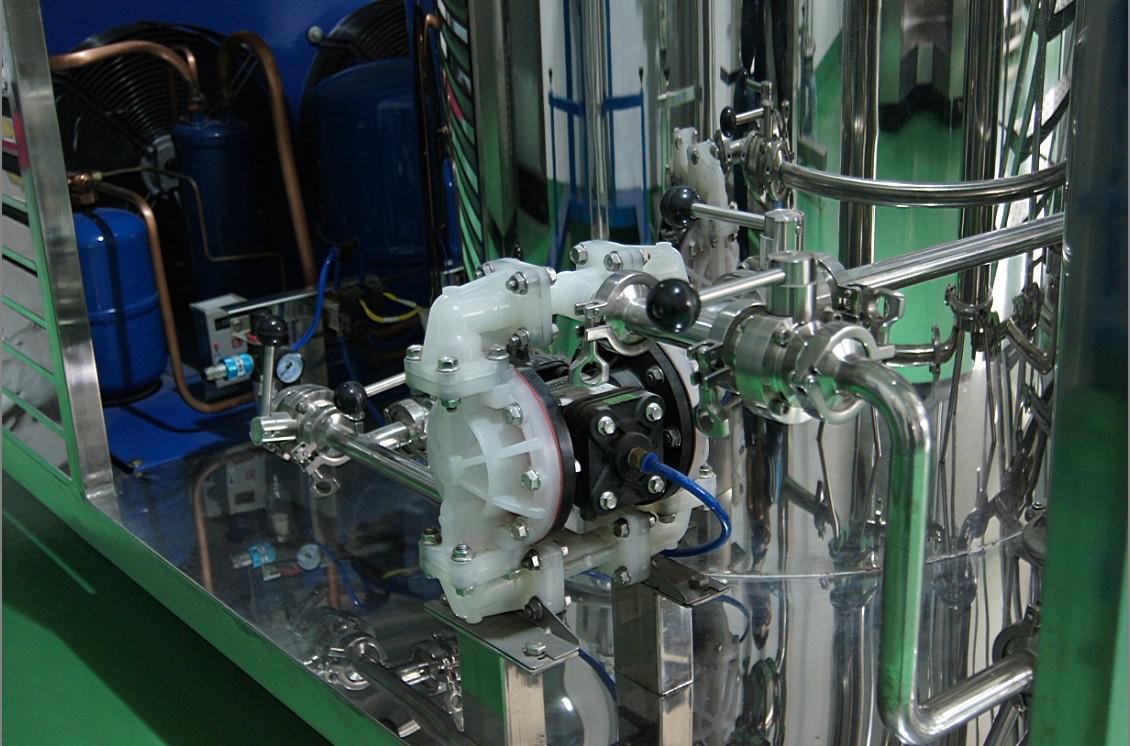

◆ Anticorrosive pneumatic diaphragm pump (place of origin USA)

◆ Polypropylene microporous filtration film

◆ Stainless steel moveable supporter

◆ Sealing type electric control system and sanitary pipe fittings and valves

flow for perfume mixing.jpg

Discription:

The product is a latest product developed by our company specially used for clarification and filtration of liquid such as cosmetics and perfume etc. after freezing. It is an ideal device for filtering cosmetics and perfume in cosmetic factories. The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.

The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.

Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable

Technical parameter of perfume filling machine YX series perfume making tank:

flow for perfume mixing.jpg

specification

3p

5p

10p

Power

308v/50HZ

General power

2.2KW

3.75KW

7.5KW

Refrigeration temperature

-5℃- -15℃

Refrigeration liquid

R22

Air source pressure

0.5-0.6Mpa

Filter pressure

0.2 Mpa

Stair filter

1.0μm

Two level filter

0.2μm



Perfume Making Machine

The perfume making machine is latest product developed by our company specially used for clarification and filtration of liquid such as cosmetics and perfume making etc.

flow for perfume mixing.jpg



Technical parameter of perfume making machine YX series :



Model

3P

5P

10P

Capacity

200L

300L

500L

Voltage

380V/50Hz

380V/50Hz

380V/50Hz

Power

2.2KW

3.75KW

7.5KW

Freezing Temperature

-5 Celsius degrees

-5 Celsius degrees

-5 Celsius degrees

Freezing Medium

R22

R22

R22

Air source

0.5-0.6Mpa

0.5-0.6Mpa

0.5-0.6Mpa

Filter pressure

0.2Mpa

0.2Mpa

0.2Mpa

Level 1 filter

1um

1um

1um

Level 2 filter

2um

2um

2um



What is perfume  making machine?
 perfume making machine is a mixing system, freezing and filtration system for the manufacture of perfume, cologne, deodorant and toilet water in cosmetics industry.
 flow for perfume mixing.jpg
What is perfume making machine made of?

 perfume making machine is usually made of perfume mixing tank , chilling system, filtration system, diaphragm pump and electrical control panel etc.
The perfume mixing system : there’s a spiral evaporating coil inside the tank. The evaporating coil is connected to the chiller.If you need ,we also can add a pneumatic motor on the top of the tank for mixing
The chiller takes French technology and the minimum chilling temperature can amount to -15 degree Celsius.
The filtration system includes two pieces of polypropylene microporous membrane filters. The filtration capacity is 0.2~1 micrometers.

How does perfume making machine work?

In our standard perfume making machine, the evaporating coil in the tank working circulation can mixing the perfume ,we also can add pneumatic motor on the top of the tank for mixing.
During the mixing operation, the ingredients (mainly alcohol) are pumped out from the bottom valve by diaphragm pump. The perfume passes the first and second filters to get it clarified. Then the perfume goes back to the mixing tank waiting for another filtration.
At the same time, the chiller works producing very cold temperature. The evaporating coil inside the perfume tank transfers the chill to the perfume around it. The impurity will be resolved from the perfume and filtered during the circulation.

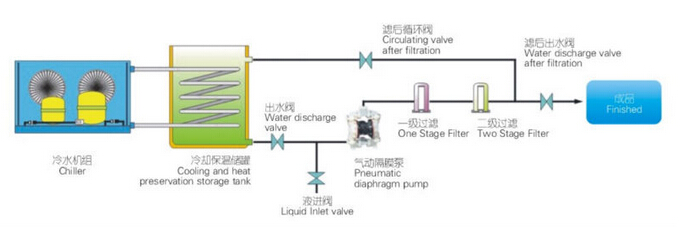

craftwork flow chart

flow for perfume mixing.jpg

Final products for perfume :



perfume mixing blending tank.jpg



The perfume making machines including perfume blending mixing freezer filling machine crimping overwrapping machines which are

listed one by one as below:

1.100-1000L perfume making machine perfume mixing tank perfume mixer equipment   عطر صنع آلة

2.double heads liquid filling machine magnetic gear pumps semi automatic perfume juice oil filler

3.8-10 heads perfume filling machine semi automatic negative pressure rotary filler crimping equipment

4.perfume glass bottles nail polish vacuum filling machines semi auto 4 heads Machine remplissage vide



5..small bottle capping machine perfume containers semi automatic pneumatic capper الهوائية آلة العقص

6.Fully automatic three-dimensional transparent film packing machine cosmetic case perfume packaging



7.YX-W25 semi automatic cellophane film packing machinery Manual cello wrap packaging equipment



Payment Terms&Packaging pictures about our machine exported



payment terms for perfume making machine.jpg



Quotation: FOB (GUANGZHOU or SHENZHEN ) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 20 workdays after getting the down payment 30%,the other 70% payment collected before shipping

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
