fully automatic packing equipments

Automatic high speed transparent film Over wrapping machine wtithin easy tear tape 3D boxes overwrapper equipment for Cigar rubber disk sugar gift boxes

Automatic high speed transparent film Over wrapping machine wtithin easy tear tape 3D boxes overwrapper equipment for Cigar rubber disk sugar gift boxes

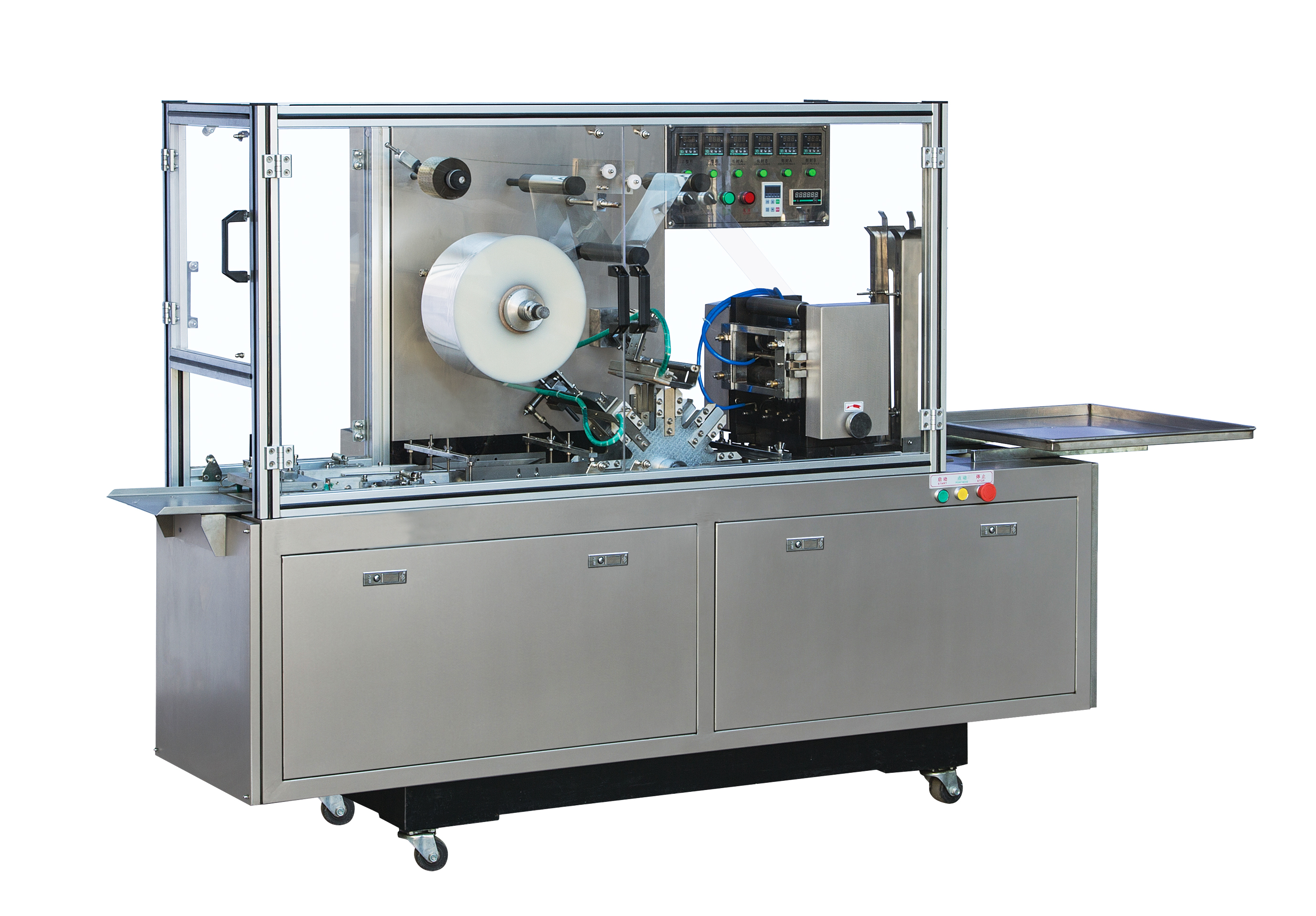

Adjustable Overwrapping(3D) Machine model YX-200(A) high speed transparent film overwrapper equipment

overwrappin cigar.jpg

Usage of overwrapping machine high speed fully automatic

Cellophane overwrapping machine is used for wrapping the square, rectangular and even trapezium shaped product with a layer of cellophane paper the same as the packaging of cigarette.

Suitable for single and bundles packaging of various pharmaceuticals, condom, health-care products, confectionery, chewing gum, tea, coffees perfumes, cosmetics, notepad, scratchpad, stationery , eraser, digitalmedia , VCD/DVD/CD cassette, tape, tobaccos, playing cards , napkin paper, etc.

Functional Features

overflow of overwrapping machine.jpg

details of overwrapping equipment.jpg

This machine is designed on the basis of absorbing,digesting and improving the advanced science and technology from Europe and Japan, using imported PLC control and electric components, which is drived by pneumatic cylinder, the servo motor controls the film falling, the setting and adjustment of the film length could be adjusted freely, at the advantage of stable and reliable operation,high speed,a firm packing, smooth and beautiful. the frame of machine is made up of imported high quality nice aluminium alloy or stainless steel and closed safe glass shield, It could do packing, feeding, folding, heat-sealing, counting and sticky tear tape automatically. malfunction automatic self-diagnosing and alarming, Changing few parts could wrap different specification (dimension, height, width) of different products. Can be used with cartoning machine,save money,reduce human resouce,improve effcet.



Performance Parameter of high speed servor motor materials feeding 3D overwrapping

servor motor film feeding.jpg

Model

YX-200 Button controlling

YX-200A PLC touch screen  system

Packaging speed

30-60boxes/min

30-60boxes/min

Packaging size

(L)65-270mm(W)60-150mm(H)20-90mm

(L)100-400mm(W)45-240mm(H)20-115mm

Machine dimension

(L)2300mm(W)860mm(H)1670mm

(L)2180mm(W)1000mm(H)1500mm

Conveyor dimension

(L)1650mm(W)450mm(H)950mm

(L)1600mm(W)270mm(H)770mm

Weight

900kg

800kg

Total power

6.5kw

6.5kw

Voltage

3N AC 380V 50HZ

3N AC 380V 50HZ

Air pressure

0.5-0.7Mpa

0.5-0.7Mpa



Raw materials for film and overwrapping

tear tapes.jpg


Overwrapping samples for boxes

samples for overwrapping.jpg



overwrapping for boxes.jpg




Wooden case packing before ocean shippping



FOR EXPORTING overwrapping machine plywooden case.jpg



After-sales service for overwrapping machine model YX-200

contract spirit.jpg



Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).



PENGLAI INDUSTRIAL CORPORATION LIMITED
