fully automatic packing equipments

four plates screw nails rivets nuts counting packing machinery VFFS packaging equipment automatic for hardware

four plates screw nails rivets nuts counting packing machinery VFFS packaging equipment automatic for hardware

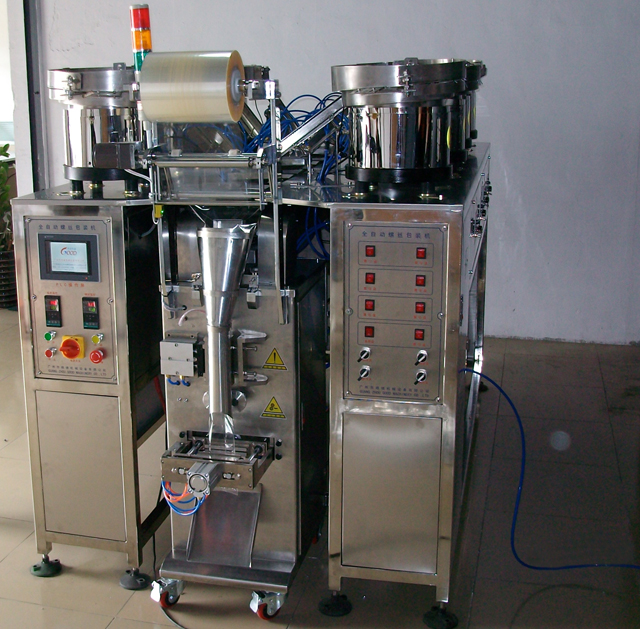

Model YX-SPM004  screw sorting and packing machine automatic 4 plates counting packaging equipment

Scope of application of hardware counting packing machine model YX-SPM series

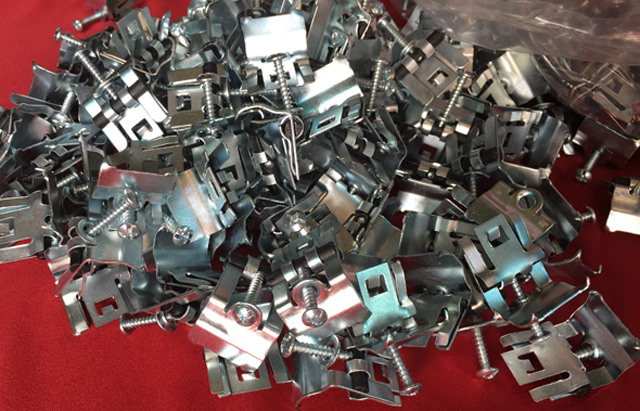

screw nuts.jpg

It is widely applicable to the mixed packing of the accessary mounting screws,nuts and small plastic parts for the electric appliance,the decorative lamps and the decorative hardware.It replaced the the shape forming manner of the pre-made bags.greatly increased the work efficiency,so as to be widely adopted by many screww application enterprises.

mechanical components.jpg

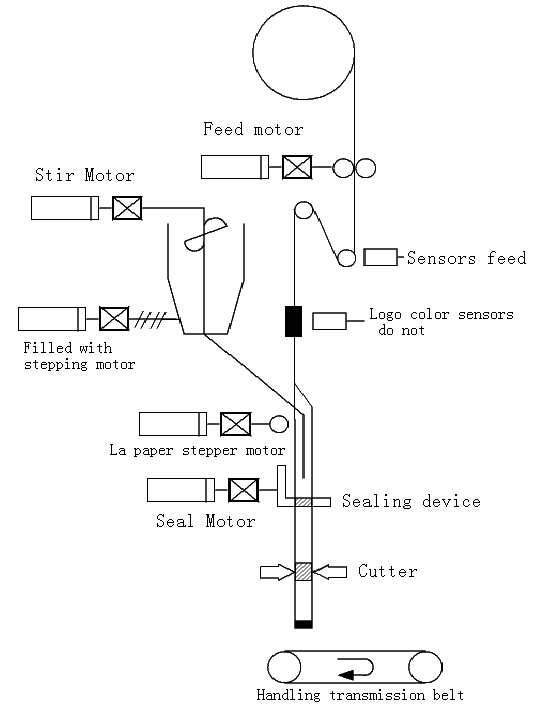

Working principles for packing machine

The Parts with special shapes can also be customed according to the clients' requirements.This machine is controlled by microncomputer,and the packing process can be realized automatically.

Technique Performance of screw nuts hardware counting packing machine

 NAIls packing machines.jpg

1.The vibrating disk,the linear vibrating collocating unit and the accurate counting control unit which are specially made for the screw sample can ensure the accuracy of each bag.

2.When packing the packing materials with logo,the advanced stepping control and color code of the machine can be used together,to acquire the perfect pattern of the logo.

3.It is a single chip controlling system,with automatic halt,automatic alarm and diagnose when error occurs.And it is safe and conveniently count the workload of the machine.

4.It can automatically display the packing amount and conveniently count the workload of the machine.

5.This machine adopt full-automatic operation to fullfill measuring.counting,bag making,filling,sealing and date printing,etc.This machine is a combined type and includes vibrating disk,raster count,discharging part and bag making and packing part,the standard configuration for this machine is two vibrating disks,it is optional to add more so as to fullfill the variety of the packing product.

Main technical properties of screw packing machine counting packaging equipment automatic:

screw packing machinery 7 plates (1).jpg

Model YX-SPM004

Measuring range:It is determined based on the actual situation of the parts.

Length of the bag(mm):40-160

Width of the bag(mm):40-100

Measuring range:adjustable within a certain range

Manufacturing capacity(bag/minute):20-70

Sealing form:three-side sealing,four-side sealing or back-sealing

total power(W):1600

Gas consumption:20L/Min  0.75Ma

Packing material:composite membrane,foil and hot-sealed material and etc.

Net weight(Kg):according to the requirement of the project,the normal weight is changed somtimes.

Outer dimension(mm):according to the requirement of the project,the normal weight is changed somtimes.

Machines in different plates feeding vibrators according to special requirements and the feeding materials

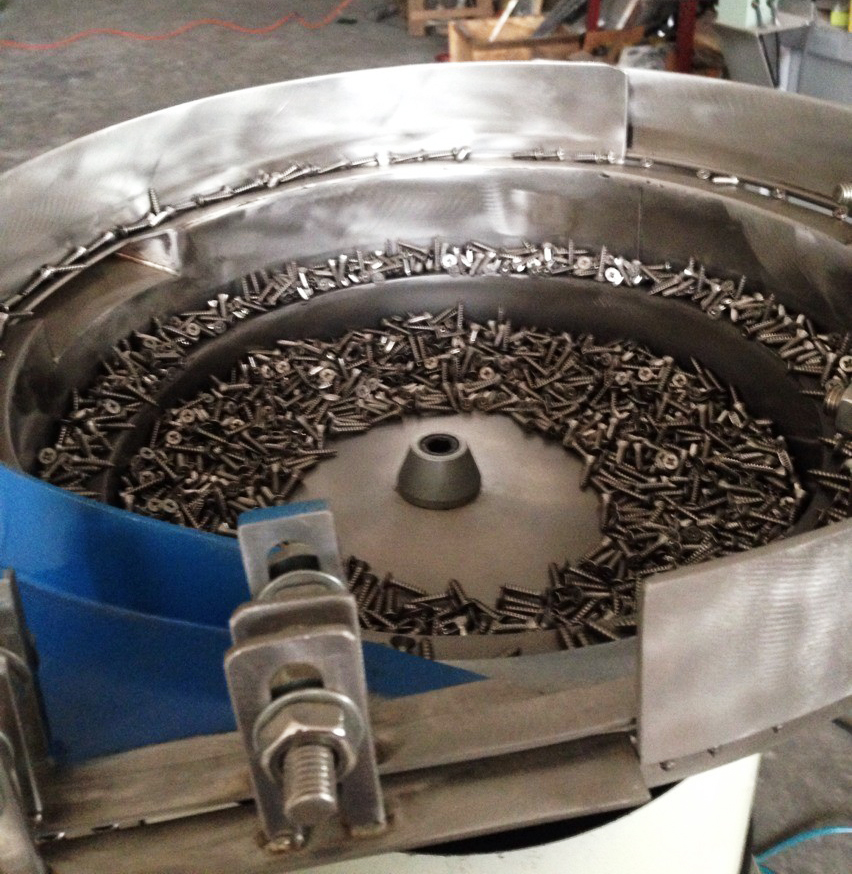

one single plates feeding screw nuts

nuts in plate.jpg

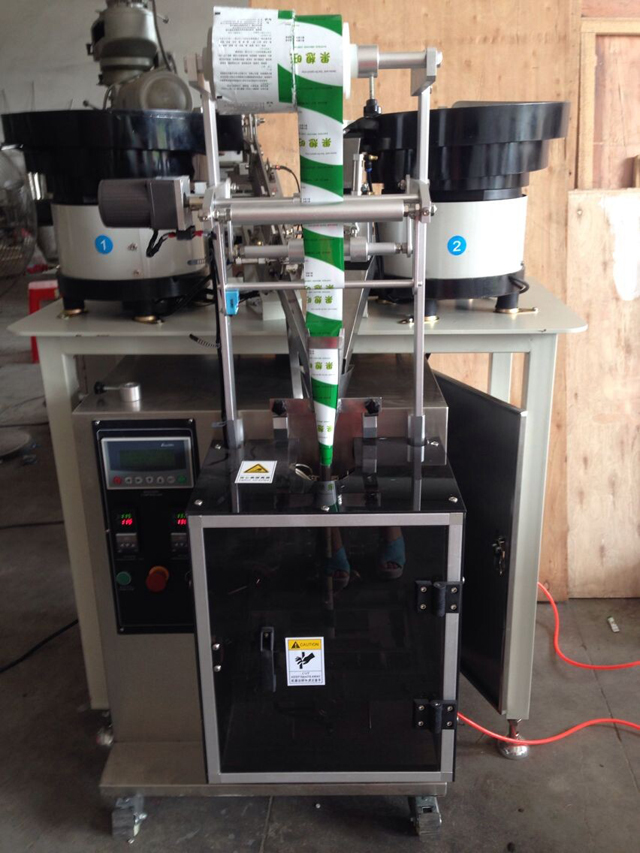

Two plates for feeding screw nuts

double plates screw packing machine.jpg

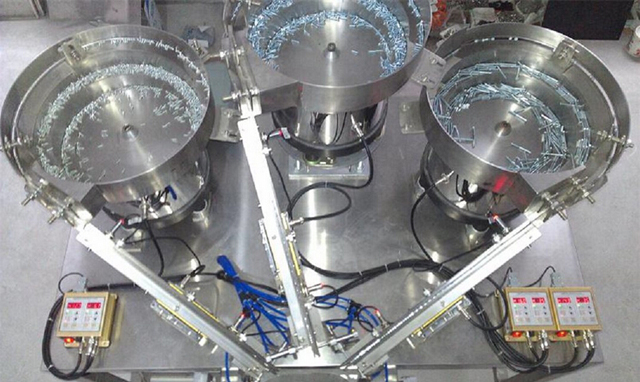

Three vibrators for feeding nuts screws for packaging machinery

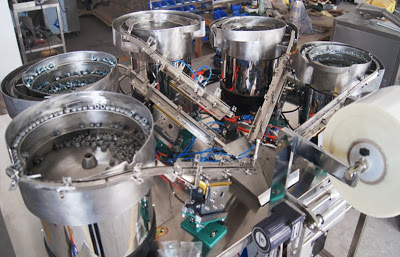

Four vibrators for feeding nuts screws for packaging machinery

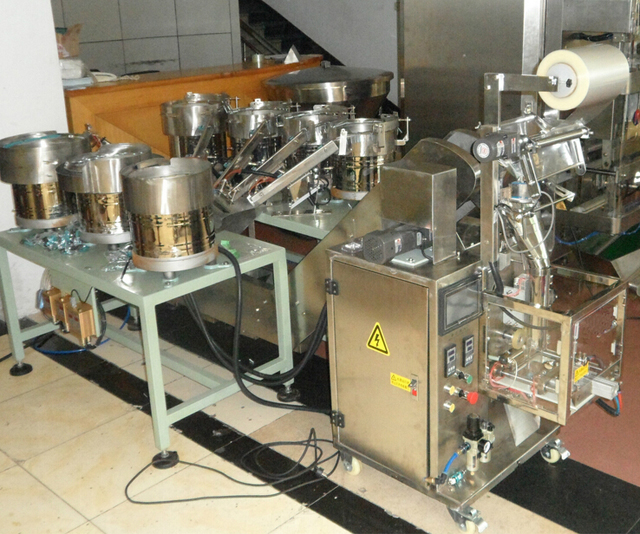

7 plates packing machine.jpg

Five vibrators for feeding nuts screws for packaging machinery

screw packing machine with 5 vibrating plates.jpg

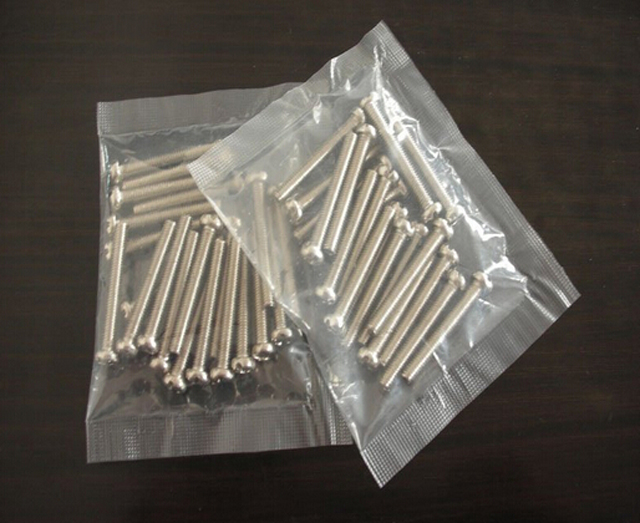

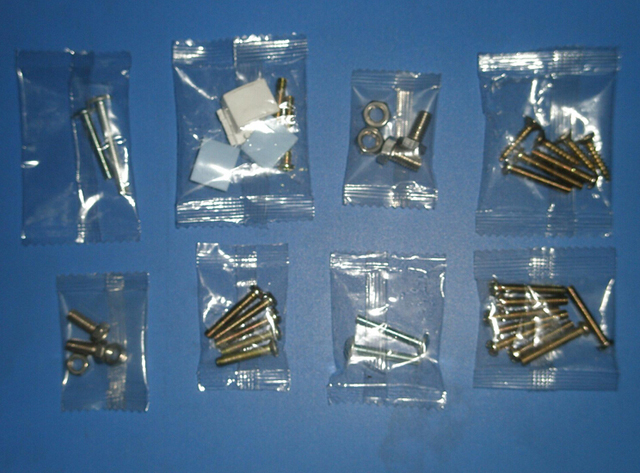

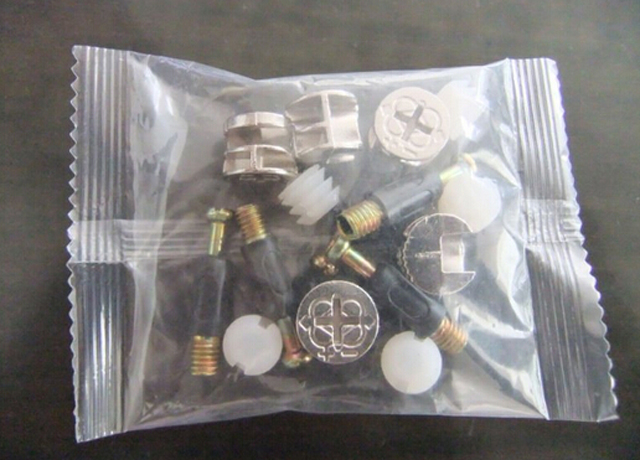

Samples for screw counting packing machinery

bags with nuts.jpg

nails bags samples.jpg

nuts screw samples.jpg

►Initial operation for screw packing machines


Q:LCD screens do not show the normal value in the lower right corner shows the "communication error."

A:That the main LCD screen and non-communication controller, LCD screen should check with the host controller to connect communication lines between the normal connections, if the communication lines should be dropped to re-connect, or contact with the manufacturers.

Q:LCD screens do not show why?

A:Check the LCD screen is connected to power lines, should be dropped if re-connect.

Q:Why not pull bags on the completion of the Seal of the phenomenon?

A:This is due to a long bag and Seal caused by the speed of that increase the speed bag and Latin America.

Q:If the particle is, do not want to appear powder screen, how to deal with?

A:Because the controller is a full-featured type can be set up in the factory, the ban on powder-screen appearance.

Q:If you would like to welcome screen is not set up their own company's logo only in general show the welcome screen?

A:There are two welcome screen display, 1 - Company, 2 - Welcome.According to the manufactuyeys may need to "factory settings screen," two of the screen.

Q:Would like to switch between Chinese and English display?

A:Support for the display screen in two languages, 1 - Chinese, 2 - English. Manufacturers can be "factory settings screen" set up to choose Chinese or English.

Q:How to set passwords do not have to be able to enter the "factory settings screen"?

A:Access to "modify the password screen", the password is set to       ♦♦♦♦ Will be able to enter the "factory settings" screen do not have a password.
