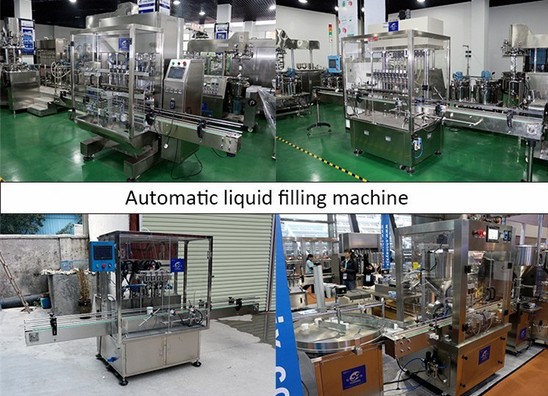

linear liquid filling machine automatic pneumatic servor motor filler equipment juice water wine low viscosity materials

linear liquid filling machine automatic pneumatic servor motor filler equipment juice water wine low viscosity materials

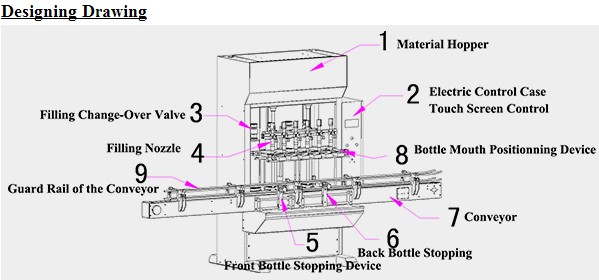

This machine adopts cylinder transmission, enduring the stability of the equipment, accuracy. All the action of filling, entering, filling, outing and etc can use the search unit tail automatically, besides the detect, control, have no bottle and filling action. If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.

Feature of linear liquid filling machine automatic

labeling machines.jpg

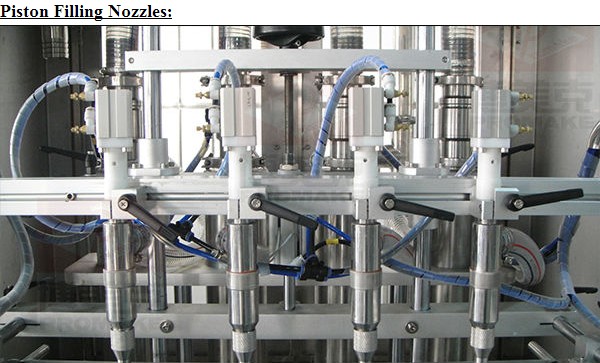

The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly. The filling parts adopts piston pump, use many measuring pump separately control the filling quantity, the measuring pump can change the quantity according to the request, measuring accuracy, filling steady, high speed, suit for multitudinous product. When the bottle enter to filling by the convey belt, the opto-electrical measure the number of bottle automatically, and filling heads fall to filling automatically, and there is cut-off valve installed, when finish the filling, filling heads replacement, the cut-off valve close, can solve the water-clock problem effectively, high effect, good stability.

liquid filling machine Advantage:

labeling machines.jpg

1,the series of machine is featured by company and reasonable structure, beautiful and decent appearance.

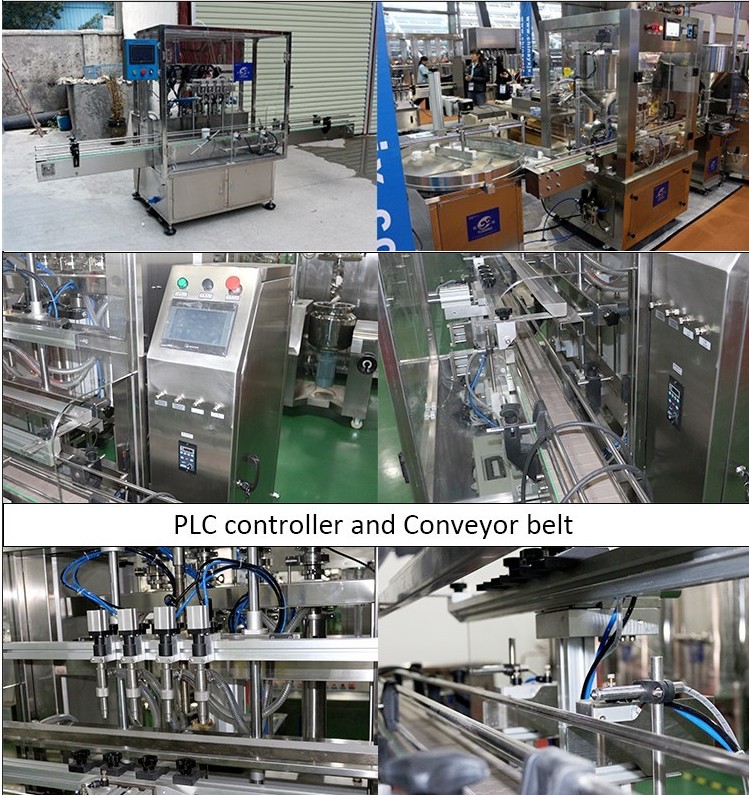

2,it adopts electric company of world famous brands,the main power cylinder adopts FESTO dual-action cylinder and magenetic swith , and japan mitsubishi PLC computer, omron photoelectric and germany siemens touch screen are adopted to ensure its excellent quality and stable performances

liquid filling machine Technical  parameter

labeling machines.jpg

filling volume(ml) productivity(b/h) filling speed filling precision air supply
10-50 1500-3500 adjustable   ≤  ± 1% 0.4-0.8mpa
80-300 1500-3000 adjustable ≤  ± 1% 0.4-0.8mpa
100-500 1500-2500 adjustable ≤  ± 1% 0.4-0.8mpa

300-1000

1500-2500 adjustable ≤  ± 1% 0.4-0.8mpa
1000-5000 1000-2000 adjustable ≤  ± 1% 0.4-0.8mpa

Notice before Sending Inquiry:

To have an effcient communication and serve you better, these information is suggested to be contained in your inquiry:

 labeling machines.jpg

1. What's is your material to be filled? How about the viscosity of it?

2. What's the minimum and maximum filling capacity?

3. How many nozzles do you need? (Or tell us about the your requirements of filling speed (bottles/min)

4. Send us the pictures of your bottles.

labeling machines.jpg

Wooden case packaging for linear filling machines

labeling machines.jpg

After sales service

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents,

misuse , misapplication, storage damage, negligence,  or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician

 will go to your place to install and

test the machine and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

 should be on your account and you need paid

for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will

go to your place to fixed the machine

as soon as possible. The cost should be in your account.(as above).

PENGLAI INDUSTRIAL CORPORATION LIMITED
