granules salt beans packing machine vertical packaging equipment with four heads linear scale measuring system

granules salt beans packing machine vertical packaging equipment with four heads linear scale measuring system

This packaging machine adopts high-precision servo motor ,PLC control system ,advanced Siemens touch screen ,automatic photoelectricity orientation track sensor ,digital temperature controller ,make the machine easy to operate ,improve work efficiency and save labor ,can be widely used in various kind of products ,can do form filling ,sealing ,weighing ,date printing with one machine

Technical characteristics:

four linear weigher packing machine.jpg

1.  English and Chinese screen display, operation is simple.

2.  PLC computer system, function is more stable, adjustment any parameters not need stop machine.

3.  It can stock ten dispose, simple to change variety.

4.  Sever motor drawing film, position accurately.

5.  Temperature independent control system, precision get to±1°C.

6.  Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.

7.  Packing type diversification, pillow sealing, standing type, punching etc.

8.  Bag–making, sealing, packing, print date in one operation.

9.  Work circumstance quiet, low noise.

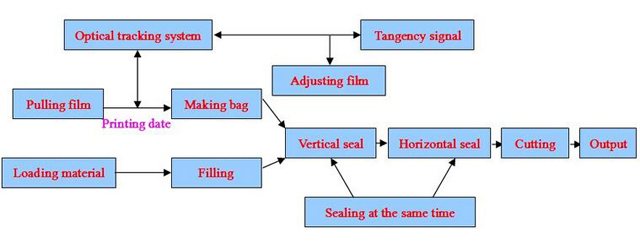

Working flow of packaging machinery :


Technical parameters of granules packing machine model YX-500C

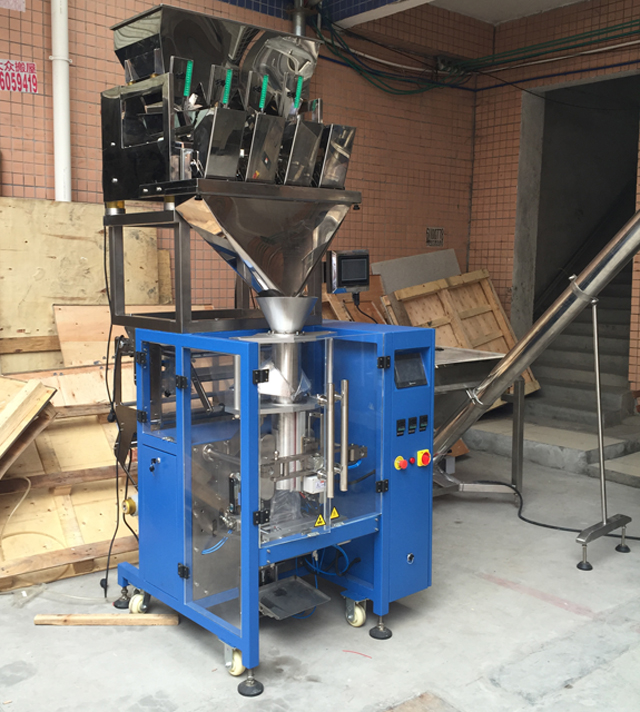

granules packing machines.jpg

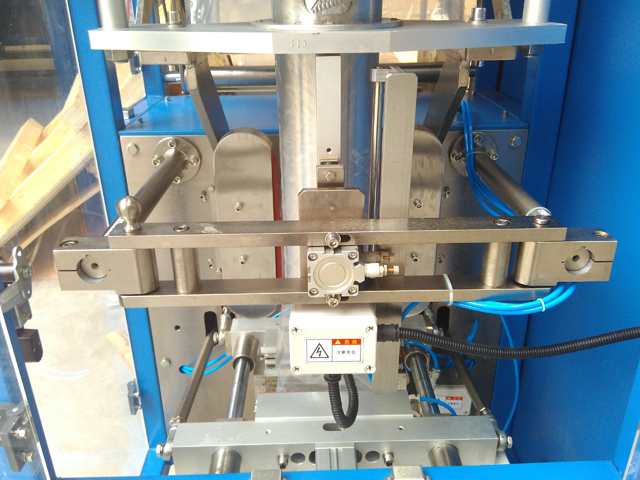

close pictures for host machine granules packaging.jpg

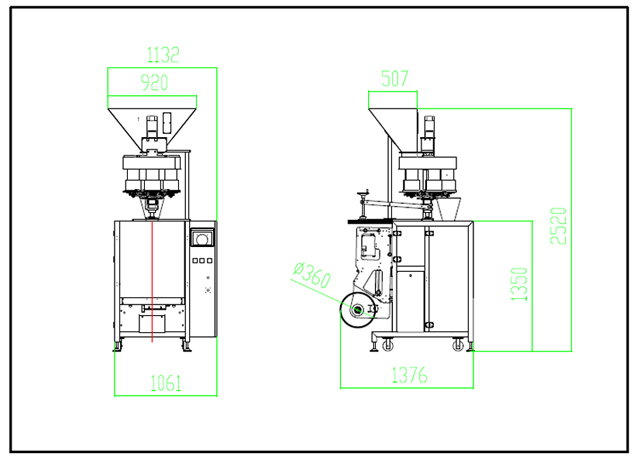

drawing of packing machine.jpg

Type

YX-500C

Bag length

50-300mm(L)

Bag width

50-200mm(W)

Max width of roll film

420mm

Packing speed

30-40bags/min

Measuring range

150-1200m

Air consumption

0.65mpa

Gas consumption

0.3m3/min

Power voltage

220VAC/50Hz

Power

2.2 KW

Dimension

1080mm(L)*1300mm(W) *1400mm (H)

Weight

600 Kg

Configuration for packing machines vertical large bag packaging model YX-500

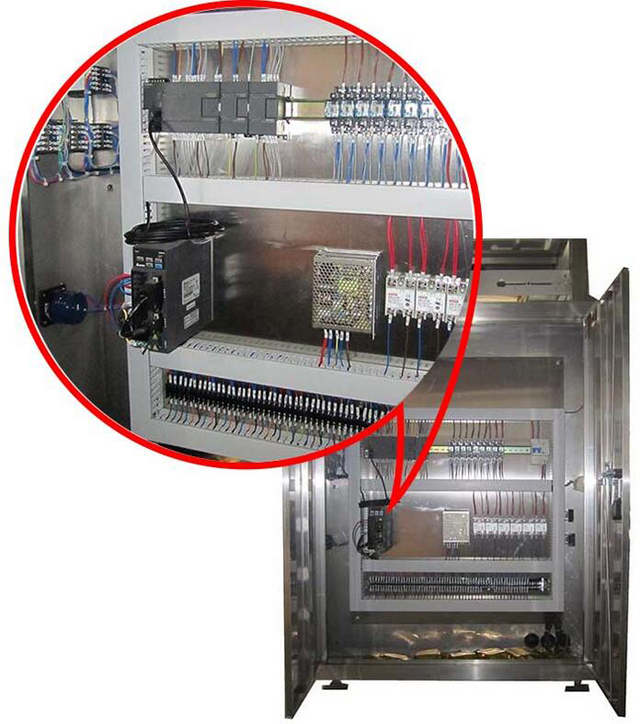

inside packing machine.jpg

Sequence NO.


Name of fitting

Country of origin

Brand

1

Touch screen

Taiwan

WEINVIEW

2

PLC



Japan

Mitsubishi

3

Servo motor including drive

Japan

Panasonic

4

Color standard sensor

Electronic eye



China

Autonics

5

Temperature control meter

China

Yudian

6

Horizontal sealing cylinder

Taiwan

Airtac

7

Vertical sealing with guide bar cylinder

Taiwan

Airtac

8

Cutter thin cylinder

Taiwan

Airtac

9

Push film cylinder

Taiwan

Airtac

10

Two couplet

Taiwan

Airtac

11

Value with gauge



Taiwan

Airtac

12

Electromagnetic valve with disc



Taiwan

MINDMAN

13

Inflatable solenoid valves



Taiwan

MINDMAN

14

Printer

China

XIAMEN TANE

15

Solid state relays

TAI WAN

Schneider

16

Among the relay

Japan

IDEC

17

Switching power supply

Taiwan

YANGJI

18

Stop switch

Japan

IDEC

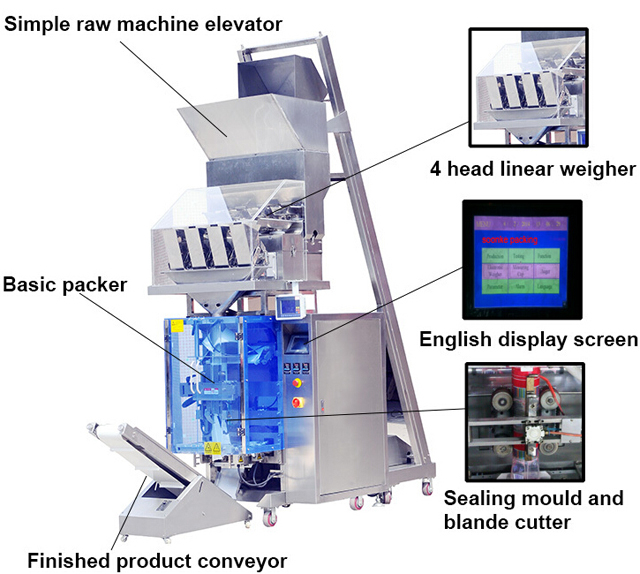

Components of model YX-500C granules packing machinery

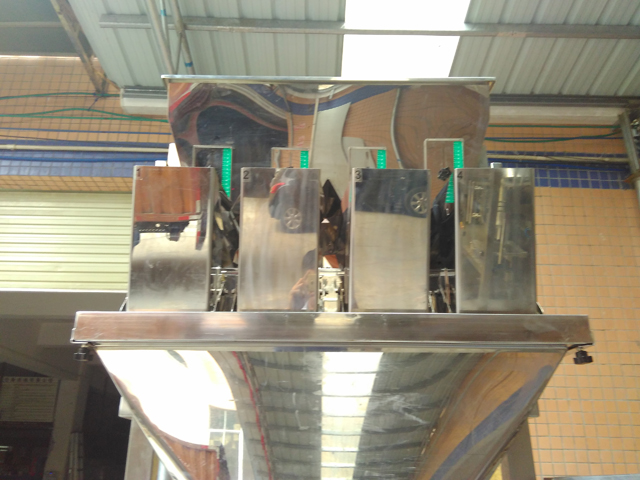

four heads scale for metering.jpg

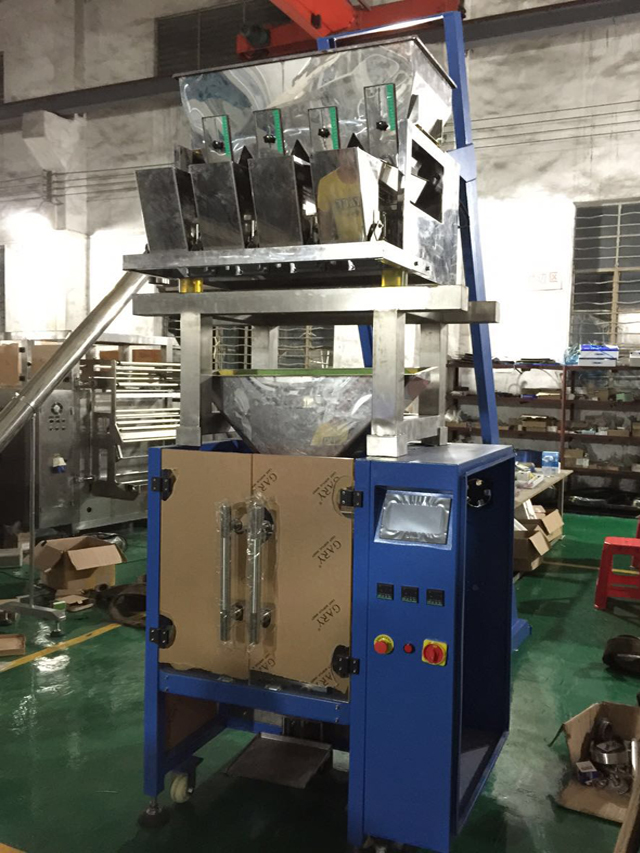

side view of packing machinery.jpg

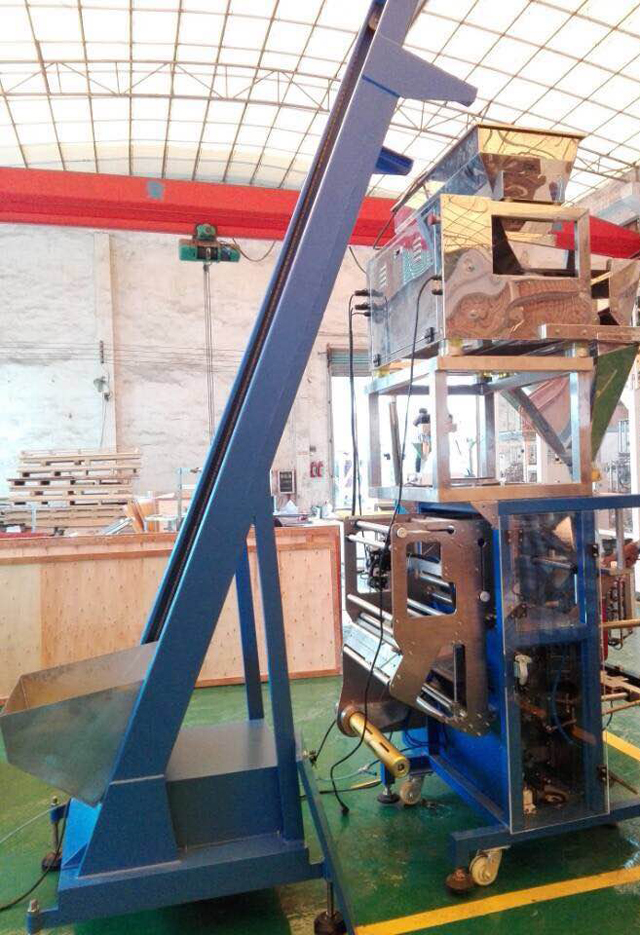

granules packing machine (1).jpg

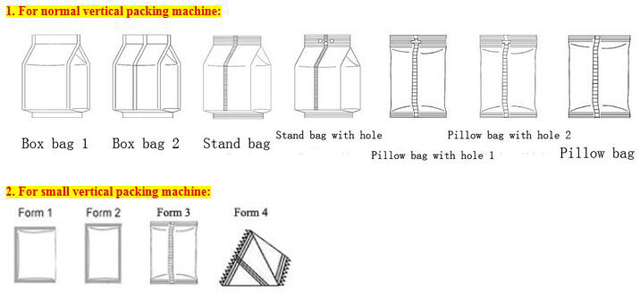

Bags kinds for packing machinery:

bags pictures for packing machine.jpg

bags samples for granules.jpg

Factory packaging machinery show:

factory for packaging.jpg

the whole process for large packing machinery.jpg

► Equipment maintenance

tools together with packing machine.jpg

1.Before on or off duty, it is necessary to clean interior and exterior of the machine, thoroughly sterilize the parts passed by food

2.Before on or off duty every day, please check if 1/3 of the oil table of air source air source triplet oil storage jar is maintained, is less, it is necessary to pour 20# pure and clean oil until about 1/2 of the jar body.

3.Before start every day, pour 20# machine oil into oil cup on the horizontal sealing support until it becomes full.

4.Before off duty, it is necessary to take off unused packing film so as to prevent from bending supporting tube.

5.During the process of start, if material is clamped in vertical sealing or horizontal sealing, it is necessary to stop the machine immediately and clean tooth surface of vertical sealing or horizontal sealing with brass wire brush.

►Pneumatic schematic diagram 1  Circuit diagram of automatic packing machine

pneumatic parts for capping machinery.jpg

pneumatic diagram.jpg

L-----phase wire

N-----zero wire

QS-----main switch

QFO-----air switch

QF1-----breaker

QF2-----breaker

QF3-----breaker

220VAC/24VDC-----on-off power source

SGDL-02AR-----servo controller

BFV7002FBR-----transducer

solid-state relay

solid-state relay

solid-state relay

paper-placing photoelectric switch

vertical sealing and horizontal sealing temperature control switch

B1----- print heating element

R1-----200W/50VAC horizontal sealing heating element

R2-----200W/50VAC horizontal sealing heating element

R3----- 200W/50VAC horizontal sealing heating element

R4-----200W/50VAC horizontal sealing heating element

R5-----160W/50VAC horizontal sealing heating element

R6-----530W/170VAC horizontal sealing heating element

J5-----relay contact

M1-----main motor

M2-----film conveyance motor

M3-----brush motor

M4-----film placing motor

C1-----capacitance

C2-----capacitance

BT1-----horizontal sealing temperature controller

BT2-----vertical sealing temperature controller

BT3-----print temperature controller

1.socket

2.test table

►Pneumatic schematic diagram 2

wire connection parts.jpg

pneumatic schematic diagramm.jpg

sketch map of PLG junction terminal

X0—photoelectric table transducer input

X1—color code transducer input

X2—stop

X3—low temperature alarm input

X4-----carbon belt transducer alarm input

X5-----packing film transducer alarm input

X6------material transducer alarm input

X7------cutter transducer input

YO------servo motor 2-foot output

Y1------inflation output

Y2------vertical sealing output

Y3------horizontal sealing output

Y5------transducer output

Y6------cutter output

Y7------package output

JK1------photoelectric table transducer

JK2------color code transducer

JK4------cutter transducer

JK5------carbon belt transducer

K2------film conveyance cylinder jogging switch

SB------emergency stop switch

B1------cutter electromagnetic valve

B2------vertical sealing electromagnetic valve

B3------horizontal sealing electromagnetic valve

B4------film conveyance electromagnetic valve

B5------inflation electromagnetic valve

J2------relay

J3------relay

J4------relay

J5------relay

J6------relay

J7------relay

installation in case of package bag device J7

green

white

orange

black

► air passage diagram for model YX-500 granules packing machine

circuit for packing machines.jpg

diagramm of pneumatic circuit.jpg

1.air source

2.air source triplet

3.2-position 5-way electromagnetic valve

4.horizontal sealing cylinder

5.date printing cylinder

6.vertical sealing cylinder

7.cutter cylinder

8.film conveyance cylinder

9.pressure reducing valve

10.inflation

►listing of spare parts with the machine

horizontal sealing heating sheet ---- 4 pieces

vertical sealing heating sheet(wide) – 1 piece

vertical sealing heating sheet(narrow) – 1 piece

interior hexangular spanner  4-10mm  1 set

film conveyance synchronous belt 560mm  1 piece

copper brush 120mm    1 piece

cutter blade            220mm 1 piece

oil kettle           150ml   1 piece

character grain      1 box

date coding manual  1 copy

temperature control manual    1 sheet
