granules packaging machinery

vacuum packaging machine rice coffee bagging equipment fully automatic hexahedral bags filling sealing line

vacuum packaging machine rice coffee bagging equipment fully automatic hexahedral bags filling sealing line

Model YX-VP2000 Hexahedral bags vacuum filling packaging machinery food powder granules automated production line

Application
1.Our Full Automatic Vacuum Packaging Machine is suitable for small products, such as soy sauce products,
 meat products, condiments, preserved fruits and the products made from beans in food industry,  chemical products, granule medicines and tea and so on.
2.It is mini type and good capability, can prevent oxidizing, mildewing and moisture of products in order to prolong the storage period or shelf of the products.

vacuum packing equipment.jpg

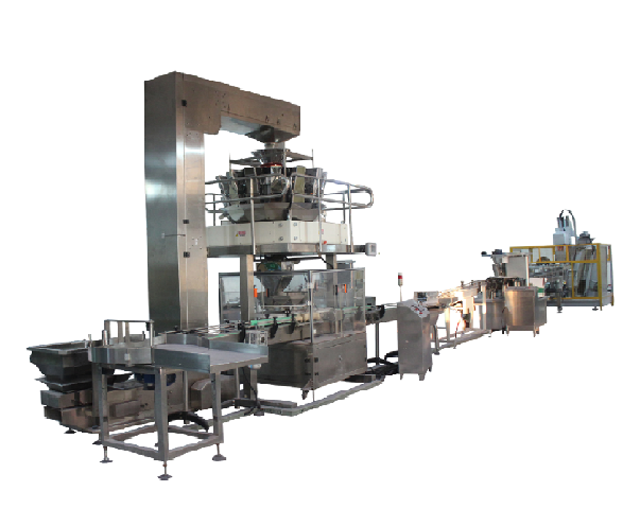

The packaging machine integrated with weight check cartoning line:

the product packaged by the automatic packaging machine passes through conveying line, undergoes unscrambling and arrangement, steering and sequencing, speedup and buffer, loading into paper carton automatically and sequentially at a certain quantity,
then undergoes arrangement by the flattening press, finally the paper carton is sealed as required through the fully automatic box sealing mechanism, strapped by the baling machine and finally the paper cartons are output by the logistics line.


Main Characteristics

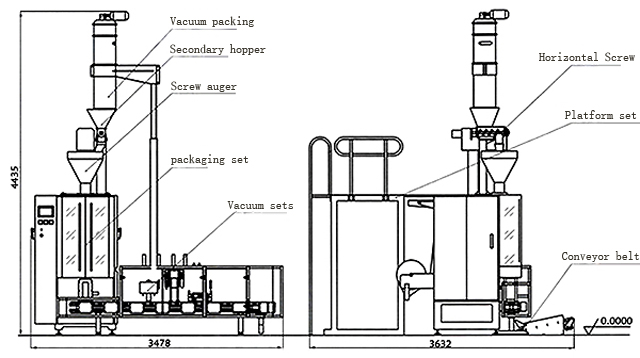

drawing vacuum pack.jpg

1.Full Automatic Vacuum Packaging Machine is mainly used for oxide-free vacuum packing (with compound film) of foodstuffs,
produce, famous and rare medical materials native and special products, marine products after they are processed.
2.This package is set with the function of combining vacuum, sealing, printing in one process and,
for different packing materials and requirements,with the adjustable devices for the vacuum, hot-sealing temperature and time so as for the users to get optimum selection and adjustment for an optimum effect of packing.
3.The printing device with a convenient letter-change and clear printing is available per the desire of the users, with which,  users may print on the sealing at the same time for sealing the valid period, date of ex-factory, code of ex-factory etc. To meet with the provision of the national food label law.
4.The package features advanced design, full function, stable and reliable performance, good sealing strength, strong packing capacity, convenient operation and service, high economic benefit etc. The ideal machinery for the vacuum package.

Technical parameter of granules vacuum packing machine fully automatic

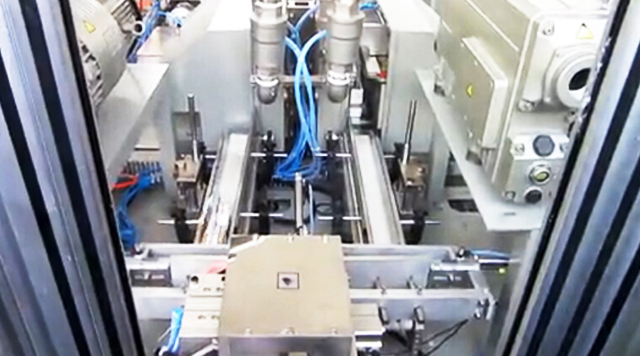

vacuum packing working picture.jpg

Model

YX-VP2000

Packaging speed

8-20bags/min

Measure range

100-2000g

Bag making size

50x340x(80~260)(L*B*H)

air compression

 0.6Mpa 0.65m3/min

Max bags OD

Φ400mm

Core inner ID

Φ75mm

Dimension

3700*3600*4435mm

Weight 2000kg

Supply power

5.5Kw 380V±10% 50Hz

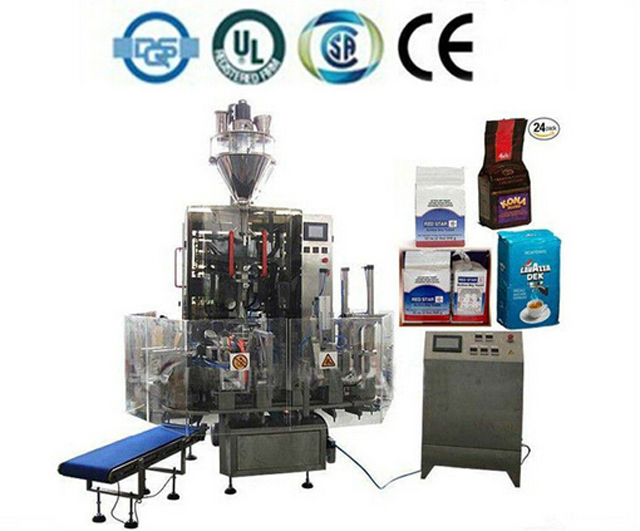

 vacuum packing machinery.jpg


packaging samples.jpg

After-sales for production filling line olive filler capper labeller equipment:

container loading system.jpg

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
