fully automatic filling machine

cups filling sealing machines automatic jelly juice drinking nespresso coffee containers filler and sealer equipment

cups filling sealing machines automatic jelly juice drinking nespresso coffee containers filler and sealer equipment

The machine is suitable to the filling and sealing of the containers of plastic cup and bowl by filling liquid or cream material,such as jelly,mile-cream,fruit jam,etc.The machine is full automatic processing of Cup-feeding,filling and sealing.It has equipment of sensors to ensure the right sealing of the foil-picture.

There are many models in this series to meet with the different kinds of container.The machines are all made of stainless steel.We also can made special ones accordiing to user's data,such as machines with date-making,with solid material filling

 cups filler sealer equip.jpg

Auto Mechanical Plastic Cup Filling and Sealing Machine This machine is applied for auto loading and sealing of jelly,fruit juice,milk,pudding , bean curd chiken blood,chocolate,flavoring ,etc.it is auto to send,load,seal rectify a deviation cut and take of cups

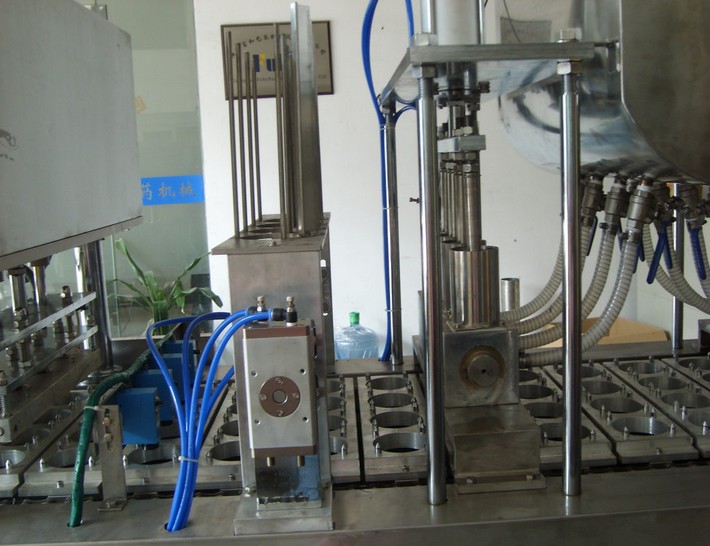

details for cups filling sealing machines.jpg

Characters:
1.Varous function full automatic machine can spare much space.

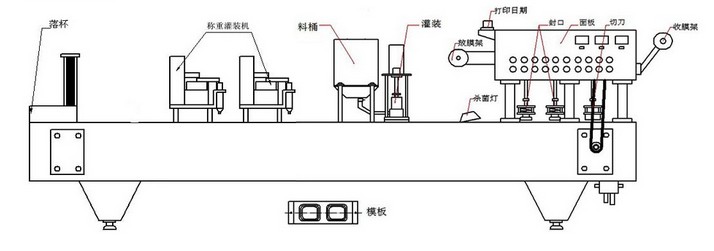

2. Cup-drop-No bottle detect-Filling-Electric eye correct film position-Printing-Sealing&cup cutting-Product send out in line in one operation.
3.Traditional operation screen,easy understanding.
4. Sealing film with independent temperature control system.
5.Electric eye track automaticly and correct the sealing positon,get to precision.
6. Whole machine use stainless steel and aluminium material, stable and rustless forever.
7. Filling with high precision,hopper cotrolled
8.No cups, stop working automatically,with cups,running automatically.
9.Finished products output in line.

cups filler sealer equip.jpg

Technology Parameter of model YX-60A-04 cups filling sealing machine:


Model YX-60A-04

output:    3200-4000 cups/hour (special order optional)
filling range:            1ml--500ml (special order optional)
heating power:        5 kw
gas consume:         1.2 M3/min
voltage:                     220V 50HZ
size:                          3000mm*710mm*1650mm
weight:                       700kg

Final products after filling sealing

cups filler sealer equip.jpg

cups filler sealer equip.jpg

Guarantee: for all the machine, we have give one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel, the travelling fee on your country) should be on your account and you need paid for the technician  USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).


For more information please feel free to browse our business youtube site

www.youtube.com/user/mrjackdu007
