cream filling machine

Rotary cups filling sealing machine cream juice butter jelly round cup filler and sealer equipment

Rotary cups filling sealing machine cream juice butter jelly round cup filler and sealer equipment

automatic rotary type plastic cup sealing machinefor roll film adopts the way of pneumatic type interval operation and electric apparatus adopts Japan Omron programmable controller,

this machine has function as automatic cup dropping, filling, printing, sterilizing, photocell, sealing, tooth-shape cutting and the waste material recovering ext,

this machine use digital temperature controller and the error of temperature is less than 1%, this machine outside is 304 stainless steel shell and high sealing quality.

Basic parameter of cups filling sealing machine model YX-900:


Model     YX-900
Capacity    900 cup/hour
Filling range     10ml~300ml(adjust)
Heat power    1 KW
Air consumption     0.6 m3/min
Voltage     220V   50Hz
Weight      250kg
Material     Stainless steel
Overall dimension    1250mm*1250mm*1750mm
Package    Wooden case

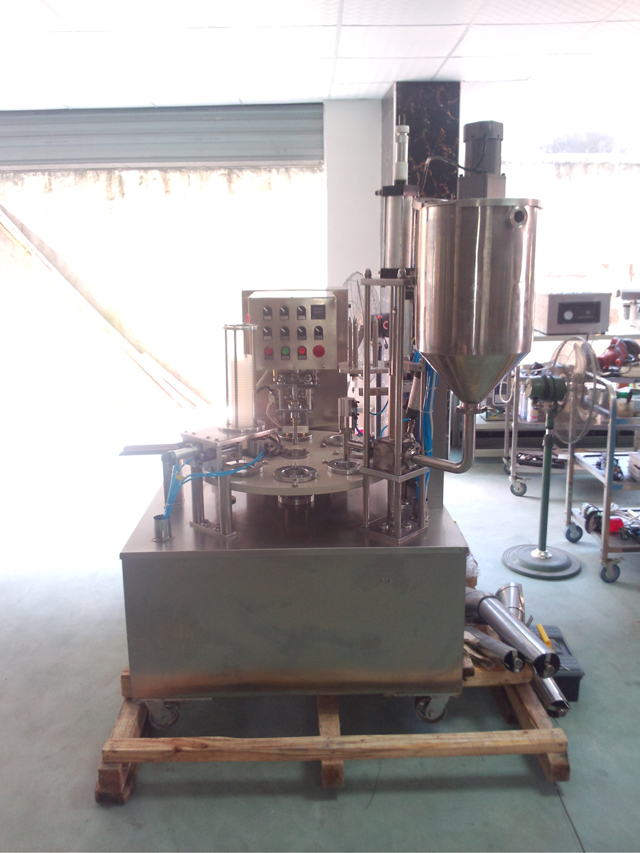

rotary cups filler sealer equipment.jpg

Air parameters:

Air pressure:    ≥ 0.60Mpa

Air flow:       ≥ 0.3m3/min

Air clean level:         The air need to filter by Oil and water filters



Machine have functions of :

Rotary type cups filling sealing machine main function:

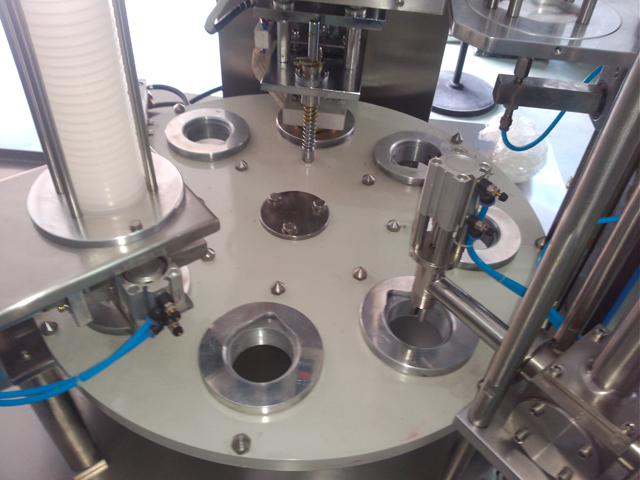

cups filler sealer upside view.jpg


Empty cups/box dropping►Liquid/paste/powder filling ►Pre cut foils/roll film putting►Date/other character printing→

Caps putting►Double sealing►Out putting by pushing up/suckers/manipulator

Electric parts&configuration of cups filling sealing machine model YX-900

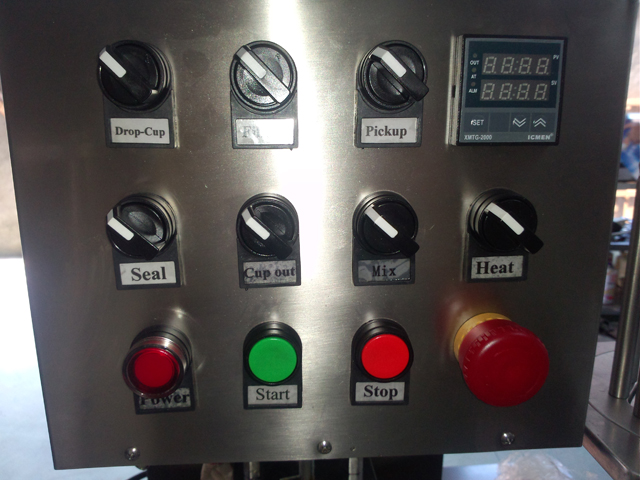

button control for filling sealing machines.jpg



1. Japan IDEC switch        2. Omron PLC       3. domestic reducer(Hangzhou)

4. domestic splitter(Shandong)    5. domestic cylinder    6 S.S. chain

7. S.S. heating pipe     8. acid-resisting aluminium mould board

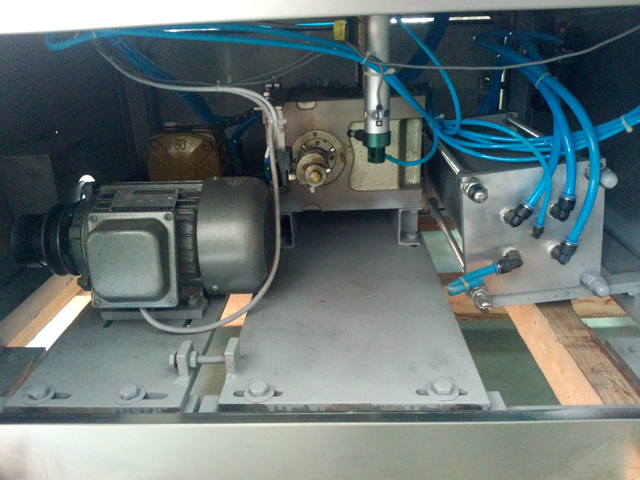

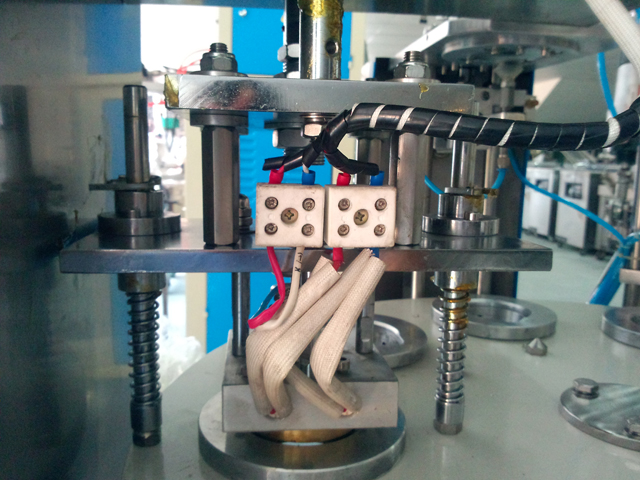

motor pneumatic parts for cups filler sealer.jpg

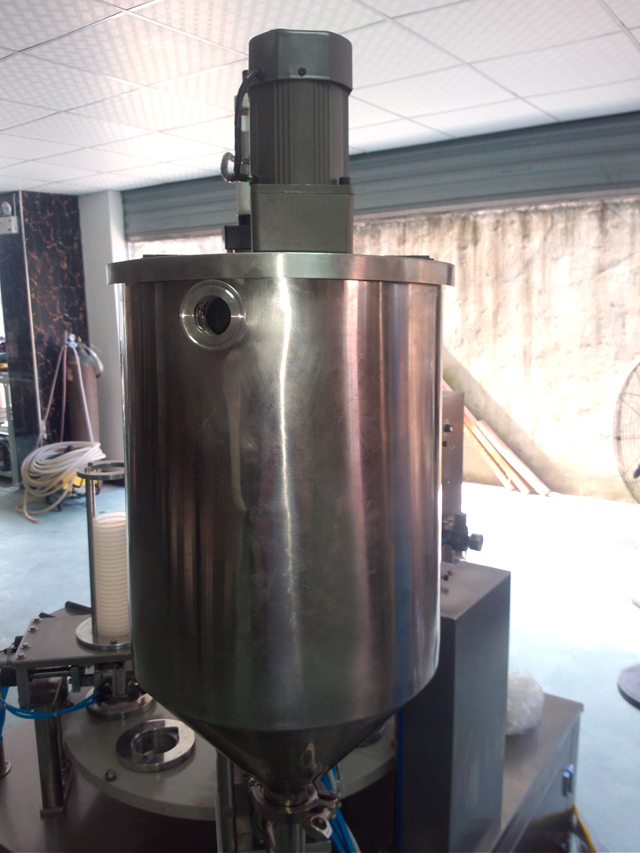

Hopper with mixer from Cups filling sealing machine model YX-900



hopper with mixer.jpg

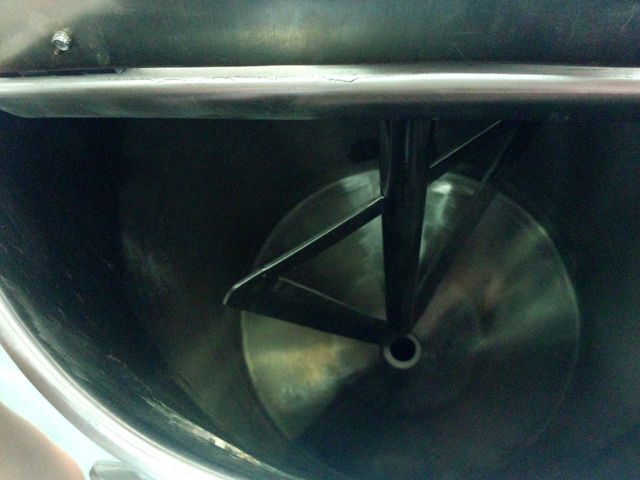

inside hopper.jpg





Touch-screen controlled rotary cups filling sealing machinery cream/cream food packaging:

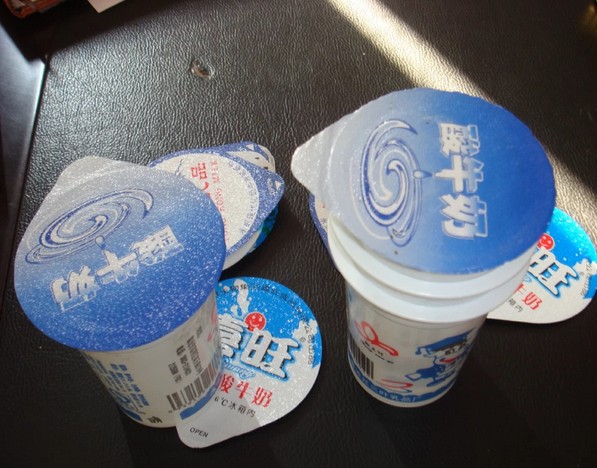

Samples final products from model YX-900 CUPS rotary filling and sealing machines :



cups filling sealing samples.jpg




Wooden case packaging before ocean shipping





wooden case packaging before shipping.jpg



After-sales service &gurantee for cups filling sealing machine rotary model

Guarantee: for all the machine, we have give one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel, the travelling fee on your country) should be on your account and you need paid for the technician  USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
