cream filling machine

cream ointment liquid filling machine semi automatic cosmetic mascara single head filler equipment

cream ointment liquid filling machine semi automatic cosmetic mascara single head filler equipment

Semi automatic Mascara filling machine is  designed for cosmetics, viscous paste filling, suitable for filling ointment eyelash, cosmetics raw materials. using automatic and single-action ways operation.

 Features &advantage of mascara filling machine single head

♦ The machine is made of imported mechanical parts, pistons, cylinders, stainless steel and PTFE.

♦ The aluminum prominent imported parts and outstanding mechanical design ensure its leading position among other similar machines in China.

♦ The machine is light and convenient with brand new horizontal design and automatic material drawing, removing the trouble of frequent feeding of the vertical material hopper.

♦Manual and automatic mutual switching function. When the machine is under the "automatic" status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the "manual" status, the operator steps on the pedal to realize the filling. If the pedal is always stepped on without releasing, the machine will change into the automatic continuous filling status.

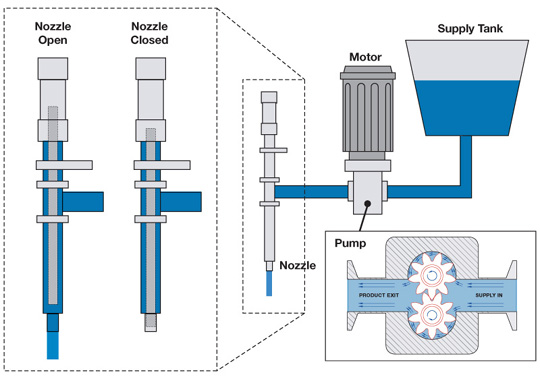

working principle of filling machine:

working principle.jpg

♦ The material cylinder and tee parts adopt handcuffs type connection, which can be conveniently disassembled and assembled without the need of using any special tools Therefore, the cleaning is very convenient.

♦Leakage proof filling system. During the filling, the cylinder makes upward and downward movements to drive the closure head. When the cylinder moves downwards, the closure head will move downwards, the valve will be opened and the system starts to fill the materials. When the cylinder moves upwards, the closure head will move upwards, the valve will be closed and the filling will be stopped, so that leakage and wire drawing are prevented.

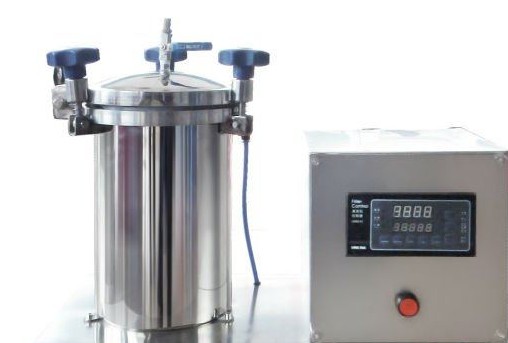

single head filler cream.jpg

Technical parameter of single head filling machine:

Model

Filling volume

Filling Speed

Air Supply

YX-MF5

5-60ml

0-45bot/min

0.2-0.6Mpa

YX-MF10

10-120ml

0-35bot/min

0.2-0.6Mpa

YX-MF25

25-250ml

0-30bot/min

0.2-0.6Mpa

YX-MF50

50-500ml

0-30bot/min

0.2-0.6Mpa

YX-MF100

100-1000ml

0-25bot/min

0.2-0.6Mpa

YX-MF250

250-2500ml

0-18bot/min

0.2-0.6Mpa

YX-MF500

500-5000ml

0-12bot/min

0.2-0.6Mpa

Note: Filling precision ±1%. In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

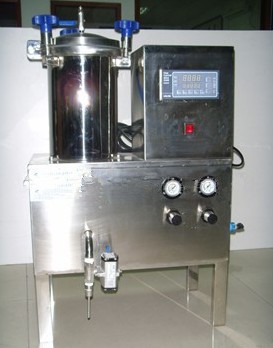

filling cream cosmetic making machine.jpg

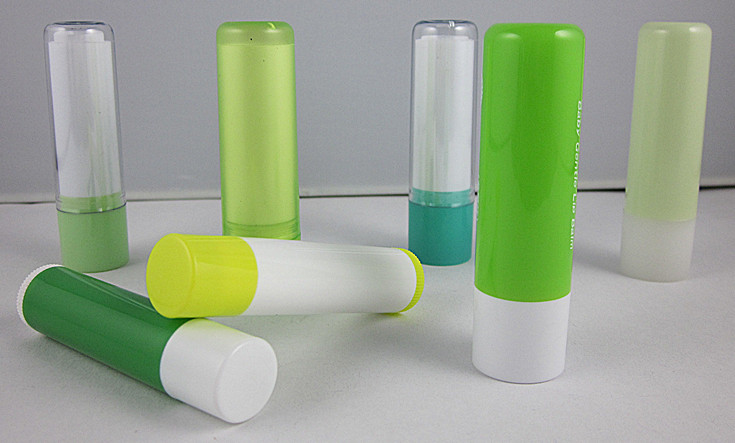

Samples from Mascara filling machine single head

filling machine.jpg

Wooden case packaging for mascara filling machine

wooden case packaging for shipping to usa.jpg

Besides this model of mascara filling machine there is also other model Moscara filling machine .videos as below:

Cosmetics cream filling machine from NGLAI INDUSTRIAL COPRATION LIMITED
