Caps wadding machines

caps inserting machine automatic cap wadding equipment vibrator caps lining machinery

caps inserting machine automatic cap wadding equipment vibrator caps lining machinery

This machine is an ideal cap liner inserting machine which is widely applied in cap factories, liner factories, pharmaceutical factories, food products factories, daily chemical factories, packing factories, etc.

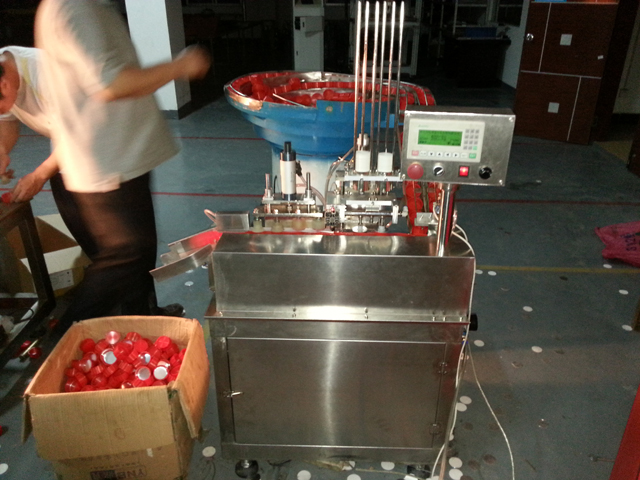

caps inserting machine.jpg

Machine Features of caps wadding inserting machine automatic:

caps wadding machine trial video.jpg

1.       Automatic cap liner inserting has replaced manual work, which substantially raises the work efficiency.

2. Liner inserting features good accuracy, high speed and high efficiency; products are safe and healthy.

3. The machine adopts a rotary disc to convey caps; the positions of caps will be fixed when the caps reach the liner inserting positions. The vacuum liner taking device will take out the liners for inserting. When caps are of different sizes, the replacement of rotary disc, liner cylinder and sucking disc is simple and convenient.

4. The cap arranging unit is a vibrating disk, it has the additional function of cap sifting(reject), which makes caps with mouths downward return to the cap arranging unit; thus, it can be guaranteed that all discharged caps are transmitted onto the conveyor belt with their mouths upward.

5. A conveying locating unit with mechanical transmission is adopted, which contributes to stable and reliable operation of the machine. It is applicable for caps and liner of various specifications.

6. The entire machine adopts PLC control. The electrical control system adopts variable frequency control techniques, so it features random setting, wide applicable scope, simple operation, stable running, easy cleaning, convenient maintenance and strong durability.

7. The machine has the function of automatic detection of finished products. If the liner is not inserted to the cap or the reverse side of the liner is inserted to the cap, the detection device will automatically sift these nonconforming caps and transmit them to the defective product area, which guarantees the conformance rate of caps.

8. This machine is equipped with safety protection devices for stop of the machine when there is no cap or liner, thus realizing human-based operation. (Optional)

9. The machine has automatic count function. The machine can stop automatically according to the set number of caps, which also greatly improves the efficiency of subsequent work.

10. The machine is an automatic cap liner inserting device designed and manufactured by our factory in strict accordance with national GMP standard and technological requirements. It can avoid secondary pollution of materials and omit the sterilization process, especially suitable for occasions with strict sanitary requirements

Structural Composition of the Machine:

caps inserting machine.jpg

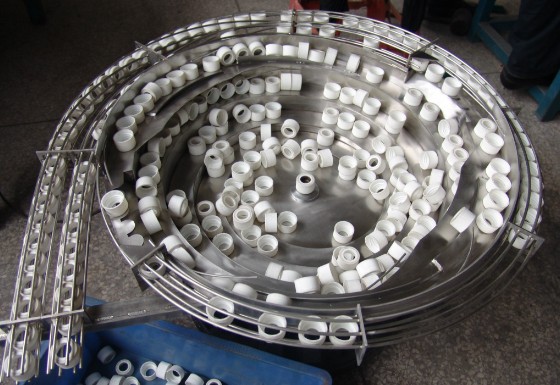

Automatic cap arranging unit: it can arrange the disorder caps to be orderly through rotation and make all caps with the mouths upward.

Cap conveying unit: accurately and orderly convey the arranged caps to the liner inserting unit.

Liner inserting unit: insert the liner into the cap.

Unit for sifting caps with reverse-sided liners or without liner: it can automatically sift caps with reverse-sided liners or without liner, thus to guarantee that all caps are qualified. (Optional)



Main technical parameters of model YX-WM120 caps lining machine inserter equipment foil&caps

caps wadder (2).jpg

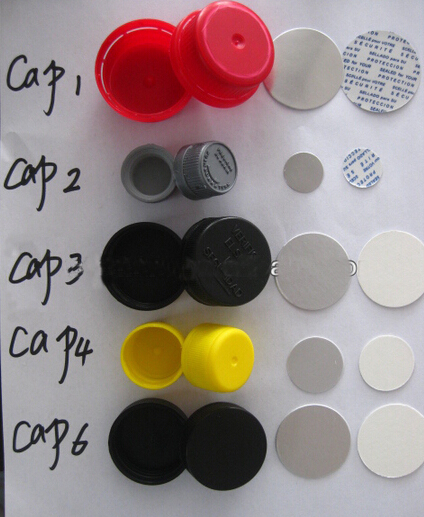

Specification of cap

capacity (PCS/MIN)

Power voltage (V)

Total power

External dimension

Net weight (kg)

Air Pressure
Applicable cap height

20-50

120-160

220

1.5KW

3000×1000×1500

250

5-7 KGF/cm2 5 mm - 30mm

Packaging pictures about our machine exported

wooden case packaging.jpg

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
