fully automatic filling machine

milk powder cans auger filling machine automatic vacuum can seaming machine fully automated food packaging line

milk powder cans auger filling machine automatic vacuum can seaming machine fully automated food packaging line

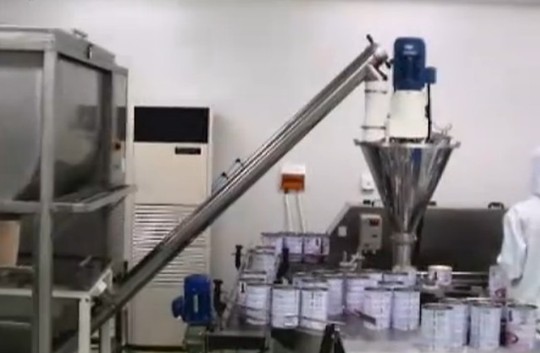

The fully automatic line including two sets of machines which get connected via conveyor belt .the other related parts including the screw feeding system and working platform as well as turntable for cans distributor .

As below is given for the machines one by one :

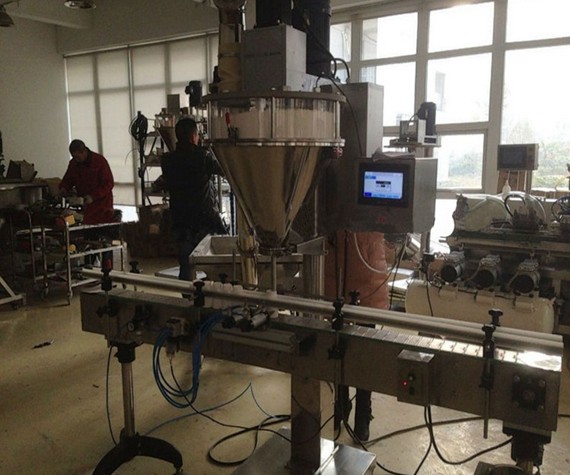

.automatic powder filling machine with auger metering system

This automatic powder filling machine for bottles&bags is an economic applicable automatic powder and grain filling

machine, can complete locate the bottle, filling and metering automatically, It consists of a filling head,

a chain plate conveyor belt and a positioning device, adopt the servo (or step) motors,

PLC and touch screen control,

simple operation, high stability. To unscramble bottle machine, screw cap machine,

labeling machine, etc of a complete set of filling line.Suitable for packing powder and small granular materials,

such as powder, small granules drugs,veterinary medicine, glucose, seasoning, solibeverage,

carbon powder, talcum powder, pesticide, etc.

powder filling machinery.jpg

1.All the main parts ,except the motor, are made of stainless steel,composite transparent hopper,easy to clear.

2.Adopts servo (or step) motor driven,difficult to wear out, accurate positioning,manual control and stable

working performance.

3.Adopt PLC control, stable work performance, high precision

4.4.English and Chinese Touch screen,shows the working state, operating instructions ,

fault status and production statistics clearly, very easy to operate.

5.Has the record function for the powder ingredients, could be storaged for later use.

At most could record 10 ingredients.

6.By replacing the screw,the machine is also workable for either powder or some small granular material

7.Installation of centrifugal device to make sure higher packing precision of some good fluidity material

8.As to powder material,can also equipped with the dust collection device

to make sure good working environment.

powder filling machinery.jpg

Basic parameter of semi autoamtic powder filling machine

Couting way

Auger

Precision

Error≤±1%

Packing speed

20-40bottles/min

Power supply

3 phase 380V 50-60Hz

Power

1.2Kw

Air pressure

5-8kg/cm3

Conveyor width

150mm

Conveyor length

220cm

Conveyor stainless steel thickness

1.5mm

Weight

220Kg

Size

2000×850×1850

Details about semi automatic powder filling packaging machines

Main body of Auger filling machine automatic:

powder filling machinery.jpg



auger filler flour factory.jpg

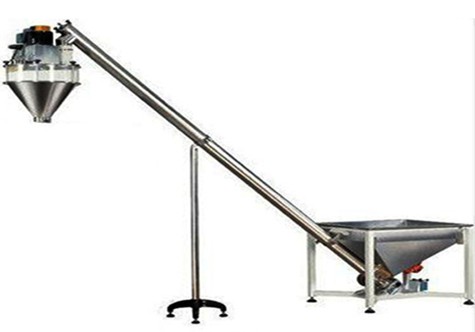

Screw feeding system with hopper for auger filling machine model YX-PF03

auger filler flour factory.jpg

Coneyor belt for delivery the bottles or bags after powder filling

conveyor belt.jpg

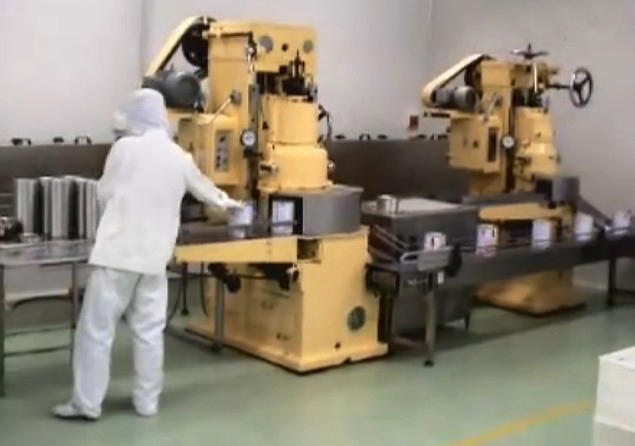

automatic cans vacuum  seaming machine

powder filling machinery.jpg

Automatic vacuum can sealing equipment, it can seal round tin, aluminum or plastic cans of various specifications, with evacuation function, suitable for production of various cans such as fruit can, drink can, plastic can etc. It has stable operation, high vacuum, and standard sealing quality. Key parts are made of high precision processing equipment, raising mechanical precision and guaranteeing stable integrated operation.

automatic vacuum cans seaming equipment.jpg

automatic vacuum cans seaming equipment.jpg

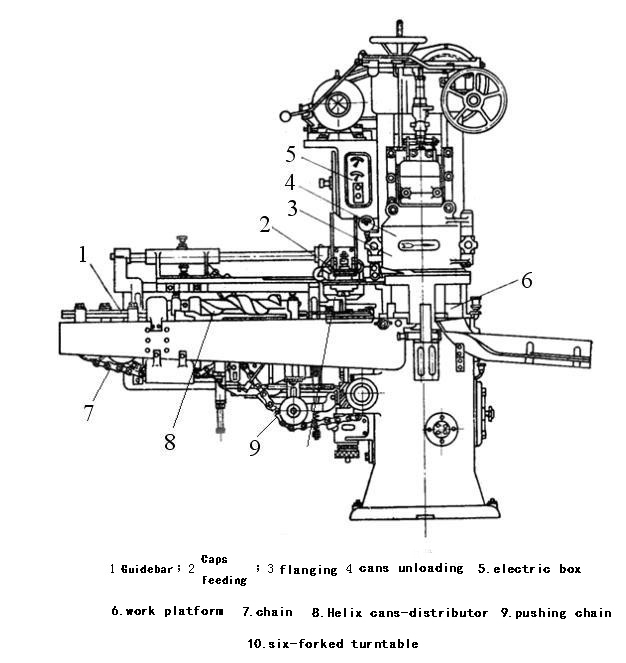

 The machine is consist of frame ,gearbox ,sealing head ,capes sending institution ,transport mechanism ,in & out conveyor belt and aspirator vacuum pump ets

The machine use four wheel feed hemming and Sealing institution and the cans conveying through conveyor belt bring in turntable .In and out of cans is flexible and convenient .The structure is a little complex ,but it is easy to maintain.

Mechanical speed governors .

Alternating current drive motor .

Steam jet vacuum tin cans sealing .

No cans without lids sending .

 No lids in the lids hopper alarm and time delay machine stop .

Cans or lids block machine stop working and alarm automatically .

powder filling machinery.jpg

Main technical parameter of fully automatic cans milkd powder filling seaming

vacuum seamer equipment:

vacuum seaming machines.jpg

Model    YX-MF30

Capacity :100-200cans/min(adjust)

Suitable can size :52-105mm (diameter ) (customized)

Height of can:135mm Max.(customized)

Power :5.5KW

Machine dimension : 2400×1600×2000 mm

Wieght :2000 kg

powder filling machinery.jpg

Packaging pictures about our machine exported

powder filling machinery.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.
