RO water treatment system two stages

4 Cavity Fully Automatic Bottle Blowing Machine PET Gallons blower equipment high speed

4 Cavity Fully Automatic Bottle Blowing Machine PET Gallons blower equipment high speed

4 Cavity Mineral Water Bottle Blowing Machine Plastic Stretch Molding Machine fully automatic

Description on bottles blowing machine full automatic
What is the mean by " 4 Cavity " ?
It means there are 4 pcs of bottles out for one mould.

Before starting to manufacture the machine it is neccessory for us to get the bottles samples according to which

we can design the preform and bottles mold.

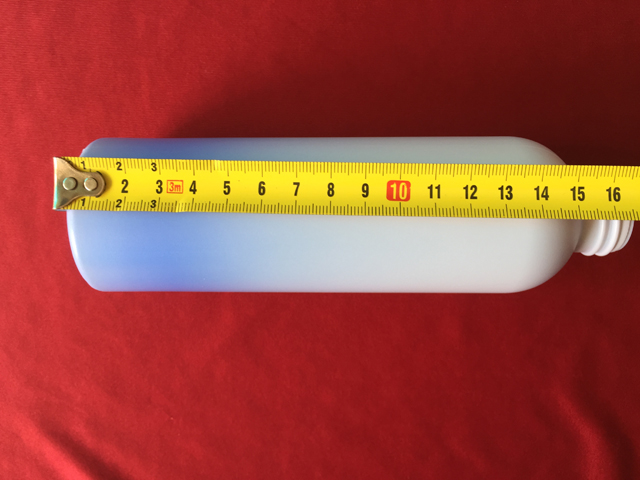

hdpe BOTTLES sent from USA.jpg

The fully automatic 4 cavity bottle blowing machine is used to blow PET bottles from 100ml to 2L including mineral bottles, edible oil bottles, carbonated water bottles, and juice bottles and etc. The shape of the PET bottles can be various according to client. We can help to sculpt the bottles and confirm with client before making bottle moulds.

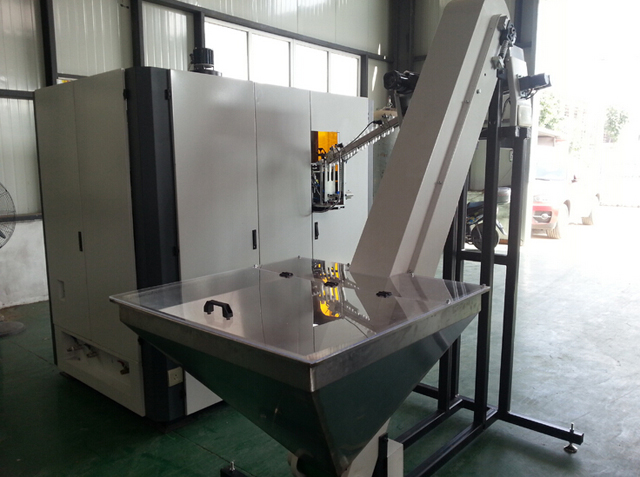

Back side of fully auto blower.jpg

Applications and features:

►Widely applied in food, drink, dairy, cosmetic, medical, chemical industrial and etc;
►PLC control, electric parts are well known brand;
► Develop different bottles for explore more market;
►Easy operation and maintenance;
►Compact structure for the preform heating, blowing, and bottle forming are realized in one machine;
►All the movements of bottle blowing machine are driven by the air cylinder, no need the hydraulic oil and even no pollution.

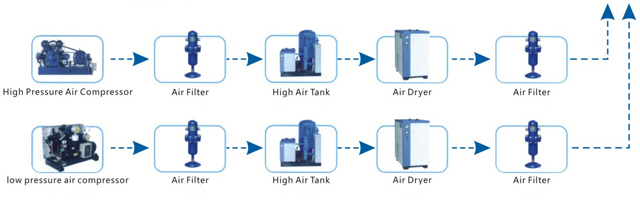

►Auxiliary machines are needed during blowing including LP (Low pressure) air compressor, HP (High pressure) air compressor, air dryer, air filters, air tank, and mould chiller.

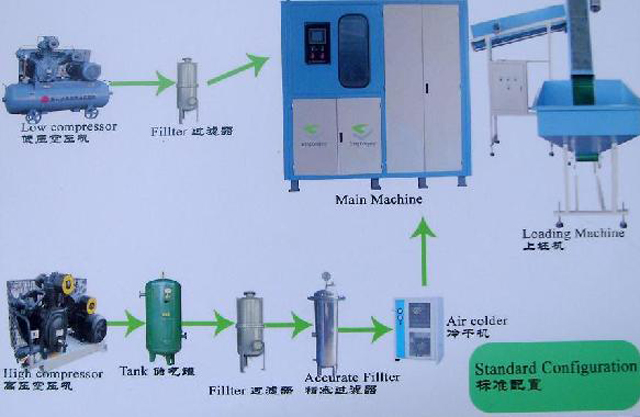

Working process for bottles blowing

connection diagramm.jpg

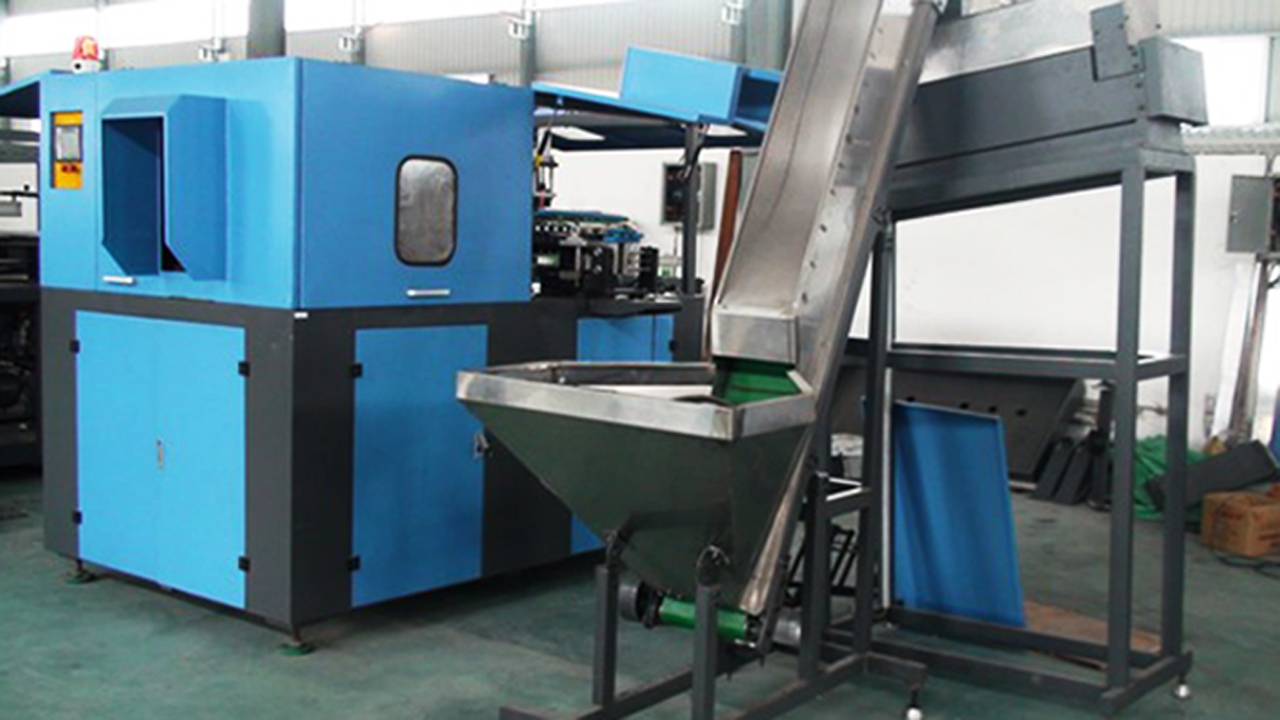

fully automatic bottles blower.jpg

Basic parameter of model YX-ABL04 fully automatic bottles blowing machine:



main part:
Pneumatic part Valve SMC
Cylinder
Electric part PLC LG
Operating system LG
Relay OMRON
Infrared thermometer America raytek
Note All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
Main parameter:
Model YX-ABL04
Productivity Depend on bottle design 3200-4000PCS/H
Product type Body diameter 20mm-100mm
Height 50mm-350mm
Neck diameter 15mm-38mm
Mold Cavity 4cavities
Mold thick 240mm
Mold 500*500mm
Main machine power Electrical source power 380v 3Phase /220v 3Phase 50/60HZ
Rated Power 49kw
Really use power 14kw
Air source LP air compressor 1.6m3/min 1.0MPa 1set (15KW)
HP air compressor 1.0m3/min 3.0MPa 2sets (each set 11KW)
Air dryer 2.0m3/min 3.0MPa 1set
Cooling water Cooling water 15L/min
Size L*W*H 1900*1860*1930mm
Weight 3600kg
Auxiliary equipment(preform unscrambler) L*W*H 2000*950*2480mm
Weight 250kg
Resin available   PET


















































































bottles blowing machines.JPG

Competitive Advantage:


►Stable performance with advanced PLC.
Automatic preform conveyer to save human cost.
Introduce the FESTO air cylinder to avoid contamination and noise.
Strong clamping force with high pressure and double crank links to lock the mould.
Two ways of operating: automatic and manual.
Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
Easy for you to install,test and start up.

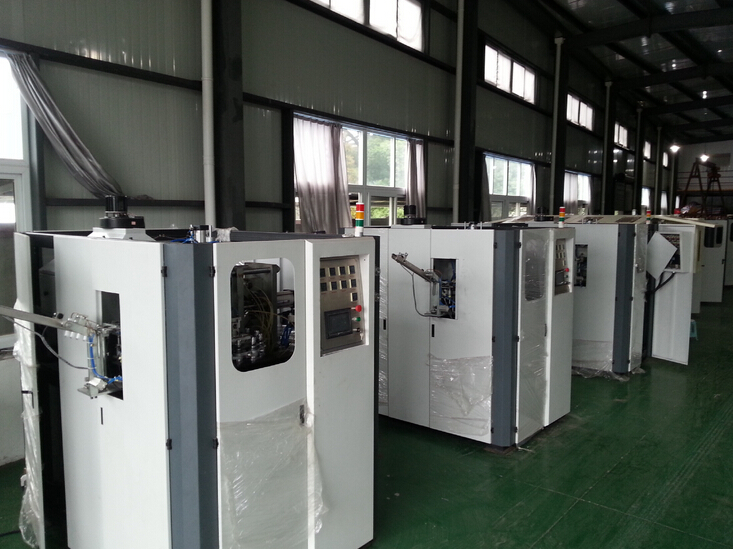

Machines blowing in stock

machines in stock.jpg

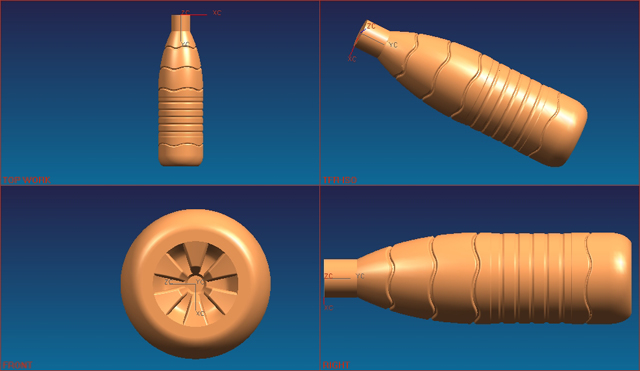

Bottles mould design &final bottles samples

580ml bottles design.jpg

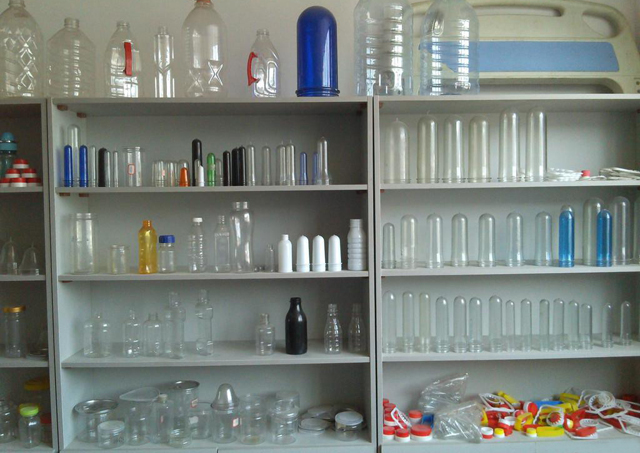

bottles samples.jpg



After-sales service for PET plastic bottles blowing machine fully automatic

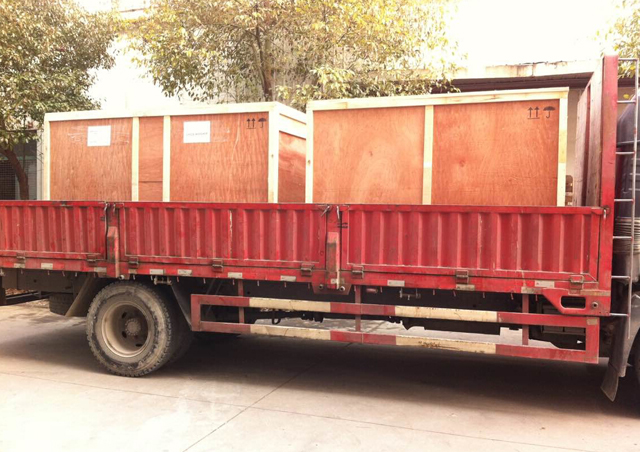

wooden case packing for machinery.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).

PENGLAI INDUSTRIAL CORPORATION LIMITED
