PE POF film L-type heat sealing shrink packing machine for pipes wooden fittings round shape housewares boxes fully automatic

PE POF film L-type heat sealing shrink packing machine for pipes wooden fittings round shape housewares boxes fully automatic

The L type sealing shrink packaging machinery PE sealer shrink packager equipment is

suitable for electrical products, hardwares, softwares, food, printing products, medications, floor boards, ceramics etc's packing.



Adopts famous brand imported components which makes the machine more stable and with longer service life.

Got favorable feedbacks from lots of customers, such as : ABB, SHIHLIN, ANNIOR PASTIN, etc.

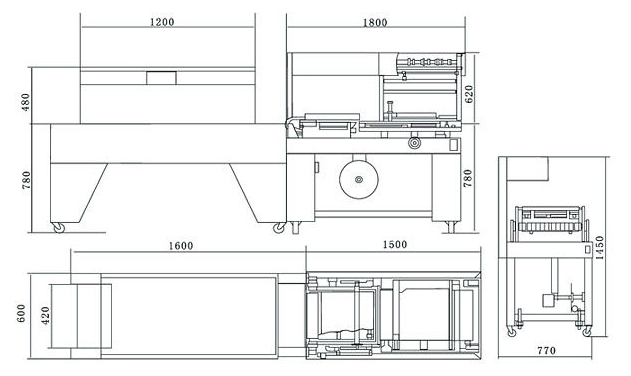

drawing of L shrink sealing bar packing.jpg

Equipment L type sealing shrink tunnel packaging machinery Parameters:

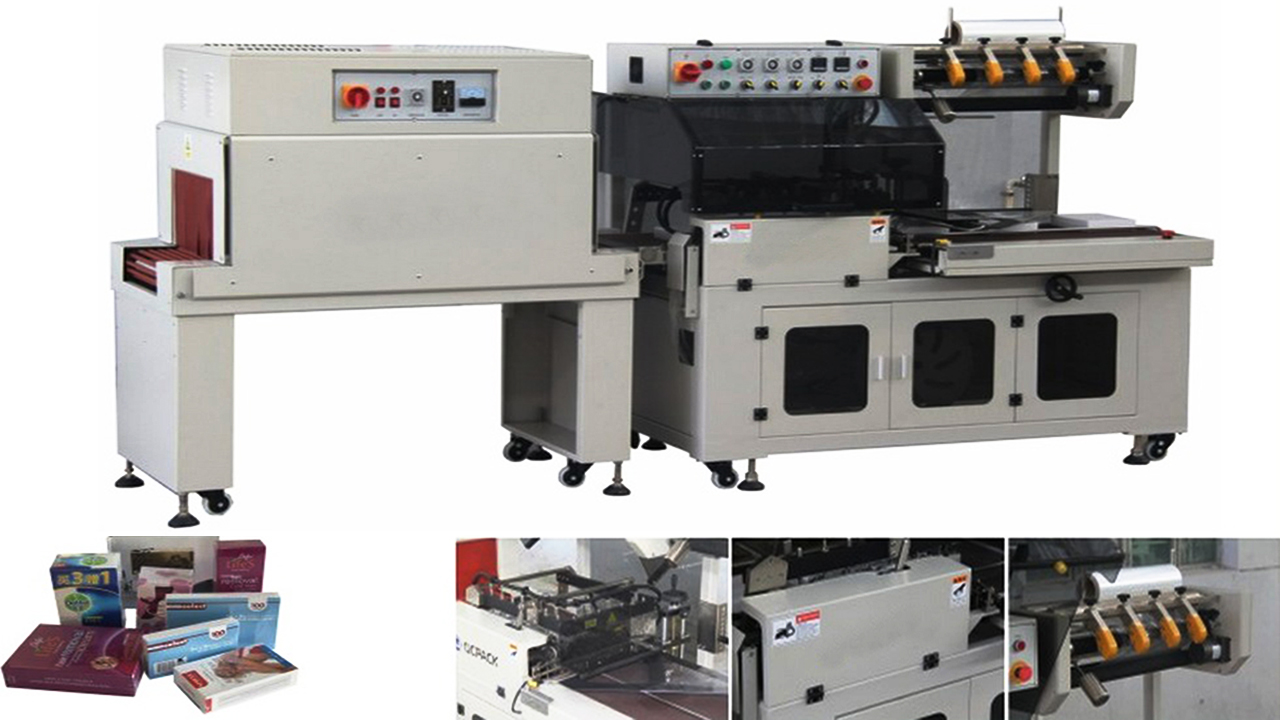

l sealer packaging equipment.jpg



Item No.

YX 400LB(sealing machine)

YX 4525B (shrinking machine)

Power

380v, max 1.5kw (depends on



customer's requirement)

380v, max 9kw (depends on



customer's requirement)

Shrinking Speed

20 to 25 per minute

20 to 25 per minute

Film Material

POF, PE

POF, PVC, PP, PE

the max shrinking size

L400 x W300 x H120mm

(Tunnel size)L600 x W450 x H150mm

Machine Dimension

L1500 x W650 x H1350 mm

L1500 x W650 x H1350 mm





















































Features of shrink packaging machinery L sealer model YX-4045

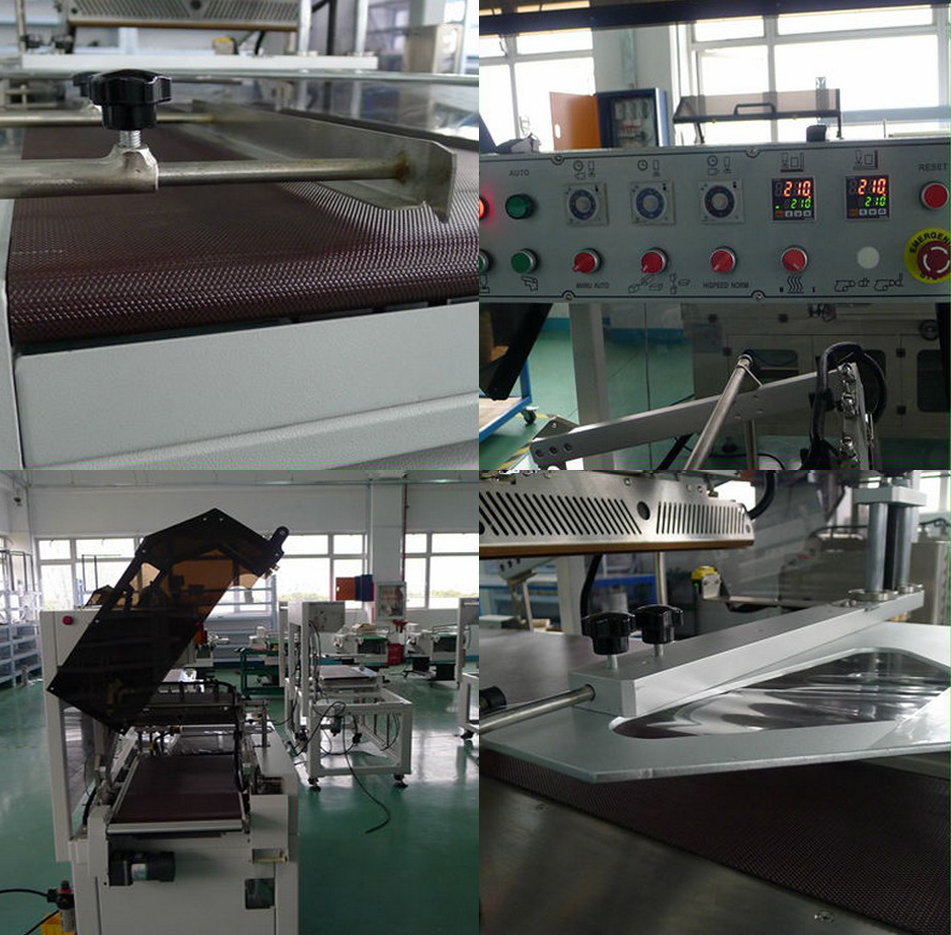

detailed of production sealer shrink packing.jpg

1) Full closed packing. Firstly cutting and sealing, secondly delivering into shrinking tunnel to be shrank.

2) Easy to operate. After putting the products on the conveyor the machine automatically delivering film, bag-wrapping, cutting and sealing, shrinking.

3) Photoelectric sensor is used. Adjust the sensor according to the thickness of the products.

4) The temperature of the sealing knife is adjustable. The operator can adjust it according to the material of film.

5) The temperature in shrinking tunnel is adjustable. Hot wind system is used in shirking process. It makes the shrinking effect better and more beautiful.

6) Widely used in medicine, stationery, hardware tools, food, toys, cosmetic, electronic products, etc.

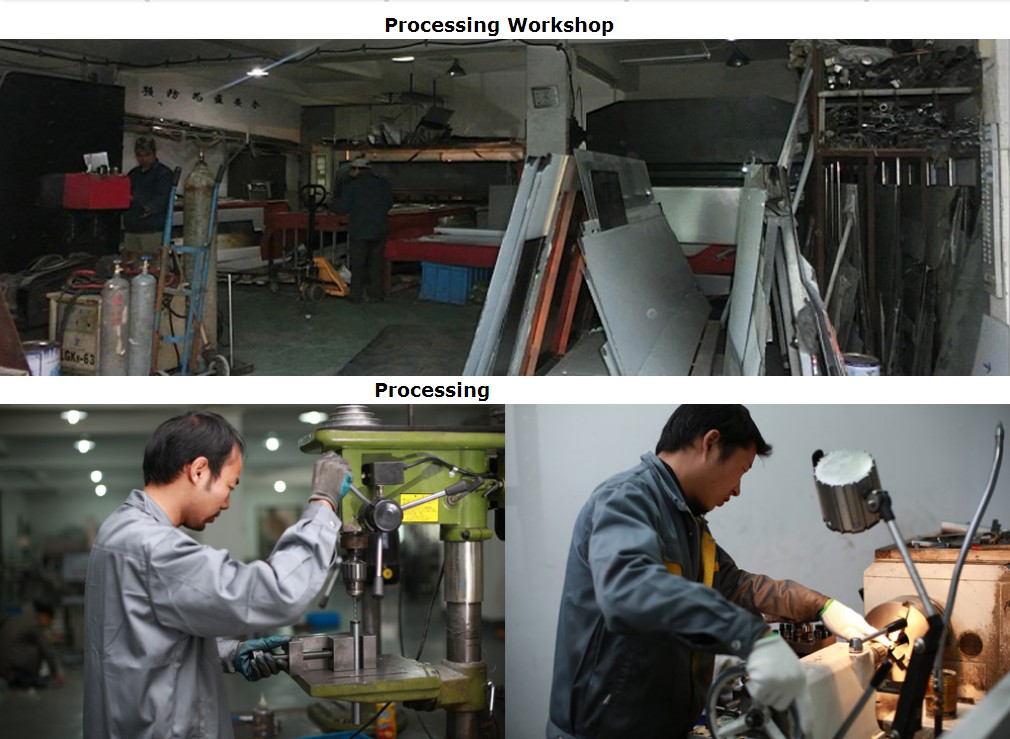

processing shop for l sealer shrink packing.jpg

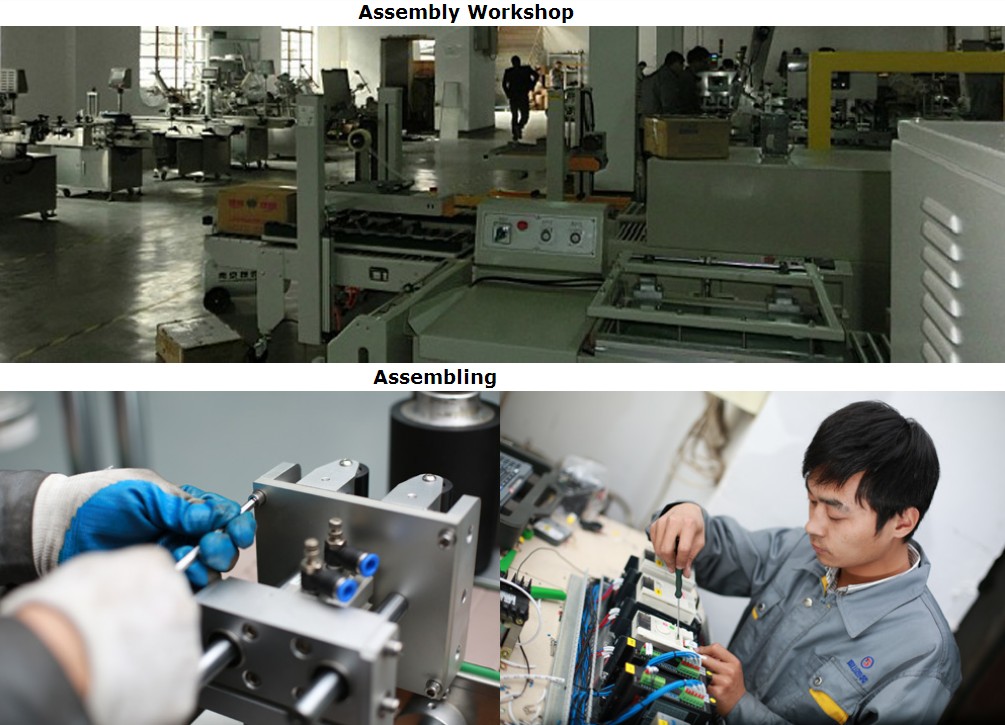

assembly workshop.jpg

Configuration of L sealing shrink packaging machine model YX-4045切机/裹包机/包膜机

Series

Name

                                 Brand

Number

1

Conveyor motor

CPG(TAIWAN)

1

2

Blowing motor

DOLIN(TAIWAN)

1

3

Inverter

OMRON(JAPAN)

1

4

Blowing inverter

                            OMRON(JAPAN)

1

5

Thermometer

OMRON(JAPAN)

1

6

Circuit Broker

SCHNEIDER(GERMANY)

5

7

AC contractor

SCHNEIDER(GERMANY)

1

8

Intermediate Relay

OMRON(JAPAN)

6

9

Solid State relay

MAGER(CHINA)

1

10

                Power Switch

SIEMENS(CHINA)

1

11

Sudden stop

MOELLER(GERMANY)

1

12

Heater

STAINLESS STEEL HEATER

9

13

Delivering Silicone tube

                   IMPORTED FROM TAIWAN

162

14

Window glass

high-temperature resistance explosion-proof glass

3

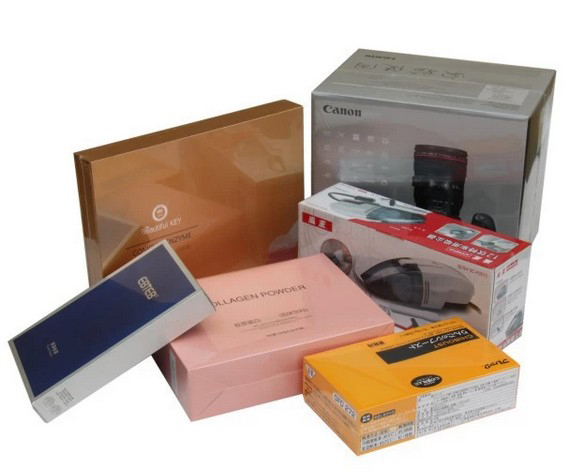

Sealing shrink packaging samples for products






L sealing shrino packaging machine in storehouse

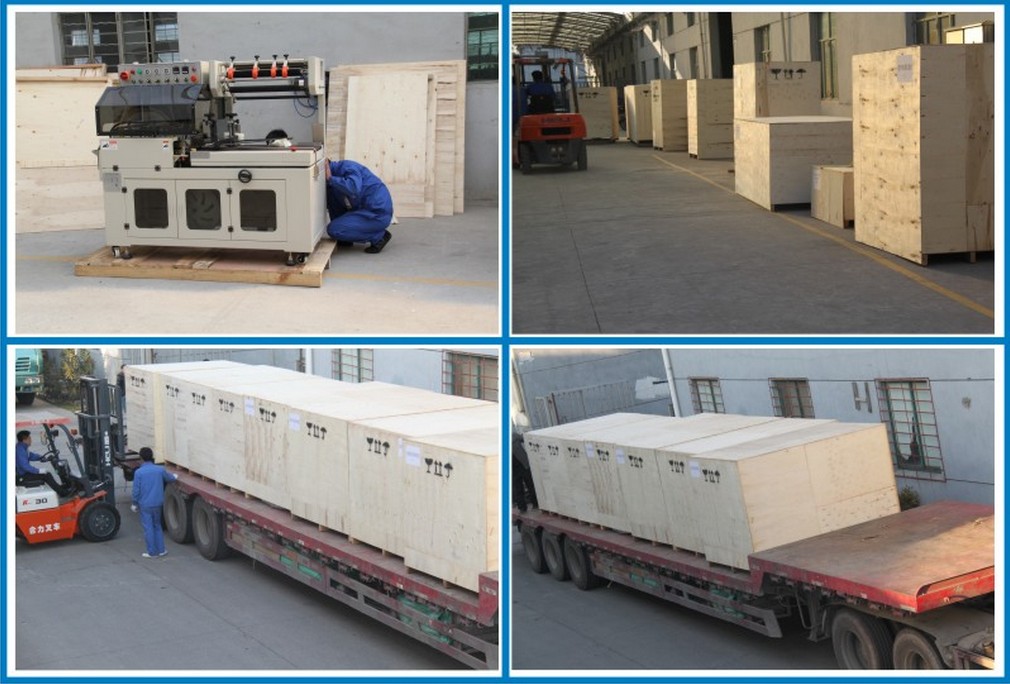

Wooden case packaging &shipping for L sealing shrink packaging machinery model YX-4045



shipping detailed packaging sealer.jpg


After-sales service&guarantee

Guarantee: for all the machine, we have give one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel, the travelling fee on your country) should be on your account and you need paid for the technician  USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
