toothpaste making machines
paste tubes cream containers lotion honey filling sealing machine semi automatic filler and sealer e
The machine is suiltable for the filing ofpaste and fluid ,widely applied incream, oil, syrup, lotion, shampoo, bechamel,fruit juice industries, etc .
It is full-featured, well-structured,stable performance,accurate filling . It adopts stainless steel and confirm to GMP standard .The machine also can be prepareded in accordance with the feeding bottle machine, capping cover machine, inkjet printer and other devices .
I. Introduction and function

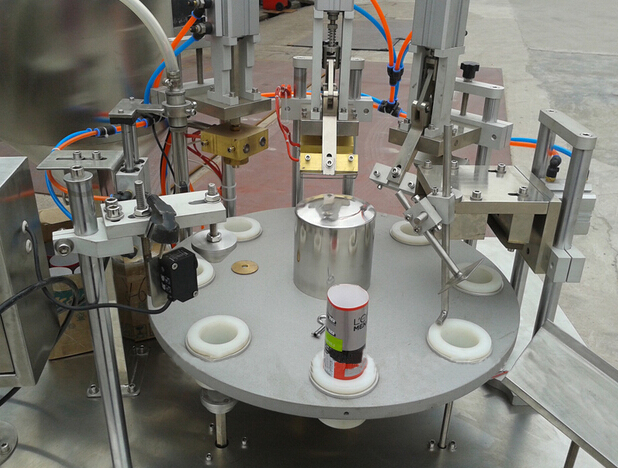

This machine applies the transmission principle. It uses the slot wheel dividing system to drive the turntable to do intermittent movement. The machine has 10 sits. Expect manually putting the tubes on the machine, it can automatically fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and cut the tails and exit the finished tubes. Filling measurement is accurate. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very even. This machine has stable performance and work without any noise and pollution.
The part which is contact with the filling material is made of high-quality stainless steels. The parts which need to clean are made of quick-change device that is removable and convenient for washing.
If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.
II. Application range

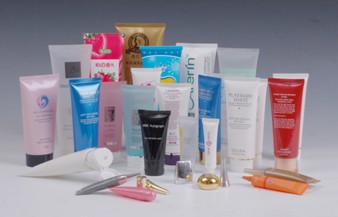

It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, medicine, adhesive and shoe polish, food industries.
1. the material contact parts are made of stainless steel SUS304;
2. the connection of the various is used the quick-change device, which is easy to disassemble and clean;
3. high-quality pneumatic components

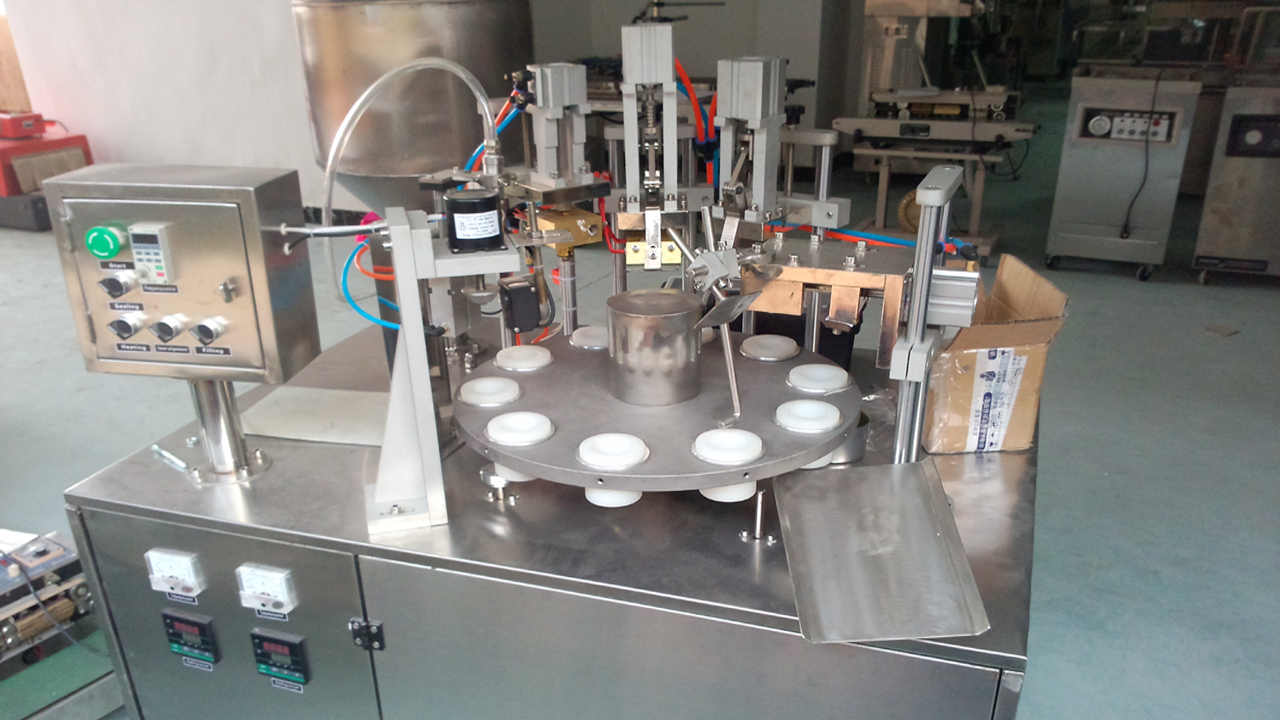

IV. Main technical parameters of semi automatic tubes filling sealing machine model YX-AB100
1. power: ~220V±10%,0.75kw
2. power consumption: 350W×2 +250W×2=1.2KW
3. filling volume: 50,100,200,250(ml)(customized)
4. Producing speed: 25-30pcs/min
5. filling accuracy:±1%
6. machine dimension: 1100X800X1600(mm)
7. Machine weight: 280kg
8. working air pressure:>0.4Mpa
1 The internal-heating system
The internal-heating system adopts electrothermal
copper block to keep heat supply, at the same time,
the electric hot wind blows into the inner side of the
tube to achieve equivalent heating. It has many
a. This technics is more advanced than the past
exterior heating only.
b. The sealing hardness is better.
2 The outside heating system
The outside heating adopts scissor to–and-fro press way, and heats the tube (already through the internal-heating process)from outside. This promotes the heating quality, and is better for the sealing and batching process

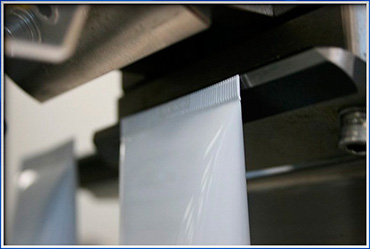

3 The Sealing and batching system
It adopts scissor to–and-fro press way, and can seal and batch on the tube. Thanks to the equivalent heating, the sealed tube end is firm and can afford large pressure. The tube would not open and this technics gains great reputation from our customers.
4 End cutting system
After batching, the tube end may be not in order completely, so the cutting system is needed. This system has a fixed blade and a tilt moveable blade driven by cylinder to cut the tube end. After cutting, the tube is tidy and beautiful, which promotes the tube appearance greatly.

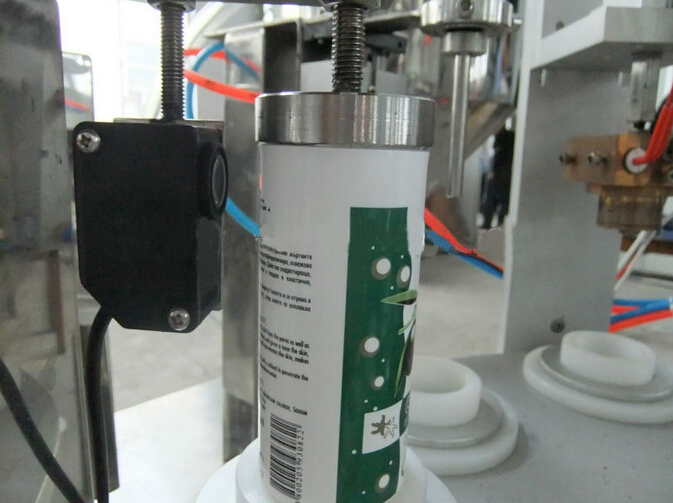

1. Photo eye device.
This device can ensure the automatic right superscript of the tube.

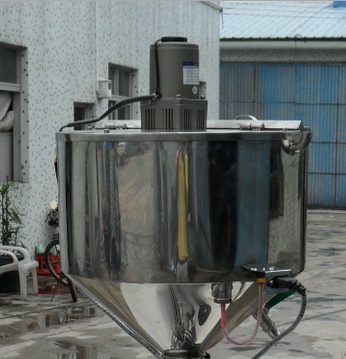

2. the heating and stirring system
This system is necessary for the material which is more viscous than the honey and the toothpaste.

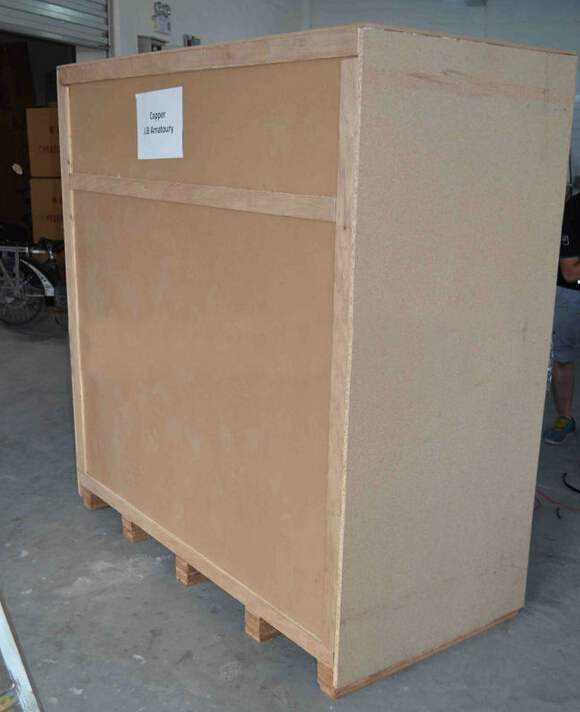

Packaging pictures about our machine exported
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
