fully automatic screw capping machine

full automatic trigger caps press screw capping machine pump cap loading inserting capper equipment

full automatic trigger caps press screw capping machine pump cap loading inserting capper equipment

4-12 heads intelligent rotary trigger automatic capping machine

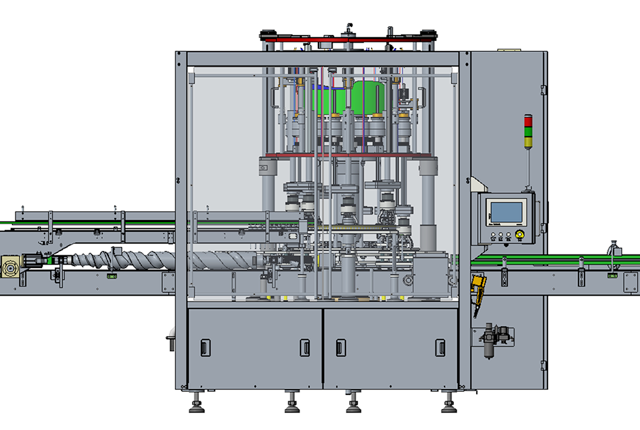

Drawing of main body screw capping machine high speed for daily products industry:

spray pump caps machine capping.jpg

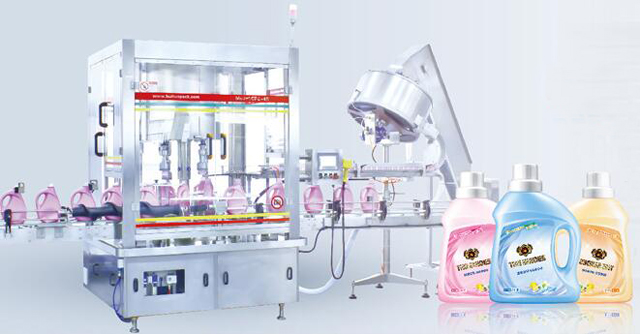

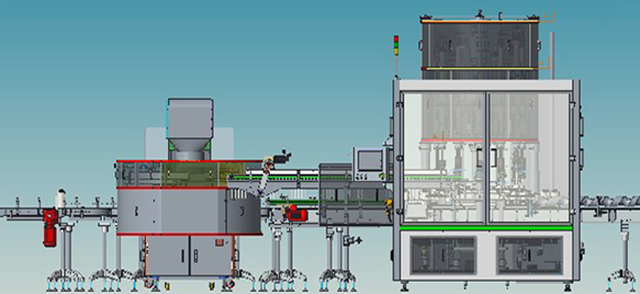

Machine model YX-SCM004 illustration with caps spray pump type feeding system:

drawing of spray pump capping machine.jpg

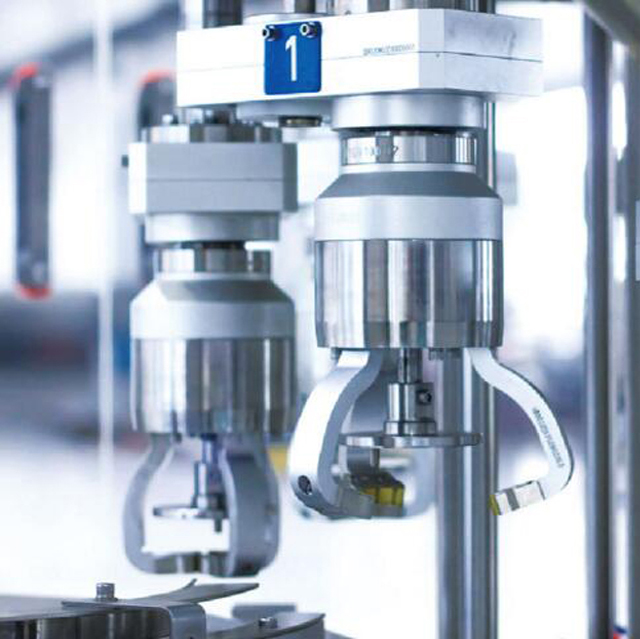

Major characteristics of pump caps and spray trigger caps capper:

rotary capper.jpg

(1) Claw structure, obtained many patent on technology, suitable for caps with the function of liquid diversion and inserters

(2) PLC controlled, integrated cap sorting, sending, grasping, inserting

(3) Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.

(4) Gentle manipulation, no scratch and injury to caps and containers

(5) Easy changeovers, one line capable of several products

(6) Connected with filling machine and labeling machine easily

(7) Module structure, manipulate on the touch screen, easy maintenances

(8) Suitable for containers made of PET/PP/PE/HDPE and so on

(9) Production capacity can achieve 4000-8000b/h, higher speed can be customized.

(10) Applicable in liquid detergent, laundry detergent and many other daily chemical products.

Main technical parameter of high speed screw capping machine:

machinery details for capping.jpg

No.

Item

Description

01

Overal dimension

2000mm(L)×1600mm(W)×2600mm(H)

02

Suitable bottle size

1 .Laundry detergent bottle (1Kg):

 Height×Thickness×Width=206.5mm×74.1mm×158.2mm

2. Laundry detergent bottle (2Kg):

 Height×Thickness×Width=254.6mm×88.4mm×200.4mm

3.Laundry detergent bottle (3Kg):

  Height×Thickness×Width=270mm×110mm×210mm

                                 Can be customized

03

Suitable inner-plug size

Customized

04

No. of capping heads

8

05

Production capacity

≤5500 bottles/hours

06

Power supply

AC 380V,50Hz

07

Allowing Pour spout mouth deviation range

≤±5°

08

Machine power

4kw

09

Air operated resource

0.6Mpa clean and stable compressed air

10

Air consuming

 24 m3/h

11

Weight

About 3800Kg

12

Working noise

≤80db(test place should 1 meter away from machine)

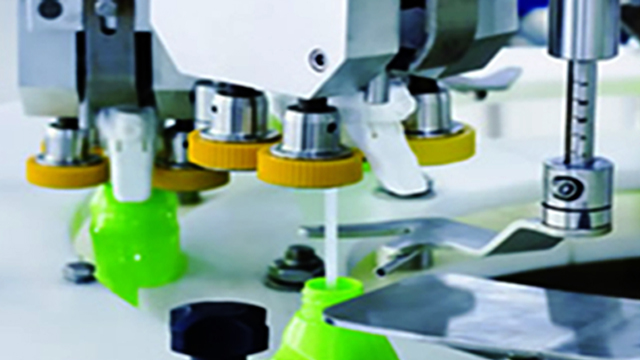

Details of capping machinery automatic rotary capper in high speed for detergent bottles:

pump capping machinery.jpg

caps system.jpg

caps pump loading system.jpg

press caps capping machine.jpg

Working process of rotary capping machine:

whole working process for capping machinery.jpg

details explanation of capping machines.jpg

Samples of capping

caps samples.jpg
Packaging & Shipping:

wooden crate for salt packing machines.jpg

Guarantee: for all the machine, it claims three years for guarantee. (Excluded from the warranty are problems due to accidents, misuse ,misapplication,

 storage damage, negligence, or modification to the  Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need, our technician will go to your place to install and  test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)  should be on your account and you need paid  for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine , our technician will go to your place to fixed the machine  as soon as possible. The cost should be in your account.(as above).
