YX-LP1000 Water Pouch Packing Machine Vertical FFS form fill seal machines for water liquid drinking


This Vertical liquid pouch packing machine is high precision packing machine and the most advanced liquid compound packing machine, which is standing, three sides sealing and intermittent.

With optical sensor, suitable for pouch with LOGO, available for accurate cutting and packing for plastic with logo.

It is widely used to pack all kinds of liquid without gas, especially soy, wine, vinegar, juice, soybean milk, mineral water and liquid chemical products.

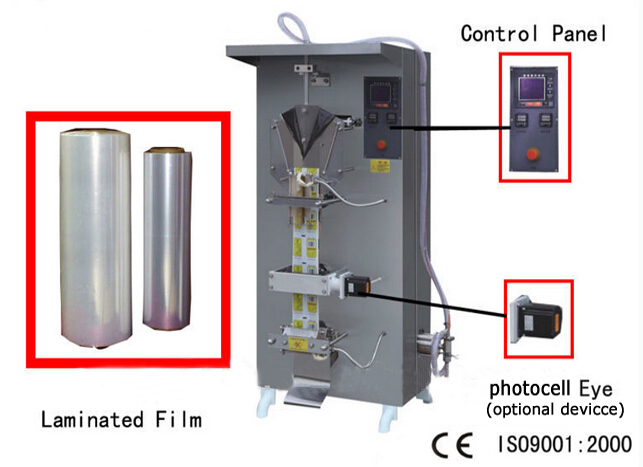

LIQUID WATER packing equipment.jpg

2) Technical Specification of YX-LP1000 water pouch packing machine vertical ffs packaging equipment:

2.1. Yield capacity:1000~2200P/H

2.2. Packing volume:100~1000ml/P

2.3. Filling precision:±1%

2.4. Film width:200mm to 320mm (optional or choose others)

   Film thickness: 0.05-0.12mm

2.5  Power:AC 220V/50HZ ,2kw

2.6. The weight of the machine:370kg

2.7. Dimension(L×W×H):820×780×1900MM



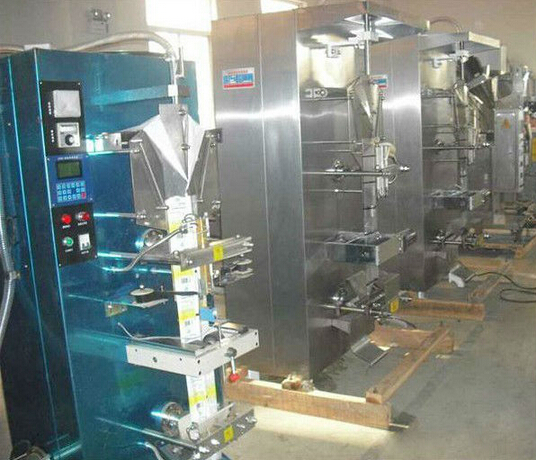

LIQUID WATER packing equipment.jpg





3)      Function of water pouch packing machine:

1sack molding

2UV sterilize

3Vertical cutting hot seal

4Date composed

5beeline tows sack

6ration filling

7Horizonal cutting hot seal

8Cutting sack

9、            count automatically

10、        With optical sensor for accurate film cutting & packing

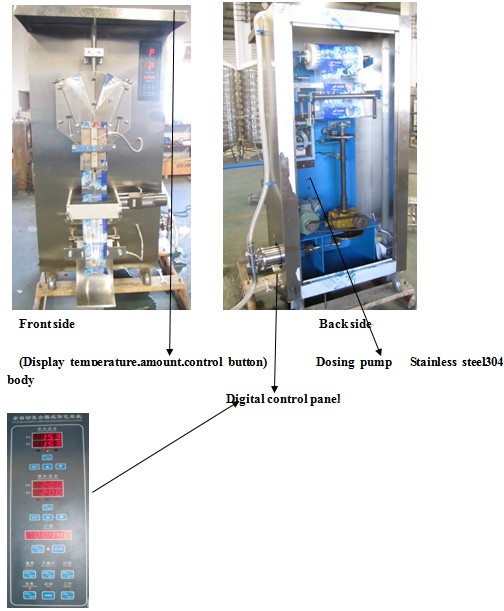

LIQUID WATER packing equipment.jpg

4)  Electrical appliances components list

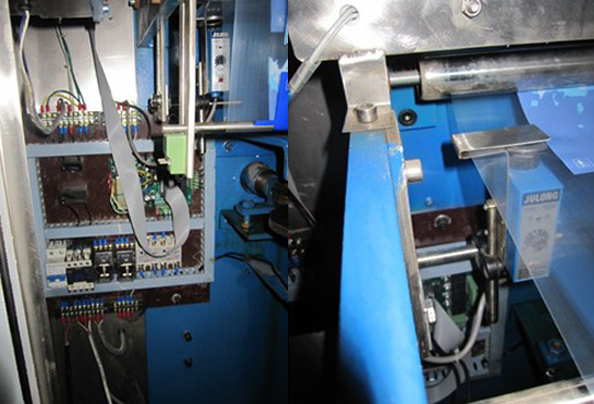

LIQUID WATER packing equipment.jpg



Num.

Sign

Qty.

Item

Spec. and model

Memo

1

FD

2

screw fuse

RFI-10A



2

XWK

2

Process switch

JFXK1-441



3

K

4

switch

MK211B/n81



4

ZZ

1

UV lamp tube

ZWS series 15W/220V



5

JC

1

AC Contactor

CJX2-0910

10A/220V

6

JJ

1

electromagnetic counter

LFC-5  AC220V

AC220V

7

TE

2

temperature controller

PKC   CH702



8

RE

2

thermocouple

EA2

(a set)

9

SRM3

1

Tubiform Electro-heating element

Φ20 stainless steel shell

300W(vertical seal)

10

SRM5

1

Tubiform Electro-heating element

Φ20 stainless steel shell

500W(horizonal seal)

11

D



motor

220V/0.75KW



12

Q

1

Electricity-leakage protector

DZ47LE-32



13

Stainless Steel Frame

SS304

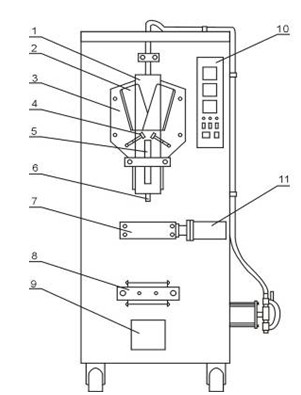

Skelton&drawing of liquid pouch packing machine as below

drawing1 of liquid water pouch packing machine.jpg

1.

shaper mid board

7.

bag drawing device

2.

shaper foldout

8.

hot sealing and cutting device

3.

shaper under board

9.

production exit

4.

bag pressing wheel

10.

instrument plate

5.

hot sealing

11.

electric motor

6.

filling tube

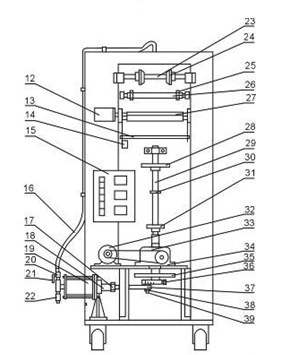

LIQUID WATER packing equipment.jpg

12.

electric motor

26.

rolling shaft1

13.

control column

27.

rolling shaft2

14.

proximity switch

28.

sealing cam

15.

electric switchboard

29.

dispensatory shaft

16.

filling tube

30.

signal cam

17.

fixed nut

31.

pulling cam

18.

bar cover

32.

main electric motor

19.

metering pump

33.

a type 864 strap

20.

T-Cock 1

34.

reduction box

21.

T-Cock 2

35.

transverse sealing cam

22.

hand shank

36.

adjective nut

23.

support shaft

37.

bar

24.

adjustable stand

38.

fixed nut

25.

retaining ring

39.

drive rod





































To make the bags of water first you should prepare for the water processed from water purifier

then fill seal pack it with the liquid packing machine with various film .below is the basic information about

the process:

1.water purifier Reverse osmosis system

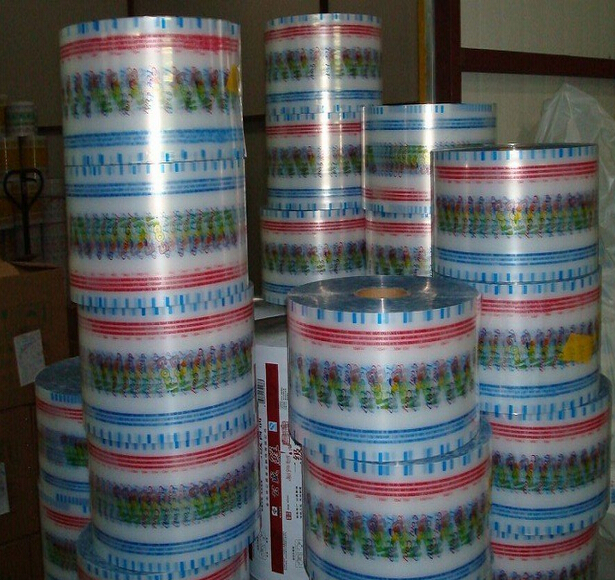

2.films available for wate packaging

LIQUID WATER packing equipment.jpg

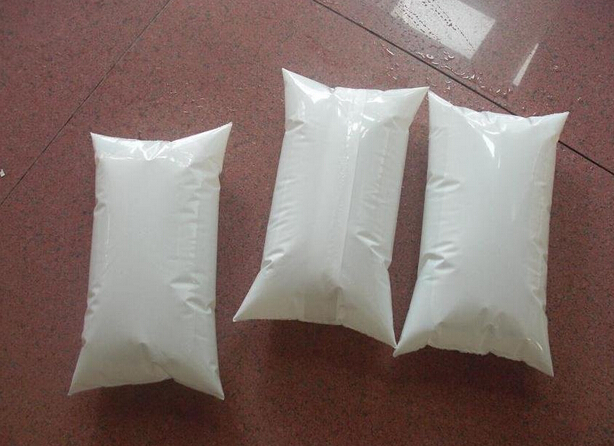

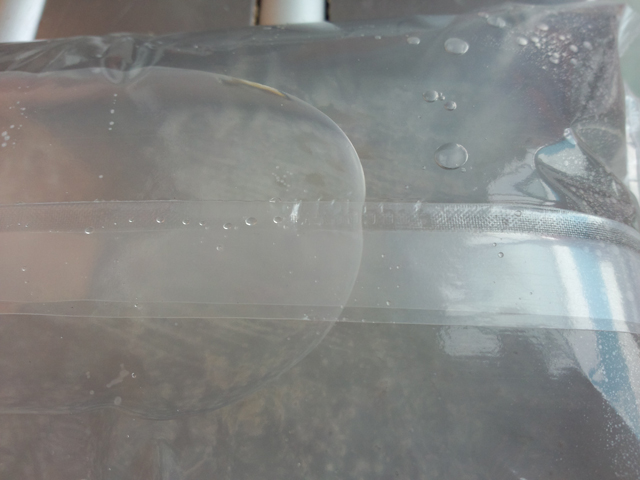

3.final output product of water or other liquid packaging

water samples for packaging.jpg

LIQUID WATER packing equipment.jpg

water purifier.jpg


Packaging pictures about our machine exported

LIQUID WATER packing equipment.jpg

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account

and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
