flat surface labeling machines

Hot foil labels flat bottles labeling machine semi automatic transparent label labeller equipment fo

Hot stamp labels are an eye-catching way to package products.

The glossy finish and intense colours of hot-foil stamping offer an extra level of quality to your labels, labels which are then referred to as stamped labels or hot-foil labels.

Testing video for labeling machine before DHL delivery to the foreign Buyers

The foil is applied to the paper using a heated stamping tool, at around 180°C.Just because the previous-mentioned characteristic the labels during beling labelled on the bottles should be chosen with the special optical sensor,which is

often customized with the brand-famous Leuze(Deutschland) for detecting the labels.

Hereinwith the labels kinds of stamp foil /gold hotfoil labels on the bottles ready for labelling by our model YX-FL02 labeling machine semi automatic:

Not only can the labeling machine model YX-FL02 for hotfoil stamp labels label the plane bottles or objects with the stamped

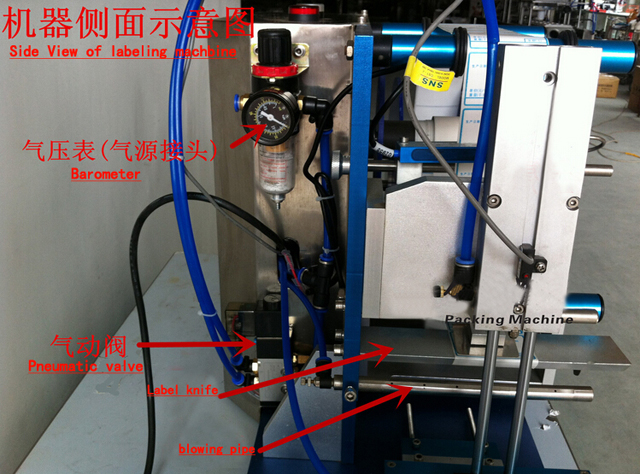

labels,but also with the transparanet labels. The way to solve the special labels is mainly up to the sensor whose pictures

are posted as below:

See as below the Basic instruction of labels labeling machine for hotfoil gold or silver stamp labels

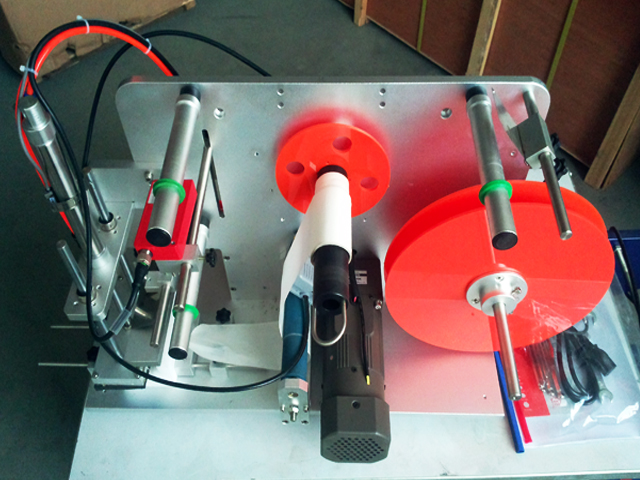

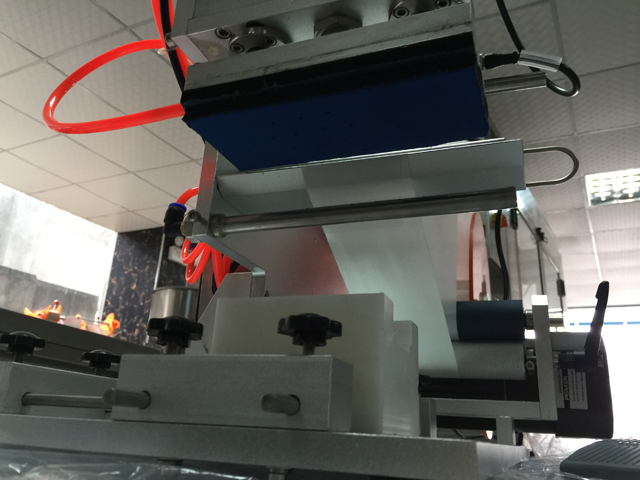

Main Pictures of labeling Machine Semi automatic for flat bottles:

Use: YX-FL02 semi-automatic flat labeling machine achieve semi-automatic labeling the adhesive label or adhesive film on the flat surface of the products.

Effect: improve labeling efficiency, accuracy and quality and stability; Avoid many problems such as low efficiency of labor labeling, skew labeling, bubble, wrinkle, irregular labeling etc;

            Lower product cost effectively and make the product more beautiful which lead the product to be more competitive.

Scope applicable:

*Label applicable: adhesive labels; adhesive films; electronic supervision code, bar code etc.

*Product Applicable: The flat products which must be labeled with paper label or film label on the surface;

*Industries applicable: Widely used in Chemical, Electric, Medicine, Plastic, and Cosmetic industries etc.

*Application examples: SD card labeling, aluminum bag labeling, plastic bag labeling etc.

Specification of labeling machine semi automatic customized labeler equipment model YX-FL02:

Model	YX-FL02
Accuracy	±1mm
Speed:	20 - 60pcs per minute
Label Width	30 ~ 120mm
Label Length	30 ~ 120mm
Applicable range of container	L:30-300mm W:30-150mm H:50-350mm
Max. OD of Label Roll	300mm
Label Roll ID	76mm
Label pitch	3-4mm±0.2mm
Power Supply	220V 50Hz
Power Rating	120W
Dimension	60×40×60cm
Weight	25Kg

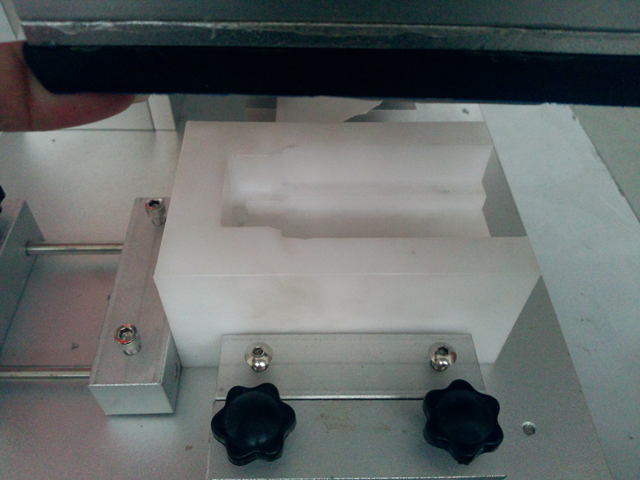

Mould parts for different sizes of bottles

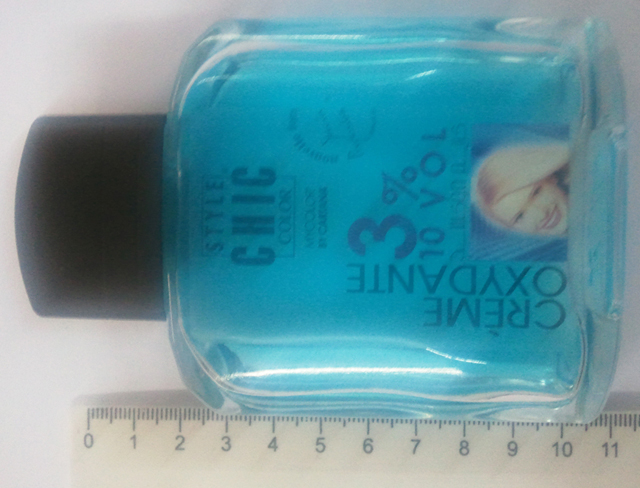

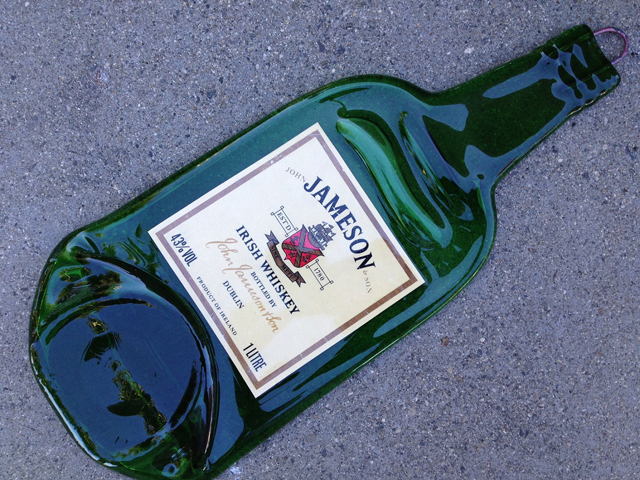

Labeling Samples for flat bottles semi automatic custome labeling equipment

Wooden case packaging before machines are delivered to the warehouse for ocean shipping



After sales service for  hotfoil stamp labels labeling machine semi automatic model YX-FL02

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After sales service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
