filling machines

wine juice oil beverage filling machine 2 filling nozzles semi automatic double heads liquid filler

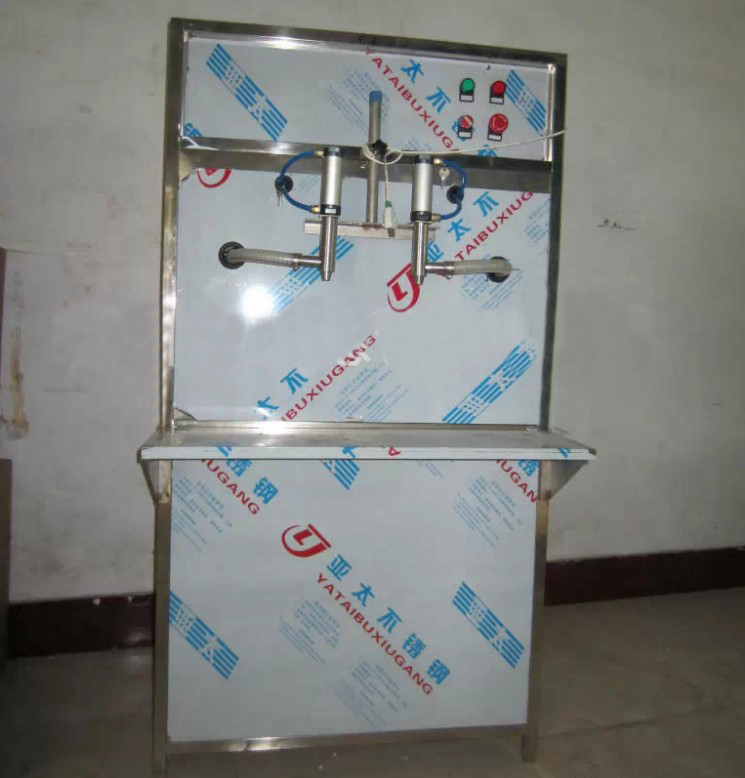

Model YX-LL02 wine juice oil beverage filling machine 2 filling nozzles semi automatic double heads liquid filler equipment

Semi-automatic-oil filling machine combine light, machine , electricity and gas together, accurate , quantitative, with the advantage of high filling accuracy ,
simple operation , and easy maintenance. The filling machine applies high quality SUS304 stainless steel material, meeting health requirements.
Filling process is isolated from the outside world , to ensure filling hygiene requirements. The filling speed can be adjusted to eliminate the phenomenon of the overflow bottle.
This machine applies fruit juice,milk, soy sauce, vinegar, edible oil, peanut oil, engine oil, lubricating  oil and other oil filling,
White wine, mineral water, laundry detergent, liquid detergent, polishing and so  on edible liquid filling and pesticide chemical liquid.Not limited by bottle type.

Features of  semi automatic olive oil filling machine/edible oil filling machine
1. Composite double tank, can fill two different kinds oil, avoiding the unnecessary cleaning step because of changing oil type.
2. High-precision volume metering pump device, quantitative accurate and reliable.
3. Using imported sealing device, plus an effective anti-drip measures to ensure no leakage at the scene.
4. The filling capacity is easily set and can meet the requirements of different filling capacity.
5. Promise speed conveyor system meets production required.(stainless steel conveyor belt, and its length can be customized).
6. Beautiful appearance, high filling accuracy, easy to adjust and operate.
7. Light sensor automatical capper, compatible with different specifications, different shapes of bottle, press accurate, with little noise.
The high quality semi automatic olive oil filling machine/vegetable/edible oil filling machine
While retaining the metering core device technology, the oil filling machine series have been applied the advanced filling process control technology from the united states and advanced Europe countries. Our CPU is the product of Siemens or Omron.
The whole filling process has almost reached the level of onebutton operation.
Because of the high performance of our oil filling machine, it has successfully entered the EU market.
Technical data of olive oil Wine beverage filling machine/vegetable/edible oil filling machine

Model   YX-LL02  YX-LL04  YX-LL06
Filling head :2 /4 /6
Filling volume  100-10000ml
Production capacity (bottle/hour)  350-500  600-1000  1000-1500
Filling accuracy   ≤0.3%
Power supply  50HZ/60HZ   3N-380V    10%
Power   0.75KW-7.5KW
Equipped air pressure   0.5-0.8MPa
Operating pressure   0.6-0.7MPa
Weight  65kg                 100kg              125kg
Note:     2L bottle inlet pressure:0.15-0.2MPa
