fully automatic labeling machine

Fully automatic handles applicator equipment for water bottles oil bottle rings inserting press asse

Fully automatic handles applicator equipment for water bottles oil bottle rings inserting press asse

The range of bottles handle applicators for the application of plastic handles on the neck of the bottles, thanks to the exclusive application system mechanically synchronized with the bottles in continuous transit, is able to guarantee the maximum efficiency and reliability in the application of the handles with simple operation, where one motor controls all the drives.

Possibility of applying rigid handles on containers of different sizes (both on single containers and on multiple containers to form a package).

The plastic handles are previously oriented by means of a vibrating hopper, which provides to align the handles. Through a gravity conveyor, equipped with jets of compressed air for the advancement of the handles, it transfers the handles to the “over-under” selection area which is carried out by means of an electronic device equipped with feelers and / or photocells for the determination of the right orientation.

Possibility of applying rigid handles on containers of different sizes and both on single containers and on multiple containers to form a package

Greater stability and resistance for packs and single products even of heavy weight

Possibility of applying rigid handles on containers of different sizes and both on single containers and on multiple containers to form a package

Greater stability and resistance for packs and single products even of heavy weight

0.5L-20L Vibrating Disc Type Fully Automatic Pressing and Lifting Ring Machine

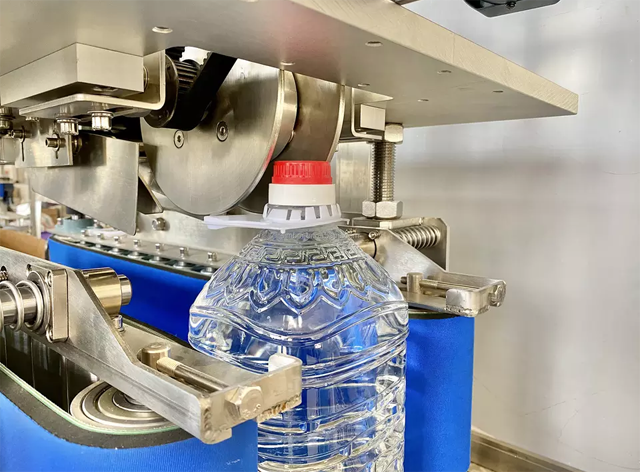

rings lifting system.png

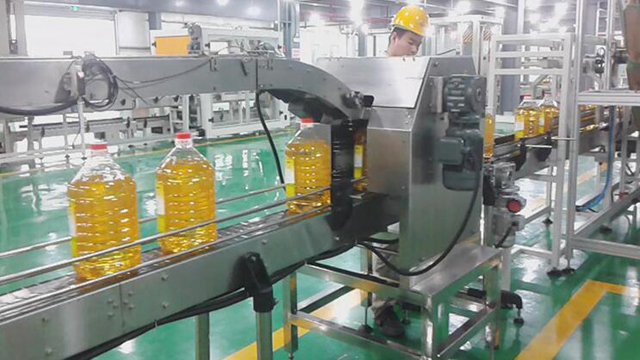

oil bottles handle applicator.jpg

Basic parameters of bottles handle applicator equipment:

Model YX-HA3600

Vibration plate type automatic pressing ring machine

Host size 700×785×1650(mm)

Appearance size of equipment

4500×3300×2900 (mm). (The length can be adjusted according to the site conditions)

equipment weight 600Kg

equipment power 4KW

Production capacity

Around 3000 bottles/hour

Applicable bottle type

Bottle diameter Φ90~Φ300 mm height 280~450 mm
bottles applicator.png

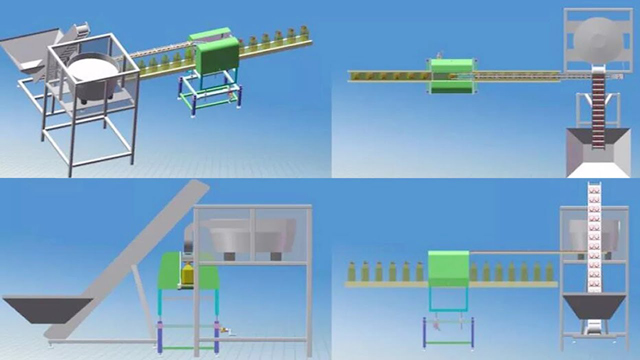

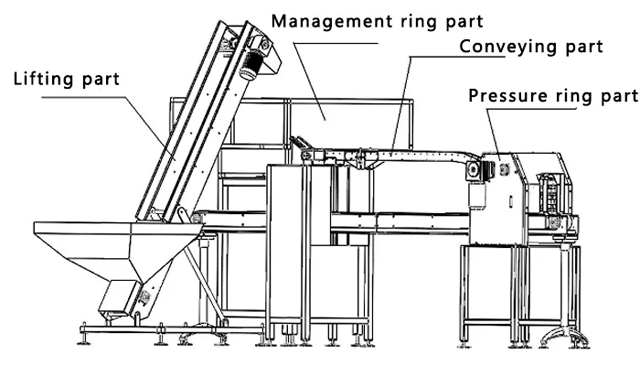

drawing of handle applicator equipment.png

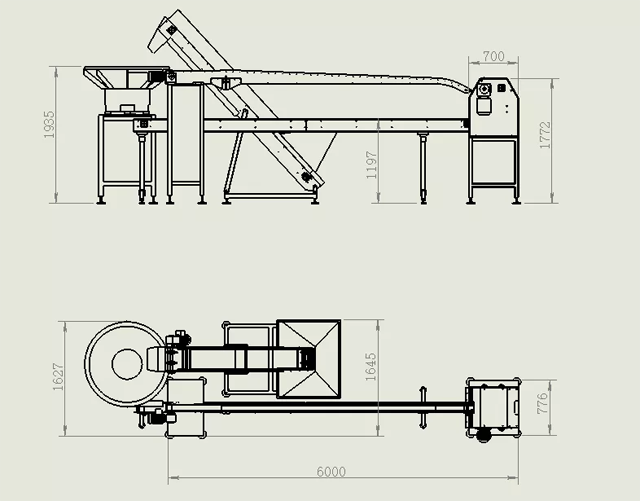

drawing of model YX-HA3600 applicator.jpg
a. Vibrating disk management ring is adopted, and the cost is low.
b. This machine can work with beverage and water production lines, and the connection is simple;
c. PLC control, easy to operate, easy to learn and understand;
d. It can be adapted to different bottle types and different lifting rings with simple adjustments;
e. The pressure ring is fast and reliable, saving manpower and material resources;

rings suitable.png

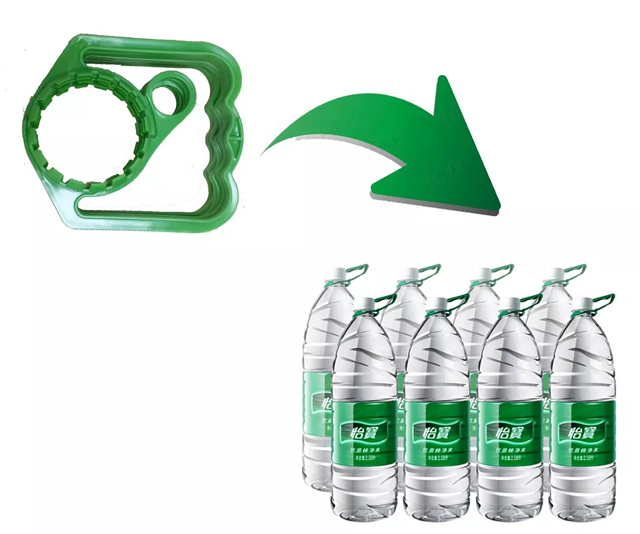

bottle application.png

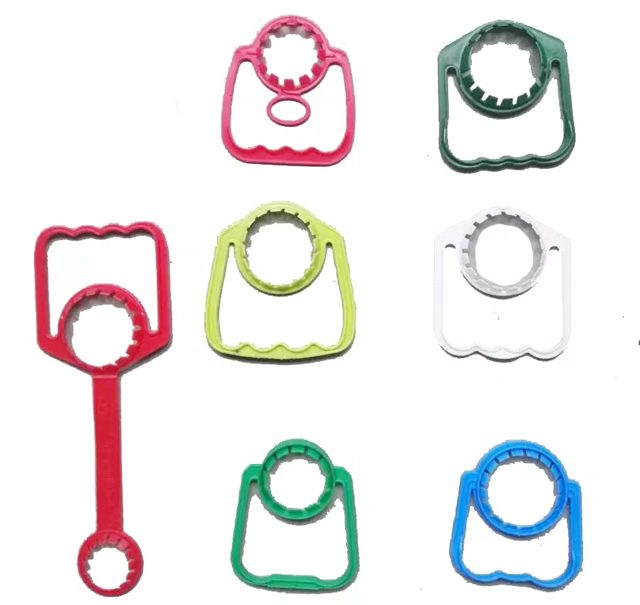

rings kinds.png

In principle, this ring press has no requirements for bottle shapes, and special bottle shapes can be customized.

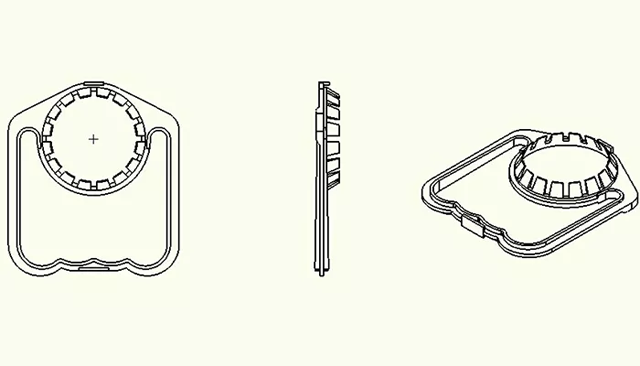

The lifting ring is best to adopt the form of lifting ring, this kind of lifting ring is dedicated for automatic machines, with positioning surfaces at the front and rear, and the appearance can be positioned.

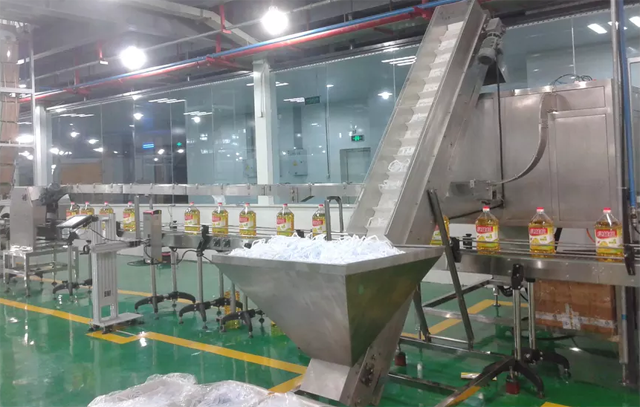

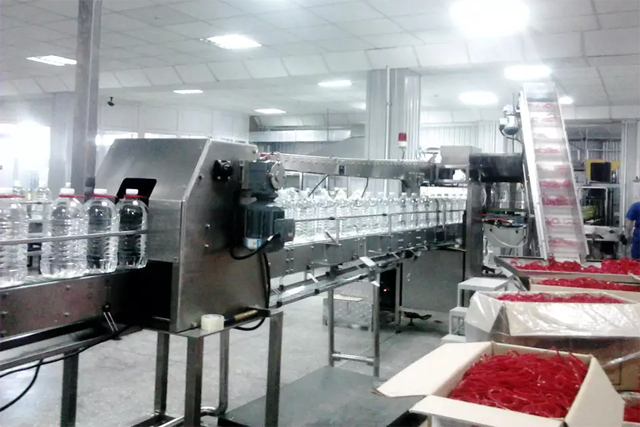

whole picture for applicator.png

bottles finished output.png
