continuous stretch film vacuum sealer for small bags food packaging machinery thermoforming pack fully automatic

continuous stretch film vacuum sealer for small bags food packaging machinery thermoforming pack fully automatic

YX series Automatic continuous Stretch Vacuum Packing Machine, Efficient Convenient Health and Easy operation.

Vacuum packing machine applies to vacuum, gas added and tight packing for all kinds of plastic bags, aluminum foil bags,. It can supply vacuum package for meat products , pickle products, marine products, frozen products, cooked food, fresh vegetable, medical products, chemical products, metal products, electrical components, and so on.

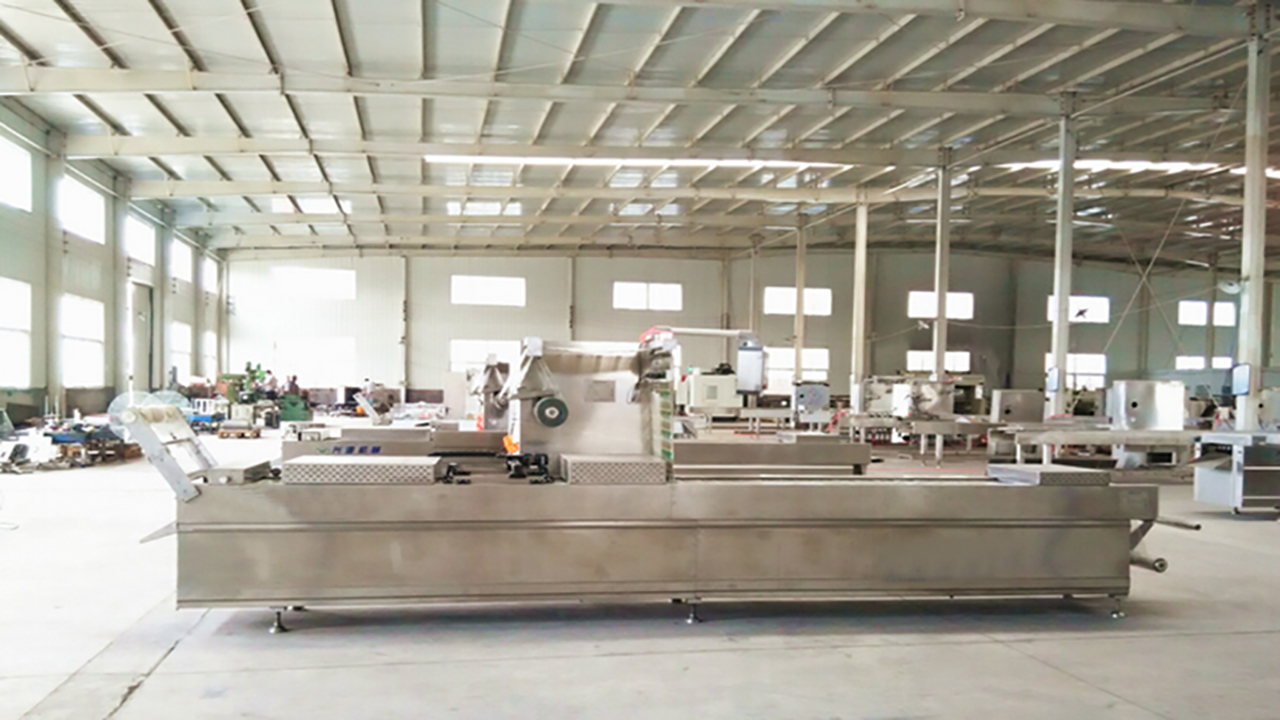

vacuum packing machines factory.jpg

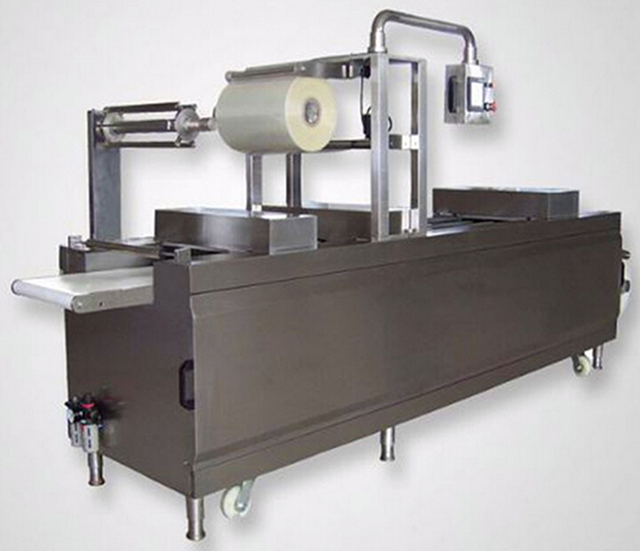

vacuum packing machine model YX-VP420.jpg

vacuum packing machine.jpg

Using Range:

vacuum packing samples.jpg



Packing of meat, fruit, seafood, vegetable, medicine, metals, electric component and so on.

Control system: Mitsubishi PLC, GOT1275, GOT1155 (GOT1030) color touch screen, Mitsubishi servo. Electric equipments are imported from Japan, Taiwan and Europe. Taking with the safe protecting device.



Characteristics:

characteristics of vacuum packing machine.jpg
1. Mitsubishi Servomotor, Touch screen and PLC control system make operating and adjusting easily. Man-machine interface from abroad,easily operate,alarm diaply
2. Photoelectric follow-up: color cover film or optical film can be used for packaging, reduce cost and upgrade the products.
3. With assembling moulds, they can be replaced easily and can be used on several machines. The mould is equipped with a cooling system.
4. An automatic code printing system can be equipped as per user's requirements for product packaging.
5. According to user's requirements for product packaging, nitrogen or other protective gases can be filled into the package after vacuuming.
6. With a world first–class vacuum pump made in Germany, advantages include high degree of vacuum, steady quality and good durability. Vacuum pump from Germany.
7. With clamping chains imported from Germany, this machine is applicable for stretch shaping of soft films, hard films and semi-hard films with different thickness.
8. Has a scrap recycling system, good environment and health can be maintained.
9. With advanced transverse and longitudinal cutting system, making change easy and simple.

10. Phase failure protection :Loss of phase protection make safety when losselectric power

11.Servo drive sysytem :Orientation exactly,more safe.

12. Creepage protection: Make sure the safety of operator.

Technical Table:

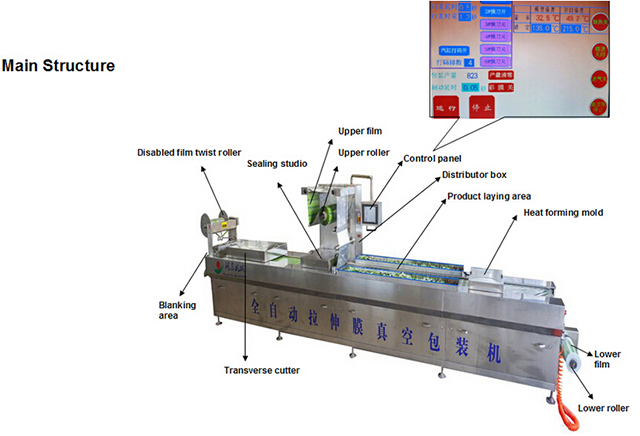

machine structure for packing machine.jpg

drawing of vacuum sealing.jpg



Specification

YX-VP420

YX-VP320

Width of Upper Film

393-394mm

293-294mm

Width of Lower Film

 422mm

322mm

Vacuum

≤200Pa

≤200Pa

Compressed Air

≥0.6MPa

≥0.6MPa

Cooling Water

≥0.15MPa

≥0.15MPa

Power Source

380V/50Hz

380V/50Hz

Total Power

12

8

Weight of Whole Machine

2200KG

950KG

Overall Dimensions

6000x950x1860mm

4300x780x1760mm

Machine Main Components:

PLC controller/touch screen

Omron PLC – Japan   SiemensGermany

Servo motor

Panasonic- Japan

Photoelectric tracking device

Sick- Germany

Pneumatic component

SMC- Japan

Electrical component

Omron- Japan

Drive

Panasonic-- Japan

Vacuum pump

BUSCH – Germany,160 type

Material for body machine

Aluminum alloy, stainless steel

Cutting

Horizontal cutting, cross cutting

Chain

Stainless steel

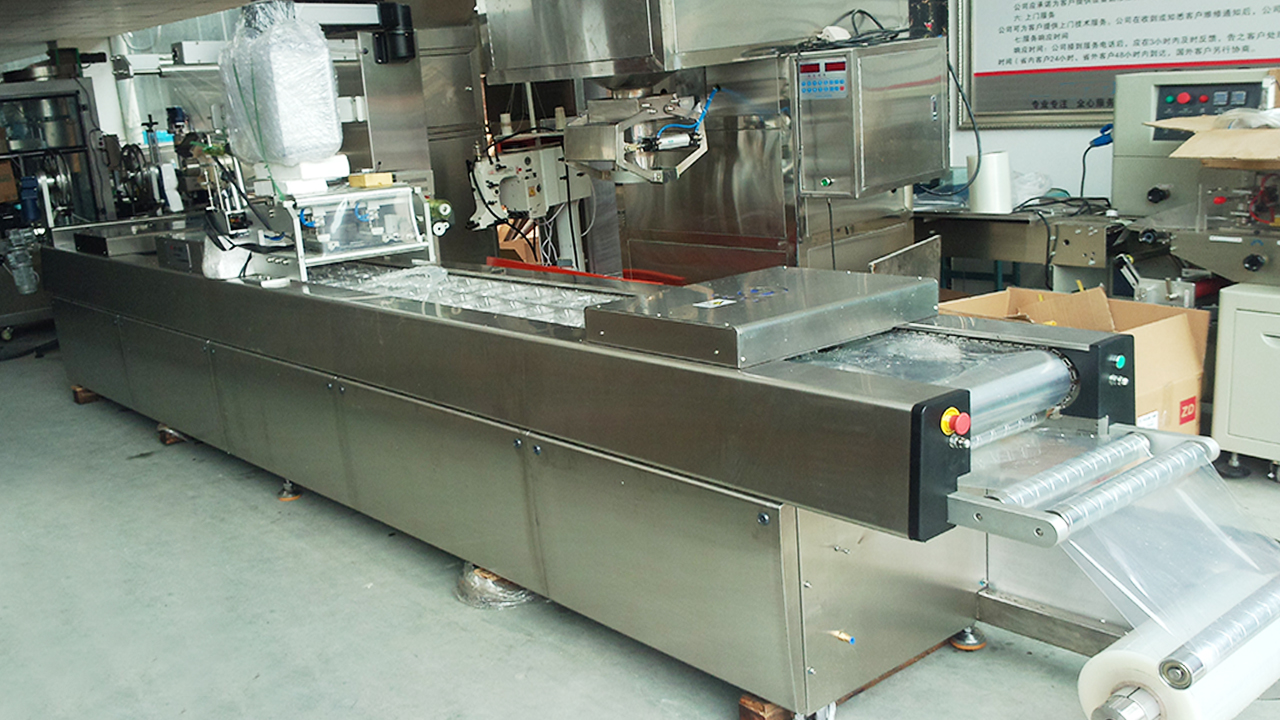

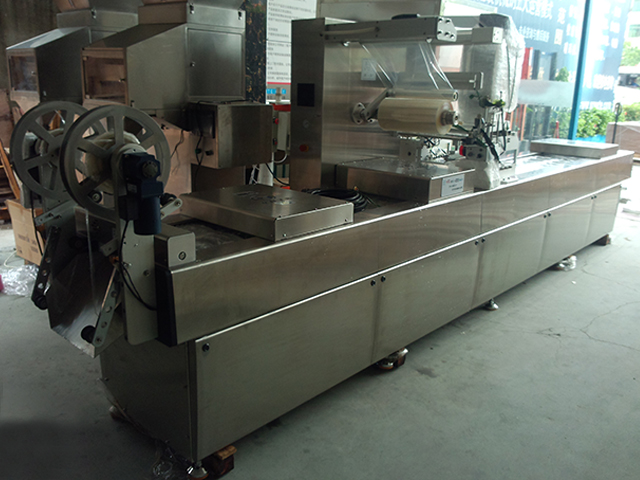

More details for model YX-VP420 vacuum packing machines

overwrapping machine.jpg

model YX-VP420 packing machine.jpg

vacuum sealing equipment fully automatic.jpg

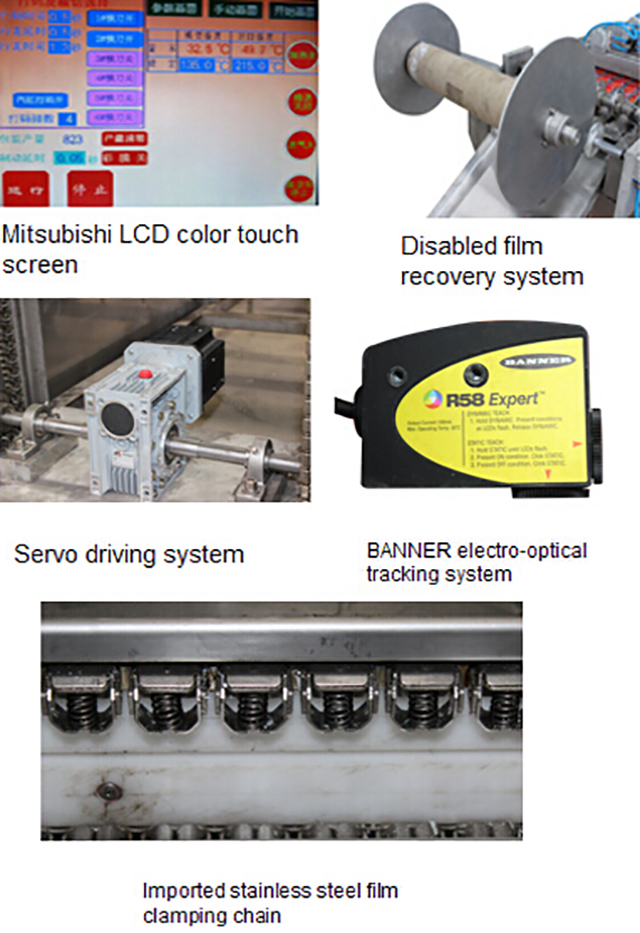

Electronic parts for YX series vacuum food packaging machine fully automatic with stretch film

details for vacuum packing machine.jpg

vacuum pump for stretch film packing.jpg

sensor for packing machine film.jpg

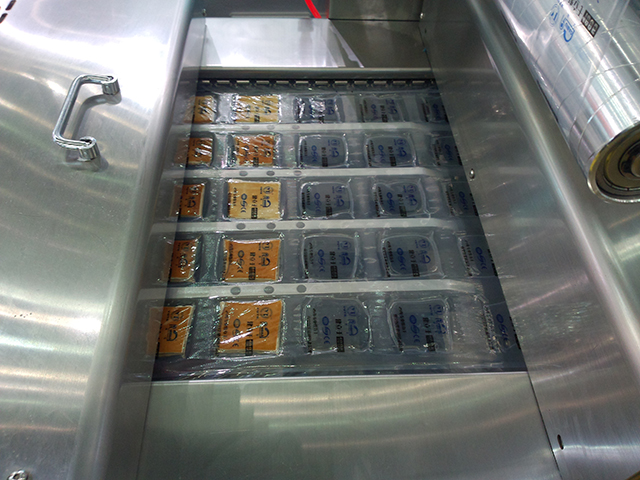

Samples from model YX-VP420 vacuum packaging machine thermoforming equipment continuous vacuum sealer:

vacuum packing machine samples.jpg

samples for eggs.jpg

Wooden case for vacuum food packing machine fully automatic film tension pack

vacuum sealing equipment fully automatic.jpg

Guarantee: for all the machine, we have give one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel, the travelling fee on your country) should be on your account and you need paid for the technician  USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
