semi automatic labeling machine

Semi automatic cosmetic tubes labeling machine customized round objects labeller applicator

Semi automatic cosmetic tubes labeling machine customized round objects labeller applicator

This machine is suitable for soft tube labeling. The machine is running stably and reliably with high precision. It is one kind of semi-auto machine which fed tube by hand. The prime combination has precision, stability, safety, easy operation and flexibility.

Application of customized labeling machines
1. Suitable for Soft Tube such as maquillage, facial cleanser, medicine, etc
2.Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly
improve productivity and product quality.
Function on tubes labeling machinery semi automatic model YX-LM100:

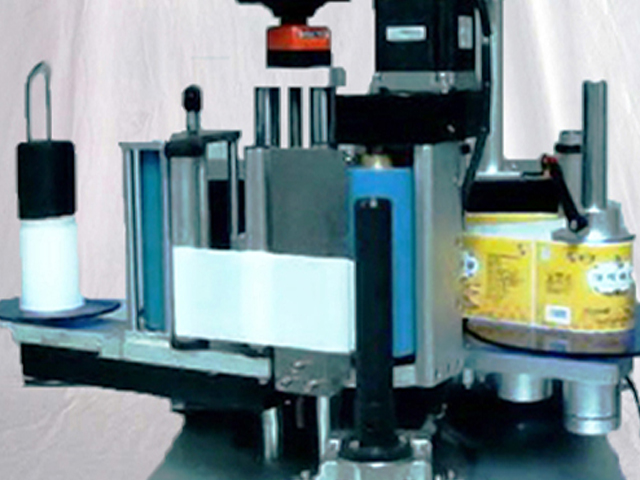

labeling machinery semi automatic labeller.jpg
1. Suitable for labeling Soft Tube object in different sizes.
2. Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
3. Putting the Soft Tube to the holder by manual and fix the bottle; pressing the off-on switch;
4. Small size labeling machine, control by high quality touch screen, easy to operate
Specification of tubes labeling machine model YX-LM100:

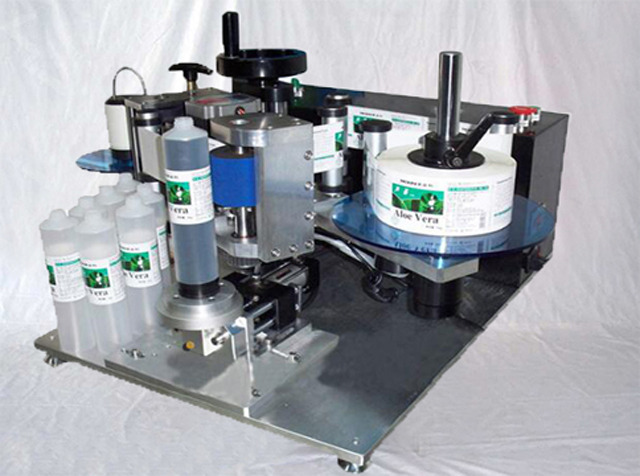

semi automatic tube labeling machine .jpg
1.Label width: 20-200mm
2.Label length:20-320mm
3.Products Diameter: φ8mm - φ100mm
4.Products Heigth: 10mm -200mm
5.Max Outside diameter of label roll: φ240mm
6.Inside diameter of label roll: φ76mm
7.Max Labeling speed:25 m/min
8.Accuracy of labeling:±1mm
9.Power: 110V/220V 50/60Hz 145W
10.Air Pressure: 0.4-0.6 mpa
11.Machine Dimension: 680mm x 660mm x 780 mm
12. Machine Net Weihgt : 73 KG Gross weiht :103KG

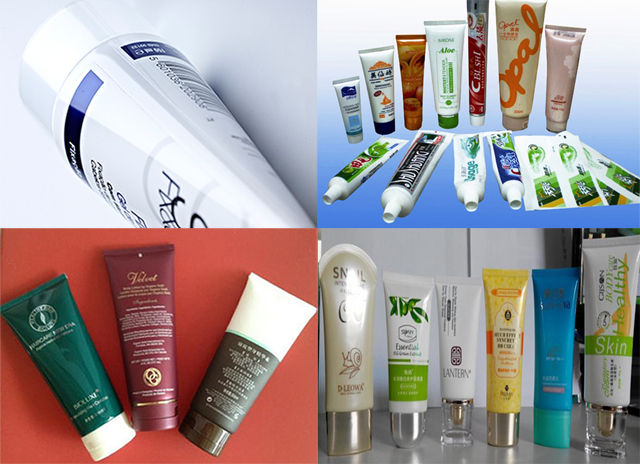

Labeling samples for tubes :

tube labeling equip labels samples.jpg

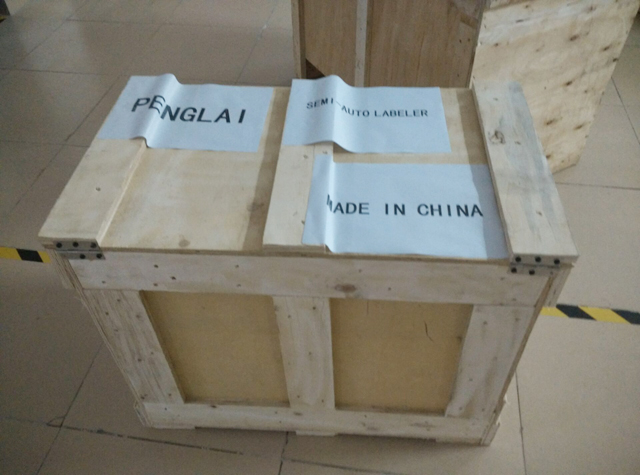

Labeling machine in wooden case for shipping

wooden case packing for tubes labeling machine (3).jpg
