fully automatic labeling machine

automatic tubes labeling machine with materials feeding system automated for paste cream lotion tubes customed labeller machinery

automatic tubes labeling machine with materials feeding system automated for paste cream lotion tubes customed labeller machinery

This labeling machine is mainly suitable for the cosmetics, individual nursing with profession and so on mouth, food, chemical industry hose packing tubes pastes the sign. The high accuracy, the redundant reliability and the efficiency satisfied the customer to paste the sign machine request; but our superiority lies in the reasonable design, leading processing craft and high precise assembly, fine post-sale service. This equipment simplicity of operator, replaces the mold and the label convenient, easy to clean and the maintenance service, causes the user the use cost to be low is the hose pastes the sign the ideal equipment.

The highly effective hose pastes the sign workstation: The simplex operation, the feed control, paste the sign, to receive the material; including lack materials examination electric eye and automatic suspension function.
The speed, the precision, the stability, easily and use and so on flexibly with the degree the optimized combination.

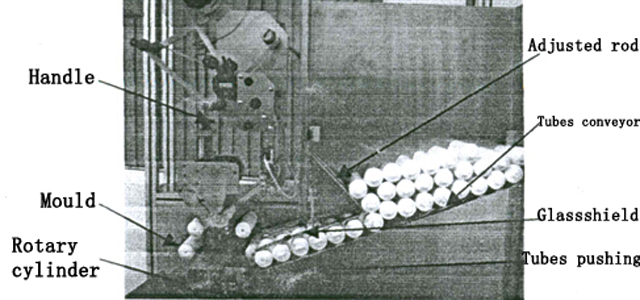

adjustment for labeling machinery.jpg

tubes labelling equipment.jpg

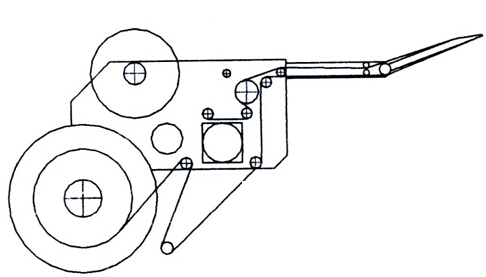

Labeling direction

labels winding.jpg
Pastes the sign for the hose to design specially, relaxed will be quickly transparent/the opaque dry glue label not to circle pastes on the hose, is suitable in many kinds of different lengths, the different diameter hose pastes the sign.
Operates is steady, is reliable: Guaranteed each hose uploads when is not damaged, pastes the sign to be smooth, to be precise.
Use the non-pole air cylinder organization: Guaranteed that the high-quality goods are fast, order, reliable.
Use the decollators positioning device: Guaranteed that the hose pastes the sign localization is to be accurate, to be reliable, does not need to maintain.
Barometric pressure examination type dumping device: After guaranteeing pastes the sign hose reliable ex-denning.

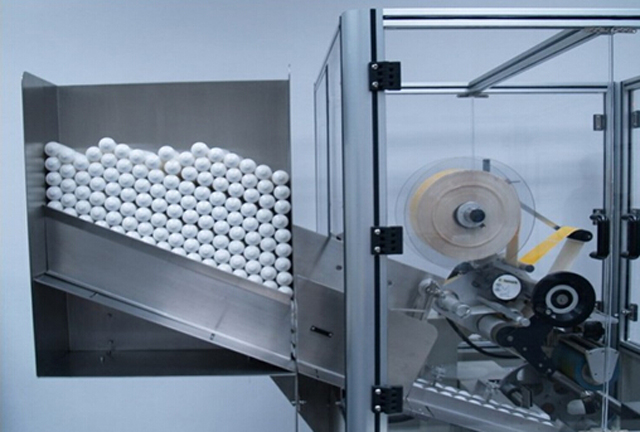

labeling hopper for feeding tubes.jpg

labels arranged in the feeding hopper for labeling

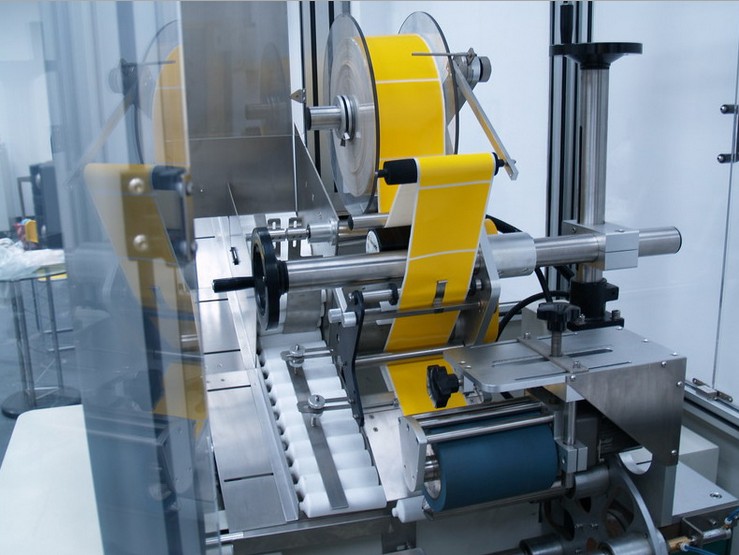

details for labeling machinery.jpg

Labeling process for soft tubes


The YX-A100 automatic tube labeler is using siemens PLC touch screen control system.
Intelligent Mitsubishi servo labeling system
The machine response is fast with pinpoint high-speed labeling positioning.
Easy to operation and to adjust.
Stainless steel construction.
Support different tube size with different pucks.
Machine Specification of tubes labeling equipment:

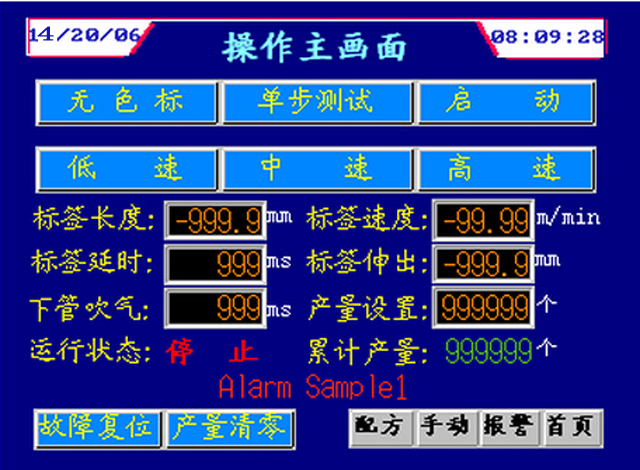

operation screen.jpg

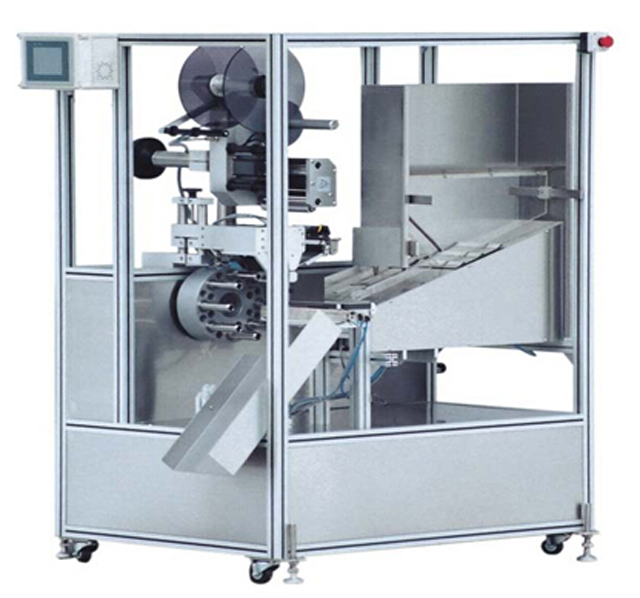

labeling equipment.jpg

 Model  YX-A100
 Labeling speed  40-60 tubes/min.

 Labeling accuracy  ± 0.5mm

 Label diameter (Max. )  350mm

 Label width (Max. )  200mm

 Tube diameter (Max. )  65mm

 Tube diameter (Min. )  19mm

 Tube length (Max. )  220mm

 Label Reel Core Diameter  76.2mm

 Power  220V 50Hz 3000W

 Weight  300kgs

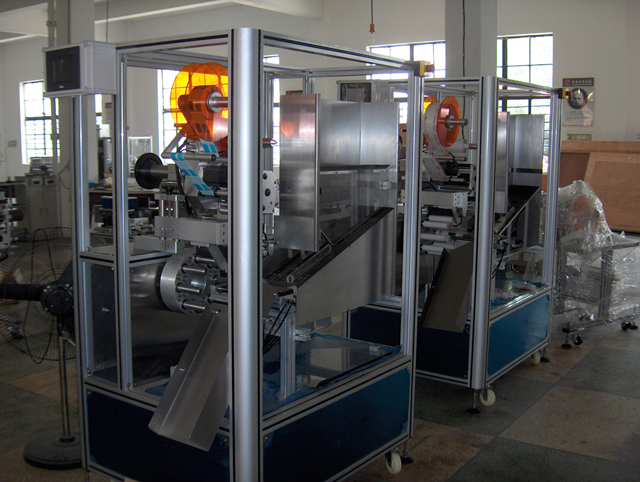

Tubes labeling machine model YX-A100 in stock

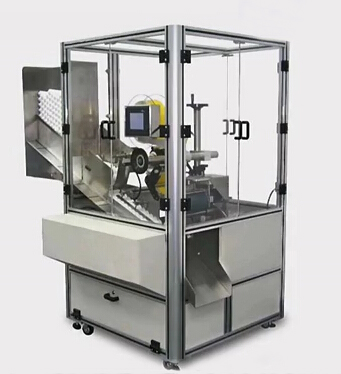

machinery for tubes labeling.jpg

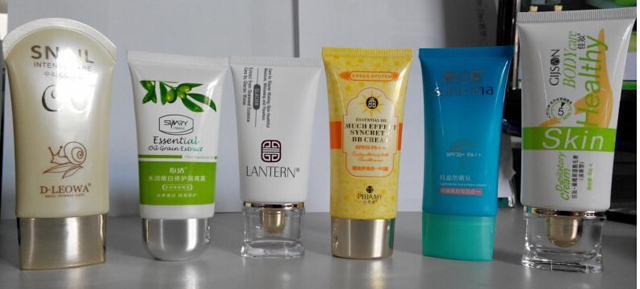

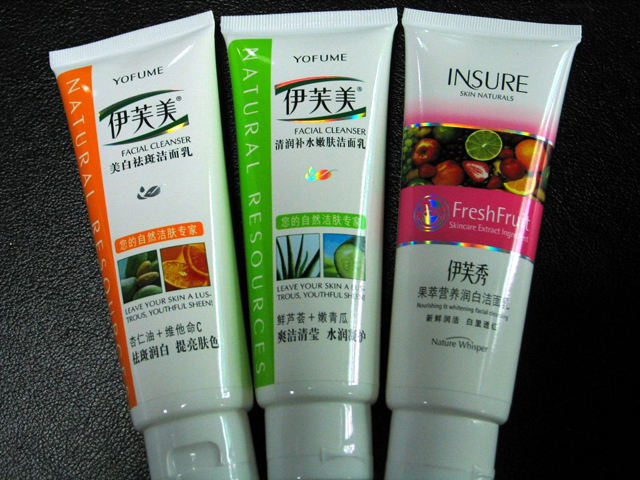

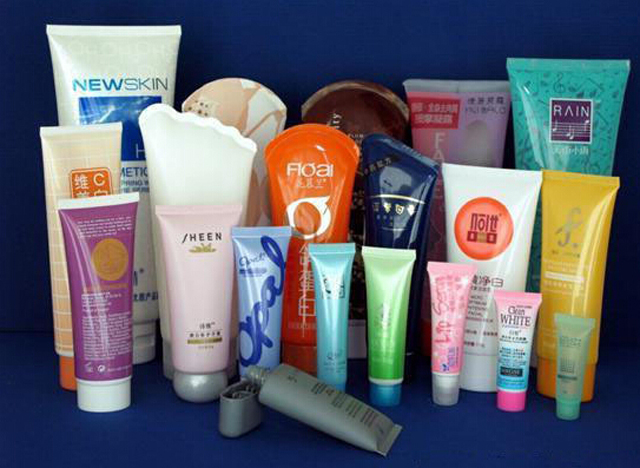

Labels samples

labels samples.jpg

labels for tubes in a row.jpg

labeling samples.jpg

Wooden case packaging for soft tubes labeling machine model YX-A100

wooden case packing for model YX-A100.jpg

After-sales service for model YX-A100 labeling machines fully automatic with tubes feeding system

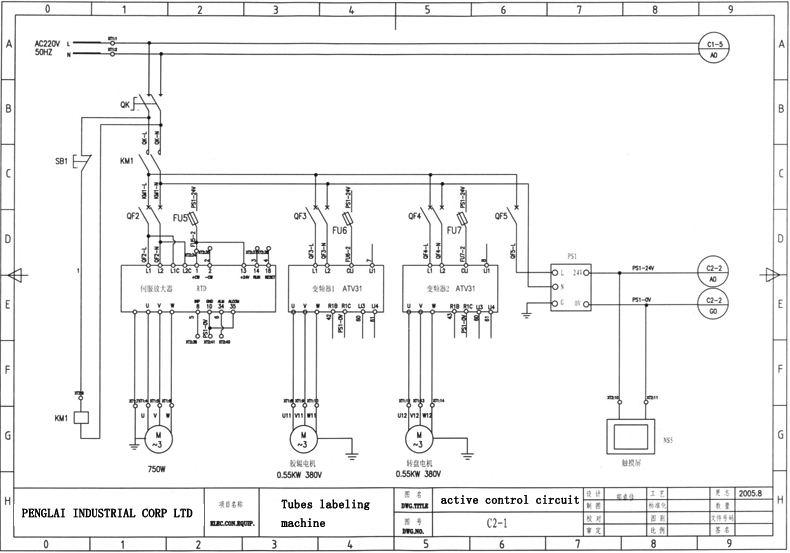

electric drawing.jpg

Active Control Circuit for automatic labeling machine model YX-A100

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
