fully automatic labeling machine

Rotary labeling machine fully automatic multi-stations PET plastic glass bottles labeller equipment high speed equipment

Rotary labeling machine fully automatic multi-stations PET plastic glass bottles labeller equipment high speed equipment

It is suitable for the single/double/multi-sides of the round bottle, square bottle and irregular bottle.

Before we make the machine we will design the rotary labeling machine according to the customer's requirements from our engineer technical department

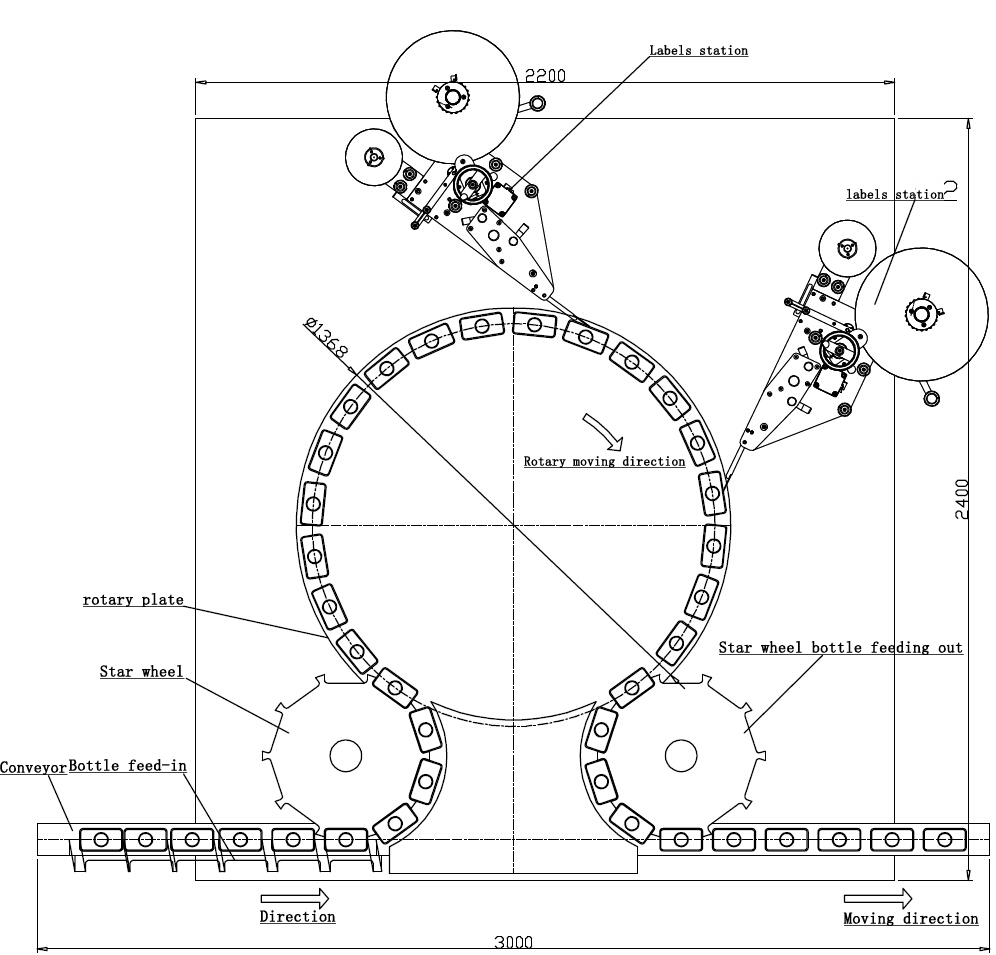

24 stations design.jpg

►The labeling effect is good:

The biggest characteristic of this equipment is the imitation of human labeling, completely subvert the traditional way of labeling, thoroughly solved the problem, spherical stick mark wrinkle make possible differentiated product labeling.

►High positioning accuracy:

Using mechanical rotating positioning, advantage of the characteristics of the bottle itself looking for anchor point, greatly improve the stick mark stability and accuracy.

►Easy to adjust:

Send the device can be adjusted 8 d, especially suitable for a bottle type of the taper, and change the different size of the product is simple and easy to adjust, need not use tools.to avoid bad labeling affect caused by machine shaking, all direction adjusting modules will

be locked after the machine finish adjusting. So it will insure the production process smoothly

and the labeling location consistently.

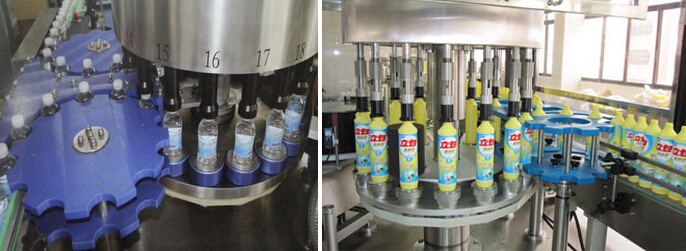

rotary labeller equipment.jpg

►Good stability.

A) Machining parts material guarantee:

The machine is made of high quality raw materials.

The parts use high quality aluminum, steel and imported nylon.

B. Advanced processing equipment:

main parts professional factory uses in all Polytechnic high precision processing to complete,

the main parts in the machining process will be used in the highest level of detection methods

for quality control, in order to obtain the highest quality and highest-precision parts,

reduction of machine vibration at high speeds

C. Using famous brand spare parts.

D. Using world first-class brand electrical accessories.

E. Novel structure. Main designers have more than 10 years design experience in this field.

Each component are through strict aging test.

►Efficient production:

The speed is up to 24000bottle/hour. High speed labeling fluency .

It can match front and end seamless butt joint and improve production efficiency.

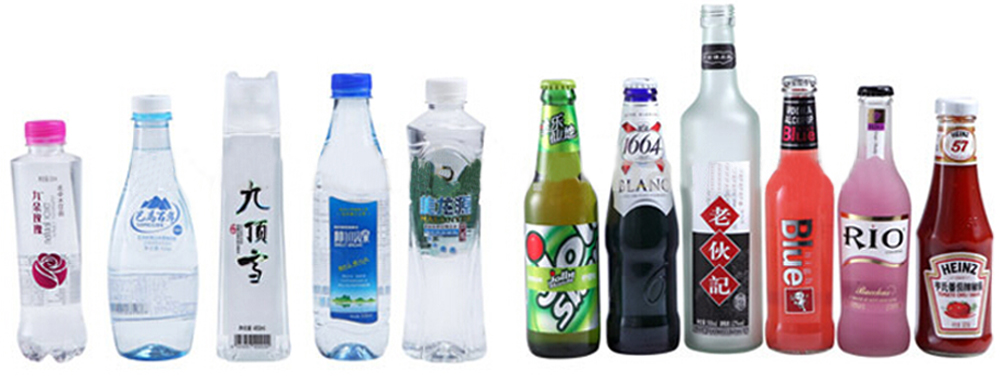

Types of bottles

bottles type.jpg

Technical parameters of high speed labeling machine rotary labeller

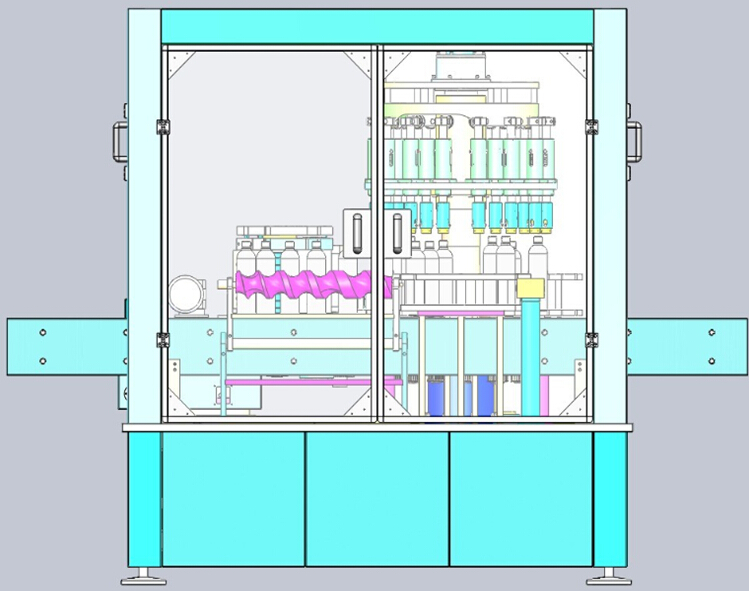

rotary labeller.jpg



Model

YX-RL Series

Labeling position

12,15,18,24 position, according to the customer's production requirements

Production speed

0~24000( PCS/H) Can do 1 to 3 labels

Labeling accuracy

±1mm

Bottle diameter

Φ40~100 mm,Bottle High:20~380mm

Adhesive label width

20~180mm

Adhesive label High

20~200mm

Label outer diameter

Φ450mm

Label inner diameter

Φ76.2mm

Power

380V 50Hz   5000W—7000W

Outline Size(L*W*H)

2850*2600*2000mm(24 position)

Weight

2000KG-5000KG, Depends on different models

 The details of automatic rotary positioning labeling machine

Labeling position:12,15,18,24,according to the customer`s production requirements




Electrical component list for model YX-RL rotary labeling machine high speed

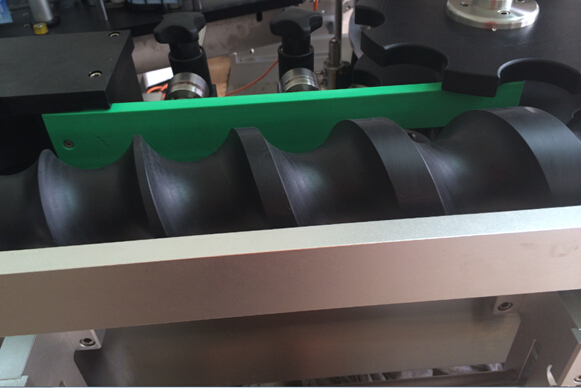

bottle distributing part.jpg



NAME

SUPPLIER

BRAND COUNTRY

PLC

SIEMENS

GERMANY

INTERFACE

HITECH

TAIWAN

SERVO DRIVER

Mitsubishi or YASKAWA

JAPAN

SERVO MOTOR

Mitsubishi or YASKAWA

JAPAN

CONVETER

DANFOSS

DENMARK

AC CONTACTOR

TELEMECANIQUE

GERMANY

UNIVERAL CHANGE SWITCH

MOELLER

GERMANY

EMG BOX

TELEMECANIQUE

GERMANY

EMG

TELEMECANIQUE

GERMANY

BOTTLE SENSOR

KEYENCE

JAPAN

LABEL SENSOR

SICK

GERMANY

SWITCH POWER

M/W

 TAIWAN

CONVEYOR MOTOR

PANASONIC

JAPAN

SMALL MOTOR

PANASONIC

JAPAN

GEAR BOX

PANASONIC

JAPAN

REDUCER

PANASONIC

JAPAN

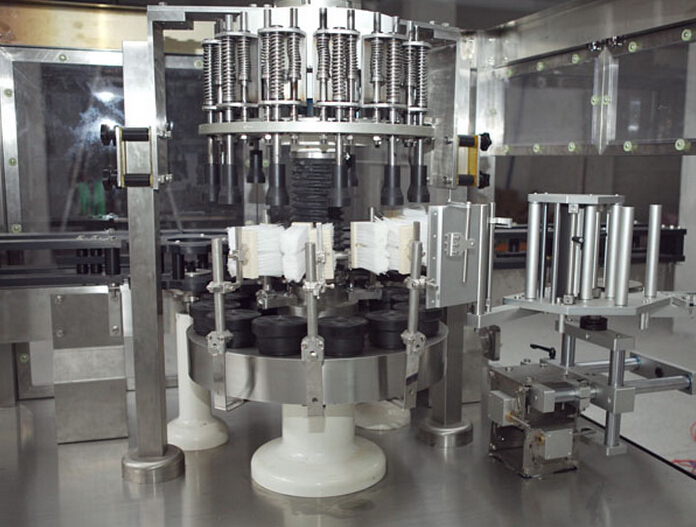

rotary labeling machine.jpg

stainless steel rotary labeller.jpg

Labeling samples from model YX-RL series high speed labeling machine rotary labeller:

labels samples for shampoo bottles.jpg

The packaging for labeling machine in wooden case before ocean shipping

PACKING MACHINE FOR ROATARY LABELLER.jpg

After-sales service for overwrapping machine model YX-RL series labeling machines

contractual spirit.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).



PENGLAI INDUSTRIAL CORPORATION LIMITED
