Syringe labeling machine semi automatic round cans labeller machinery for US customer in Allentown

Syringe labeling machine semi automatic round cans labeller machinery for US customer Mr Jim in Allentown

the model YX-SL25 pharmaceutical injection needle labeller machinery with date printer function

Below is the basic information of this international business transaction between PENGLAO CORP and Our US Customer:

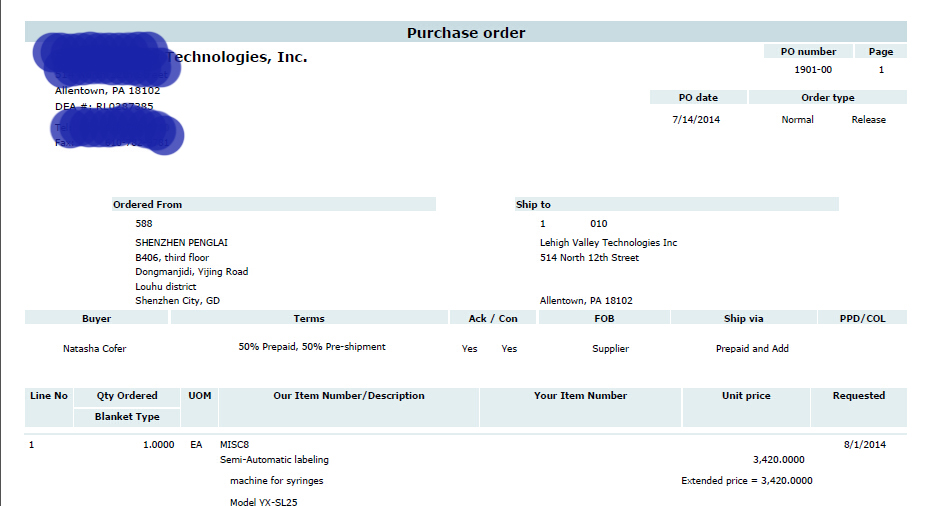

Purchase order issued from USA customer

purchase order from syringe labeling machinery.jpg

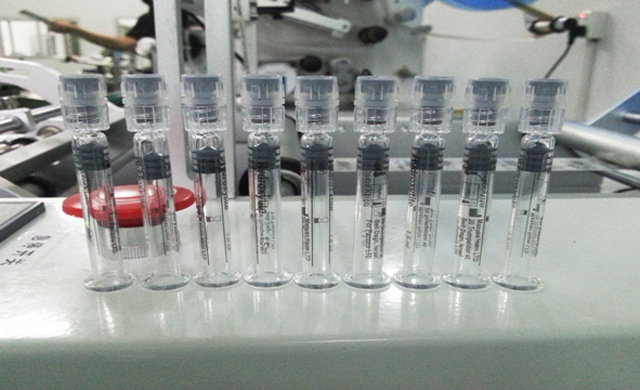

Sampes of syringes&rolls of labels sent from American customers

samples of syringe from USA.jpg

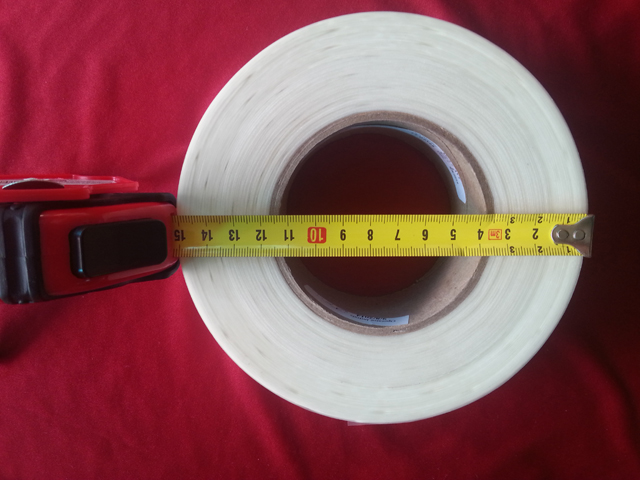

LABELS OF ROLLS sent from Natasha in USA.jpg

Testing video of syringe labeling machine semi automatic model YX-SL25 with date printer function

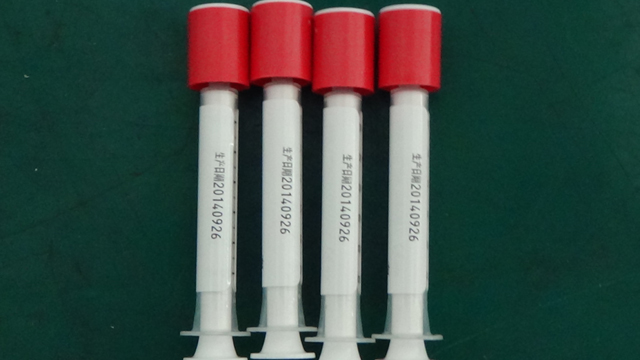

Final products samples of syringe with date expiry from labeling machines model YX-SL25

final product samples for USA customers.jpg

Wooden case packaging for syringe labeling machine before DHL delivery door to door service

standard export packing for syringe labeling machinery.jpg

As follow is the basic description of  syringe labeling machine semi automated  manual labeler equipment for pharmaceutical industry Model YX-SL25

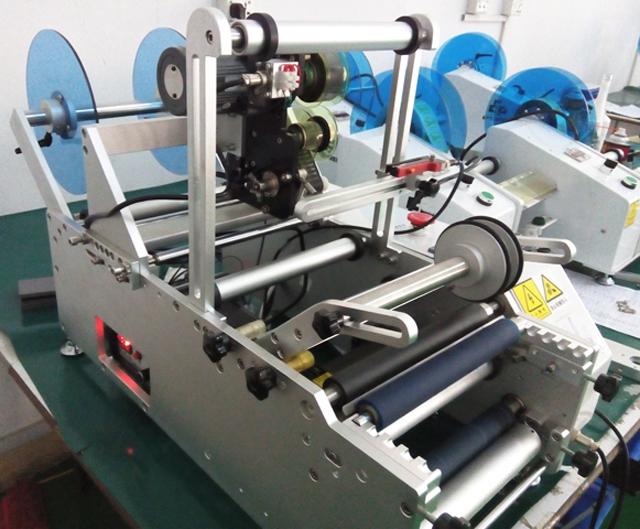

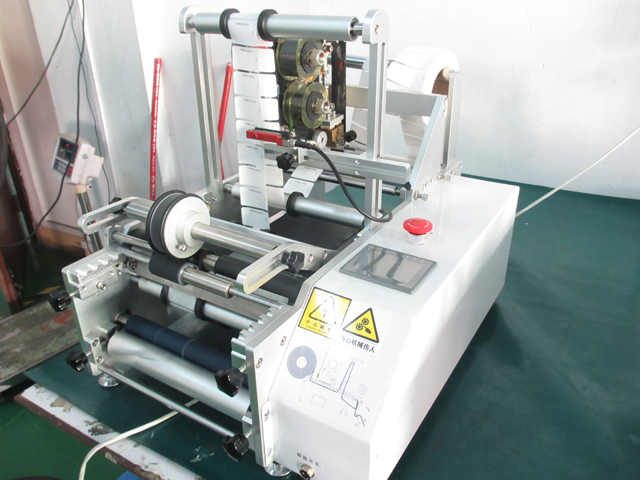

Detailed pictures of labeling machine


syringe labeling machinery with expiry date.jpg

syringe labeller.jpg

close shot for labeling machines.jpg

Application Suitable for all kinds of cylindrical objects labeling, small taper round bottle labeling,

such as xylitolcosmetics round bottles, wine bottles and so on.

Can achieve full week / half weeks labeling, front and back labeling circumference,

is back mark pitch can be adjusted.

Widely used in food, cosmetics, chemical, pharmaceutical and other industries.

Optional functions improves production management convenience,with labeling counting,

power-saving mode,photoelectric tracking label and other functions,production management easier;

optional features and components:

① hot coding function;

② circumference circumferential positioning function;

③ Other features (according to customer requirements).

Samples after labeling

Final samples labeling.jpg

labeling machine semi automatic touch screen for syringes.jp
Optional devices:

ReaderRead the bar codes in various kinds

Electric light sensorThe common sensor cannot detect the transparent label,

which requires the light sensor device imported from Germany.

Printing machineprinting the texts on the label

Date codingHot coding for shelf date,products series etc

Bird view of whole syring labeling machine model YX-SL25

for eran semi automatic tubes labeling machine syringe with

syringe labeling in drawing.jpg


1

Labels plates

Putting the labels around it

2

Label Rolls

The path of label for labeling process

3

Supports for light sensor

Light sensor installation,

movable up and down ward

4

Pressing

Press the bottles during labeling,adjust its

 tension by controlling left button

5

Label reeling

Dispensing the labels

6

Position

Adjust this left or right,

up or down to position the bottles

7

Support Jacket

Different positions for various bottles

8

Traction

Tract the bottom line to dispense the label

adjust its tension by moving the screws

9

Pedal controlling



10

Electric box



11

Man-machine interface

Controlling the machines

with changing the parameters

12

Sudden stop



13

Light sensor

Detecting the interval of labels

Control panel

touch screen from syringe labeling machien.jpg

Switch    2 Speed adjustment Knob



Parameter of syringe labeling machine YX-SL25

Accuracy

±0.5mm

Speed

1525bpm

Diameter

Ø 15mm~Ø 150mm

Label size

Length20mm200mmwidth20mm220mm

Dimension

L920mm×W470mm×H500mm

Supply power

220V/50HZ

N.W

 45Kg

Inner diameter of label

Ø76mm

Outer diameter of label

Ø 240mm

Voltage

220V-240V/50-60HZ

Working process

* Core works: single standard, double standard switching function principle, the principle circumferential positioning labeling,

 please consult factory.

* Procedure: put the product -> Labeling (device automatically) -> Remove the labeling products.

for eran semi automatic tubes labeling machine syringe with



Wooden case packaging for syringe labeling machine model YX-SL25

plywood case packing for labeller before DHL.jpg

wooden case packing for syringe labeling machine.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication,

or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,

our technician will go to your place to install and

test the machine and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid

for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,

our technician will go to your place to fixed the machine

as soon as possible. The cost should be in your account.(as above).

PENGLAI INDUSTRIAL CORPORATION LIMITED
