fully automatic packing equipments

Multi lanes sugar granule coffee stick packing machine shampoo liquid powder multilane VFFS packaging equipment high speed

Multi lanes sugar granule coffee stick packing machine shampoo liquid powder multilane VFFS packaging equipment high speed

Multi lanes granules packaging equipment Four Seal Granule Stick Four Lanes Packing Machine múltiples carriles gránulos máquina de embalaje model YX-M520 designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like multi lanes granules packing machine liquid packaging as well as powder packing and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.

The machine multilanes packaging for granules or liquid as well as powder is suitable for packing non-sticky and unconsolidated granular,such as sugar,salt, plant seeds, coffee granule, electuary etc.
Application of Multilanes granules packaging equipment Four Seal Granule Stick Four Lanes Packing Machine múltiples carriles gránulos máquina de embalaje model YX-M520
Granule, powder and liquid products packed into stick bag, Like 3in1 instant coffee, sugar, salt , instant medicine ,cosmetics, drying material , beverages and detergents etc.
Machine Parts :
Multilane dosing ,measuring  and filling system
Automatic film cutting device from one reel
Multihead hot roll date printer

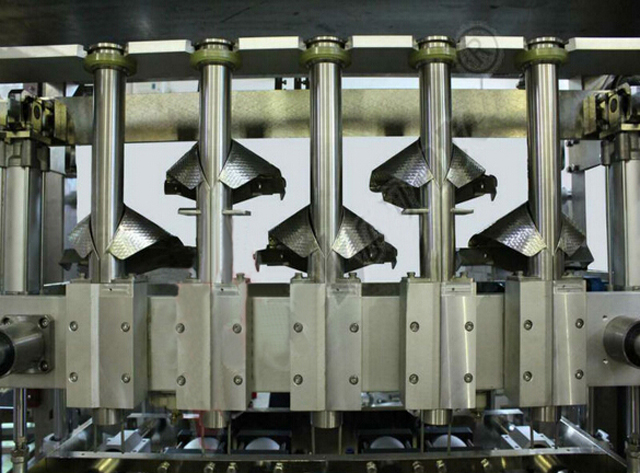

Multilane bag forming,filling,sealing and cutting
Finish products output conveyor
Key Features of multilane machine:

multilane packing machine.jpg
The machine can automatically complete multi-lane products measuring, feeding, filling, bag forming, date code printing, bag sealing and cutting
Advance PLC control system combined with touch screen, can easily read and set the parameters
Servo motor control on film pulling and horizontal sealing
Motorize tension control on film unwinding for film smooth transportation.
D motion of film pulling system to cut the maintenance cost of pulling belts
Automatic film dividing to N lanes from one reel
Openable electric cabinet make maintenance and cleaning more convenient.
Safety guard switch to meet CE protection request
Benefits and Advantages for Complete system:
Solid performance, excellent packing quality, great user experience
Reliable and compact, the simple design of the baggers make them easy to set-up, operate, and maintain.
One of the most affordable baggers on the market, the series offer great value with an excellent ROI.
Designed for low cost of maintenance using off-the-shelf parts. Interfaces easily with auxiliary equipment.
Model YX-M520 Multilanes granules packaging equipment Four Seal Granule Stick Four Lanes Packing Machine múltiples carriles gránulos máquina de embalaje:

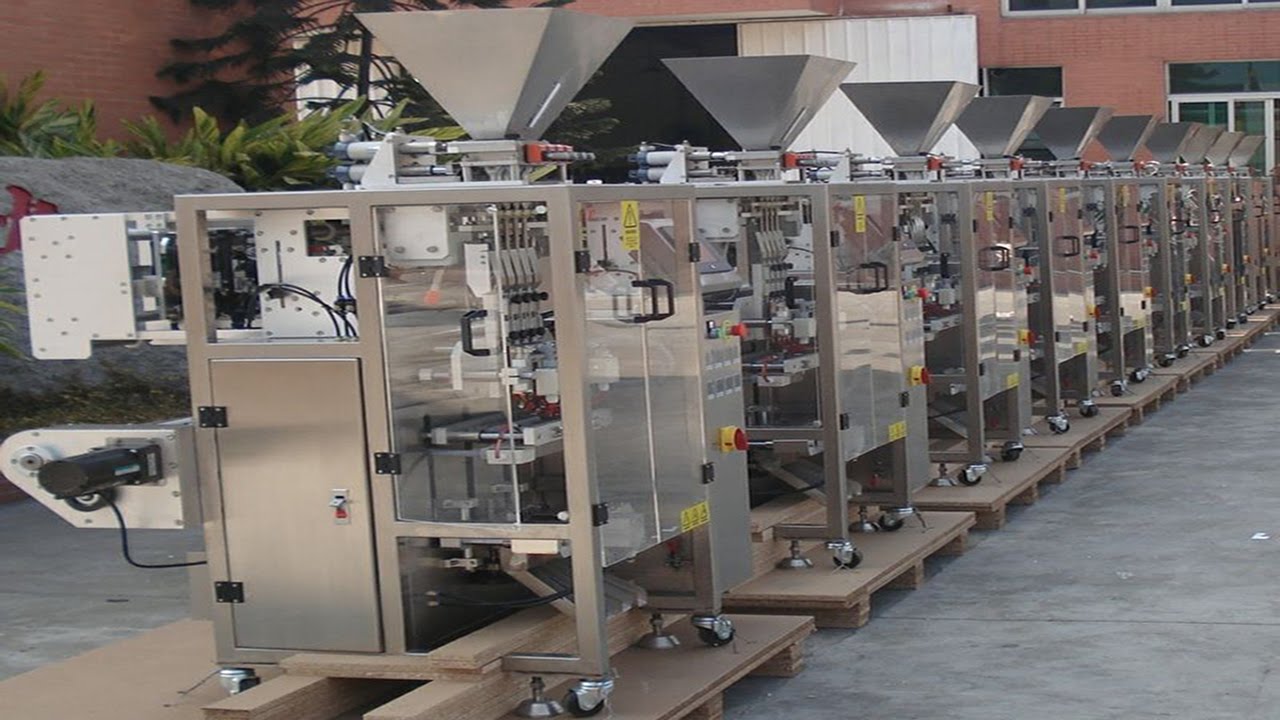

multilanes granules packing machinery.jpg

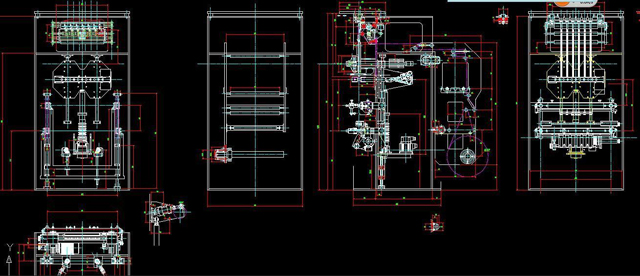

drawing of multilanes packing machinery.jpg
Model YX-M520
Measuring  Volume cups
Bag style    Stick sachets
Dosage   1-30ml/bag
Bag size   (mm)   L30-140
Single lane film width:30-60mm
Capacity(bags/min 210
Control style   PLC+ Chinese/ English screen
Pneumatic  request  0.24cbm/min, 0.6Mpa
Power  3kw
Voltage  AC380v  3 phases 50Hz
Bodyshell  Sheet steel spray painted  /  Stainless steel
Weight  650KG
Dimension  (LWH/cm)  L150 W140  H250

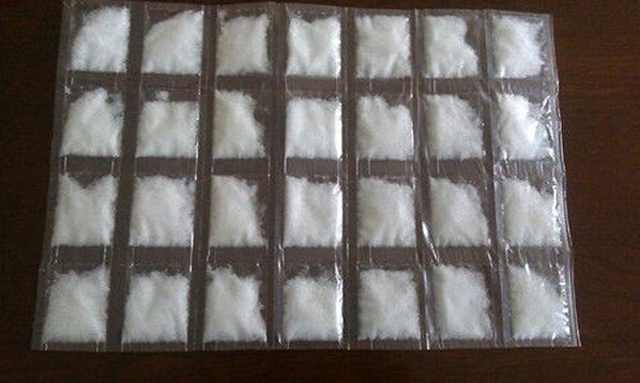

Samples from multilanes packing machine for granules liquid powder

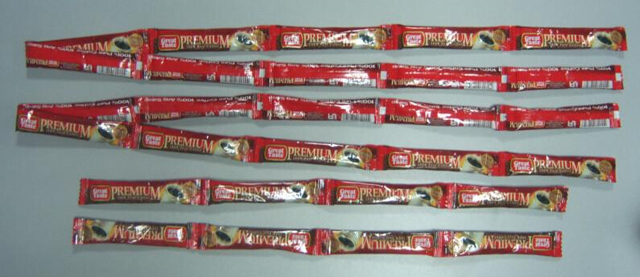

coffee stick lanes packing machines.jpg

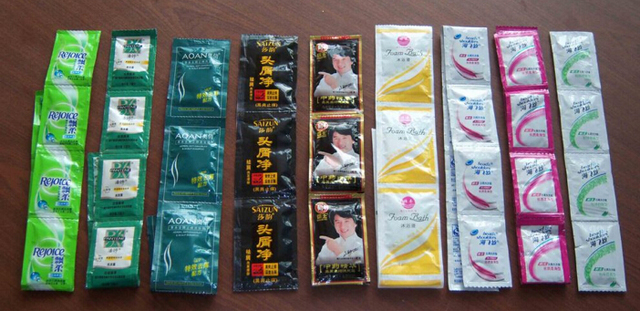

samples for liquid packaged von multilanes packing machine.j

samples of multilanes packing.jpg

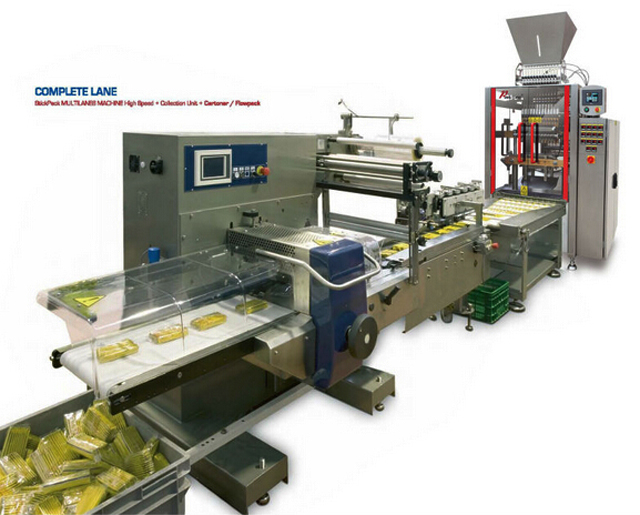

The multi lanes packing machine granules packaging equipment integrated with horizontal packaging machinery

machine integrated with horizontal packing machinery.jpg

Wooden case packing for multi lanes VFFS packaging equipment

multilanes packing machine in wooden case.jpg

FAQ for manufacturing the suitable multi lanes packing machine for customer:
Normally we have some questions to customers as follows:

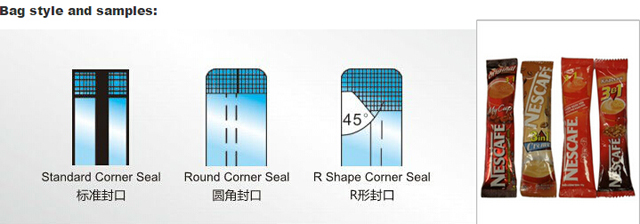

bag style and samples.jpg
1. what is you want to pack,your sealing way?
2. How many grams to pack?
3. What is volume?
4. What is voltage and Hertz in you local?

After-sales for multi lanes packing machine VFFS granules powder liquid packaging equipment

after sales service for packing machine.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage,

negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install

and test the machine and also training your worker to operating the machine

(The time of train depend on you worker).

 The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account

and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine

 as soon as possible.The cost should be in your account.(as above).
