fully automatic filling machine

Linear Engine oil lube liquid detergent auto washing bottles filling capping labeling line fully automatic drum filler equipments

Linear Engine oil lube liquid detergent auto washing bottles filling capping labeling line fully automatic drum filler equipments

Auto Engine Oil Filling Machine customized filler capper labeler equipment for big bottles Round Drum
Overview

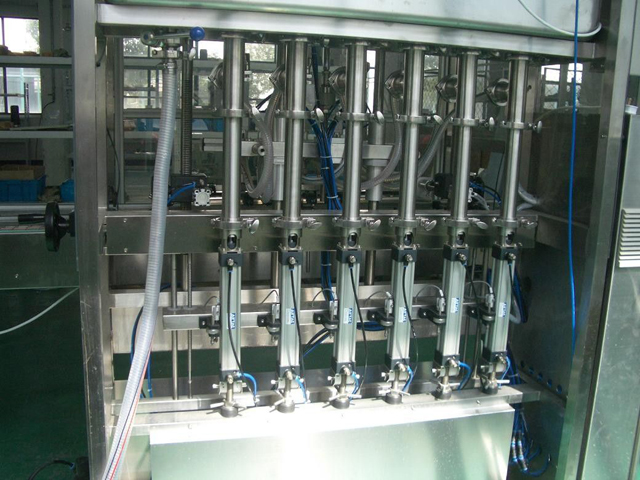

This metering pump filling machine is specially made for all materials, such as water, gel, shampoo,
oil olive oil, motor oil etc. The machine adopts piston pump and for filling. By adjusting the position
pump, it can fill many kinds of the bottles in one filling machine, with quick speed and high precision.
The machine can fill different shapes of bottle such as circular, round, flat, square, etc. It is suitable for
glass bottle and plastic bottle. The filling capacity can be adjustable, the filling volume can be varied from
500-2500 ml by adjusting the piston pump.

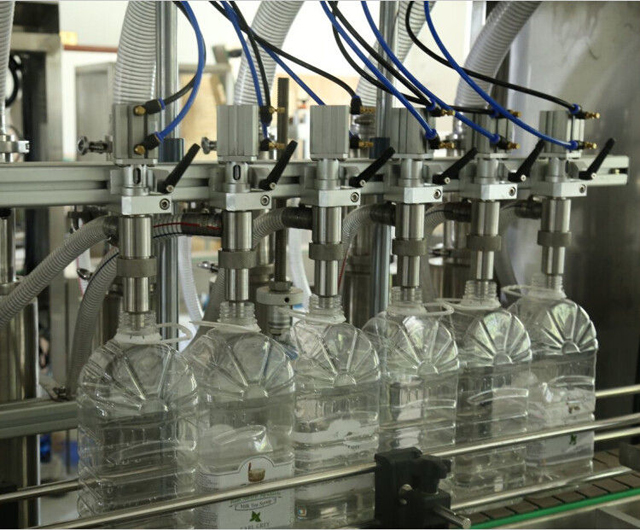

An optional diving nozzle mechanism plunges the filling nozzles into the container for increased
production speeds without splashing, and we can produce the different filing nozzles for your different
speed requirement. Filling volumes are programmable and can be adjusted from the touch screen.
Features of engine oil filling machine with servor motor controlling system:

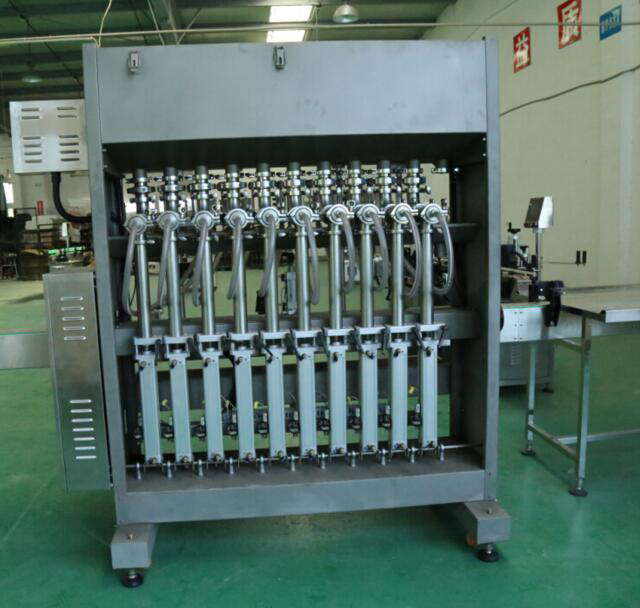

25_30_bpm_piston_filling_machine_with_6_to_12_filling_nozzle

It is applicable to different shaped bottles and plastic bottles: plastic,glass bottle and mould bottle.The bottle - in and bottle- out has specialized structure. It doesn't drop bottles or nip  bottles.
Suitable filling material.This machine adopts piston pump, which is suitable for all kind materials, with
highfilling speed and high filling precision.For filling corrosive,  the  position pump will be made by
silicon rubber, Teflon, ceramics and  other corrosion resistance materials.
Controlling system. The machine adopts full-auto PLC and human-computer touch screen control system. For different volumes adjustment, we set several procedures, mode 1, mode 2, mode
Operators do not need too much complicated adjustments, the filling machine can switch between
the three models easily.
Different volume adjustment.By adjusting the piston pump, it also can fill all the liquid from  500-2500ml.
Bottle position correct device.To ensure the bottles and filling nozzles are in the correct position, we
add a special bottles position device to make the whole filling process smooth and stable. No bottle
no filling.

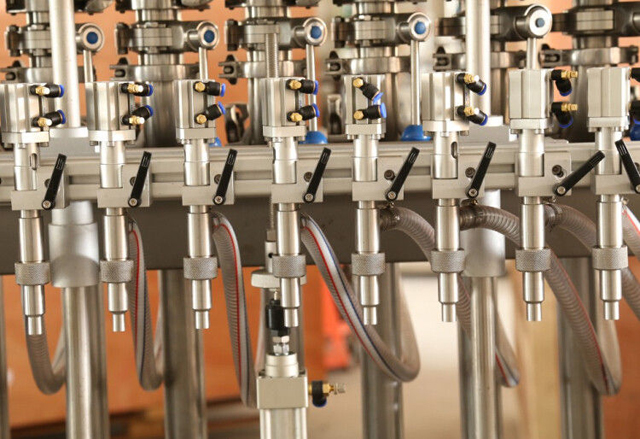

Filling nozzles.The filling nozzles are specialized made: anti drop. Also,  the filling nozzles will come into the bottle bottom, and moving up slowly when filling.
Cleaning.The pump uses quick-fit removal Structure.It is easy cleaning and disinfection.
Specification of engine oil filling machine

high_viscosity_plastic_edible_oil_bottle_filling_machine_liq

Filling material

Oil, liquid, sticky liquid

Filling nozzles

2/4/6/8 can be customized

Metering system

Piston pump

Filling speed

Customized

Filling capacity

500-5000ml

Filling precision

≤± 0.5%

Air consumption

0.6-0.8MPa

Power

Customized

Application bottle

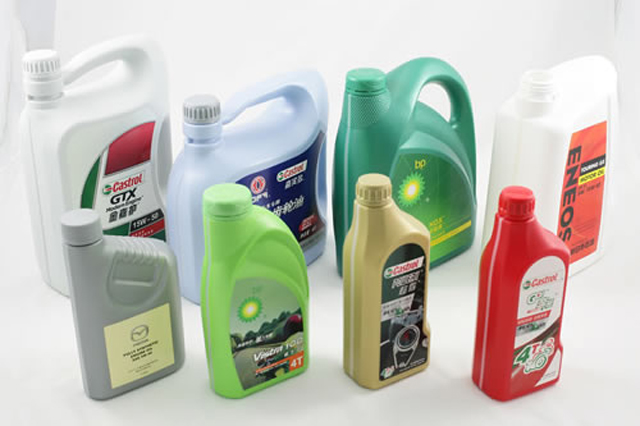

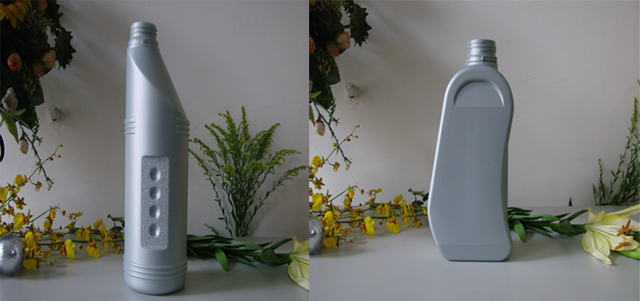

Circular, round, flat, square, etc glass and plastic bottle

Functions

filling nozzle from linear filler.jpg

  • A high yield of cap-fastening
  • Turntable fastness, replace simply and convenient.
  • Come in and out bottle is easy, frequency conversion adjusting speed.
  • Operate easily. It is easy maintenance.
  • Concatenation work, automatism production,
  • Saving time, improve efficiency.
  • The whole machine is designed to meet GMP standard.


Main components parts

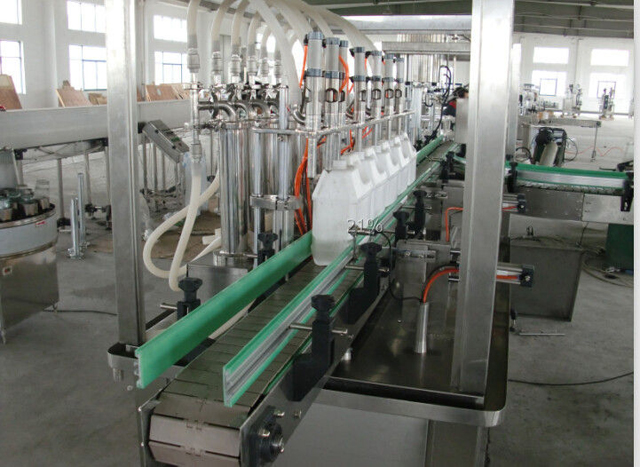

lateral pictures for engine oil filling line.jpg

back of filling machinery.jpg

N0.

Name

Brand

1

PLC control system

Mitsubishi(Japan)

2

driver

KINCO (Germany)

3

Frequency changers

Schneider(France)

4

Photo electricity

Omron(Japan)

5

Photoelectric sensor

FOTEK(Taiwan)

6

Touches screen

Eview(Taiwan)

7

Motor

WANXIN(Taiwan)

8

Bearings

Japan

9

Stainless steel material

304SS

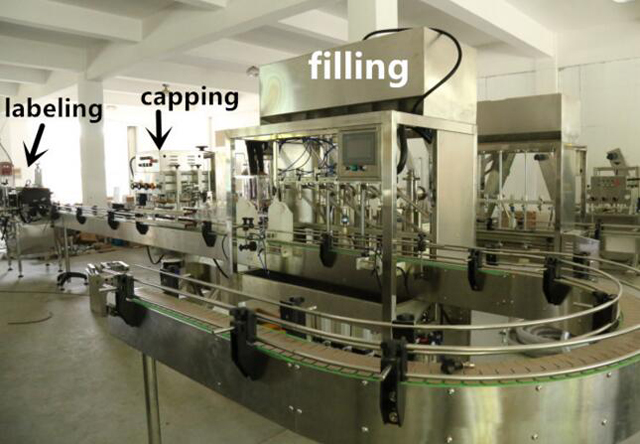

Filling-capping-labeling line for automated equipment

filling capping labeling line.jpg

After-sales service of filling capping machine for cosmetic&pharma liquid



Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.



ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
