leakage detecting machines

In-line plastic bottle leak detector full automatic containers caps leakage detecting equipment plastic bottles leak tester

In-line plastic bottle leak detector full automatic containers caps leakage detecting equipment plastic bottles leak tester

This Bottle Leak Detector Machine is designed for plastic bottles/ containers leak testing.

Special application for plastic bottles makers, soft drinks, motor oil, lubricants, detergents

and chemical industries to ensure bottle quality before liquid filling.

bottles detector.jpg

Main characteristics

1, Use the latest American technology. high precision and reliability
2, Germany Siemens programmable contrller. HIM operation, stale, durable and high response.
3, Testing head and conveyor lifting structure in double-guiding bars. It is easy to be adjusted precisionly and ensureing the parallelism and perpendicularity.
4, The detecting speed is in international standard. It can reach upto 42000 bottles per hour.
5, PH series can provide various features according to each customer's needs. Customized

design is available.
6, It can be detected by manual operation or connected with the production line to realize

the online leak detecting automatically.
7, High performance

bottles detector.jpg

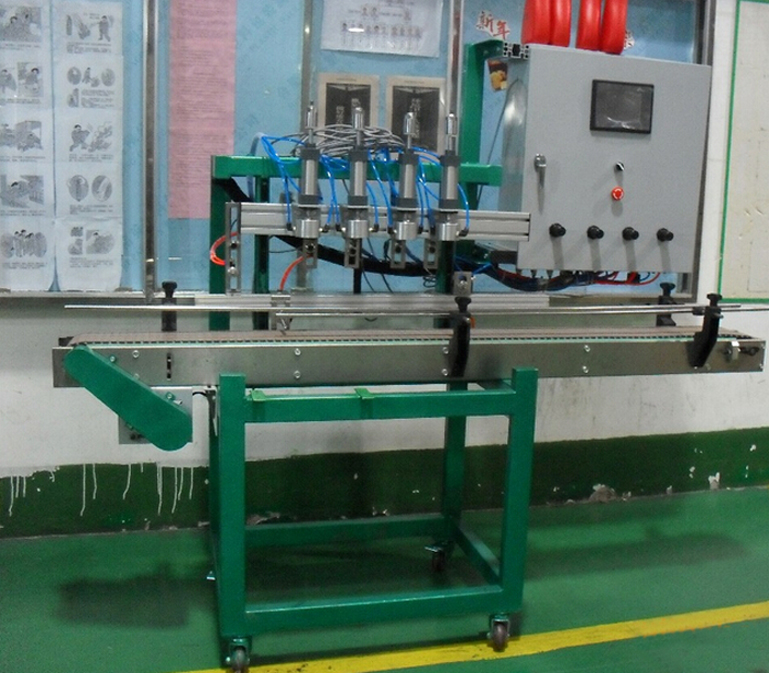

Parameter of containers leakage detecting equipment model YX-BL04

bottles detector.jpg





Model YX-BL04
Stations PS 4
Driving Motor W 180
Detecting speed 0.25L bot./hr 3200
0.5L bot./hr 2600
1L bot./hr 2200
5L bot./hr 1600
10L bot./hr 860
20L bot./hr 7000
30L bot./hr 610
Conveyor size M 1.55*0.85
Air Pressure Mpa/cm2 4
Total
Power Consumption
W 400
Average
Power Consumption
W 120
Net Weight Kg 110
Gross Weight Kg 140
Product Size M L*W*H 1.6*1.0*1.8
Packing Size CBM 2.88

Brands of part constituting leakage detecting equipment

bottles detector.jpg

Touch screen controlling system leakage detecting machines

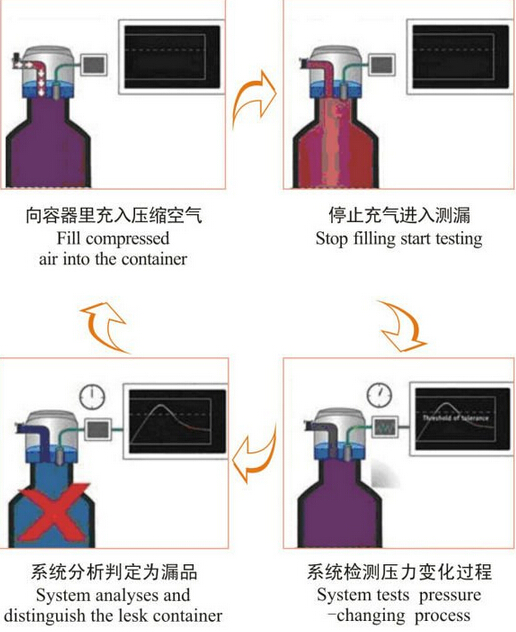

illustration for bottle leakage detecting machines.jpg

PARTS

Brand

Producing Area



Baroceptor

MOTO

America



PLC

SIEMENS

Germany



5.7 inch touch screen

WEINVIEW

Taiwan



Air valve

SMC

Japan



Transducer

LG

Korea



Power Supply

MeanWell

Taiwan



Photoelectricity

Omron

Japan




bottles in various kinds.jpg

various kinds of bottles after leakage detecting

Wooden case packaging for leakage detecting equipment model YX-BL04

packaging wooden case for vertical machine.jpg



After-sales service for leakage detector equipment automatic linear leak tester :

container loading picture for wooden case.jpg

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible . The cost should be in your account.(as above).

PENGLAI INDUSTRIAL CORPORATION LIMITED
