liquid filling machine

filling sealing machine for fruit juice ice lolly yogurt soymilk liquid filler sealer equipment for beverage drinks

filling sealing machine for fruit juice ice lolly yogurt soymilk liquid filler sealer equipment for beverage drinks

8 filling nozzle juice bag filling and sealing machine for drinking industry food packaging field

Application of stick bags filling sealing machines

►It can filling and sealing any shapes bag(including stand up bag with spout Straw bags).

It suitable for various liquids such as water, fruit juice, ice lolly,yogurt,soymilk,  Japan Tofu,milk,beverage,liquid soap etc.

Features of filling sealing machine bags filler sealer model YX-SYBD08

Full set of the sealing system adopts copper material, the heat conduction modulus is very high, so the sealing is very tight and nice..

The whole machine made by high quality 304 stainless steel.

The pipe which touch the liquid adopts the food grade standard.

The heat sealing blade made by special process, replaced the high temperature tape, so it will save more consumable spare parts after many years using..

8 nozzles,high speed max 3000bags/hour.(different size bag with different speed.)

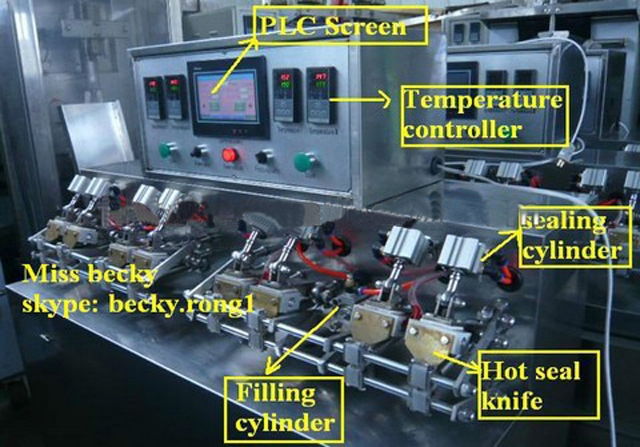

illustration of filling sealing machine.jpg

Touch screen PLC computer control system, very easy operation.

PLC : Japan Omron

Electric component : Japan Omron

Pneumatic component : Taiwan Airtac

Basic parameter of filling sealing machine for fruit juice ice lolly yogurt soymilk liquid filler sealer equipment for beverage drinks:

filling sealing.jpg

Technical data

Model

YX-SYBD08

Bag material

BOPP laminated LDPE, various shapes pre-shaped bags

Film thickness

>0.18mm

Filling volume

50-500ml (Custom)

Filling accuracy

±2%

Power input

220V 50Hz or 220V 60Hz or 110V 60Hz

Power

0.8-1.6 Kw

Air Pressure

0.5-0.8 Mpa

Air Consumption

0.25-0.50 m3/min

Packing rate

2600 bags/hr

Filling nozzles

8

Workstation

2

Net weight

240 kg

Gross weight

300 Kg

Overall dimension(L×W×H)

1200×800×1200mm3

Packaging dimension(L×W×H)

1300×700×1400 mm3

































Machines filling sealing for juice milk bags in factory:

filling sealing machine semi automatic.jpg

Spout bags filling sealing machines.jpg

packing for juice filling sealing before wooden case.jpg

Spout bags for filling sealing machine:


After-sales Service for PENGLAI Mixing machines

wooden case packing for filling sealing machine.jpg

filling sealing machines.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine

and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account

and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.

The cost should be in your account.(as above).
