Oven drying equipments

hot air circulation drying oven with steam or electric heating bottles drying equipment after washing water drier machinery

hot air circulation drying oven with steam or electric heating bottles drying equipment after washing water drier machinery

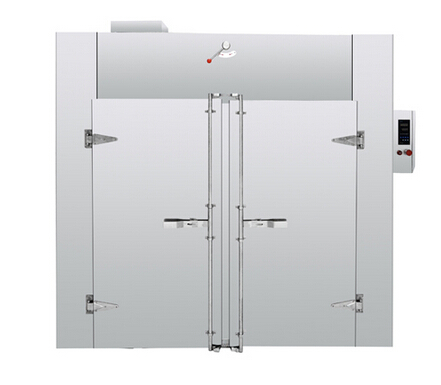

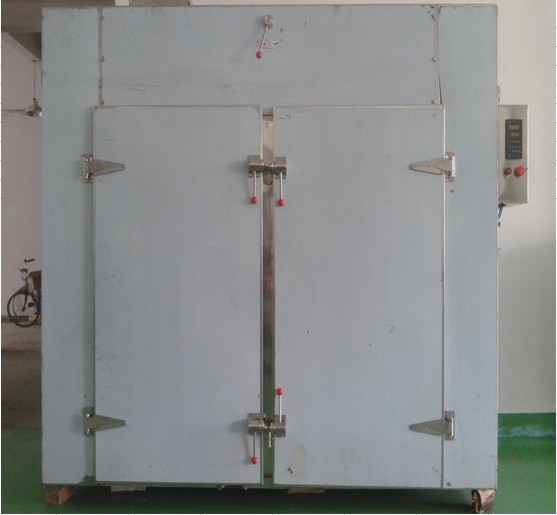

Hot Air Circulating Dry Oven industrial air circulation drying equipment

Explanation on the oven drying machines:

over drying system accessory equipment.jpg
1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2.Drying temperature: steam heating 50-130 °C , Max.140 °C .
3.Electricity and far infrared:50-300 °C .Automatic control system and computer control system on request.
4.Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5.For CT-C-I, electric heated, rated power consumption:15Kw, real consumption : 5-8Kw.
6.The special requirements should be indicated at the time of order.
7.Please consult as for any special requirements.
8.For operation temperature of over 140 °C or less than 60 °C , please indicate when order.
9.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.

YX series hot air circulation drying oven uses a  low noise and high temperature proof axial flow blower and an automatic temperature control system. The  whole circulation system is the fully enclosed to make  that the heat efficiency of the drying oven increases  from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can  reach 50%. The successful design of CT-Chot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both  at home and abroad. In order to save a large quantity of the energy in out country, in order to enhance the economic results of the enterprises, in 1990, the medicine management bureau of the State issued the industry standard and the uniform type is YX series

.

Applications:
    This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc

Features:

over drying system accessory equipment.jpg
    Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.

Field standard model

Drying capacity for each batch
(Kg)

Equipped power
(KW)

Steam consumption
 (Kg/h)

Radiator area
(m2)

Air volume
(m3/h)

Temperature difference between up and low
(°C)

Equipped baking pan
(PC)

Overall dimenstion
 (LxWxH)
mm

YX-5-C

25

5

5

5

3400

±2

8

1400×1200×1600

 YX-14-C

50

0.45

10

10

3400

±2

24

1400×1200×2000

YX-14-C

100

0.45

18

20

3450

±2

48

2300×1200×2000

YX-27-C

200

0.9

36

40

6900

±2

96

2300×2200×2000

                        YX-41-C

300

1.35

54

80

10350

±2

144

2300×3220×2000

YX-54-C

400

1.8

72

100

13800

±2

192

4450×2200×2000

YX-25-A

120

High efficiency ,high temperature,far infrared, sterilization drying oven,the power is designed as the temperature designed.

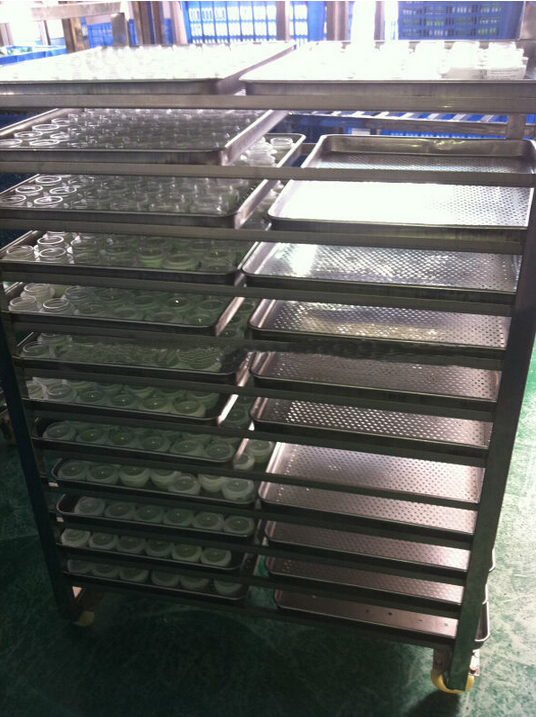

The baking cart:

You can put the bottle on the baking cart, the open part id faced down, and the botten is up.

bottles for drying.jpg

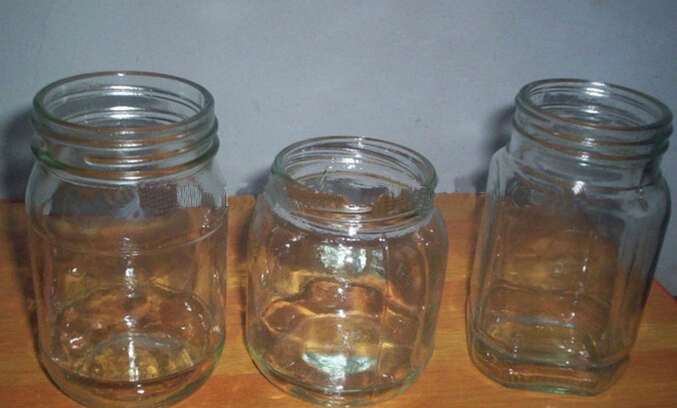

The baking bottle:

The bottle can be varies but not the plastic bottle, for it is very easy to be melting when in a high temperature condition.

bottles for drying.jpg



Packaging in crate for Circulating Hot Air Drying oven

packaging for oven.jpg

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also

training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as
